SA Power Networks’ IT Offices
Project Details:
Lightlogix was engaged by THG Electrical to create a complex, multi-level lighting control system that utilised DALI addressability and DyNet communication technology for the South Australian Power Networks IT Offices. The clever use of DALI allowed for precise, granular control of the lights, while the DyNet layer enabled communication across the lighting system. The end result was a highly flexible, efficient, and customisable lighting system that could be tailored to the specific needs of the office.

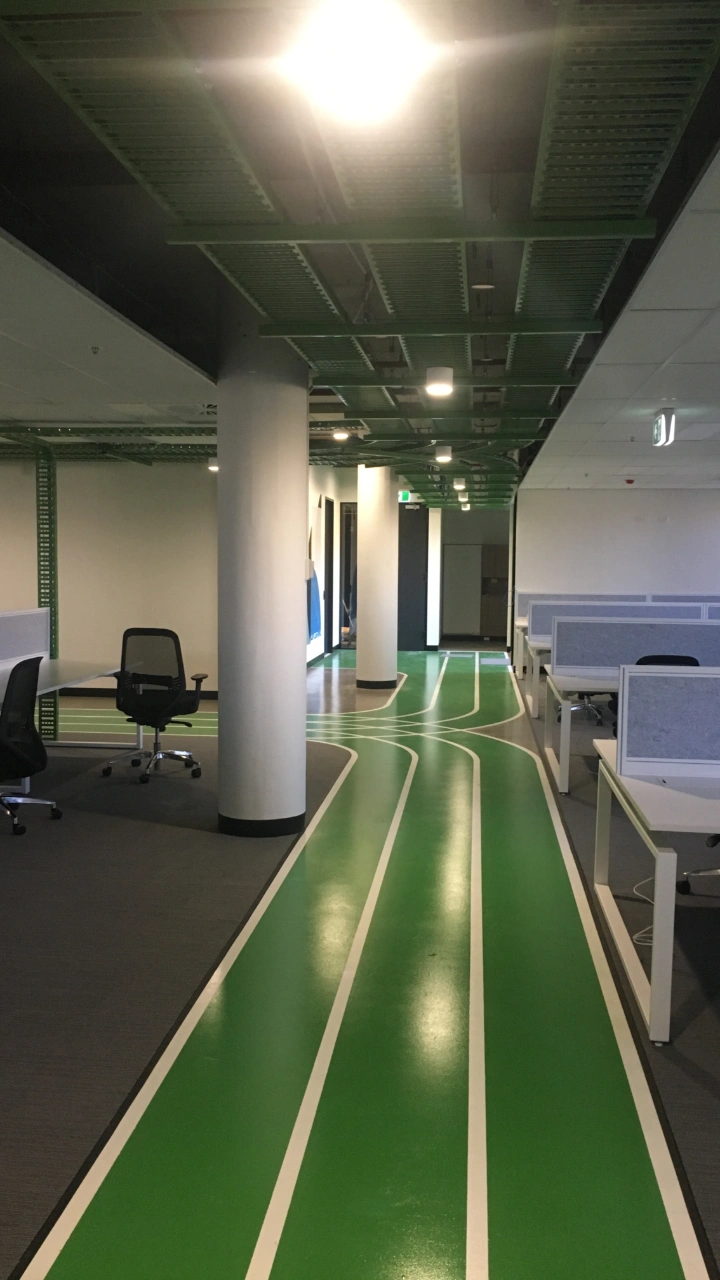

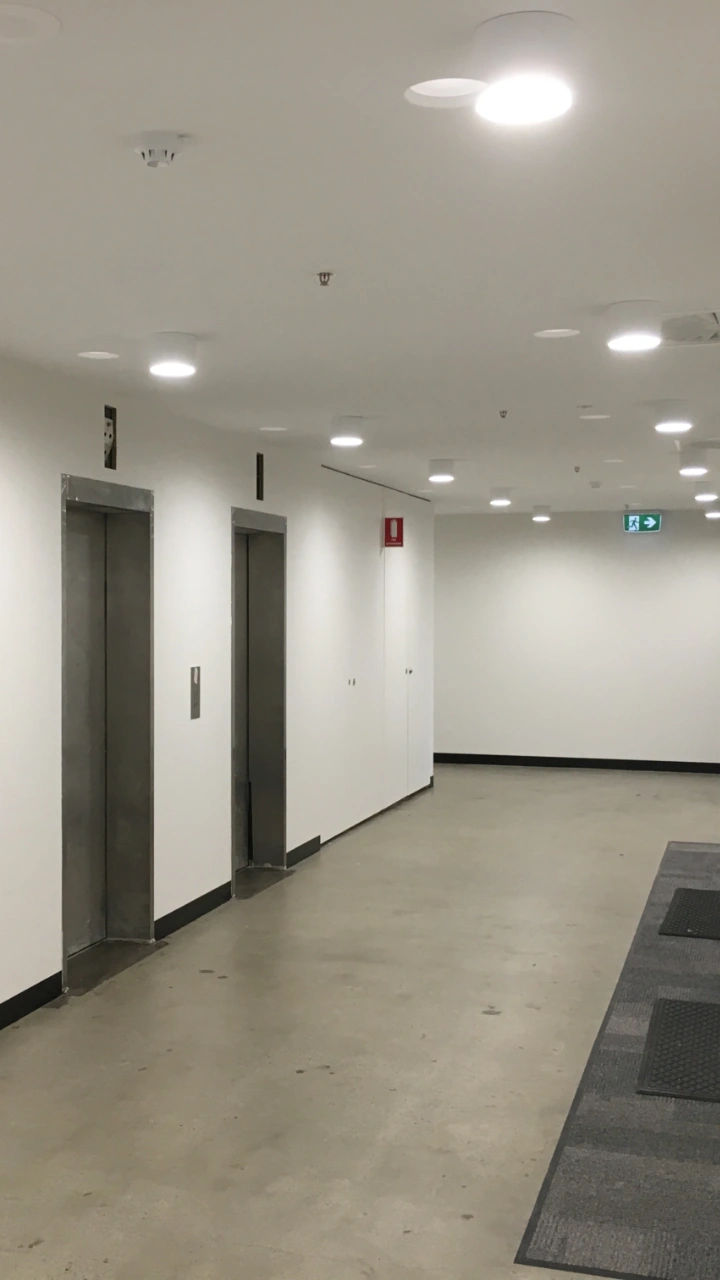

Lightlogix leveraged advanced lighting strategies, utilising occupancy detection to optimise safety, comfort, and energy efficiency in the SAPN IT office. The automated lighting system provides seamless illumination of walkways, ensuring a safe and comfortable environment for occupants, even when the office is unoccupied. This solution represents a significant enhancement in safety, comfort, and energy efficiency, and demonstrates Lightlogix‘s commitment to providing innovative, customised solutions.

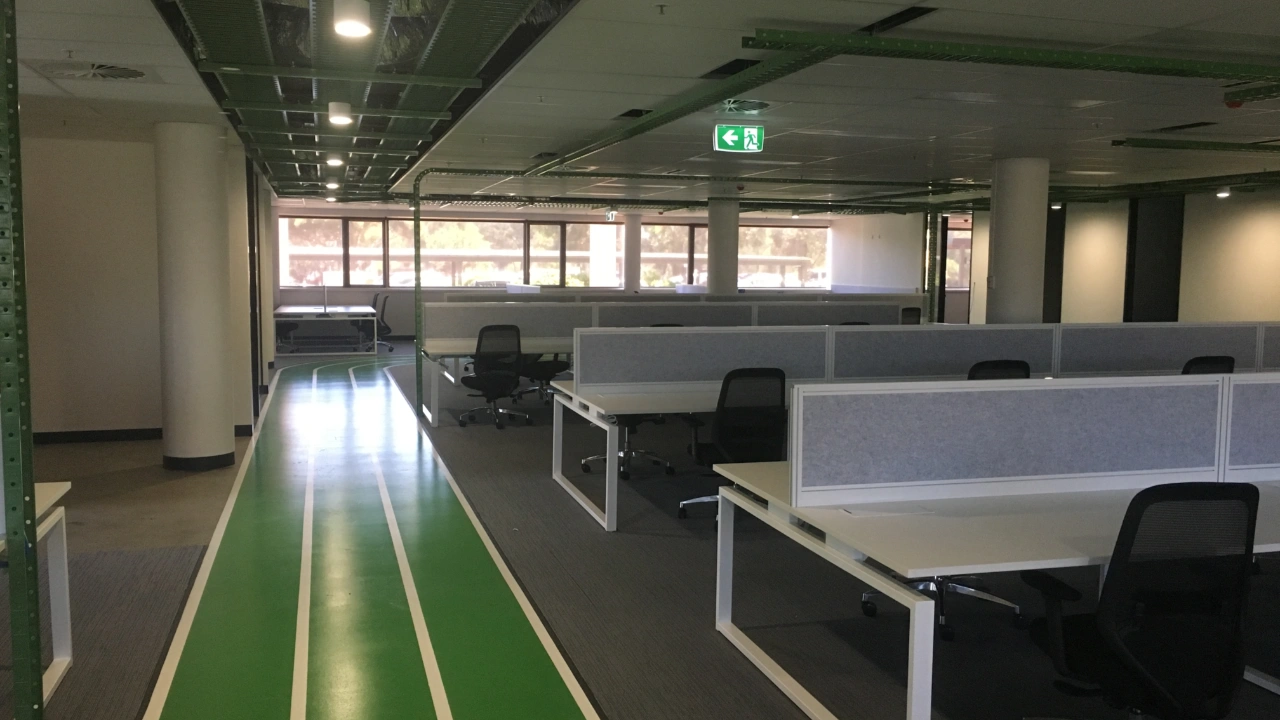

The system included an opto-isolated DyNet2 Lighting Control Network connecting the Distribution Boards on Ground and Level 1. This network formed a powerful Distributed Intelligence control system, which was programmed with pre-defined behaviours for controlling the lighting in each area of the building areas. The system can distinguish between Office-Hours and After-Hours, and when the workday ends, the lighting in the large open office areas will pulse gently to indicate that it’s about to fade to off. If employees need to stay late, they can use the lighting control panel in their office to request an extension to the lighting, after which the pulse and fade-off will resume.
Client:
THG Electrical
Completion Date:
December 2017
Location:
Keswick, South Australia
Category:
Office and Education
PDEG
Ethernet Gateway
Flexible Ethernet integration
The Philips Dynalite PDEG provides a multipurpose Ethernet connection to a Philips lighting control system. It supports access to the lighting system via a dedicated Philips app as well as providing a web interface delivering access to the inbuilt timeclock and schedule editor functions. It provides bridging functionality between Ethernet backbone and the DyNet fieldbus devices.
- Large storage capacity - The device stores large project files internally, which apps use to automatically configure their settings. This saves configuration time and ensures accuracy for phone and tablet control.
- Built-in web server - Allows the user to edit and check system settings via the Network Hardware Checker and System Roll Call tools.
- No technical skills needed - Inbuilt timeclock and schedule manager allow the user to manage operation and task scheduling without advanced technical knowledge.
- Powerful custom task engine - Allows users or third-party systems to run macros, such as ‘After Hours’, ‘Shut Down’, ‘Welcome’ and more.
- Advanced interoperability - Supports management of Philips Dynalite and Philips PoE fittings on a single system.
PDEB
Ethernet Bridge
Feature focused cost-effective DyNet to Ethernet Bridge
The Philips Dynalite PDEB provides a cost-effective Ethernet connection to a Philips lighting control system. It provides bridging functionality between an Ethernet backbone and the DyNet fieldbus devices. The PDEB enables the implementation of a trunk and spur topology on large project sites, with the bridge providing a high-speed backbone coupled to many lower speed spurs.
- Cost-effective - The device provides an economical way to connect the RS-485 DyNet network to an Ethernet network.
- Internal controls - Programmable logic controller capable of comprehensive conditional and sequential logic and arithmetic function processing, packet filtering and DyNet to DyNet 2 translation.
- Flexible mounting solution - DIN-rail mountable, designed to be installed into a distribution board or other electrical enclosure.
PADPA
Antumbra Display
Contemporary button panel with LCD display

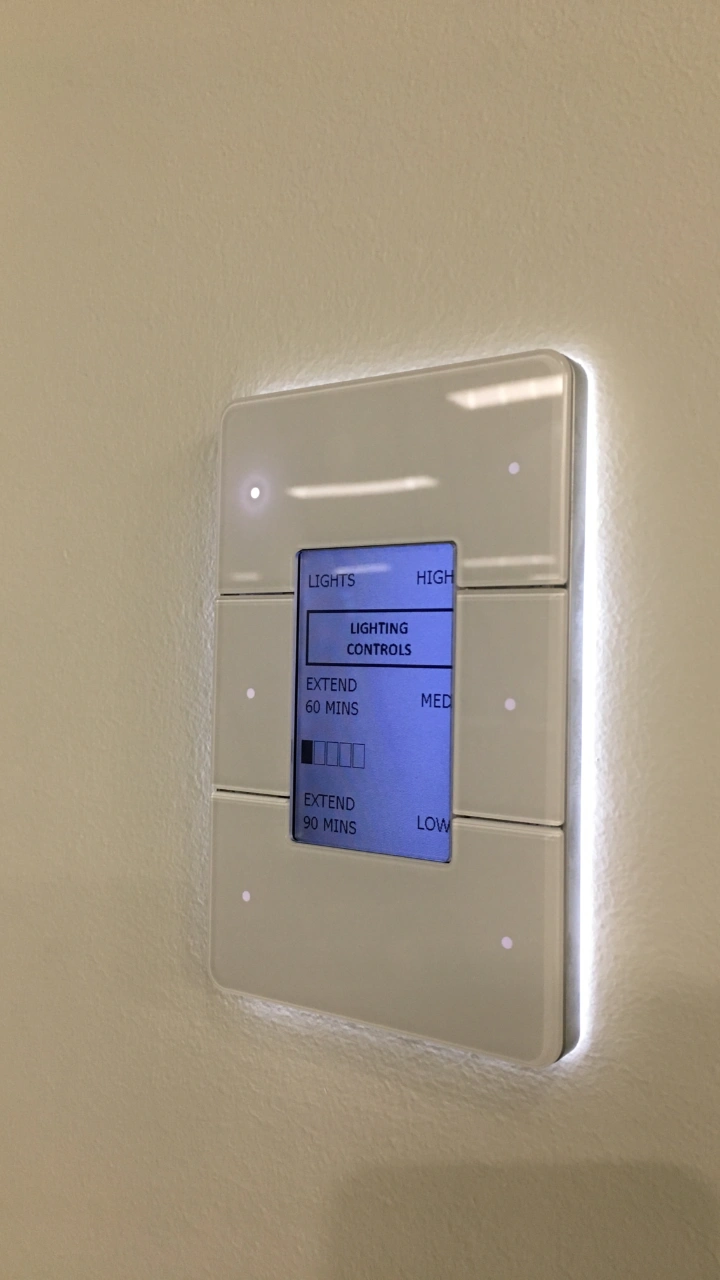

The Philips AntumbraDisplay user interface provides a central LCD display to present multiple pages of functions and system information. It incorporates the latest in field effect technology. The contemporary design features a number of button configurations, with each button capable of local or site-wide control functions. The PADPA range is suitable for, but not limited to, North American, South American, Australian and New Zealand markets.
- Field effect technology - The user interface detects an approaching user and 'wakes up', initiating a wall-wash lighting effect to encourage interaction.
- Supplied as two components - The Application Module contains buttons, rim, base and mounting plate, which can be mixed and matched to suit décor. The Communication Module contains all of the logical and network functions and is pre-programmed off-site, allowing commissioning to commence prior to finish options being finalized.
- Hidden sensory inputs - An internal light sensor measures ambient light and adjusts lightwash effect accordingly. A built-in temperature sensor automatically adjusts air conditioning when integrated into the system.
- Multiple language and icon labeling - Display labeling language choices include English, Chinese and Arabic. A library of common icons transcends language barriers, which is particularly useful in hospitality applications. Button labeling not available.
- Central LCD - Allows for display of system information including temperature, time, channel level and current scene. Button function can change when navigating between up to 16 pages.
- Selection of rim and fascia options - Allows décor matching to suit any environment.
DDNG485
RS-485/DMX512 Gateway
Flexible network communications gateway
The Philips Dynalite DDNG485 is a flexible network communications bridge designed for RS-485 networks. The two opto-isolated RS-485 ports enable the DDNG485 to implement a trunk and spur topology on large project sites, with the bridge providing a high-speed backbone opto-coupled to many lower speed spurs.
- Route DyNet to third-party systems – Such as audio-visual, Modbus meters, and building automation systems, providing an integrated approach to total building control and energy management.
- DMX512 mode – Transmit or receive up to 512 channels of DMX with automatic DyNet conversion and task triggering. Provides temporary control of house lights from the DMX console in an auditorium scenario.
- Electrical fault isolation – Faults can be isolated to individual network spurs.
- Internal controls – Programmable logic controller capable of comprehensive conditional and sequential logic and arithmetic function processing, packet filtering, and DyNet to DyNet 2 translation.
- Flexible mounting solution – DIN rail mountable, designed to be installed into a distribution board or other electrical enclosure.
PAxBPA
Antumbra Button
Contemporary two, four, or six-button panel with light-wash effect
The Philips AntumbraButton user interface features a sleek, contemporary design and incorporates the latest in field effect technology. Each easy-to-press mechanical button can be customized with text or icons and programmed to perform a wide variety of local and site-wide control functions. The PA2BPA, PA4BPA, and PA6BPA are suitable for but not limited to North American, South American, Australian and New Zealand markets.
- Field effect technology – The user interface detects an approaching user and ‘wakes up’, initiating a wall-wash lighting effect to encourage interaction.
- Supplied as two components – The Application Module contains buttons, rim, base and mounting plate, which can be mixed and matched to suit décor. The Communication Module (DACM) contains logical and network functions and can be pre-programmed off-site, allowing commissioning to commence prior to finalizing rim and button options.
- Hidden sensory inputs – An internal light sensor measures ambient light and adjusts lightwash effect accordingly. A built-in temperature sensor automatically adjusts air conditioning when integrated into the system.
- Multiple language and icon labeling – Button labeling language choices include English, Chinese and Arabic. A library of common icons transcends language barriers, which is particularly useful in hospitality applications.
- Décor-matching options – Buttons and rims are available in a range of attractive polycarbonate and metallic finishes.
- 64-channel DMX Tx support – Can be factory-set to DMX instead of DyNet, to communicate directly with DMX fixtures
DDBC320-DALI
DALI-2 Driver Controller
The Philips Dynalite DDBC320-DALI is a three-universe controller, ideal for large-scale projects looking for a powerful all-in-one DALI control solution.
This controller operates seamlessly with all other Dynalite controllers, sensors, user interfaces and head-end software, and includes a secured Ethernet port for network communication.
- Single-master solution – Compatible with a range of DALI fittings and devices including DALI fluorescent drivers, DALI electronic low voltage transformers, DALI LED fixtures, DALI emergency lighting fixtures and Philips Dynalite DALI sensors and user interfaces.
- Compatible with DALI 209 drivers – Provides control of tunable white and RGBWAF luminaires.
- Driver standby power elimination – Internal switched relay automatically isolates each line's power circuit when all drivers are dimmed to 0%.
- Independent line enumeration – Commission each DALI line individually without affecting other lines or controller functionality.
- Auto-enumeration – Provides automatic enumeration of DALI drivers when powered on and enables self-repair of the network system if a DALI driver fails.
- Silent enumeration – Constantly checks the DALI bus for changes, automatically enumerating individual driver replacements with no disruption to lighting performance.
- UL924 Input – Integrates seamlessly with compatible emergency systems.
- Fully scalable network solution – Direct mapping from DALI to the DyNet network protocol eliminates DALI imposed limits, such as maximum group sizes.
- Inbuilt Ethernet port – Directly connecting to a site’s LAN, the device can securely report its status and pass network messages via the Dynalite PDDEG-S*.
- Flexible mounting solution – A DIN-rail mountable device, designed to be installed into the distribution board, supplying power to the controlled lighting circuit.
- Dual functionality – Leverage advantages of a true DALI network solution, whilst still providing access to the full DyNet feature set.
- Integral DALI bus power supply – Removes the need for provision of a separate external power supply and reduces distribution board wiring complexity.
- Driver management tools – Includes lamp and driver status reporting, driver runtime tracking, and emergency test reporting.
- Onboard DALI test function – Use each DALI line's test button to turn all connected drivers on/off, or flash on/off for a 5-minute test window, without the need for software or additional input devices.
- Onboard line override switch – Set each DALI line's connected drivers to 100% or 0% brightness without the need for software or additional input devices.
DUS360CR
Multifunction Sensor
Low profile recessed 360° ceiling sensor
The Philips Dynalite DUS360CR is a recess mountable 360 degree multifunction sensor that combines motion detection (PIR), infrared remote control reception (IR) and ambient light level detection (PE) into one device in applications such as offices, lecture theaters and homes.
- Motion detection feature – Detects the presence or absence of motion and adjusts lights accordingly.
- Segmented click-up bezel - Surrounds the motion sensor element and enables a portion of the sensing field to be masked. This prevents nuisance detection from adjacent doorways or corridors.
- Ambient light level regulation - In applications where it is critical to maintain precise light levels, the PE function reads ambient levels and adjusts artificial light accordingly.
- Infrared receive capability - Manually adjust light levels using a hand-held remote control, via the inbuilt IR receive sensor of the DUS360CR.
- Daylight harvesting mode - Delivers automatic energy savings.
- Suitable for plenum use - UL2043 certified for installation in air-handling plenum spaces.
DUS360CR-D
Multifunction Sensor
Low profile recessed 360° ceiling sensor powered by the DALI network
The Philips Dynalite DUS360CR-D is a recess mountable 360 degree multifunction sensor that combines motion detection (PIR) and ambient light level detection (PE) in one device. The DUS360CR-D is powered and communicates to the networked control system via a DALI bus.
- DALI device – Designed to operate seamlessly with the Philips Dynalite DDBC120-DALI or DDBC320-DALI controller.
- Powered directly by the DALI network – Eliminates the need for additional network field wiring.
- Motion detection feature – Detection of motion within a scanned area triggers a programmed lighting action.
- Segmented click-up bezel – Surrounds the motion sensor element and enables a portion of the sensing field to be masked. This prevents nuisance detection from adjacent doorways or corridors.
- Daylight harvesting mode – Delivers automatic energy savings.
- Ambient light level regulation – In applications where it is critical to maintain precise light, the PE function reads ambient levels and adjusts artificial light levels accordingly.
- Infrared receive capability – Enables sign-on identification to the networked system.
- Corridor hold – Links corridor areas with adjacent rooms so corridor remains lit while occupancy is detected in adjacent rooms.
DUS360CR-DA
Multifunction Sensor
Low profile recessed 360° ceiling sensor
The Philips Dynalite DUS360CR-DA is a recess mountable 360 degree motion sensor that combines motion detection (PIR), infrared remote control reception (IR) and ambient light level detection (PE) into the one device. The Philips Dynalite DUS360CR-DA is a component of the EcoSet system and is a switch-settable sensor with time-out, designed to allow intelligent control of luminaires in combination with the DMRC210DA-RJ12 relay controller.
- Low profile design - Flush-mounted 360 degree ceiling-mount motion detection (PIR) sensor.
- No software set-up - All functionality can be achieved with the built-in dipswitches for area addressing, no-motion time-out and other advanced features.
- Rapid configuration - Up to 31 individual addressing areas of control.
- User-selectable options - No-motion time-out selectable to 30 seconds, 5 minutes, 15 minutes or 30 minutes.
- Corridor hold - Links corridor areas with adjacent rooms so they remain lit while occupancy is detected
- Suitable for plenum use - UL2043 certified for installation in air-handling plenum spaces.
Ethernet Gateway Integrations
- Network Logging
- Astronomical Scheduling
- Web Editable User Functionality
350+ individual channels of Load Control
- Ballast Control (DALI Addressable)
35+ Sensors & User Interfaces
- Dynamic Occupancy Control
- Maintained Illuminance light level control
- Custom Antumbra User Panels
Want To Know More
Contact Us today
