Regis Aged Care – KINGSWOOD
Project Details:

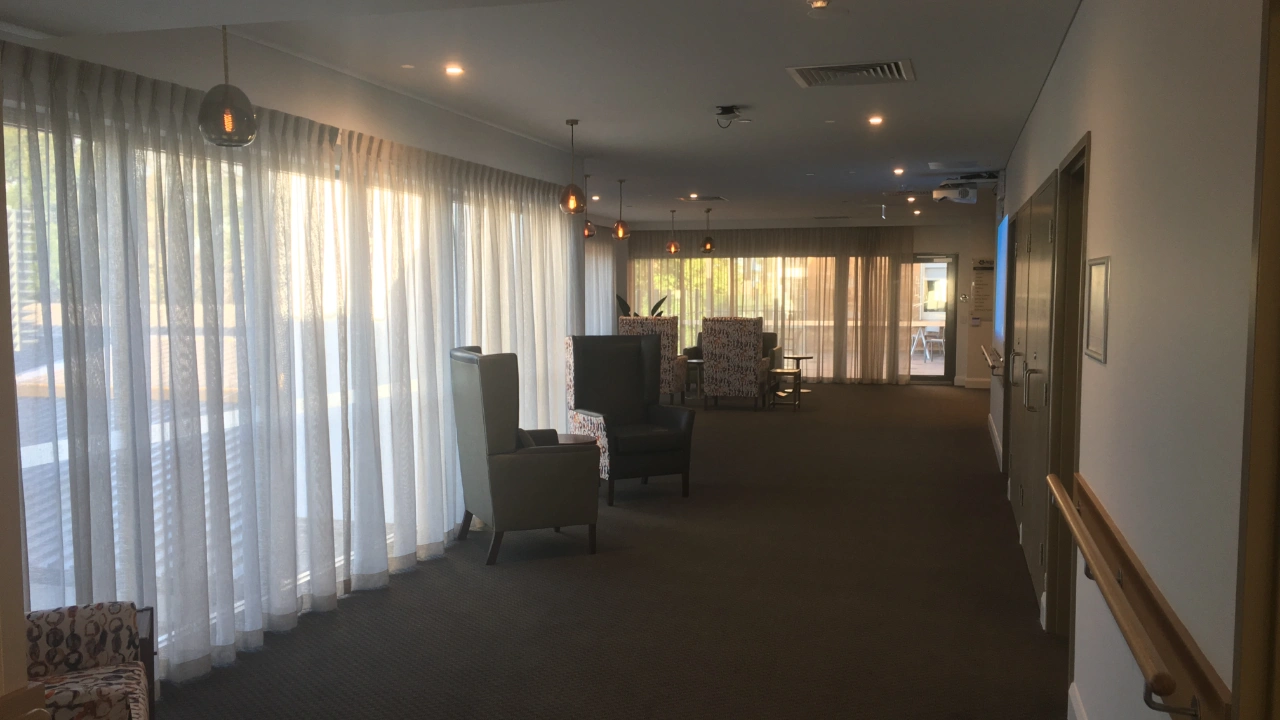

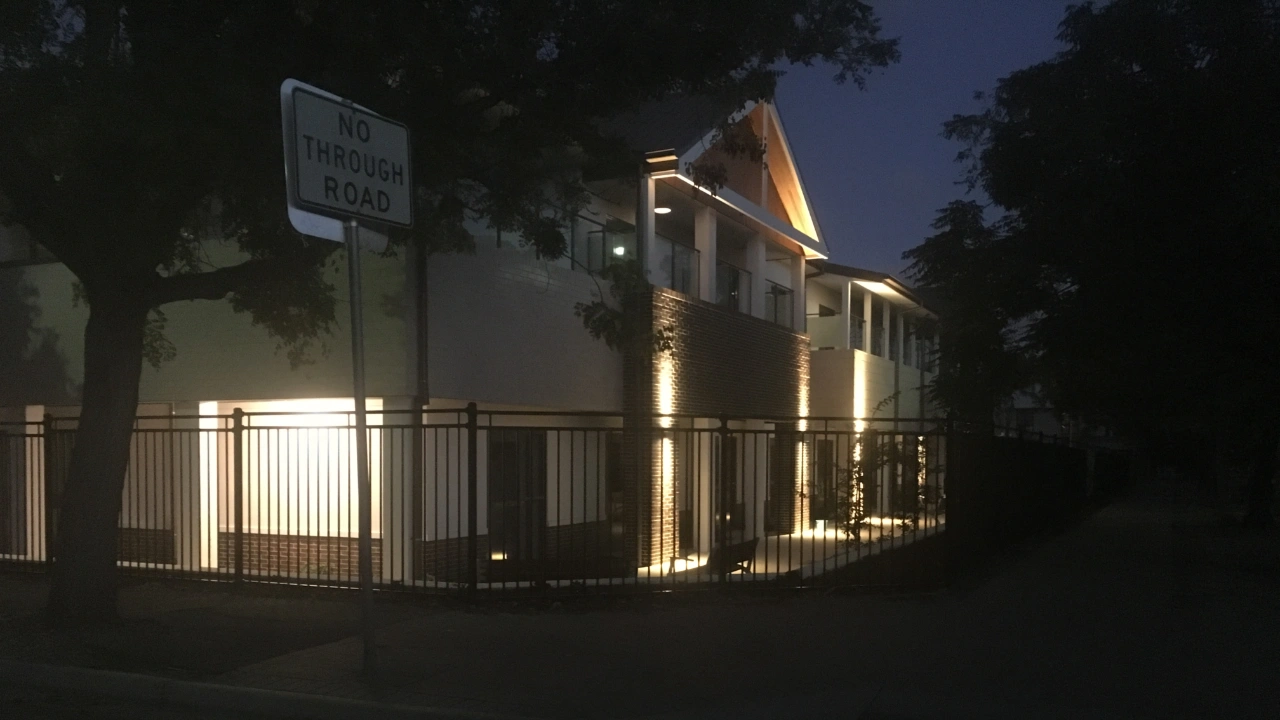

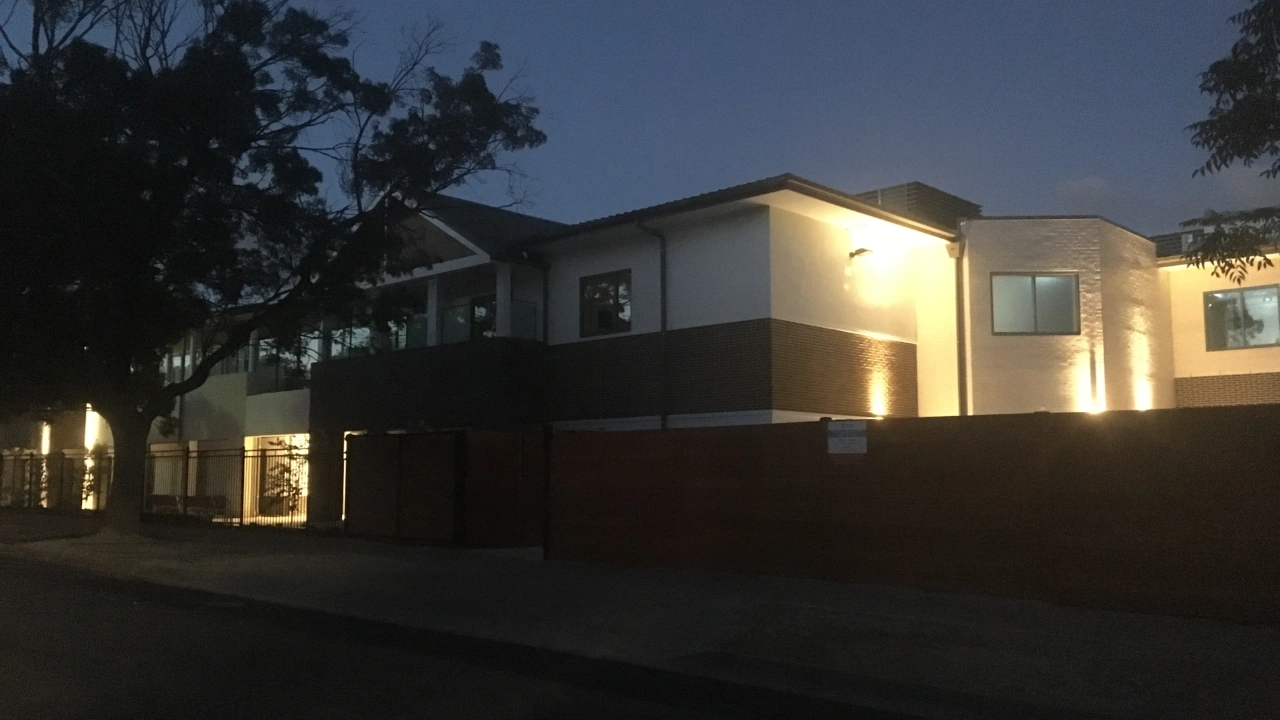

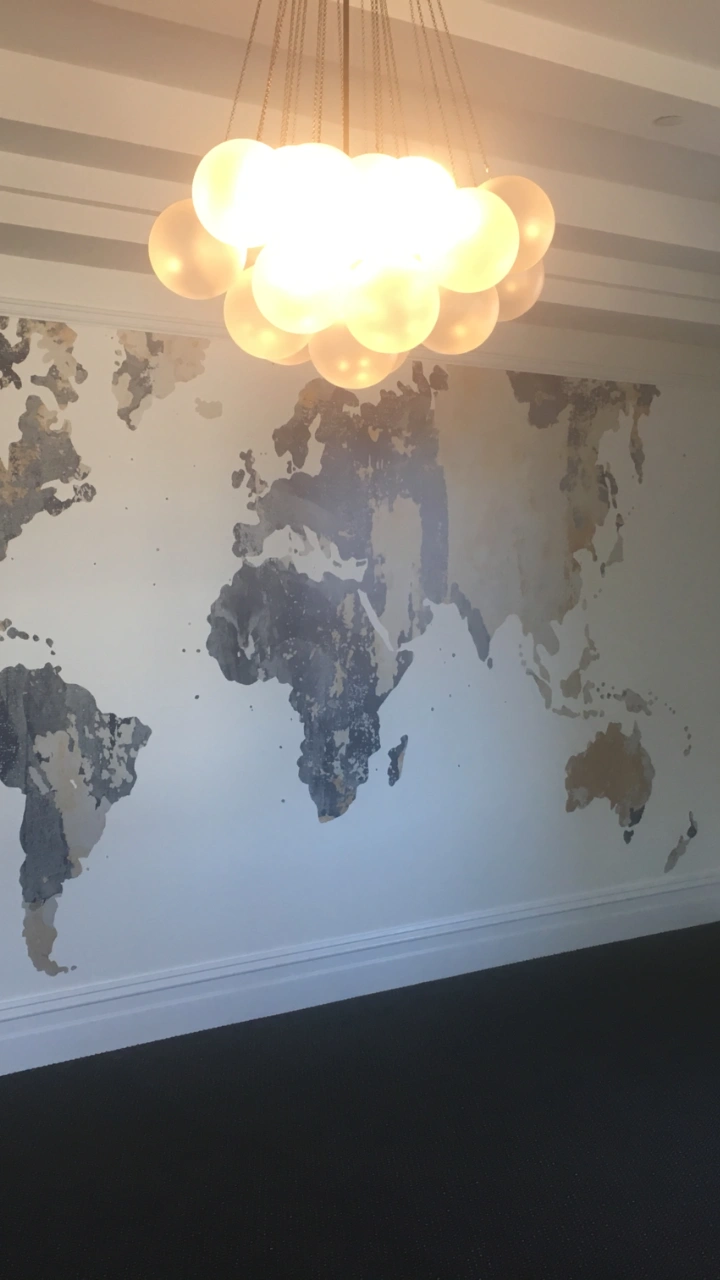

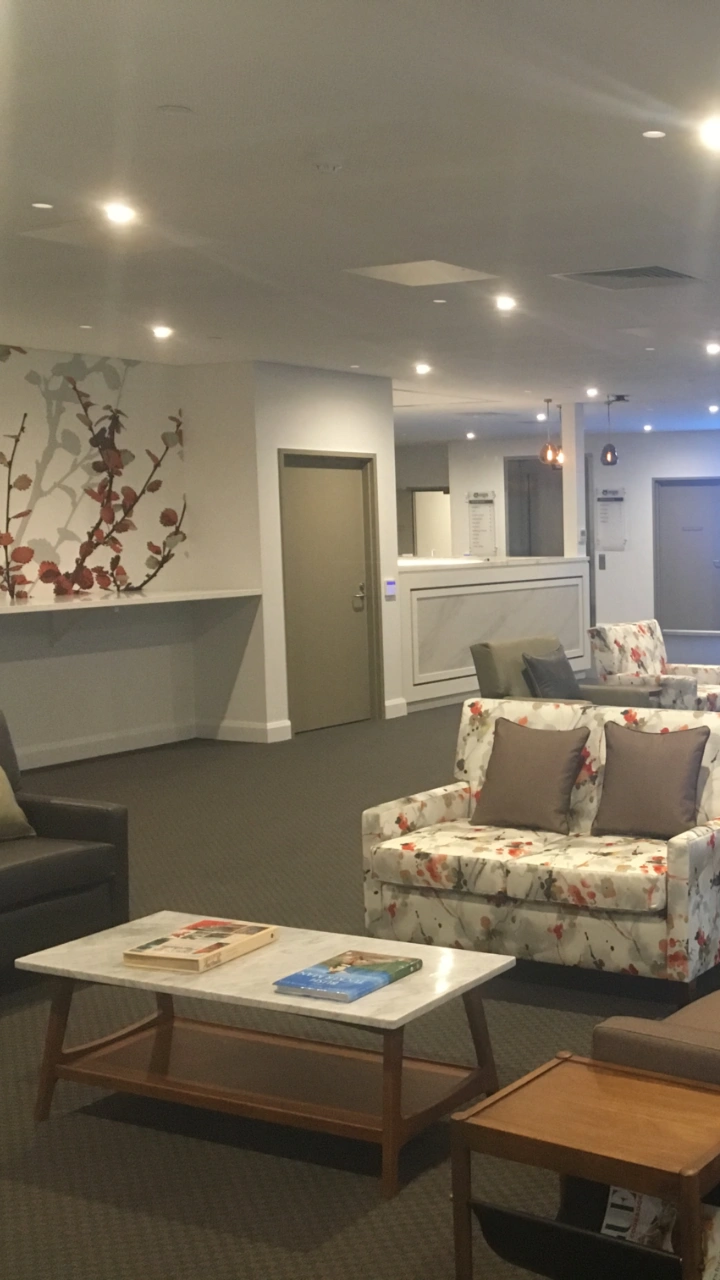

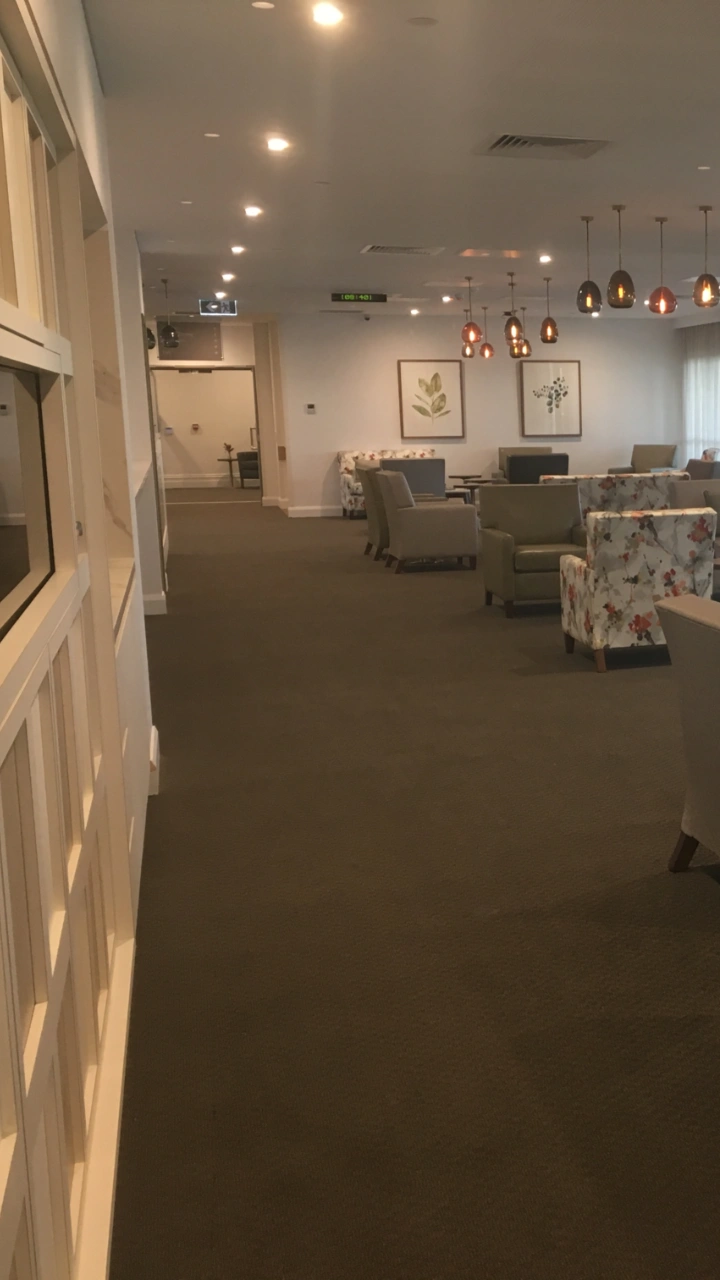

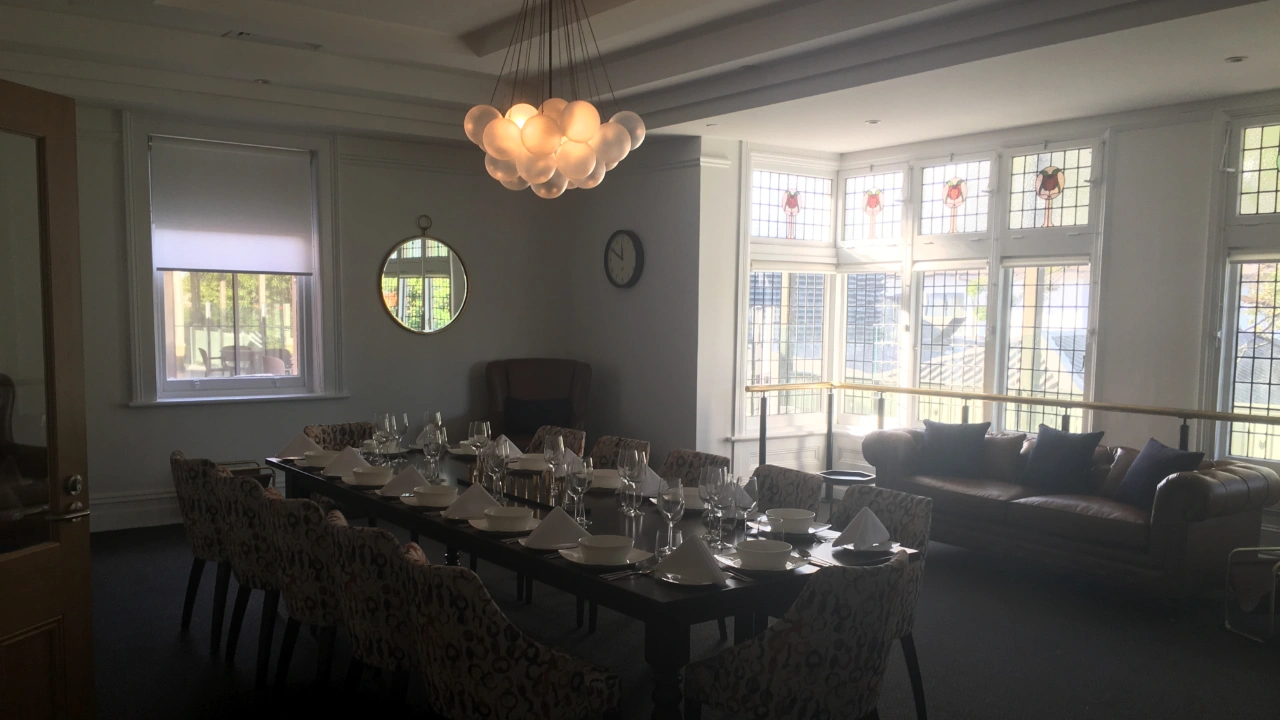

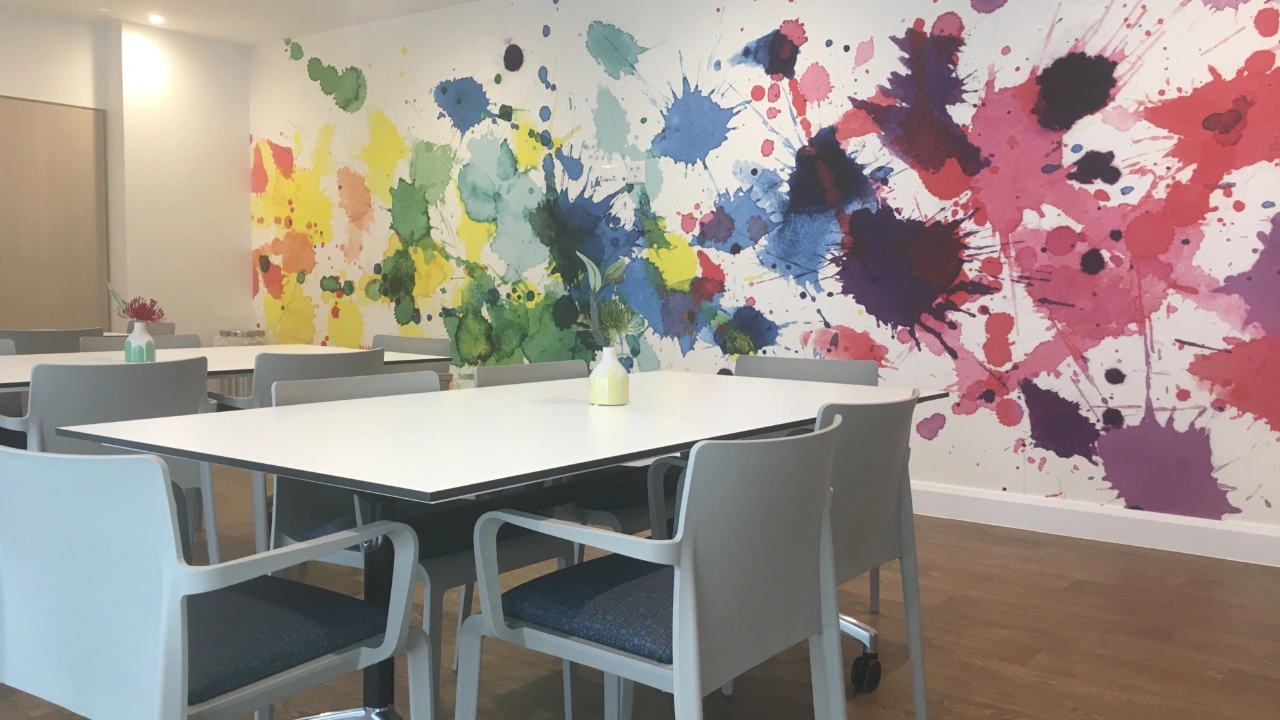

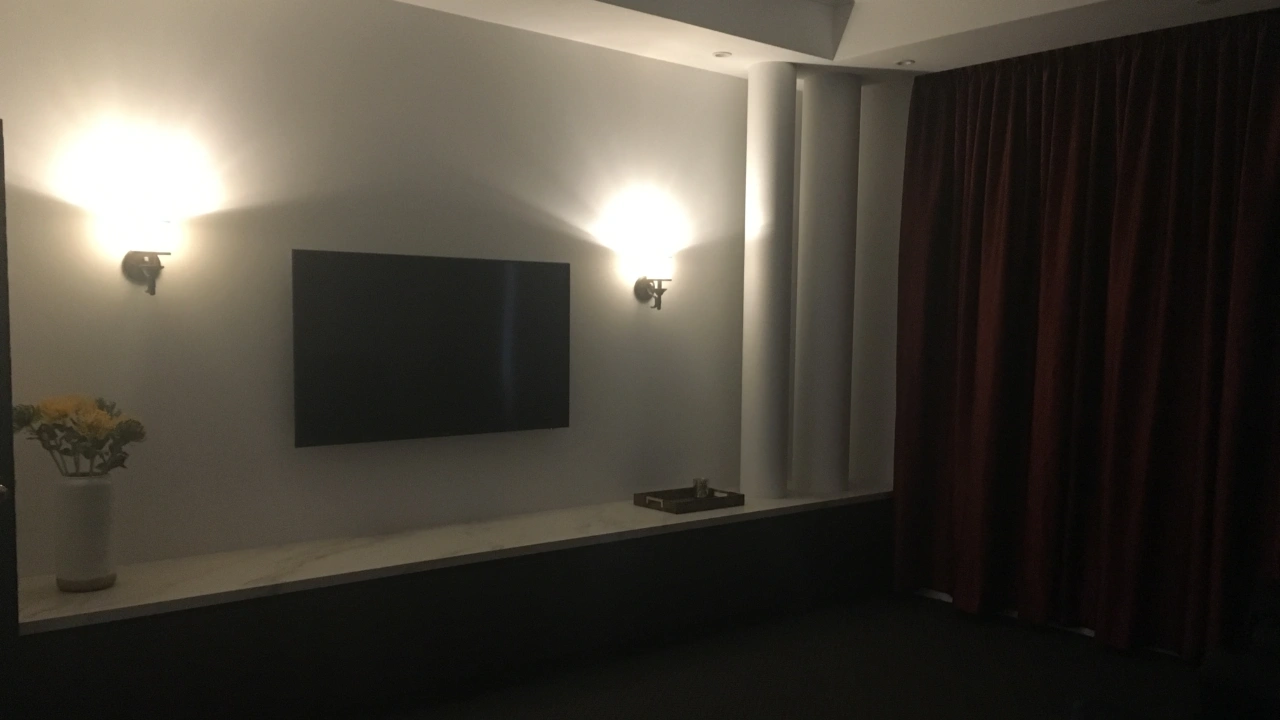

Lightlogix delivered a comprehensive solution for the Regis Aged Care Kingswood Facility, providing design, equipment, programming, and commissioning services for the Philips Dynalite Lighting Control System. The project involved the refurbishment of a heritage-listed building and the construction of a modern, 100-bed aged care facility. The integration of the Dynalite system into the heritage structure while incorporating cutting-edge technology was a challenging yet rewarding task.
Lightlogix‘s system was tailored to offer a high degree of flexibility, allowing for manual, scheduled, and automated lighting control throughout the facility. It utilised presence and absence detection to optimise light levels based on the time of day and the needs of both staff and residents. The goal was to create a safe, comfortable, and inviting environment for all involved, no matter the hour.
The system’s seamless integration of scheduled lighting control and flexible manual control, facilitated by a robust Distributed Intelligence control system, ensures optimal light levels for both staff and residents throughout the day. The preset light levels are configured from password-protected touch screens located at the nurse stations, allowing for gradual transitions between lighting levels to minimise discomfort. This design provides a safe and welcoming environment for all occupants, promoting overall well-being and comfort within the facility.
Client:
Niramar Commercial Electrical
Completion Date:
March 2017
Location:
Kingswood, South Australia
Category:
Aged, Community and Health Care
PDEG
Ethernet Gateway
Flexible Ethernet integration
The Philips Dynalite PDEG provides a multipurpose Ethernet connection to a Philips lighting control system. It supports access to the lighting system via a dedicated Philips app as well as providing a web interface delivering access to the inbuilt timeclock and schedule editor functions. It provides bridging functionality between Ethernet backbone and the DyNet fieldbus devices.
- Large storage capacity - The device stores large project files internally, which apps use to automatically configure their settings. This saves configuration time and ensures accuracy for phone and tablet control.
- Built-in web server - Allows the user to edit and check system settings via the Network Hardware Checker and System Roll Call tools.
- No technical skills needed - Inbuilt timeclock and schedule manager allow the user to manage operation and task scheduling without advanced technical knowledge.
- Powerful custom task engine - Allows users or third-party systems to run macros, such as ‘After Hours’, ‘Shut Down’, ‘Welcome’ and more.
- Advanced interoperability - Supports management of Philips Dynalite and Philips PoE fittings on a single system.
PDEB
Ethernet Bridge
Feature focused cost-effective DyNet to Ethernet Bridge
The Philips Dynalite PDEB provides a cost-effective Ethernet connection to a Philips lighting control system. It provides bridging functionality between an Ethernet backbone and the DyNet fieldbus devices. The PDEB enables the implementation of a trunk and spur topology on large project sites, with the bridge providing a high-speed backbone coupled to many lower speed spurs.
- Cost-effective - The device provides an economical way to connect the RS-485 DyNet network to an Ethernet network.
- Internal controls - Programmable logic controller capable of comprehensive conditional and sequential logic and arithmetic function processing, packet filtering and DyNet to DyNet 2 translation.
- Flexible mounting solution - DIN-rail mountable, designed to be installed into a distribution board or other electrical enclosure.
DDBC300-D
DALI Driver Controller
Cost-effective DALI control solution
The Philips Dynalite DDBC300-D delivers cost-effective control of DALI drivers through provision of three full universes, totaling 192 DALI addresses.
• Compatible with a range of DALI fittings and devices – Including DALI drivers, DALI electronic low voltage transformers and DALI LED fixtures.
• Fully scalable network solution – Direct mapping from DALI to the DyNet network protocol eliminates DALI imposed limits, such as maximum group sizes.
• Flexible mounting solution – A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled lighting circuit.
• Integral DALI bus power supply – Removes the need for provision of a separate external power supply and reduces distribution board wiring complexity.
• Inbuilt diagnostic functionality – Features lamp and driver failure reporting, driver run time tracking for each driver and Device Online/Offline status indication.
Title
Title
DTP170
The DTP170 is a feature rich colour LCD touchscreen that uses vivid graphics and sophisticated on-screen controls which allows the Systems Installer to create visually stunning and easy-to-use pages. Control of various equipment such as lighting, AV, security and HVAC can be easily integrated and controlled from the one location. Objects such as logos, buttons, faders, floor plans and diagnostic icons can be placed on pages and used to perform simple and complex conditional logic macros. Pages are created using Philips Dynalite’s touchscreen editor. JavaScript is fully supported.
Incorporating an innovative clip-on fascia capability, the DTP170 fascia accommodates practically any flat architectural surface medium. That gives you the freedom to choose; stainless steel, stone, glass, laminate, wood, vinyl, ceramic; the options are limitless. Fascia material may be matched with Dynalite’s DR2P Revolution series user control panels for perfect colour coordination.
Full Internet connectivity is supported. The DTP170 is powered from the DyNet network so does not require a mains voltage connection.
DDNG485
RS-485/DMX512 Gateway
Flexible network communications gateway
The Philips Dynalite DDNG485 is a flexible network communications bridge designed for RS-485 networks. The two opto-isolated RS-485 ports enable the DDNG485 to implement a trunk and spur topology on large project sites, with the bridge providing a high-speed backbone opto-coupled to many lower speed spurs.
- Route DyNet to third-party systems – Such as audio-visual, Modbus meters, and building automation systems, providing an integrated approach to total building control and energy management.
- DMX512 mode – Transmit or receive up to 512 channels of DMX with automatic DyNet conversion and task triggering. Provides temporary control of house lights from the DMX console in an auditorium scenario.
- Electrical fault isolation – Faults can be isolated to individual network spurs.
- Internal controls – Programmable logic controller capable of comprehensive conditional and sequential logic and arithmetic function processing, packet filtering, and DyNet to DyNet 2 translation.
- Flexible mounting solution – DIN rail mountable, designed to be installed into a distribution board or other electrical enclosure.
DDBC120-DALI
DALI-2 Driver Controller
Enabling a full DALI universe including tunable white drivers, DALI sensors and user interfaces
The Philips Dynalite DDBC120-DALI is ideal for small-scale projects looking for a compact, all-in-one DALI control solution.
This controller operates seamlessly with all other Dynalite controllers, sensors, user interfaces and head-end software.
- Single-master solution – Compatible with a range of DALI fittings and devices, including DALI fluorescent drivers, DALI electronic low voltage transformers, DALI LED fixtures, DALI emergency lighting fixtures and Philips Dynalite DALI sensors and user interfaces.
- Compatible with DALI 209 drivers – Provides control of tunable white luminaires.
- DALI auto-enumeration – Provides automatic enumeration of DALI drivers when powered on and enables self-repair of the network system if a DALI driver fails.
- Fully scalable network solution – Direct mapping from DALI to the DyNet network protocol eliminates DALI imposed limits, such as maximum group sizes.
- Flexible mounting solution – A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled lighting circuit.
- Dual functionality – Leverage advantages of a true DALI network solution, whilst still allowing full function set of DyNet network control.
- Driver standby power elimination – Internal switched relay automatically isolates the power circuit when all drivers are dimmed to 0%.
- Integral DALI bus power supply – Removes the need for provision of a separate external power supply and reduces distribution board wiring complexity.
- Driver management tools – Includes lamp and driver status reporting, driver run time tracking, and emergency test reporting.
- Onboard DALI test function – Use the controller's service switch to set all connected lamps to full brightness, or flash on/off for a 5-minute test window, without the need for software or additional input devices.
DUS360CR
Multifunction Sensor
Low profile recessed 360° ceiling sensor
The Philips Dynalite DUS360CR is a recess mountable 360 degree multifunction sensor that combines motion detection (PIR), infrared remote control reception (IR) and ambient light level detection (PE) into one device in applications such as offices, lecture theaters and homes.
- Motion detection feature – Detects the presence or absence of motion and adjusts lights accordingly.
- Segmented click-up bezel - Surrounds the motion sensor element and enables a portion of the sensing field to be masked. This prevents nuisance detection from adjacent doorways or corridors.
- Ambient light level regulation - In applications where it is critical to maintain precise light levels, the PE function reads ambient levels and adjusts artificial light accordingly.
- Infrared receive capability - Manually adjust light levels using a hand-held remote control, via the inbuilt IR receive sensor of the DUS360CR.
- Daylight harvesting mode - Delivers automatic energy savings.
- Suitable for plenum use - UL2043 certified for installation in air-handling plenum spaces.
DUS360CR-D
Multifunction Sensor
Low profile recessed 360° ceiling sensor powered by the DALI network
The Philips Dynalite DUS360CR-D is a recess mountable 360 degree multifunction sensor that combines motion detection (PIR) and ambient light level detection (PE) in one device. The DUS360CR-D is powered and communicates to the networked control system via a DALI bus.
- DALI device – Designed to operate seamlessly with the Philips Dynalite DDBC120-DALI or DDBC320-DALI controller.
- Powered directly by the DALI network – Eliminates the need for additional network field wiring.
- Motion detection feature – Detection of motion within a scanned area triggers a programmed lighting action.
- Segmented click-up bezel – Surrounds the motion sensor element and enables a portion of the sensing field to be masked. This prevents nuisance detection from adjacent doorways or corridors.
- Daylight harvesting mode – Delivers automatic energy savings.
- Ambient light level regulation – In applications where it is critical to maintain precise light, the PE function reads ambient levels and adjusts artificial light levels accordingly.
- Infrared receive capability – Enables sign-on identification to the networked system.
- Corridor hold – Links corridor areas with adjacent rooms so corridor remains lit while occupancy is detected in adjacent rooms.
DUS360CR-DA
Multifunction Sensor
Low profile recessed 360° ceiling sensor
The Philips Dynalite DUS360CR-DA is a recess mountable 360 degree motion sensor that combines motion detection (PIR), infrared remote control reception (IR) and ambient light level detection (PE) into the one device. The Philips Dynalite DUS360CR-DA is a component of the EcoSet system and is a switch-settable sensor with time-out, designed to allow intelligent control of luminaires in combination with the DMRC210DA-RJ12 relay controller.
- Low profile design - Flush-mounted 360 degree ceiling-mount motion detection (PIR) sensor.
- No software set-up - All functionality can be achieved with the built-in dipswitches for area addressing, no-motion time-out and other advanced features.
- Rapid configuration - Up to 31 individual addressing areas of control.
- User-selectable options - No-motion time-out selectable to 30 seconds, 5 minutes, 15 minutes or 30 minutes.
- Corridor hold - Links corridor areas with adjacent rooms so they remain lit while occupancy is detected
- Suitable for plenum use - UL2043 certified for installation in air-handling plenum spaces.
DDRC1220FR-GL
Relay Controller
Robust control of switched loads
The Philips Dynalite DDRC1220FR-GL provides control of any type of switched load. All types of switched loads up to 20 A inductive are supported. The maximum load may be limited by 500 A inrush rating.
- Feed-through power circuit design - Electrically equivalent to a 12 pole contactor, with the added advantage of each pole being separately controllable via the DyNet network.
- Flexible mounting solution - A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled circuit.
- Inbuilt diagnostic functionality - Features circuit run time tracking on each channel and Device Online/Offline status indication.
- Multiple wiring schemes supported - Controls single phase and neutral or three phase and neutral (star) wiring configurations.
- Hardware override - Service override switch accessible from front panel.
DDMC802
Multipurpose Modular Controller
Control different load types with one device
The Philips Dynalite DDMC802 provides up to eight configurable output channels, controlled by up to four interchangeable control modules. A selection of control modules is available for a variety of load types.
- Single controller solution - Control a variety of load types from one device.
- Four module bays - Accommodates any combination of up to four single modules or two double-size modules.
- Leading edge phase control dimmer module - Suitable for use with incandescent lamps and some types of dimmable electronic transformers.
- Trailing edge phase control dimmer module - Suitable for use with most types of dimmable electronic transformers.
- Signal dimmer control module - Suitable for 1-10 V, DSI and DALI Broadcast control of digital drivers and transformers.
- Relay control module - Suitable for controlling most types of switched loads.
- Fan control module - 400 VA three-speed fan control.
- Curtain control module - Provides control of curtains, blinds and other motorized window treatments.
- Flexible mounting solution - A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled circuit.
Title
Title
DUS704C
Ceiling mountable 360 degree universal sensor
The DUS704 series combine motion detection (PIR), infra red remote control reception (IR) and ambient light level detection (PE) in the one device. In applications such as homes, lecture theatres and office towers, universal sensors can be utilised to detect motion and switch on the lights. When rooms are unoccupied, lights can be automatically dimmed or switched off to provide energy savings.
Infra Red remote control reception allows full control of lights, audio-visual equipment and blinds. The Dynalite DTK500 series hand held infra-red transmitters are compatible for use with the DUS704, and for the programming of 3rd party “universal” remote controls.
In situations where it is critical to maintain precise lighting control for individual workspaces, such as a flight control tower or office workstation, the DUS704 facilitates light compensation. The DUS704 can be placed in an automatic “Daylight Harvesting” mode for energy savings.
DUS704W
Wall mountable 90 degree universal sensor
The DUS704W is a wall mountable 90 degree universal sensor that combines motion detection (PIR), Infrared remote control reception (IR) and ambient light level detection (PE) into one device in applications such as offices, lecture theaters and homes.
• Motion detection feature — Detects the presence or absence of motion and adjusts lights accordingly.
• Ambient light level detection and daylight harvesting — In applications where it is critical to maintain precise light, the PE function reads ambient levels and adjusts artificial light accordingly.
• Infrared receive capability — Manually adjust light levels using a hand-held remote control, via the inbuilt IR receive sensor of the DUS704W.
• Multiple mounting options — The device is available in both 360 degree ceiling mount (DUS704C) or wide angle wall mount (DUS704W) versions.
DDRC420FR
Relay Controller
Robust control of switched loads
The Philips Dynalite DDRC420FR provides control of any type of switched load, including difficult lighting loads. This four channel device supports all types of switched loads up to 20 A inductive.
- Feed-through power circuit design – Electrically equivalent to a 4 pole contactor, with the added advantage of each pole being separately controllable via the DyNet network.
- Flexible mounting solution - A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled circuit.
- Inbuilt diagnostic functionality - Features circuit run time tracking on each channel and Device Online/Offline status indication.
- Multiple wiring schemes supported - Controls single phase and neutral or three phase and neutral (star) wiring configurations.
- Hardware override - Service override switch accessible from front panel.
PAxBPA
Antumbra Button
Contemporary two, four, or six-button panel with light-wash effect
The Philips AntumbraButton user interface features a sleek, contemporary design and incorporates the latest in field effect technology. Each easy-to-press mechanical button can be customized with text or icons and programmed to perform a wide variety of local and site-wide control functions. The PA2BPA, PA4BPA, and PA6BPA are suitable for but not limited to North American, South American, Australian and New Zealand markets.
- Field effect technology – The user interface detects an approaching user and ‘wakes up’, initiating a wall-wash lighting effect to encourage interaction.
- Supplied as two components – The Application Module contains buttons, rim, base and mounting plate, which can be mixed and matched to suit décor. The Communication Module (DACM) contains logical and network functions and can be pre-programmed off-site, allowing commissioning to commence prior to finalizing rim and button options.
- Hidden sensory inputs – An internal light sensor measures ambient light and adjusts lightwash effect accordingly. A built-in temperature sensor automatically adjusts air conditioning when integrated into the system.
- Multiple language and icon labeling – Button labeling language choices include English, Chinese and Arabic. A library of common icons transcends language barriers, which is particularly useful in hospitality applications.
- Décor-matching options – Buttons and rims are available in a range of attractive polycarbonate and metallic finishes.
- 64-channel DMX Tx support – Can be factory-set to DMX instead of DyNet, to communicate directly with DMX fixtures
3rd Party System Integrations
- Building Management System low-level interfaces
- Security System low-level interfaces
1500+ individual channels of Load Control
- Phase Dimming (Trailing Edge)
- Ballast Control (DALI Addressable)
- Relay Switched Control Groups
150+ Sensors & User Interfaces
- Dynamic Occupancy Control
- Maintained Illuminance light level control
- Antumbra User Panels
- Password protected Colour touchscreen panels
- Web interface and data logging
- Astronomical Scheduling
