Northfield (Oakden) Ambulance Station

Project Details:

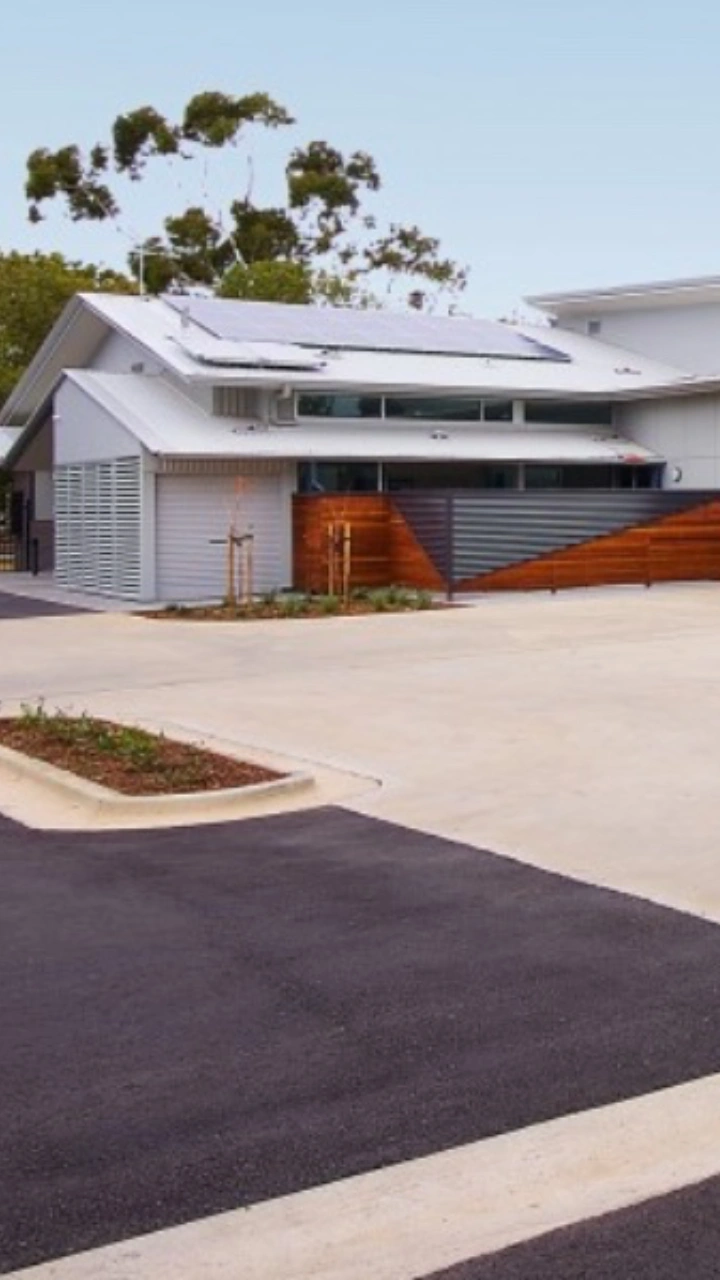

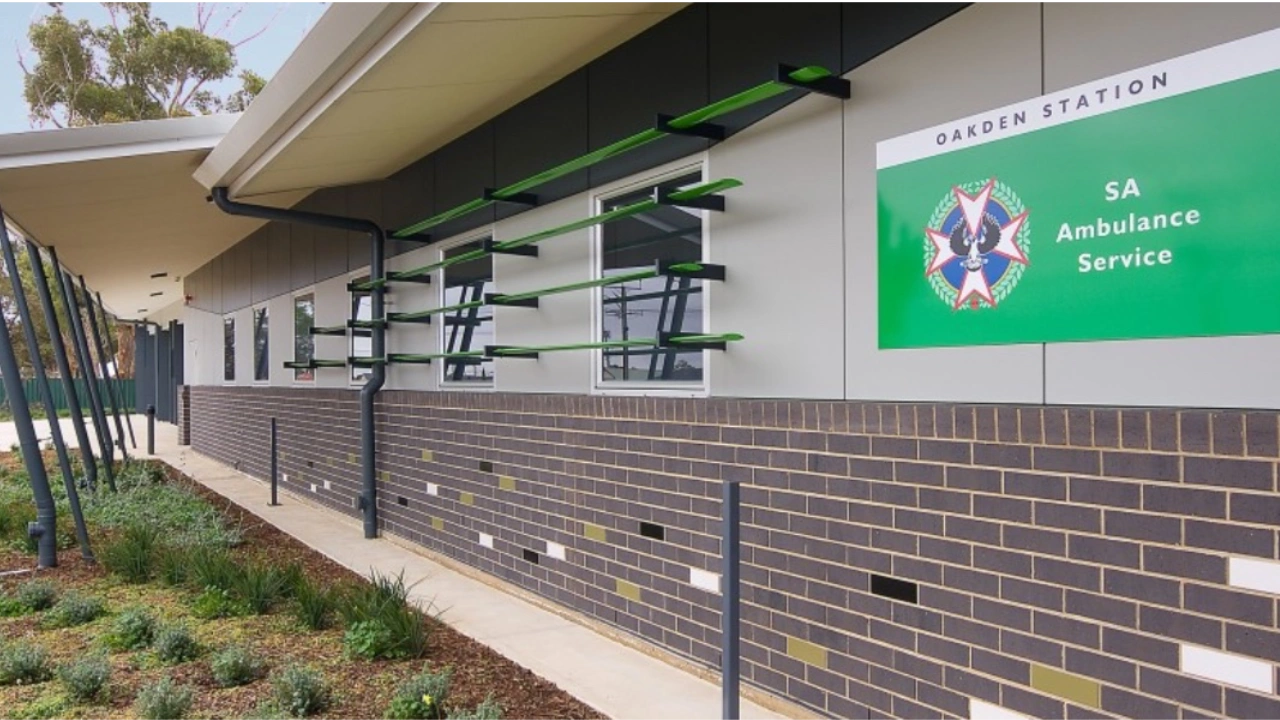

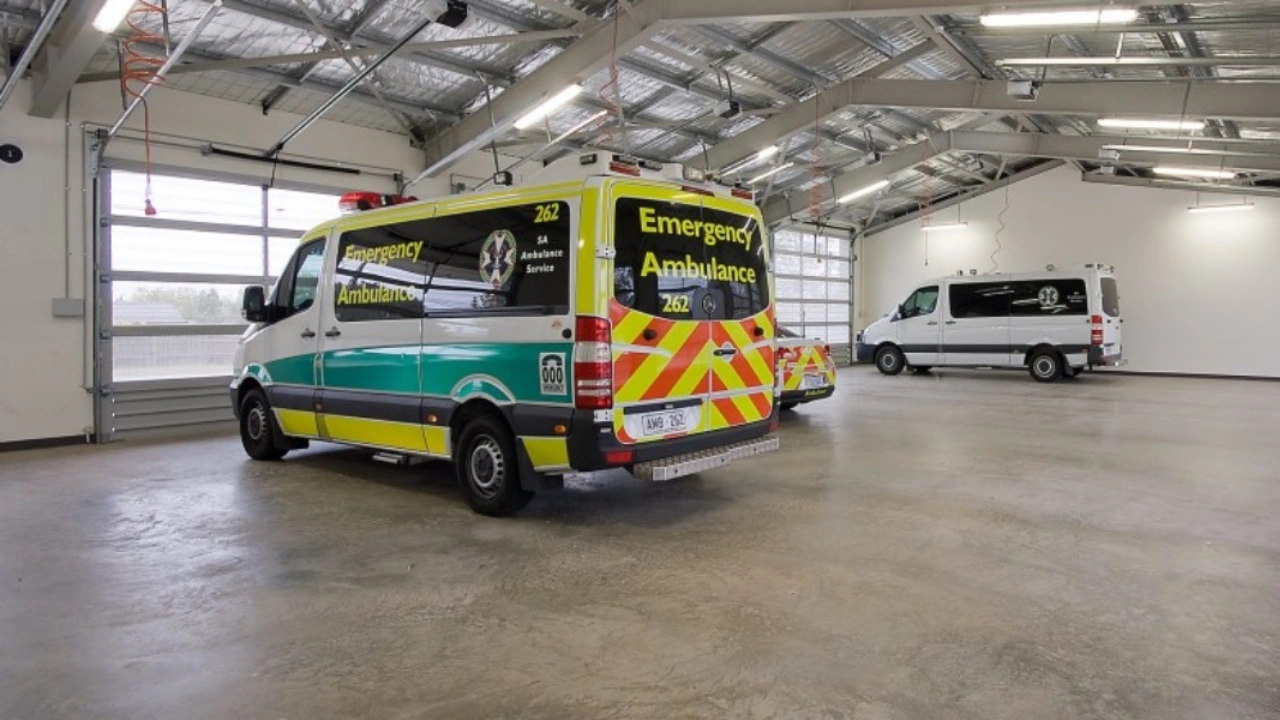

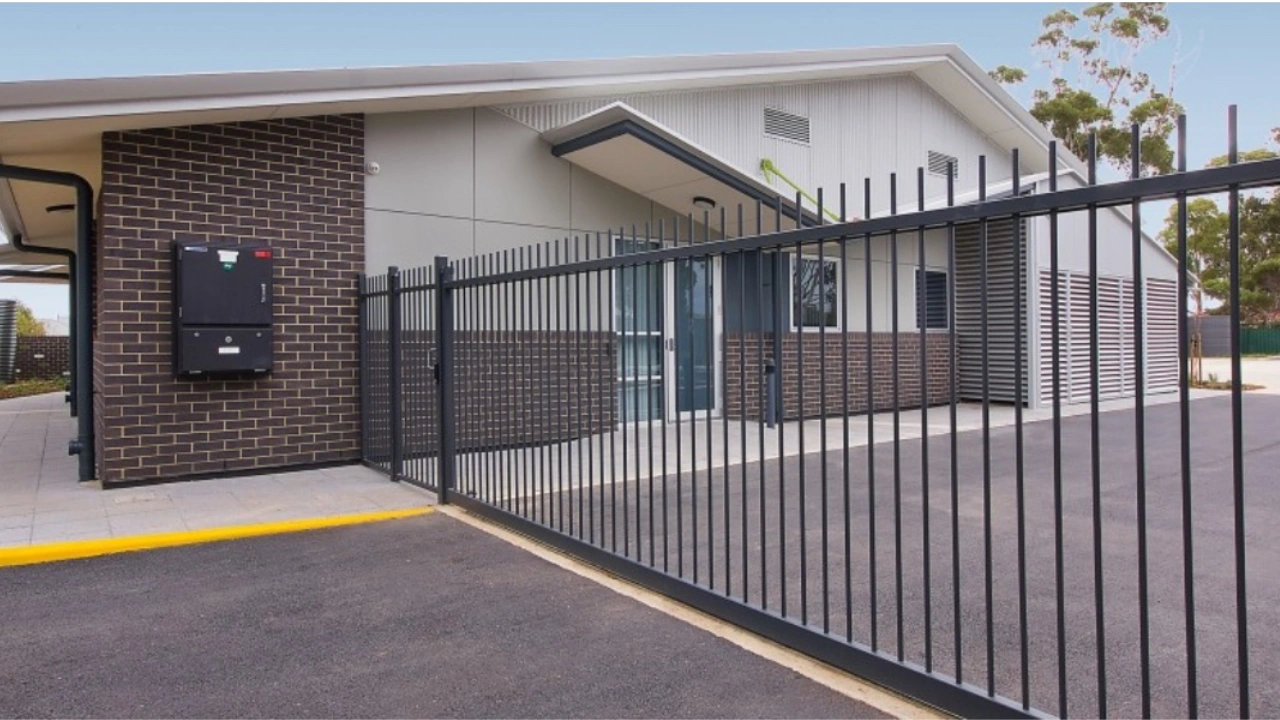

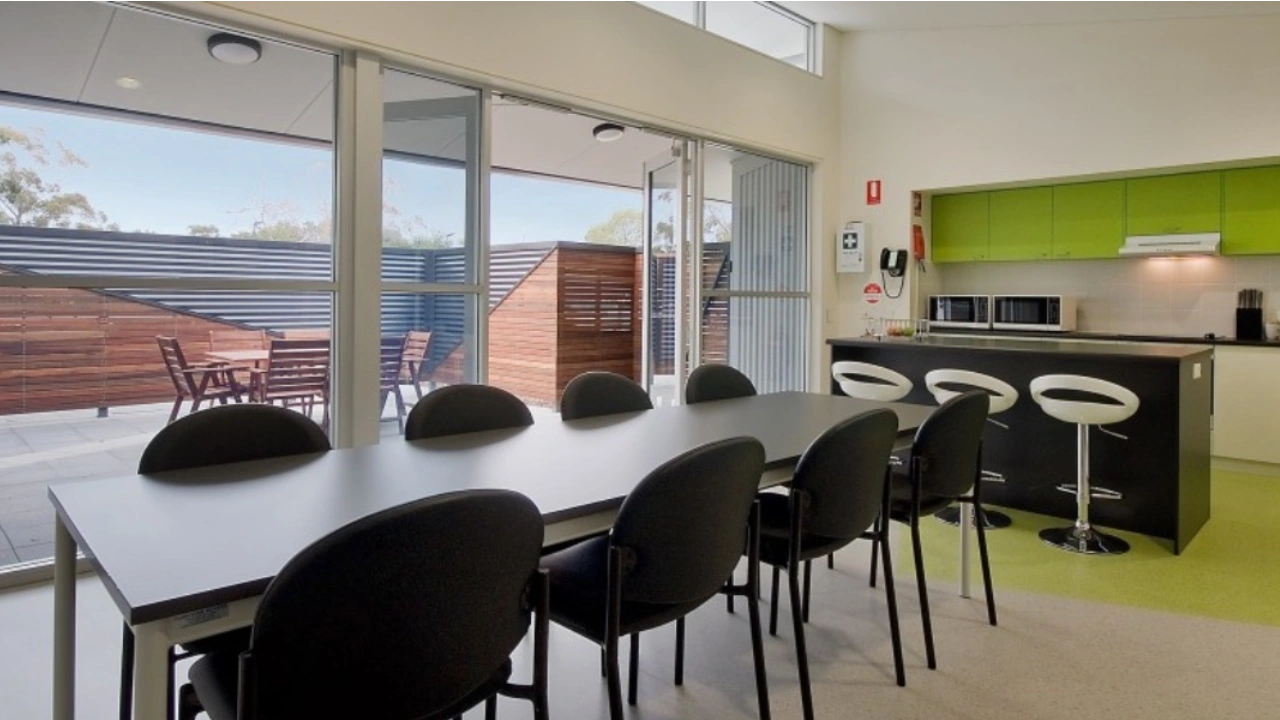

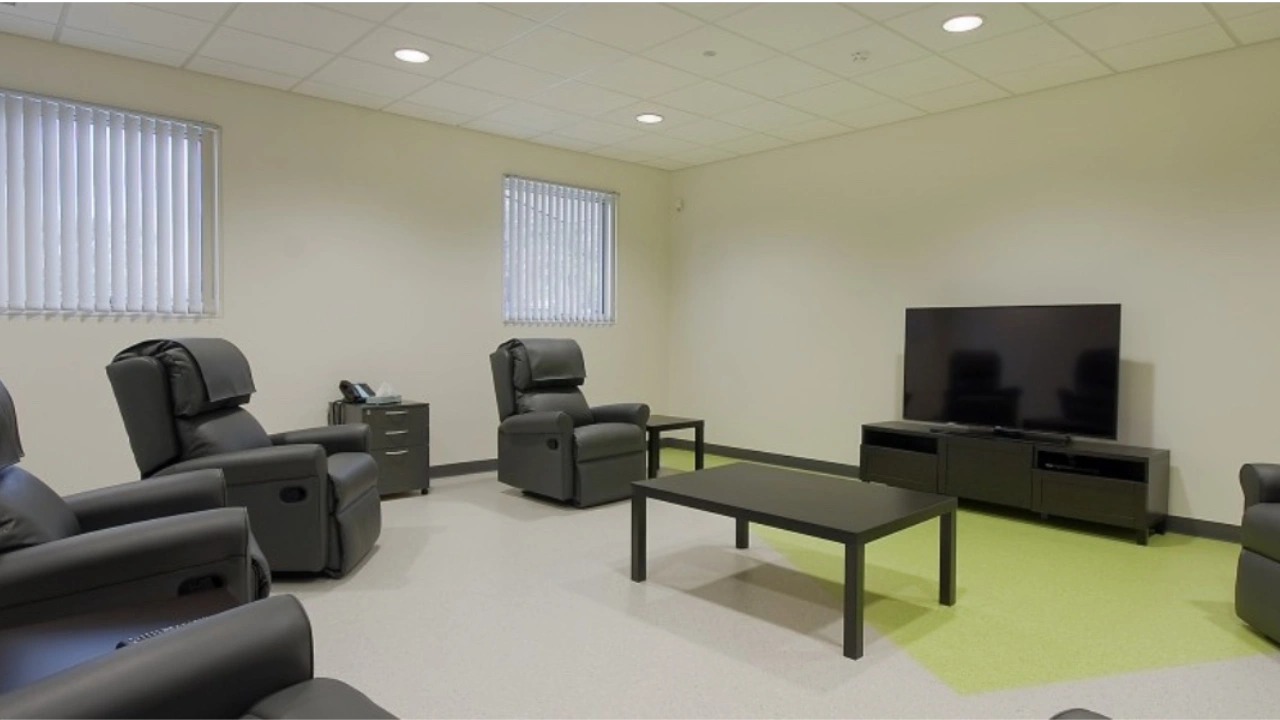

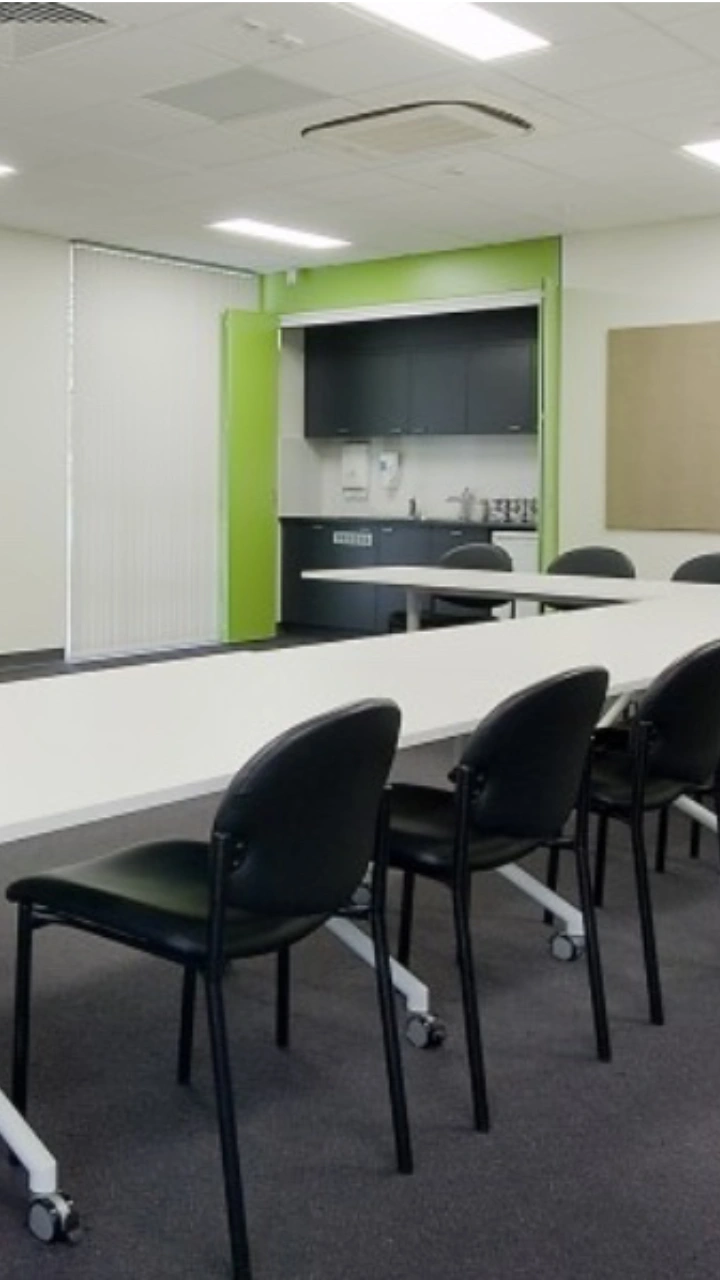

The recently built ambulance station at Oakden has been strategically designed to cater to the demands of a 24/7 emergency crew. Featuring a five-bay drive-through garage, offices, state-of-the-art training facilities, restrooms, amenities, a dedicated crew area, kitchen, lunchroom, a discreet private courtyard, and ample on-site parking, the station embodies a comprehensive approach to operational excellence.

Lightlogix, a trusted partner, played a pivotal role in delivering a turnkey solution. They provided the design, equipment, programming, and commissioning of the Philips Dynalite Lighting Control System, which was expertly installed by Deadshort Electrical. This collaboration ensures intelligent control over the entire station, aligning with our commitment to technological sophistication.

The Lighting Control System, employing a combination of Passive InfraRed (PIR) occupancy sensors and PhotoElectric light sensors, dynamically manages illumination levels. This meticulous approach guarantees well-lit and secure passageways, fostering comfortable and productive work environments for our staff across round-the-clock operations. In nearly every room, these sensors create an autonomous and highly efficient control system.

User-friendly interfaces, elegantly designed and strategically placed within the building, empower users to control specific task lighting, adjust scene settings, and provide a familiar means to manually override or turn off lighting when necessary.

Moreover, the integration of the Lighting Control System with the security infrastructure ensures a seamless ‘Last Out’ interface. This functionality systematically shuts down the building and its lighting in conjunction with arming the security system. To further bolster safety and security, certain aspects of the control system are isolated or inhibited when all responders vacate the facility. This comprehensive approach ensures that the building remains safe and secure, aligning with the Ambulance Service’s commitment to the well-being of staff and the efficient operation of emergency services.

Client:

Deadshort Electrical

Completion Date:

April 2016

Location:

Oakden, SA

Category:

Aged, Community and Health Care

DDTC001

Timeclock

Astronomical 365 day timeclock

The Philips Dynalite DDTC001 timeclock provides a tamper resistant solution for time-based event control on a DyNet network.

Remote programming - The device is programmed via a PC and there are no external controls available, providing a tamper resistant solution.
Advanced clock controls - Features sunrise/sunset tracking and automatic adjustment for daylight saving.
Performs as an energy management controller - Uses powerful macro and conditional logic functions to provide full automation of large commercial projects, where automatic lighting events are required at predetermined times.
Flexible mounting solution - DIN-rail mounted device, designed to be installed into a distribution board.

DPMI940-D

Dry Contact Interface

Four-way DALI dry contact interface

The Philips Dynalite DPMI940-D is a four-channel input dry contact interface, designed to allow mechanical and electronic switches to interface directly with a Philips Dynalite DALI controller on the DALI bus.

DALI device – Designed to operate seamlessly with the Philips Dynalite DDBC120-DALI or DDBC320-DALI controller.
Powered directly by the DALI network – Eliminates the need for additional network field wiring.
Fully programmable – Each individual input is fully software programmable over the DALI network, allowing for multiple functions to be performed such as select lighting scene, room join or toggle lighting on/off.
Compact size – Inputs are presented on flyleads, making the device suitable for installation behind multi-gang switch grids.
Simple dry contact interface – Can be used for low level integration to third party systems such as security and air conditioning so that the lighting can be coordinated together with other services found within a project.

DDRC1220FR-GL

Relay Controller

Robust control of switched loads

The Philips Dynalite DDRC1220FR-GL provides control of any type of switched load. All types of switched loads up to 20 A inductive are supported. The maximum load may be limited by 500 A inrush rating.

Feed-through power circuit design - Electrically equivalent to a 12 pole contactor, with the added advantage of each pole being separately controllable via the DyNet network.
Flexible mounting solution - A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled circuit.
Inbuilt diagnostic functionality - Features circuit run time tracking on each channel and Device Online/Offline status indication.
Multiple wiring schemes supported - Controls single phase and neutral or three phase and neutral (star) wiring configurations.
Hardware override - Service override switch accessible from front panel.

Title

DUS704C

Ceiling mountable 360 degree universal sensor

The DUS704 series combine motion detection (PIR), infra red remote control reception (IR) and ambient light level detection (PE) in the one device. In applications such as homes, lecture theatres and office towers, universal sensors can be utilised to detect motion and switch on the lights. When rooms are unoccupied, lights can be automatically dimmed or switched off to provide energy savings.

Infra Red remote control reception allows full control of lights, audio-visual equipment and blinds. The Dynalite DTK500 series hand held infra-red transmitters are compatible for use with the DUS704, and for the programming of 3rd party “universal” remote controls.

In situations where it is critical to maintain precise lighting control for individual workspaces, such as a flight control tower or office workstation, the DUS704 facilitates light compensation. The DUS704 can be placed in an automatic “Daylight Harvesting” mode for energy savings.

DUS704W

Wall mountable 90 degree universal sensor

The DUS704W is a wall mountable 90 degree universal sensor that combines motion detection (PIR), Infrared remote control reception (IR) and ambient light level detection (PE) into one device in applications such as offices, lecture theaters and homes.
• Motion detection feature — Detects the presence or absence of motion and adjusts lights accordingly.
• Ambient light level detection and daylight harvesting — In applications where it is critical to maintain precise light, the PE function reads ambient levels and adjusts artificial light accordingly.
• Infrared receive capability — Manually adjust light levels using a hand-held remote control, via the inbuilt IR receive sensor of the DUS704W.
• Multiple mounting options — The device is available in both 360 degree ceiling mount (DUS704C) or wide angle wall mount (DUS704W) versions.

DDBC120-DALI

DALI-2 Driver Controller

Enabling a full DALI universe including tunable white drivers, DALI sensors and user interfaces

The Philips Dynalite DDBC120-DALI is ideal for small-scale projects looking for a compact, all-in-one DALI control solution.
This controller operates seamlessly with all other Dynalite controllers, sensors, user interfaces and head-end software.

Single-master solution – Compatible with a range of DALI fittings and devices, including DALI fluorescent drivers, DALI electronic low voltage transformers, DALI LED fixtures, DALI emergency lighting fixtures and Philips Dynalite DALI sensors and user interfaces.
Compatible with DALI 209 drivers – Provides control of tunable white luminaires.
DALI auto-enumeration – Provides automatic enumeration of DALI drivers when powered on and enables self-repair of the network system if a DALI driver fails.
Fully scalable network solution – Direct mapping from DALI to the DyNet network protocol eliminates DALI imposed limits, such as maximum group sizes.
Flexible mounting solution – A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled lighting circuit.
Dual functionality – Leverage advantages of a true DALI network solution, whilst still allowing full function set of DyNet network control.
Driver standby power elimination – Internal switched relay automatically isolates the power circuit when all drivers are dimmed to 0%.
Integral DALI bus power supply – Removes the need for provision of a separate external power supply and reduces distribution board wiring complexity.
Driver management tools – Includes lamp and driver status reporting, driver run time tracking, and emergency test reporting.
Onboard DALI test function – Use the controller's service switch to set all connected lamps to full brightness, or flash on/off for a 5-minute test window, without the need for software or additional input devices.

DUS804C

360º ceiling mount sensor

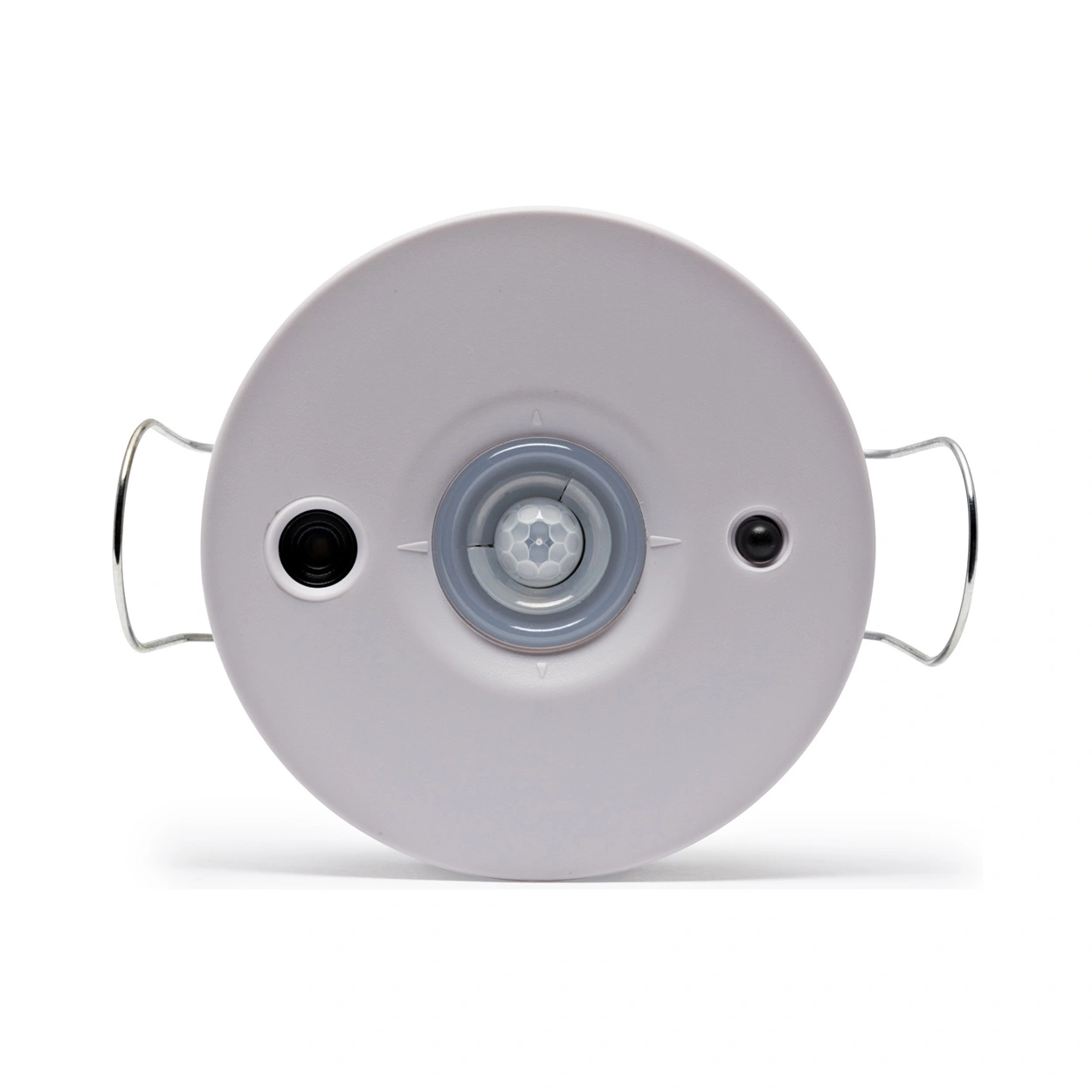

The DUS804C is a low profile recessed flush mount 360º ceiling mount sensor that combines motion detection (PIR), infra red remote control reception (IR) and ambient light level detection (PE) in the one device. In applications such as office buildings, lecture theatres, and homes, the DUS804C universal sensor can be utilised to detect motion and switch on the lights. When rooms are unoccupied, lights can be automatically dimmed or switched off to provide energy savings. The unit also incorporates a segmented click-up bezel surrounding the motion sensor element. This enables a portion of the sensing field to be readily masked to prevent nuisance detection from adjacent doorways or corridors. The same sensor provides IR control reception to enable full remote control over lights, audio-visual equipment and blinds. A range of hand held infra-red transmitters to complement DUS804 series universal sensors are available. In situations where it is critical to maintain precise lighting control for individual workspaces, such as an office workstation or even air traffic control centres, the DUS804C facilitates light compensation. The DUS804C can also be placed in an automatic“Daylight Harvesting” mode for energy savings.

PAxBPA

Antumbra Button

Contemporary two, four, or six-button panel with light-wash effect

The Philips AntumbraButton user interface features a sleek, contemporary design and incorporates the latest in field effect technology. Each easy-to-press mechanical button can be customized with text or icons and programmed to perform a wide variety of local and site-wide control functions. The PA2BPA, PA4BPA, and PA6BPA are suitable for but not limited to North American, South American, Australian and New Zealand markets.

Field effect technology – The user interface detects an approaching user and ‘wakes up’, initiating a wall-wash lighting effect to encourage interaction.
Supplied as two components – The Application Module contains buttons, rim, base and mounting plate, which can be mixed and matched to suit décor. The Communication Module (DACM) contains logical and network functions and can be pre-programmed off-site, allowing commissioning to commence prior to finalizing rim and button options.
Hidden sensory inputs – An internal light sensor measures ambient light and adjusts lightwash effect accordingly. A built-in temperature sensor automatically adjusts air conditioning when integrated into the system.
Multiple language and icon labeling – Button labeling language choices include English, Chinese and Arabic. A library of common icons transcends language barriers, which is particularly useful in hospitality applications.
Décor-matching options – Buttons and rims are available in a range of attractive polycarbonate and metallic finishes.
64-channel DMX Tx support – Can be factory-set to DMX instead of DyNet, to communicate directly with DMX fixtures
