Flexible network communications gateway

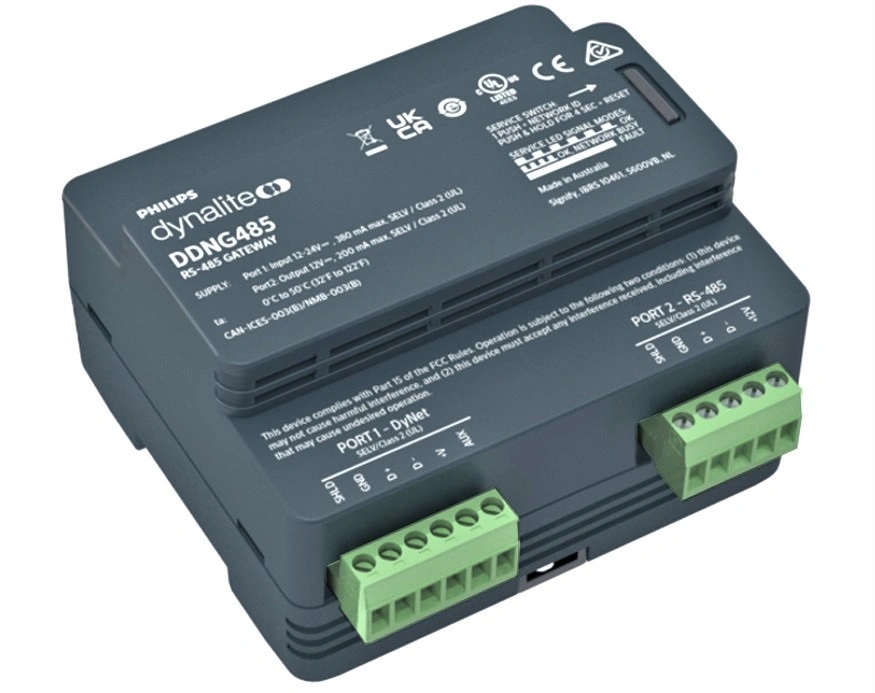

The Philips Dynalite DDNG485 is a flexible network communications bridge designed for RS-485 networks. The two opto-isolated RS-485 ports enable the DDNG485 to implement a trunk and spur topology on large project sites, with the bridge providing a high-speed backbone opto-coupled to many lower speed spurs.

• Route DyNet to third-party systems – Such as audio-visual, Modbus meters, and building automation systems, providing an integrated approach to total building control and energy management.
• DMX512 mode – Transmit or receive up to 512 channels of DMX with automatic DyNet conversion and task triggering. Provides temporary control of house lights from the DMX console in an auditorium scenario.
• Electrical fault isolation – Faults can be isolated to individual network spurs.
• Internal controls – Programmable logic controller capable of comprehensive conditional and sequential logic and arithmetic function processing, packet filtering, and DyNet to DyNet 2 translation.
• Flexible mounting solution – DIN rail mountable, designed to be installed into a distribution board or other electrical enclosure.

Eight-way dry contact interface

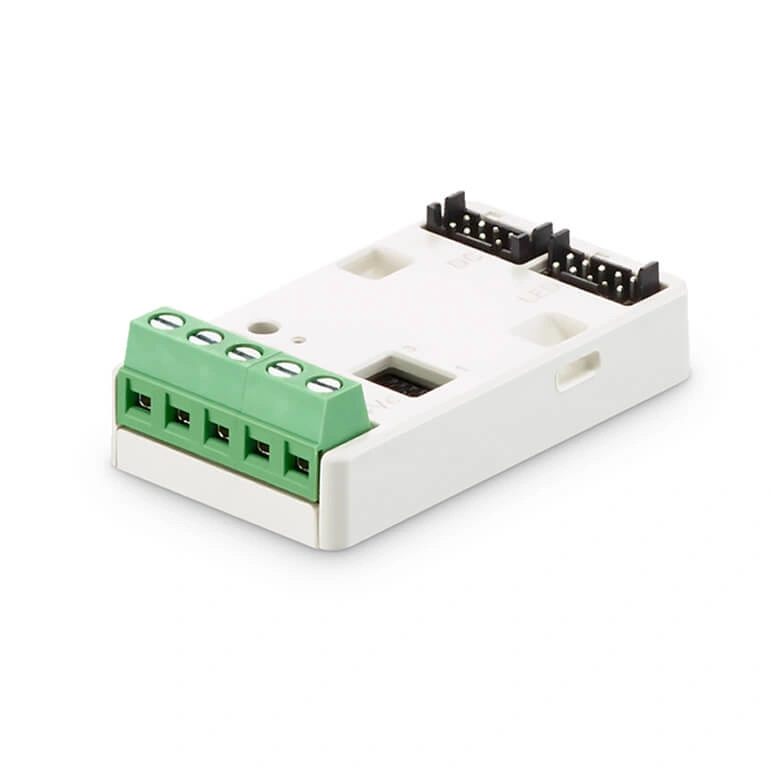

The Philips Dynalite DLLI8I8O is an eight-way dry contact interface with LED indicator outputs, that allows mechanical and electronic switches to communicate directly to the DyNet network.

• Compact size - Allows installation in electrical wall boxes for easy integration with third-party user interfaces.
• Eight dry contact inputs - Each dry contact trigger is individually programmable for a range of tasks.
• Eight indicator outputs - Each output is individually programmable to drive an external LED indicator sharing a common cathode, communicating current system status or settings.
• Allows up to 20 m cable runs - Enables convenient connection to dry contact interfaces in multiple rooms.

Enabling a full DALI universe including tunable white drivers, DALI sensors and user interfaces

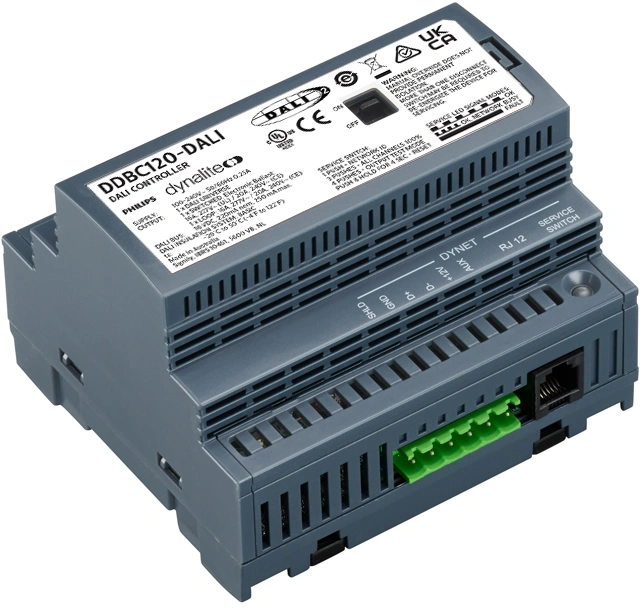

The Philips Dynalite DDBC120-DALI is ideal for small-scale projects looking for a compact, all-in-one DALI control solution.
This controller operates seamlessly with all other Dynalite controllers, sensors, user interfaces and head-end software.

• Single-master solution – Compatible with a range of DALI fittings and devices, including DALI fluorescent drivers, DALI electronic low voltage transformers, DALI LED fixtures, DALI emergency lighting fixtures and Philips Dynalite DALI sensors and user interfaces.
• Compatible with DALI 209 drivers – Provides control of tunable white luminaires.
• DALI auto-enumeration – Provides automatic enumeration of DALI drivers when powered on and enables self-repair of the network system if a DALI driver fails.
• Fully scalable network solution – Direct mapping from DALI to the DyNet network protocol eliminates DALI imposed limits, such as maximum group sizes.
• Flexible mounting solution – A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled lighting circuit.
• Dual functionality – Leverage advantages of a true DALI network solution, whilst still allowing full function set of DyNet network control.
• Driver standby power elimination – Internal switched relay automatically isolates the power circuit when all drivers are dimmed to 0%.
• Integral DALI bus power supply – Removes the need for provision of a separate external power supply and reduces distribution board wiring complexity.
• Driver management tools – Includes lamp and driver status reporting, driver run time tracking, and emergency test reporting.
• Onboard DALI test function – Use the controller's service switch to set all connected lamps to full brightness, or flash on/off for a 5-minute test window, without the need for software or additional input devices.

Robust control of switched loads

The Philips Dynalite DDRC1220FR-GL provides control of any type of switched load. All types of switched loads up to 20 A inductive are supported. The maximum load may be limited by 500 A inrush rating.

• Feed-through power circuit design - Electrically equivalent to a 12 pole contactor, with the added advantage of each pole being separately controllable via the DyNet network.
• Flexible mounting solution - A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled circuit.
• Inbuilt diagnostic functionality - Features circuit run time tracking on each channel and Device Online/Offline status indication.
• Multiple wiring schemes supported - Controls single phase and neutral or three phase and neutral (star) wiring configurations.
• Hardware override - Service override switch accessible from front panel.

Robust control of switched loads

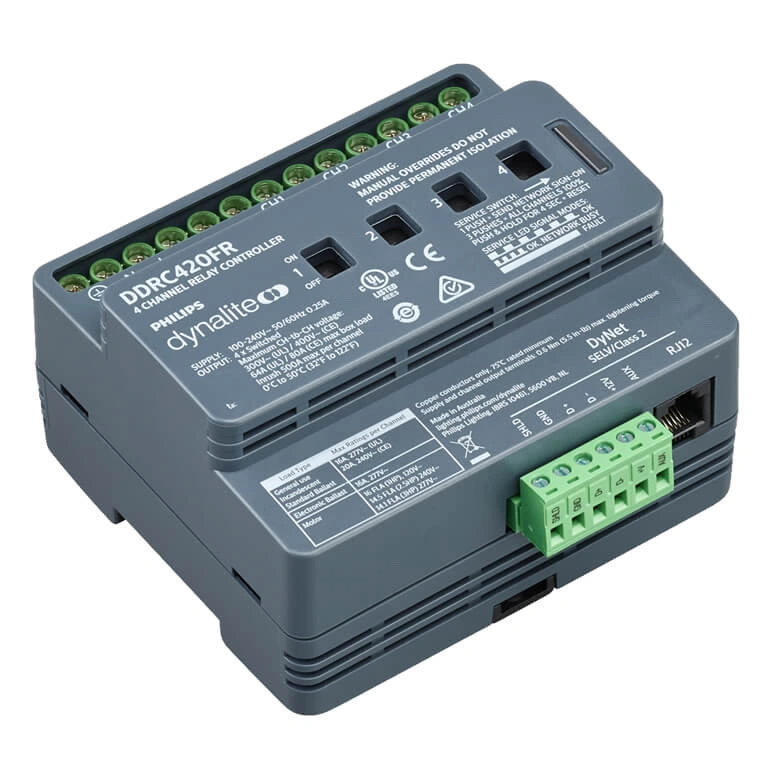

The Philips Dynalite DDRC420FR provides control of any type of switched load, including difficult lighting loads. This four channel device supports all types of switched loads up to 20 A inductive.

• Feed-through power circuit design – Electrically equivalent to a 4 pole contactor, with the added advantage of each pole being separately controllable via the DyNet network.
• Flexible mounting solution - A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled circuit.
• Inbuilt diagnostic functionality - Features circuit run time tracking on each channel and Device Online/Offline status indication.
• Multiple wiring schemes supported - Controls single phase and neutral or three phase and neutral (star) wiring configurations.
• Hardware override - Service override switch accessible from front panel.

Luminaire mount control of switched loads

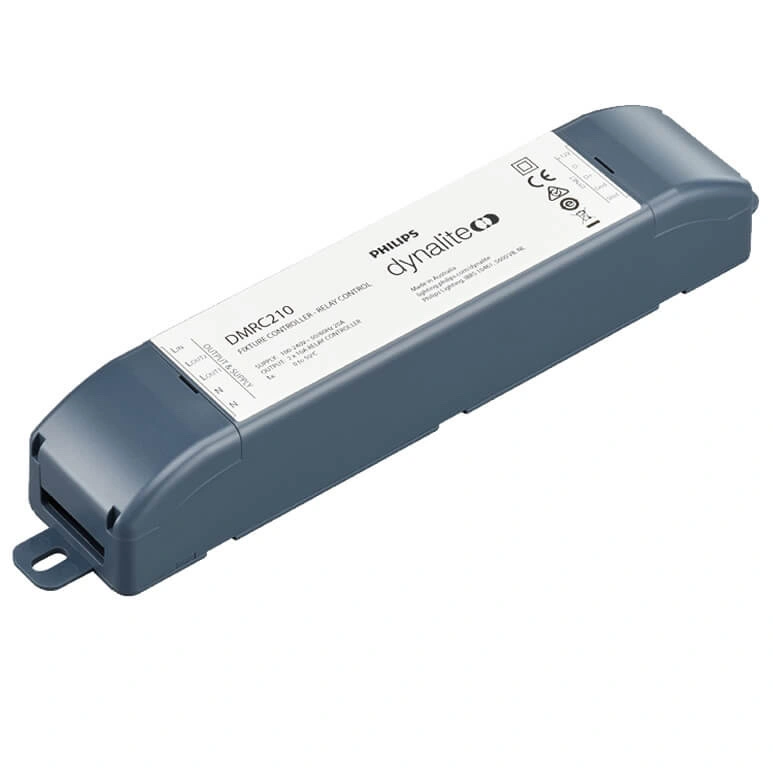

The Philips Dynalite DMRC210 is a two channel device that provides intelligent networked control of individual lighting fixtures. The compact design enables mounting directly within the gear enclosure of many lighting fixtures.

• Incorporates two relay outputs - Used to control mains supply to the fixture and provide an intensity control when used with tapped drivers.
• Gear enclosure mounting - Compact design allows the device to be mounted directly within the gear enclosure of many light fittings.
• Fully rated device - Robust relays provide reliable control of difficult lighting loads.
• Inbuilt diagnostic functionality - Features Device Online/Offline status indication.

Advanced building automation and control at your fingertips

Designed as an integral part of the Dynalite system, the PDTS offers intelligent control and direct access to scheduling, scene editing, diagnostics and local environmental sensing.

Combining Ethernet connectivity, a powerful onboard processor, and contemporary design cues from the Antumbra user interface range, the PDTS is a sleek, functional complement to any project.

• 178 mm capacitive touchscreen - with high resolution, rich color and wide viewing angle.
• Proximity sensor - triggers soft halo light effect to welcome user interaction.
• Ethernet port - provides access for commissioning and file transfers.
• Internal astronomical timeclock - enables advanced scheduling of behavior, options, and automated tasks based on time of day or sunrise/sunset.
• Customizable graphical menus - seamless control of lighting, curtains/blinds, HVAC, A/V equipment and compatible third-party systems.
• Built-in environmental sensors - humidity and temperature can be displayed on standby screen and communicated to third-party systems.

Contemporary button panel with LCD display

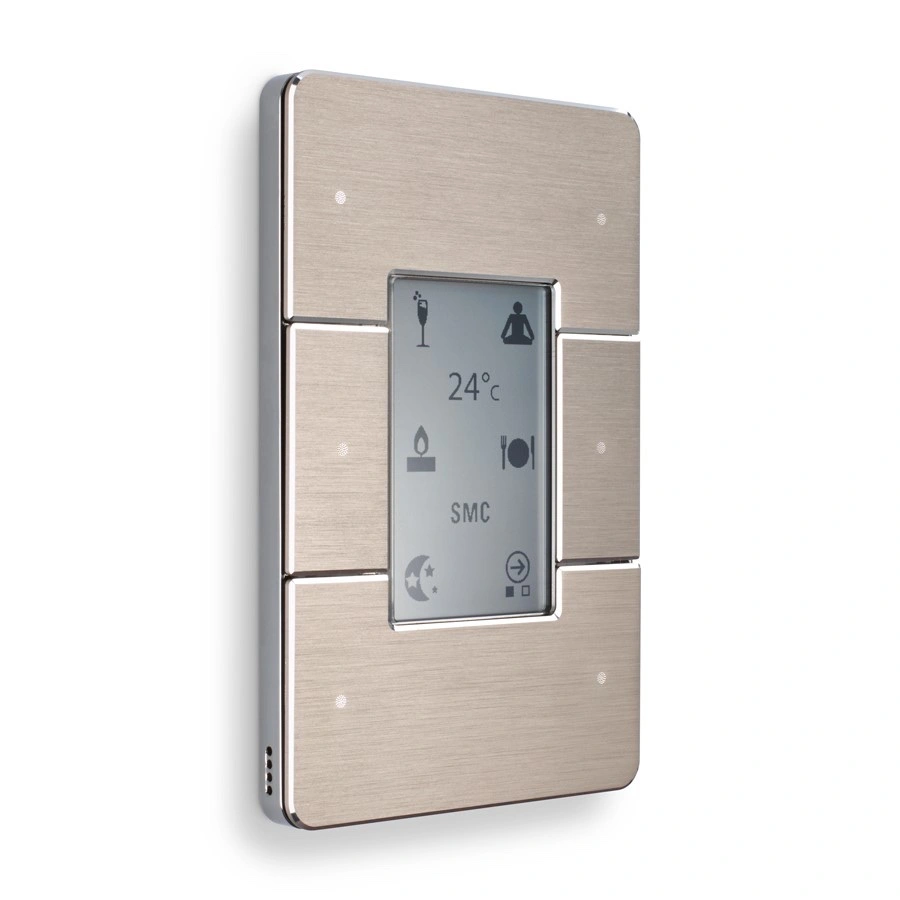

The Philips AntumbraDisplay user interface provides a central LCD display to present multiple pages of functions and system information. It incorporates the latest in field effect technology. The contemporary design features a number of button configurations, with each button capable of local or site-wide control functions. The PADPA range is suitable for, but not limited to, North American, South American, Australian and New Zealand markets.

• Field effect technology - The user interface detects an approaching user and 'wakes up', initiating a wall-wash lighting effect to encourage interaction.
• Supplied as two components - The Application Module contains buttons, rim, base and mounting plate, which can be mixed and matched to suit décor. The Communication Module contains all of the logical and network functions and is pre-programmed off-site, allowing commissioning to commence prior to finish options being finalized.
• Hidden sensory inputs - An internal light sensor measures ambient light and adjusts lightwash effect accordingly. A built-in temperature sensor automatically adjusts air conditioning when integrated into the system.
• Multiple language and icon labeling - Display labeling language choices include English, Chinese and Arabic. A library of common icons transcends language barriers, which is particularly useful in hospitality applications. Button labeling not available.
• Central LCD - Allows for display of system information including temperature, time, channel level and current scene. Button function can change when navigating between up to 16 pages.
• Selection of rim and fascia options - Allows décor matching to suit any environment.

Contemporary two, four, or six-button panel with light-wash effect

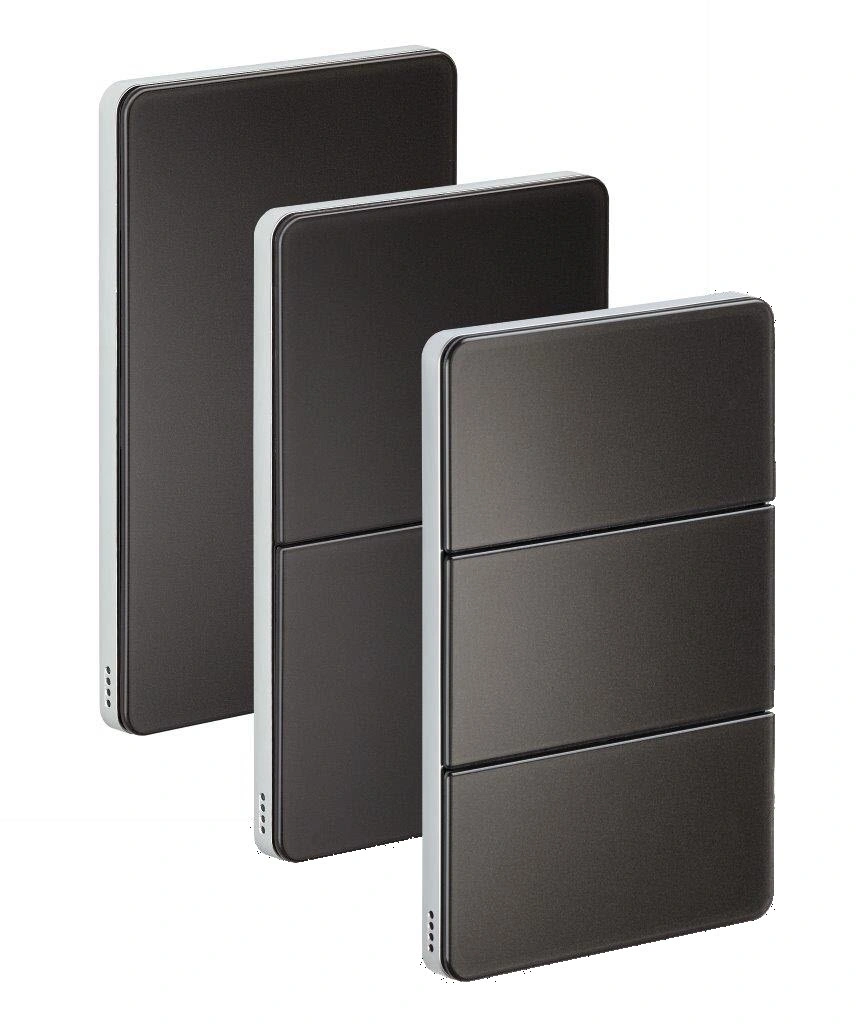

The Philips AntumbraButton user interface features a sleek, contemporary design and incorporates the latest in field effect technology. Each easy-to-press mechanical button can be customized with text or icons and programmed to perform a wide variety of local and site-wide control functions. The PA2BPA, PA4BPA, and PA6BPA are suitable for but not limited to North American, South American, Australian and New Zealand markets.

• Field effect technology – The user interface detects an approaching user and ‘wakes up’, initiating a wall-wash lighting effect to encourage interaction.
• Supplied as two components – The Application Module contains buttons, rim, base and mounting plate, which can be mixed and matched to suit décor. The Communication Module (DACM) contains logical and network functions and can be pre-programmed off-site, allowing commissioning to commence prior to finalizing rim and button options.
• Hidden sensory inputs – An internal light sensor measures ambient light and adjusts lightwash effect accordingly. A built-in temperature sensor automatically adjusts air conditioning when integrated into the system.
• Multiple language and icon labeling – Button labeling language choices include English, Chinese and Arabic. A library of common icons transcends language barriers, which is particularly useful in hospitality applications.
• Décor-matching options – Buttons and rims are available in a range of attractive polycarbonate and metallic finishes.
• 64-channel DMX Tx support – Can be factory-set to DMX instead of DyNet, to communicate directly with DMX fixtures
