Jamies Italian Restaurant
Project Details:

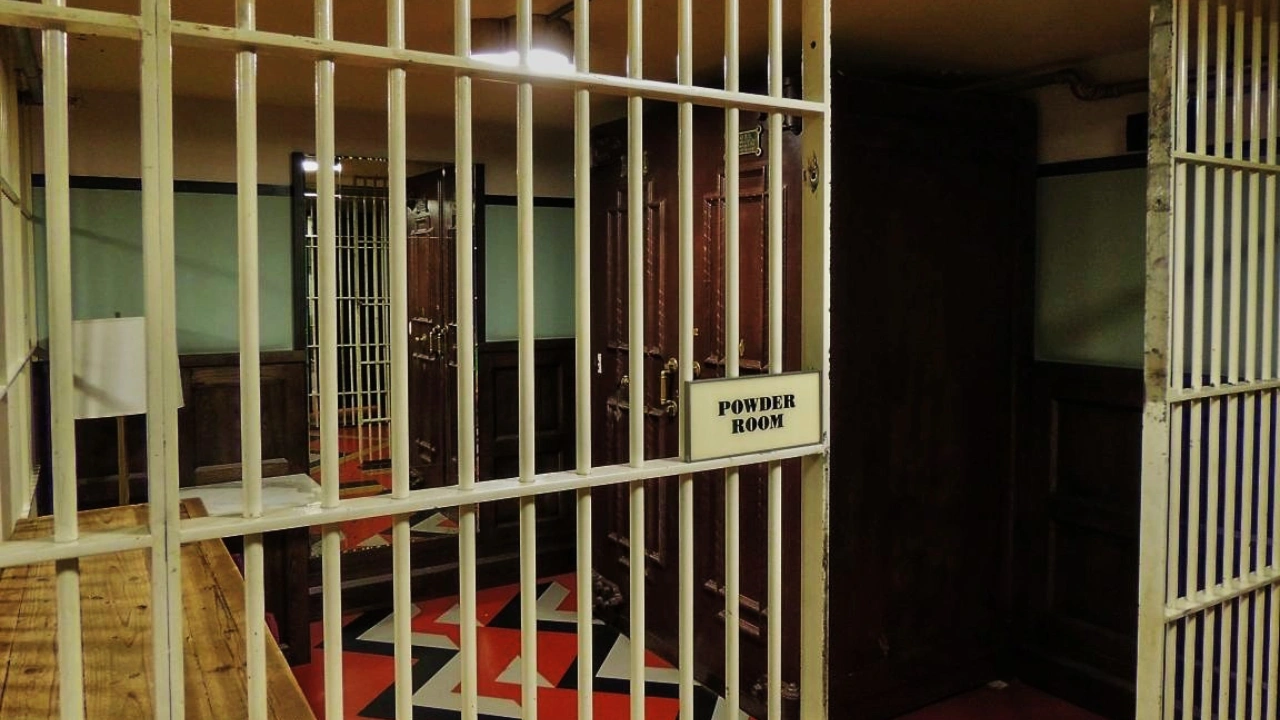

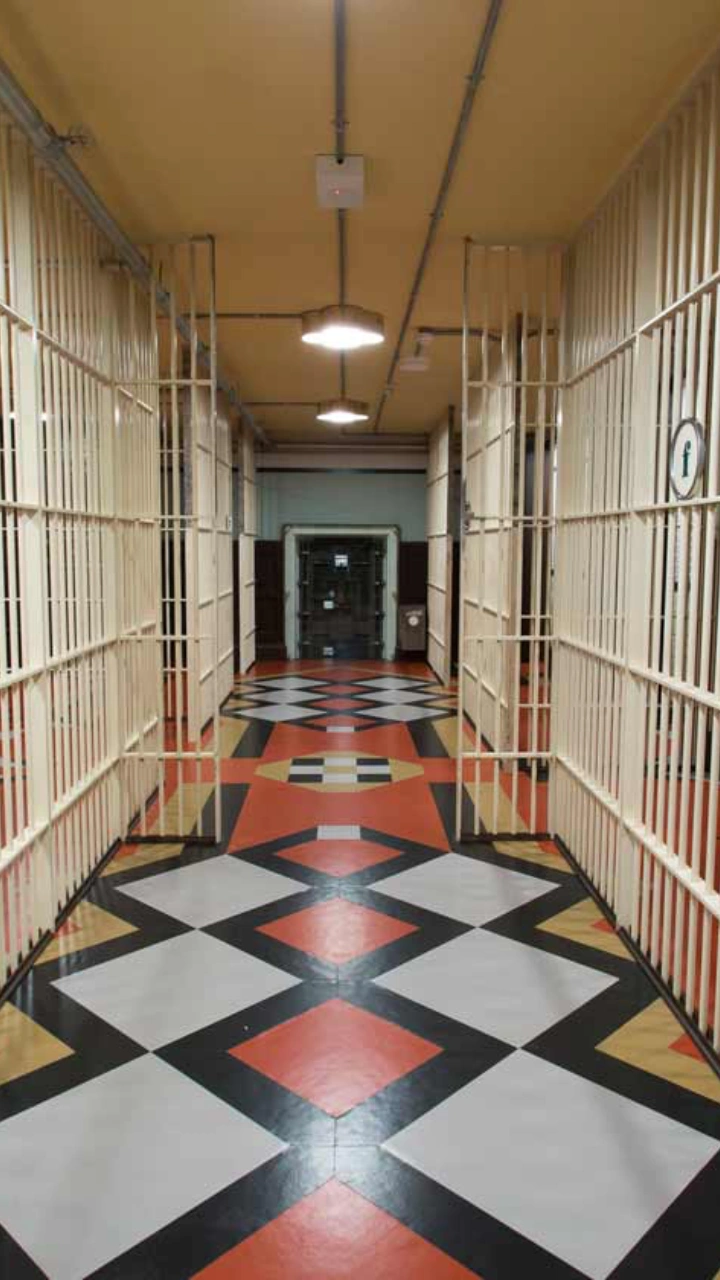

Lightlogix, as the provider of the Philips Dynalite Lighting Control System, went above and beyond by offering design, programming, commissioning, and handover services. These efforts culminated in the successful renovation of the historic Westpac Building into a stunning dining establishment with repurposed strong rooms, adding a unique flair to the space. This project epitomizes the company’s dedication to creating high-quality lighting control systems that enhance the overall ambiance and functionality of commercial spaces.

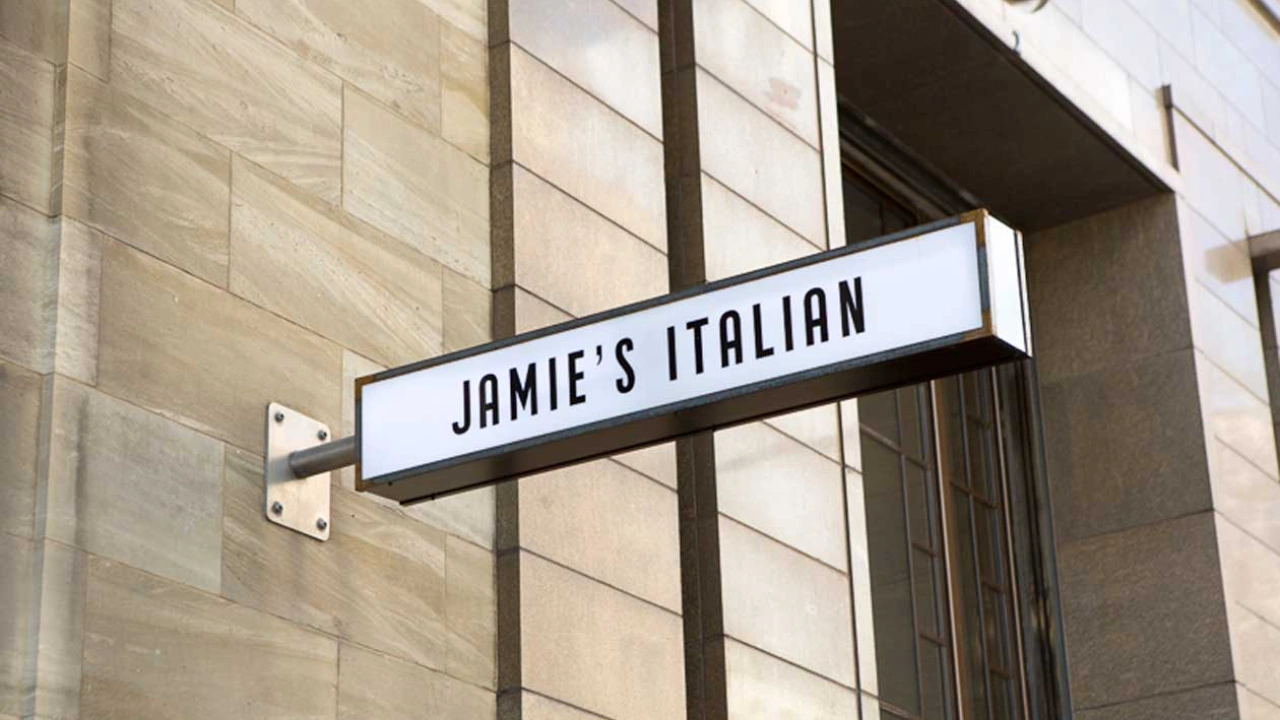

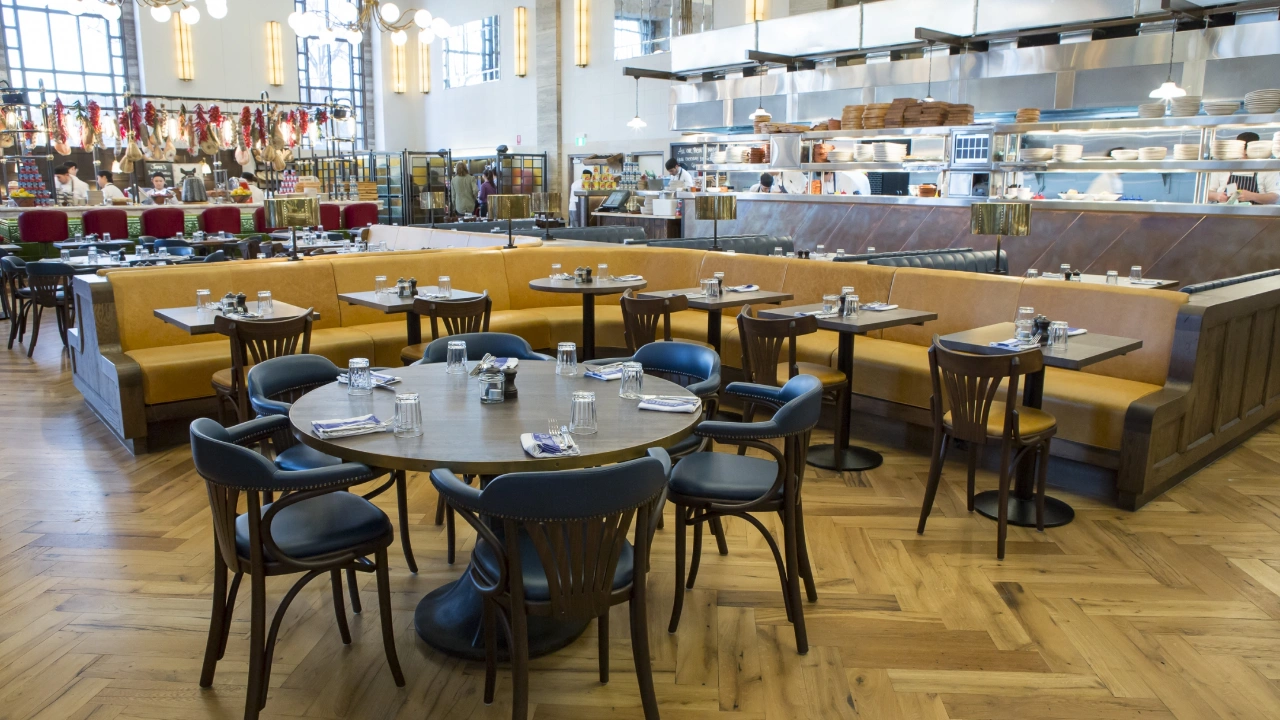

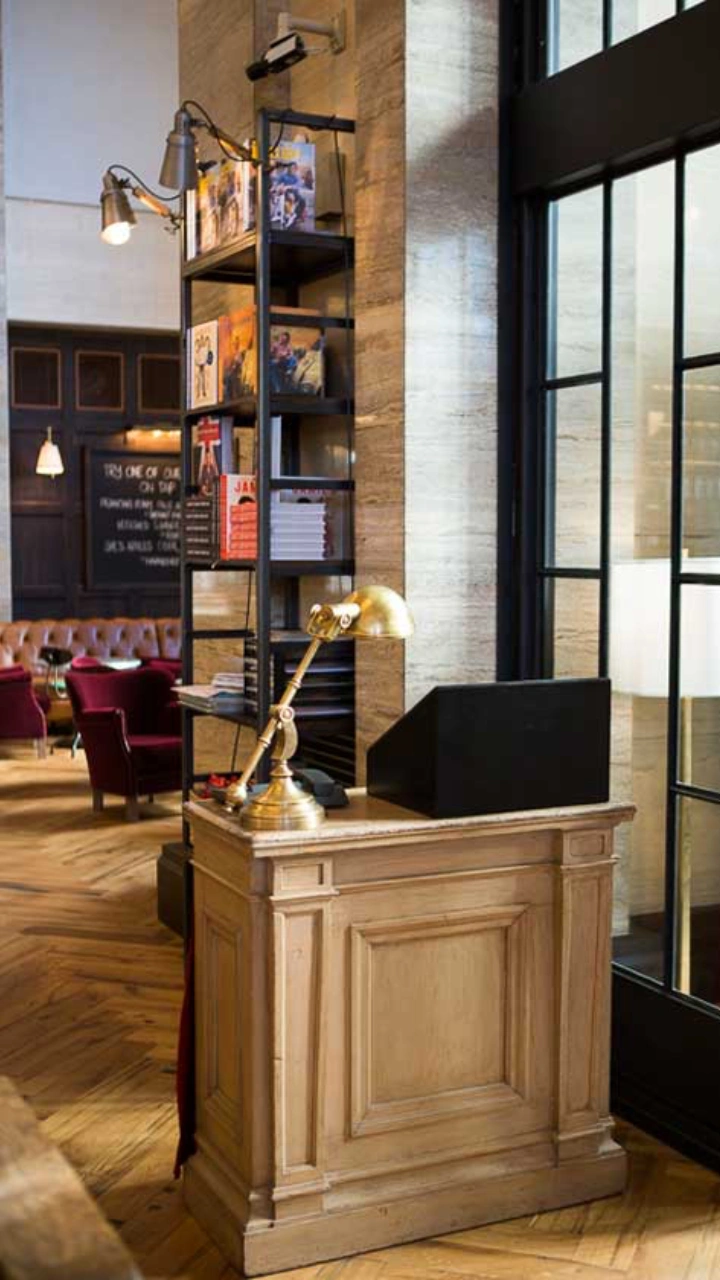

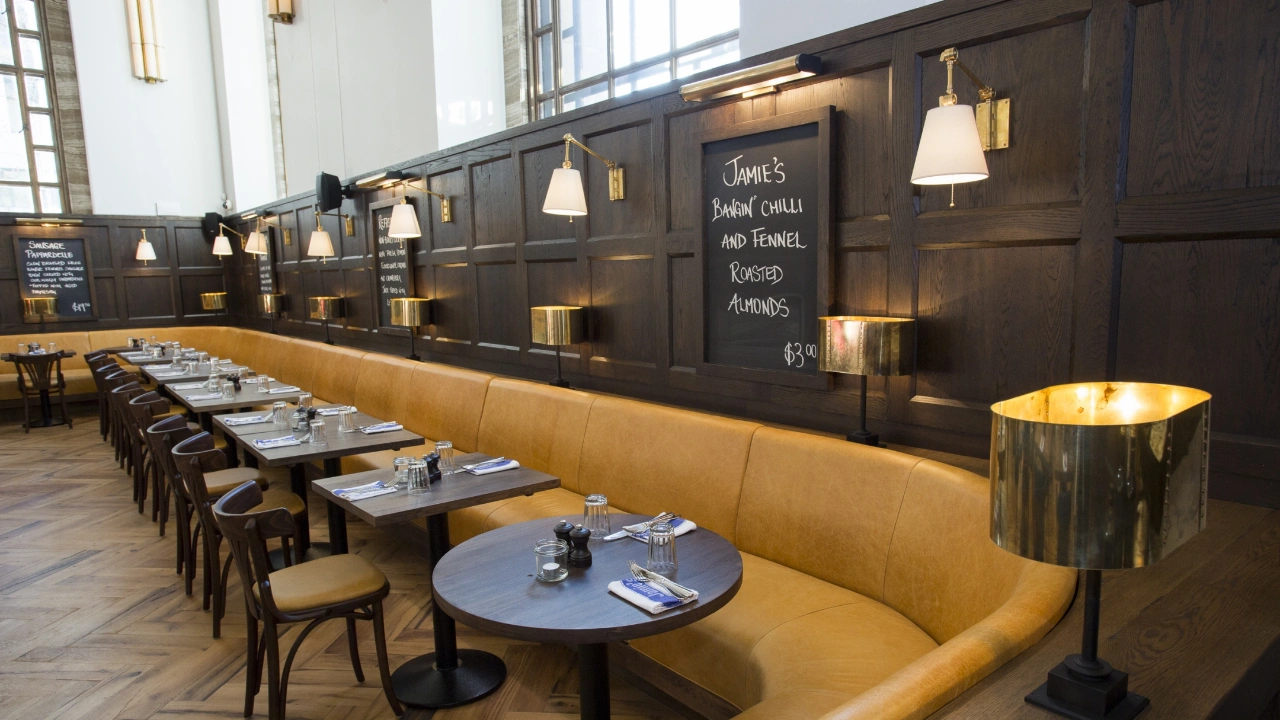

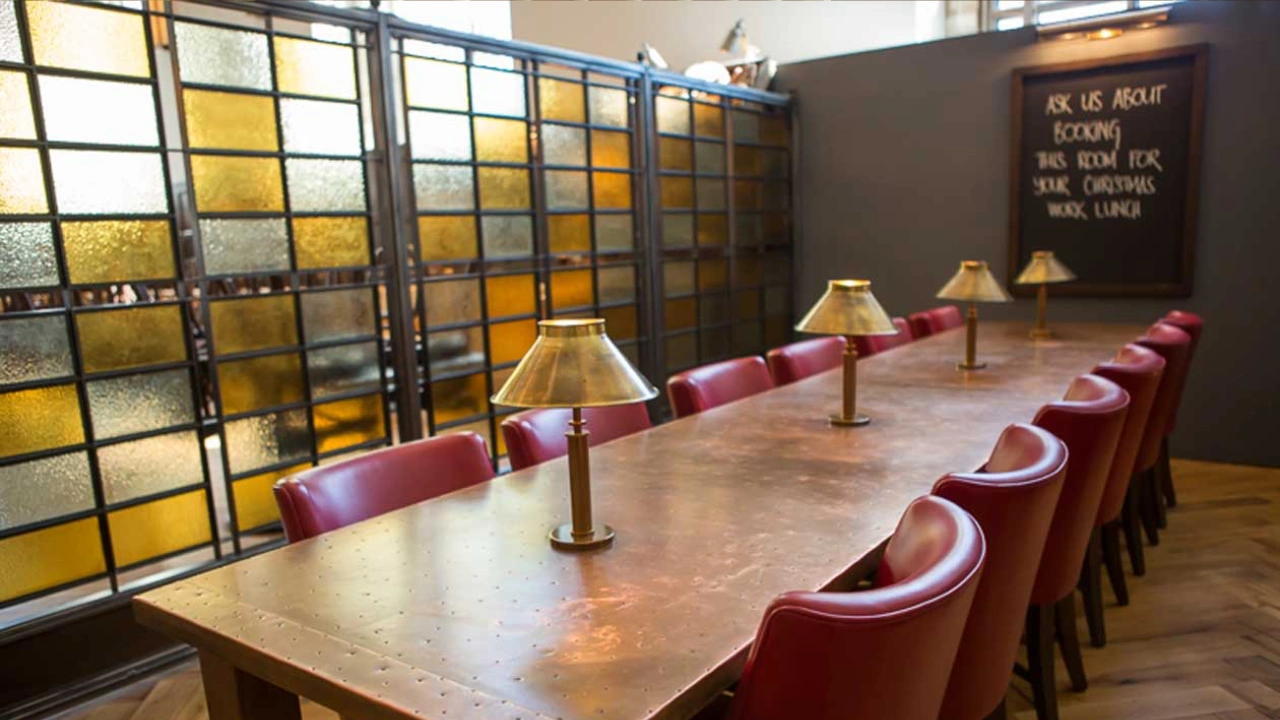

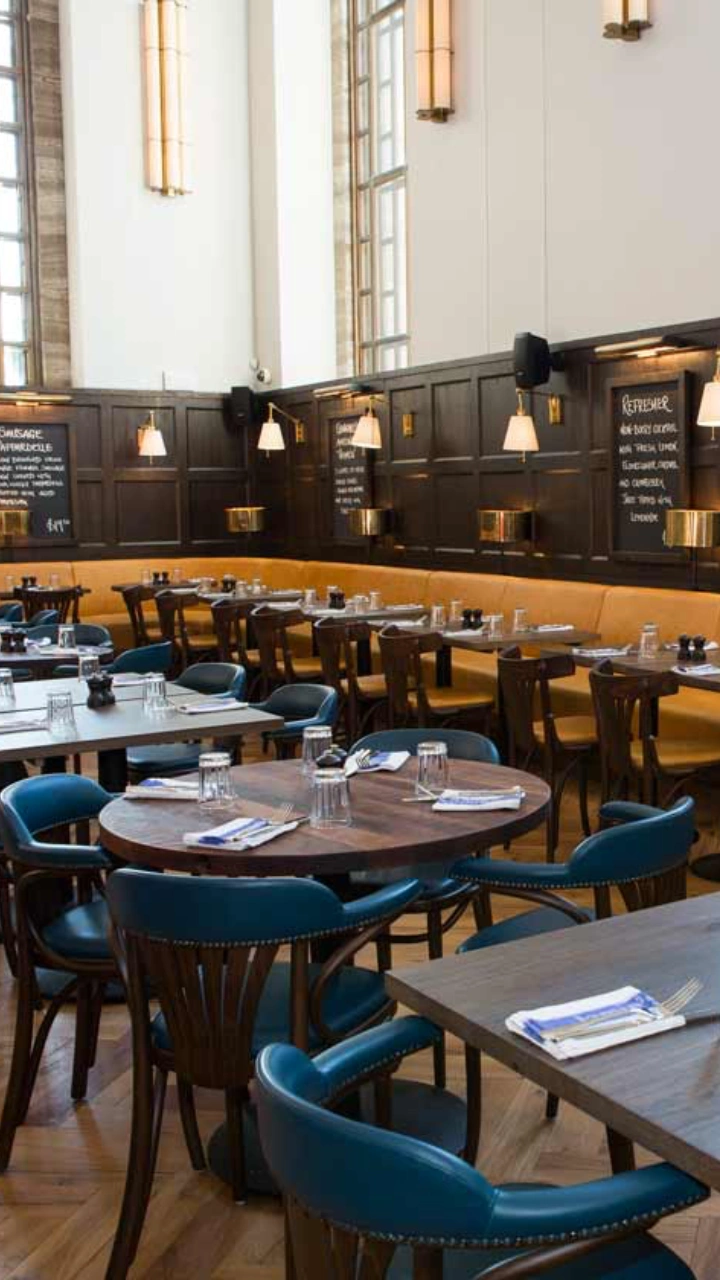

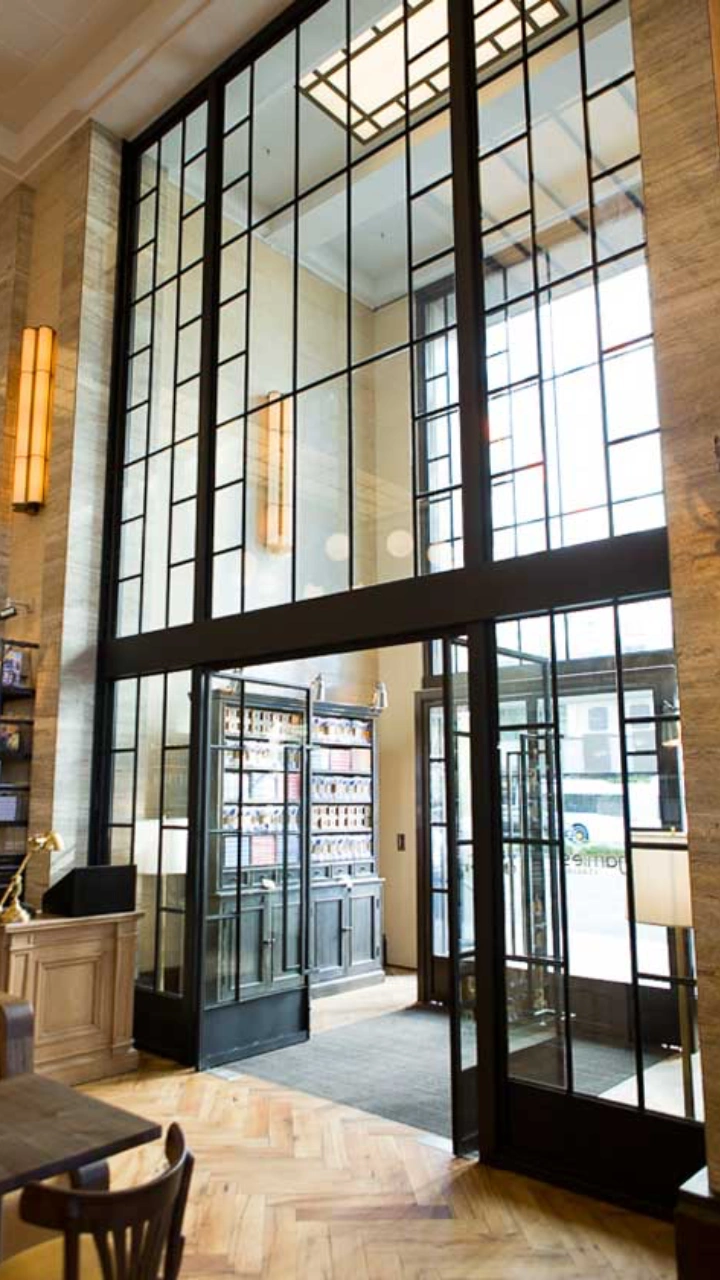

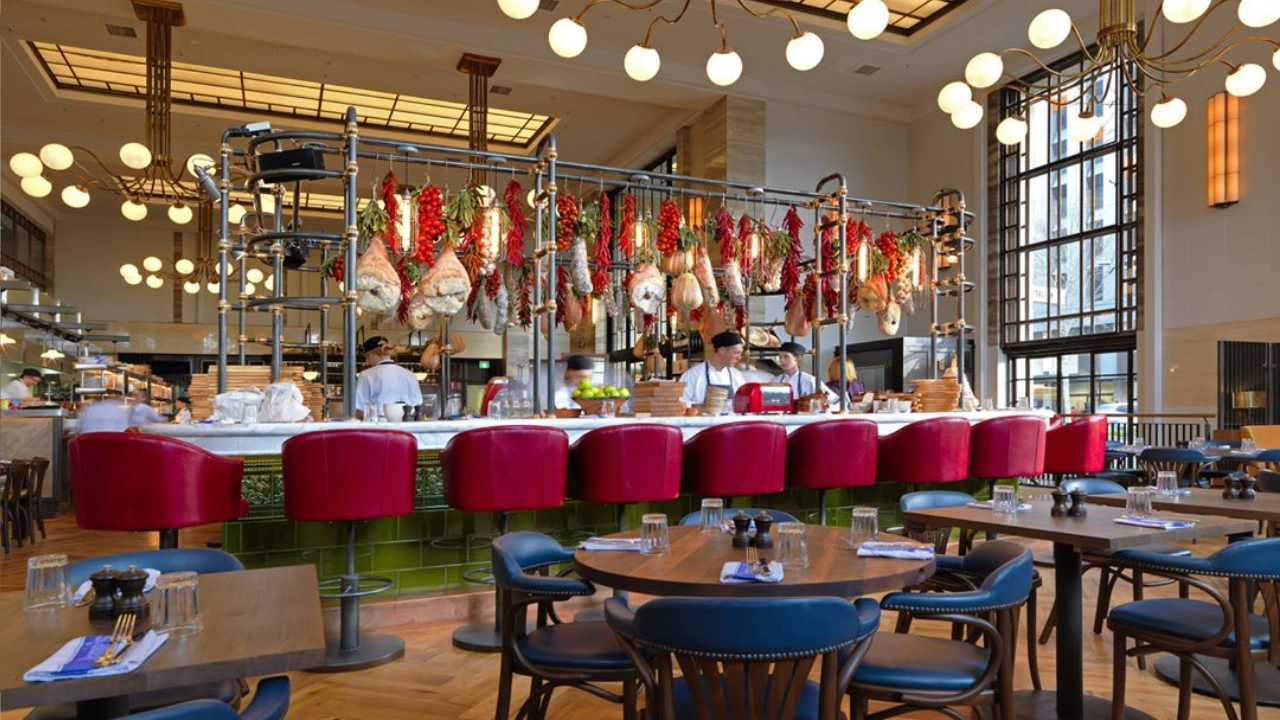

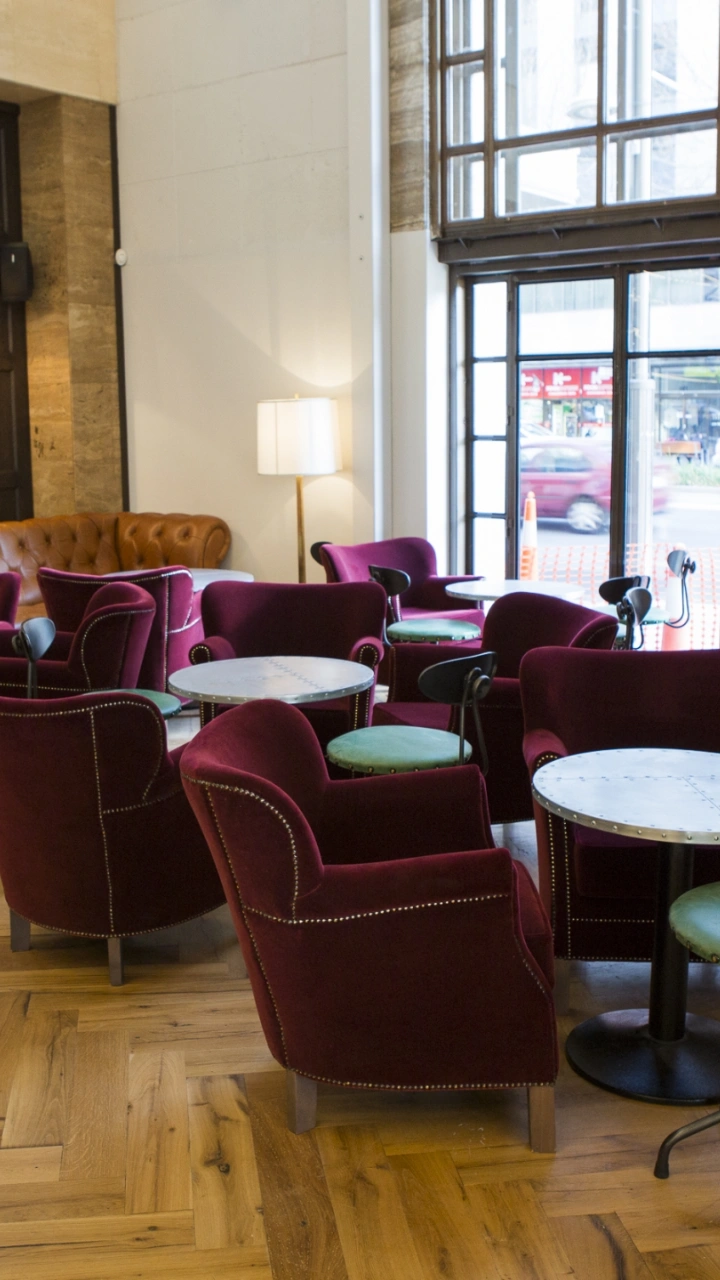

In addition to the automatic, manual, and configurable lighting control, the solution provided by Lightlogix extended to the signage, entry, and foyer areas, enhancing the guest experience from the very first moment they enter the establishment. The custom lighting levels in the public and private dining areas allow for a seamless transition between day and evening, fostering a versatile dining experience. The attention to detail in the lighting of the kitchen, service, and bar areas creates a cohesive ambiance while prioritising staff safety. This level of sophistication and functionality is a hallmark of a top restaurant.
The impressive range of pre-set lighting modes, along with the ability to further customise them through a password-protected Touchscreen, offers unparalleled control and versatility. The 12-minute fade times between modes are a testament to Lightlogix‘s attention to detail, ensuring a smooth and comfortable transition for patrons. This seamless blend of technology and human comfort demonstrates the exceptional engineering that has gone into this project.
Client:
THG Electrical
Completion Date:
October 2014
Location:
Adelaide, SA
Category:
Retail and Hospitality
DDTC001
Timeclock
Astronomical 365 day timeclock
The Philips Dynalite DDTC001 timeclock provides a tamper resistant solution for time-based event control on a DyNet network.
- Remote programming - The device is programmed via a PC and there are no external controls available, providing a tamper resistant solution.
- Advanced clock controls - Features sunrise/sunset tracking and automatic adjustment for daylight saving.
- Performs as an energy management controller - Uses powerful macro and conditional logic functions to provide full automation of large commercial projects, where automatic lighting events are required at predetermined times.
- Flexible mounting solution - DIN-rail mounted device, designed to be installed into a distribution board.
Title
Title
DTP170
The DTP170 is a feature rich colour LCD touchscreen that uses vivid graphics and sophisticated on-screen controls which allows the Systems Installer to create visually stunning and easy-to-use pages. Control of various equipment such as lighting, AV, security and HVAC can be easily integrated and controlled from the one location. Objects such as logos, buttons, faders, floor plans and diagnostic icons can be placed on pages and used to perform simple and complex conditional logic macros. Pages are created using Philips Dynalite’s touchscreen editor. JavaScript is fully supported.
Incorporating an innovative clip-on fascia capability, the DTP170 fascia accommodates practically any flat architectural surface medium. That gives you the freedom to choose; stainless steel, stone, glass, laminate, wood, vinyl, ceramic; the options are limitless. Fascia material may be matched with Dynalite’s DR2P Revolution series user control panels for perfect colour coordination.
Full Internet connectivity is supported. The DTP170 is powered from the DyNet network so does not require a mains voltage connection.
DUS804C
360º ceiling mount sensor
The DUS804C is a low profile recessed flush mount 360º ceiling mount sensor that combines motion detection (PIR), infra red remote control reception (IR) and ambient light level detection (PE) in the one device. In applications such as office buildings, lecture theatres, and homes, the DUS804C universal sensor can be utilised to detect motion and switch on the lights. When rooms are unoccupied, lights can be automatically dimmed or switched off to provide energy savings. The unit also incorporates a segmented click-up bezel surrounding the motion sensor element. This enables a portion of the sensing field to be readily masked to prevent nuisance detection from adjacent doorways or corridors. The same sensor provides IR control reception to enable full remote control over lights, audio-visual equipment and blinds. A range of hand held infra-red transmitters to complement DUS804 series universal sensors are available. In situations where it is critical to maintain precise lighting control for individual workspaces, such as an office workstation or even air traffic control centres, the DUS804C facilitates light compensation. The DUS804C can also be placed in an automatic“Daylight Harvesting” mode for energy savings.
DDRC1220FR-GL
Relay Controller
Robust control of switched loads
The Philips Dynalite DDRC1220FR-GL provides control of any type of switched load. All types of switched loads up to 20 A inductive are supported. The maximum load may be limited by 500 A inrush rating.
- Feed-through power circuit design - Electrically equivalent to a 12 pole contactor, with the added advantage of each pole being separately controllable via the DyNet network.
- Flexible mounting solution - A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled circuit.
- Inbuilt diagnostic functionality - Features circuit run time tracking on each channel and Device Online/Offline status indication.
- Multiple wiring schemes supported - Controls single phase and neutral or three phase and neutral (star) wiring configurations.
- Hardware override - Service override switch accessible from front panel.
DUS804CS-UP
Multifunction Sensor
Surface mount ceiling sensor with ultrasonic capability
The Philips Dynalite DUS804CS-UP is a surface mountable 360 degree multifunction sensor that combines ultrasonic (UP), motion detection (PIR), infrared remote control reception (IR) and ambient light level detection (PE) into one device in applications such as offices, lecture theaters and homes.
- Motion detection feature – Detection of motion within scanned area triggers a programmed lighting action. Ultrasonic technology enables motion detection behind fixed objects.
- Ambient light level detection and daylight harvesting- In applications where it is critical to maintain precise light, the PE function reads ambient levels and adjusts artificial light accordingly.
- Infrared receive capability - Manually adjust light levels using a hand-held remote control, via the inbuilt IR receive sensor of the DUS804CS-UP.
- Daylight harvesting mode - Delivers automatic energy savings.
DDMC802
Multipurpose Modular Controller
Control different load types with one device
The Philips Dynalite DDMC802 provides up to eight configurable output channels, controlled by up to four interchangeable control modules. A selection of control modules is available for a variety of load types.
- Single controller solution - Control a variety of load types from one device.
- Four module bays - Accommodates any combination of up to four single modules or two double-size modules.
- Leading edge phase control dimmer module - Suitable for use with incandescent lamps and some types of dimmable electronic transformers.
- Trailing edge phase control dimmer module - Suitable for use with most types of dimmable electronic transformers.
- Signal dimmer control module - Suitable for 1-10 V, DSI and DALI Broadcast control of digital drivers and transformers.
- Relay control module - Suitable for controlling most types of switched loads.
- Fan control module - 400 VA three-speed fan control.
- Curtain control module - Provides control of curtains, blinds and other motorized window treatments.
- Flexible mounting solution - A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled circuit.
DDMIDC8
Low Level Input Integrator
Flexible input integration
The Philips Dynalite DDMIDC8 is designed to enable cost-effective input integration to the Philips Dynalite control system from third-party systems such as security, HVAC and BMS.
- Eight digital inputs - Each can be individually configured as a dry contact or 0-24V AC/DC input.
- LED indicator on each input - Provides visual status indication.
- Optical isolation - All inputs isolated for high noise immunity.
- Four 0-5/0-10 V analogue inputs - Software selectable.
- Programmable Logic Controller - Processes comprehensive conditional and sequential logic and arithmetic functions.
PAxBPA
Antumbra Button
Contemporary two, four, or six-button panel with light-wash effect
The Philips AntumbraButton user interface features a sleek, contemporary design and incorporates the latest in field effect technology. Each easy-to-press mechanical button can be customized with text or icons and programmed to perform a wide variety of local and site-wide control functions. The PA2BPA, PA4BPA, and PA6BPA are suitable for but not limited to North American, South American, Australian and New Zealand markets.
- Field effect technology – The user interface detects an approaching user and ‘wakes up’, initiating a wall-wash lighting effect to encourage interaction.
- Supplied as two components – The Application Module contains buttons, rim, base and mounting plate, which can be mixed and matched to suit décor. The Communication Module (DACM) contains logical and network functions and can be pre-programmed off-site, allowing commissioning to commence prior to finalizing rim and button options.
- Hidden sensory inputs – An internal light sensor measures ambient light and adjusts lightwash effect accordingly. A built-in temperature sensor automatically adjusts air conditioning when integrated into the system.
- Multiple language and icon labeling – Button labeling language choices include English, Chinese and Arabic. A library of common icons transcends language barriers, which is particularly useful in hospitality applications.
- Décor-matching options – Buttons and rims are available in a range of attractive polycarbonate and metallic finishes.
- 64-channel DMX Tx support – Can be factory-set to DMX instead of DyNet, to communicate directly with DMX fixtures
Title
Title
DUS704C
Ceiling mountable 360 degree universal sensor
The DUS704 series combine motion detection (PIR), infra red remote control reception (IR) and ambient light level detection (PE) in the one device. In applications such as homes, lecture theatres and office towers, universal sensors can be utilised to detect motion and switch on the lights. When rooms are unoccupied, lights can be automatically dimmed or switched off to provide energy savings.
Infra Red remote control reception allows full control of lights, audio-visual equipment and blinds. The Dynalite DTK500 series hand held infra-red transmitters are compatible for use with the DUS704, and for the programming of 3rd party “universal” remote controls.
In situations where it is critical to maintain precise lighting control for individual workspaces, such as a flight control tower or office workstation, the DUS704 facilitates light compensation. The DUS704 can be placed in an automatic “Daylight Harvesting” mode for energy savings.
DUS704W
Wall mountable 90 degree universal sensor
The DUS704W is a wall mountable 90 degree universal sensor that combines motion detection (PIR), Infrared remote control reception (IR) and ambient light level detection (PE) into one device in applications such as offices, lecture theaters and homes.
• Motion detection feature — Detects the presence or absence of motion and adjusts lights accordingly.
• Ambient light level detection and daylight harvesting — In applications where it is critical to maintain precise light, the PE function reads ambient levels and adjusts artificial light accordingly.
• Infrared receive capability — Manually adjust light levels using a hand-held remote control, via the inbuilt IR receive sensor of the DUS704W.
• Multiple mounting options — The device is available in both 360 degree ceiling mount (DUS704C) or wide angle wall mount (DUS704W) versions.
3rd Party System Integrations
- Security System low-level interfaces
100+ individual channels of Load Control
- Phase Dimming (Trailing Edge)
- Relay Switched Control Groups
25+ Sensors & User Interfaces
- Dynamic Occupancy Control
- Maintained Illuminance light level control
- Antumbra User panels
- Password protected Colour touchscreen panel
- Astronomical Scheduling
