ACC Café Court – Home Ground

Project Details:

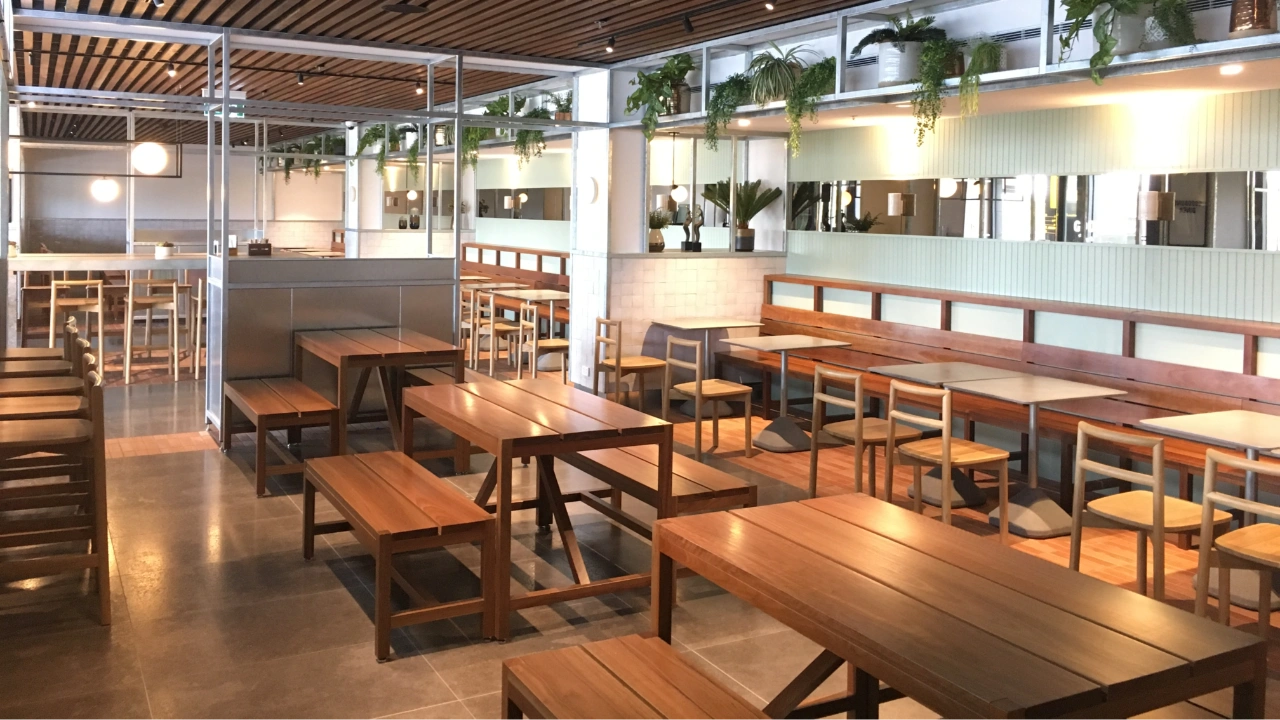

Lightlogix delivered an exemplary lighting controls system for the Home Ground delicatessen, diner, and bar. By seamlessly integrating the lighting network with the larger convention facilities, Lightlogix achieved a cohesive and consistent lighting experience that optimises energy efficiency and creates a welcoming ambiance. This elevated lighting experience positions the Home Ground delicatessen, diner, and bar as a premier hospitality destination, reflecting the high standards and innovative approach of the Lightlogix brand.

In addition to lighting control, Lightlogix‘s solution incorporated the management of motorised blinds and radiant heaters, optimising patron comfort while conserving energy. The DALI field protocol allowed for dimmable lighting and customisable presets, delivering a comfortable and inviting dining ambiance while minimising energy consumption. This approach epitomises Lightlogix‘s commitment to delivering high-quality, sustainable solutions to its clients.

The integration of the Home Ground lighting controls with the existing Adelaide Convention Centre System Manager head-end provided added benefits, including enhanced supervision, scheduling, monitoring, and reporting capabilities. This feature empowered the café court to leverage the robust functionality of the larger system, ensuring seamless management and optimisation of the lighting system, while maintaining a distinct identity and operational autonomy. This unique integration exemplifies Lightlogix‘s expertise in designing and implementing sophisticated control systems that offer scalability, adaptability, and efficiency.

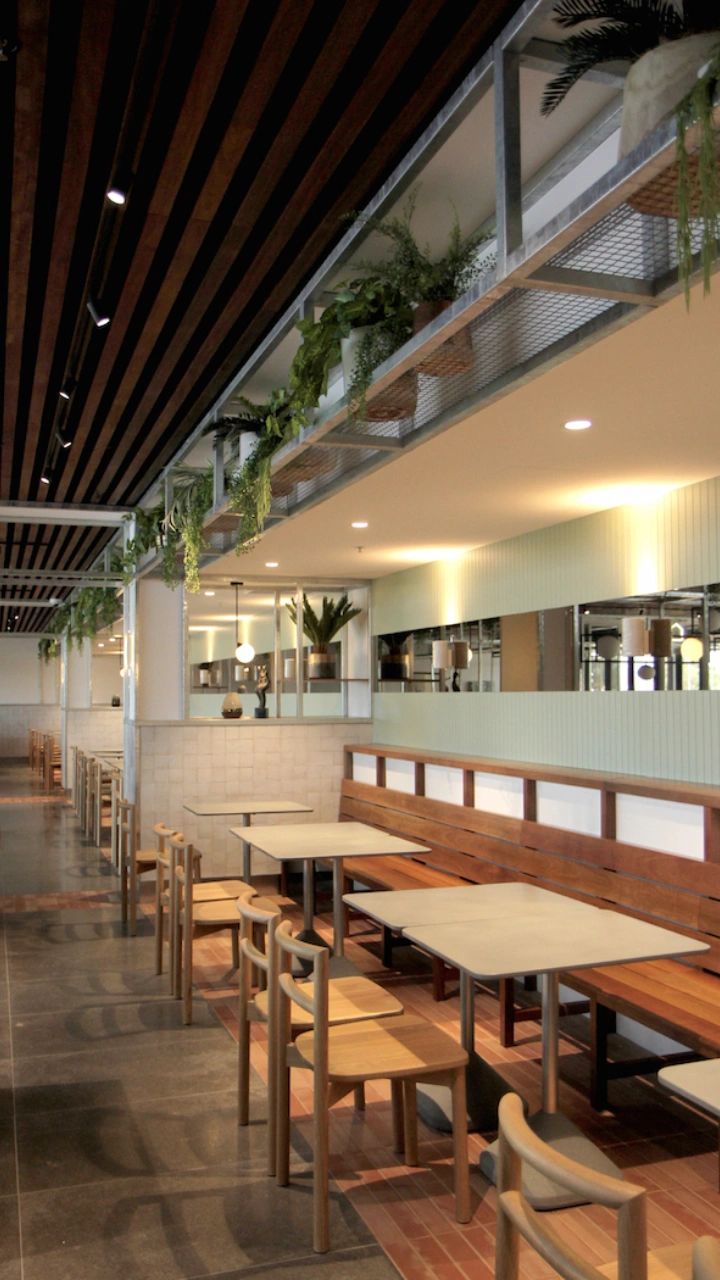

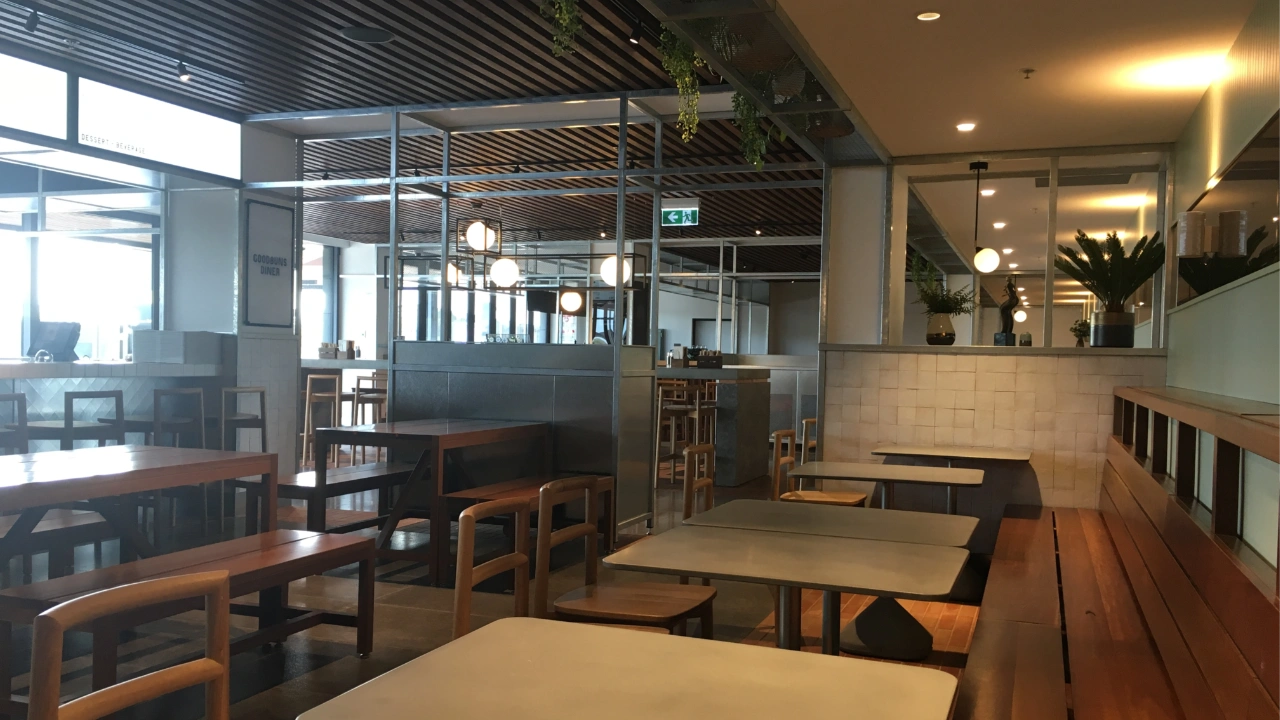

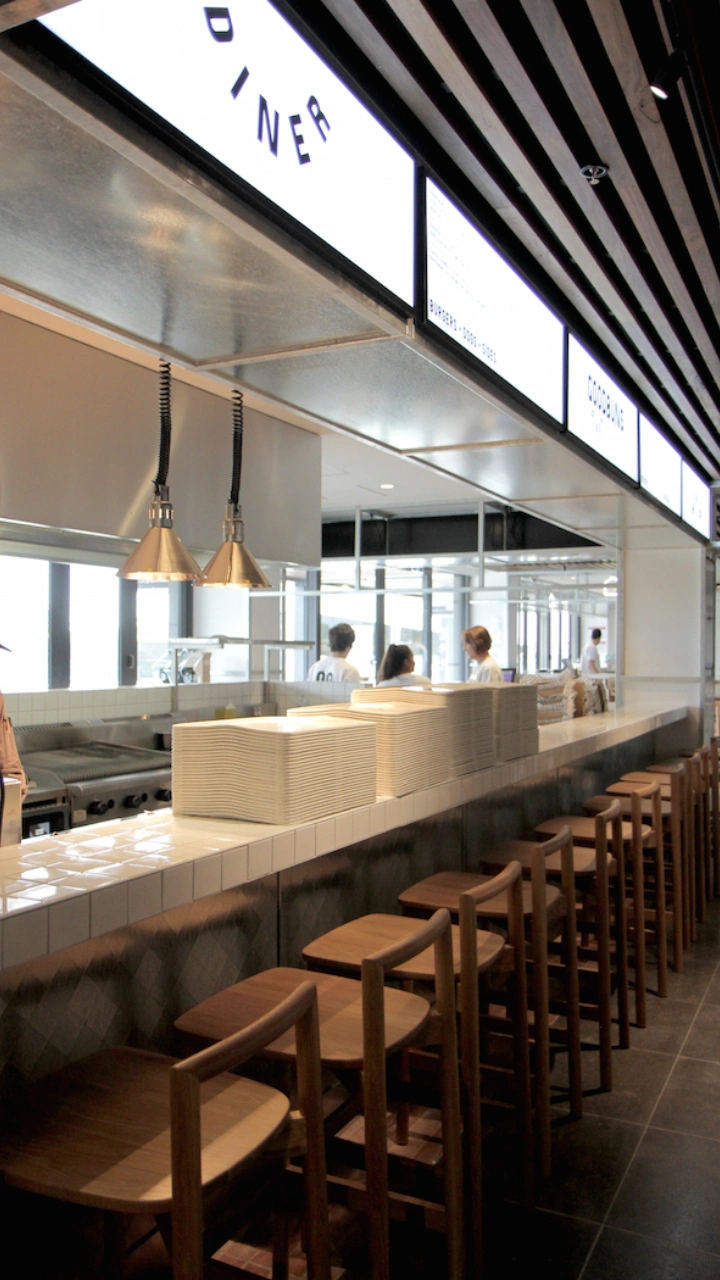

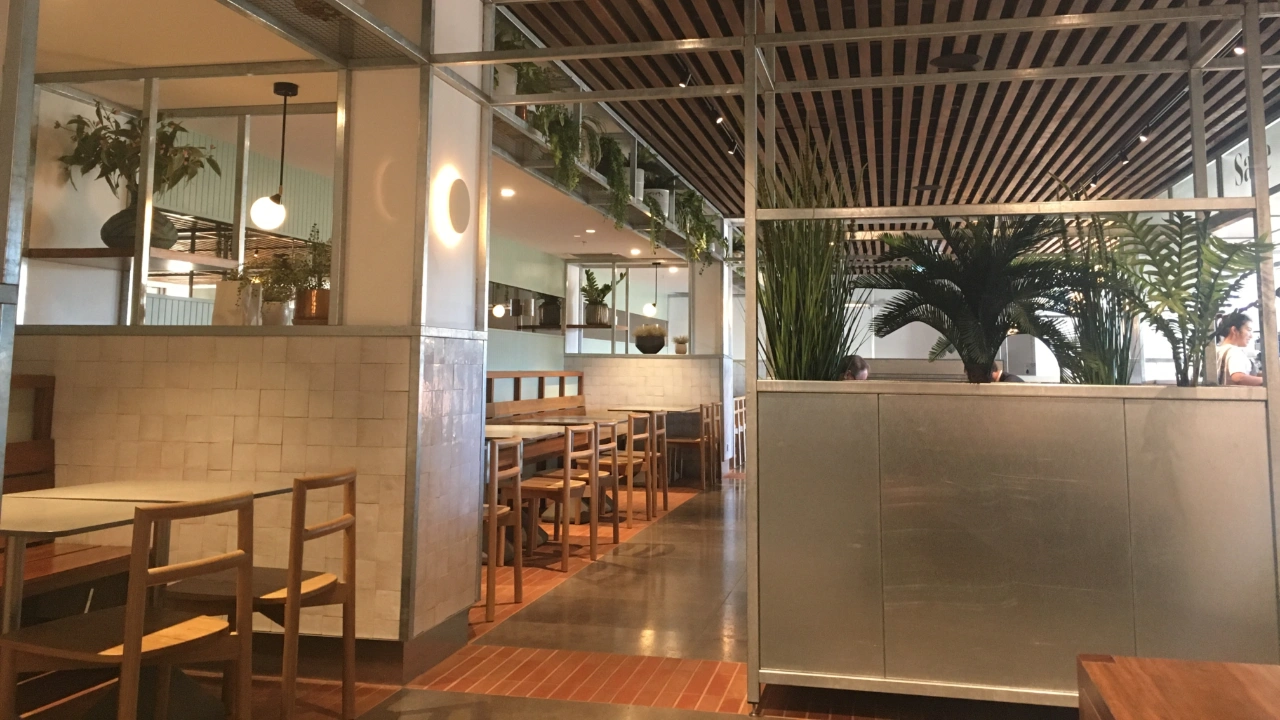

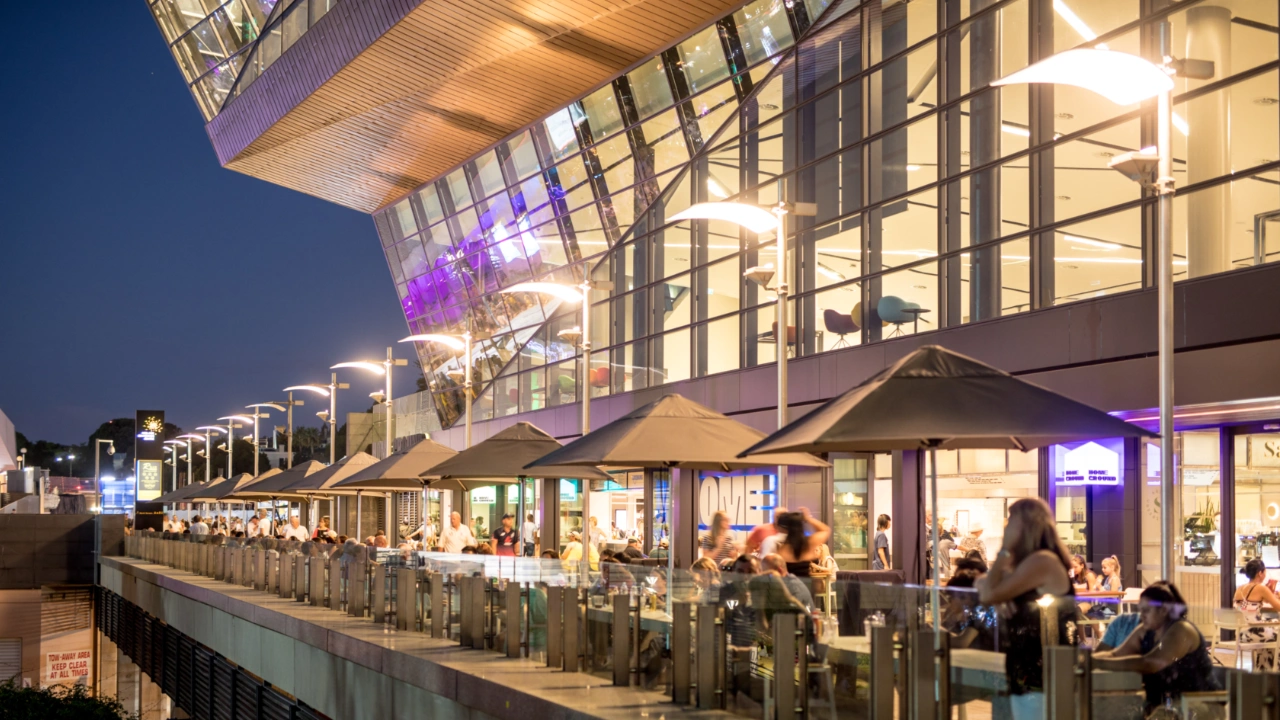

(Images courtesy of Adelaide Venue Management)

Client:

THG Electrical

Completion Date:

December 2017

Location:

Adelaide, South Australia

Category:

Retail and Hospitality

PDEG

Ethernet Gateway

Flexible Ethernet integration

The Philips Dynalite PDEG provides a multipurpose Ethernet connection to a Philips lighting control system. It supports access to the lighting system via a dedicated Philips app as well as providing a web interface delivering access to the inbuilt timeclock and schedule editor functions. It provides bridging functionality between Ethernet backbone and the DyNet fieldbus devices.

Large storage capacity - The device stores large project files internally, which apps use to automatically configure their settings. This saves configuration time and ensures accuracy for phone and tablet control.
Built-in web server - Allows the user to edit and check system settings via the Network Hardware Checker and System Roll Call tools.
No technical skills needed - Inbuilt timeclock and schedule manager allow the user to manage operation and task scheduling without advanced technical knowledge.
Powerful custom task engine - Allows users or third-party systems to run macros, such as ‘After Hours’, ‘Shut Down’, ‘Welcome’ and more.
Advanced interoperability - Supports management of Philips Dynalite and Philips PoE fittings on a single system.

PDEB

Ethernet Bridge

Feature focused cost-effective DyNet to Ethernet Bridge

The Philips Dynalite PDEB provides a cost-effective Ethernet connection to a Philips lighting control system. It provides bridging functionality between an Ethernet backbone and the DyNet fieldbus devices. The PDEB enables the implementation of a trunk and spur topology on large project sites, with the bridge providing a high-speed backbone coupled to many lower speed spurs.

Cost-effective - The device provides an economical way to connect the RS-485 DyNet network to an Ethernet network.
Internal controls - Programmable logic controller capable of comprehensive conditional and sequential logic and arithmetic function processing, packet filtering and DyNet to DyNet 2 translation.
Flexible mounting solution - DIN-rail mountable, designed to be installed into a distribution board or other electrical enclosure.

PAxBPA

Antumbra Button

Contemporary two, four, or six-button panel with light-wash effect

The Philips AntumbraButton user interface features a sleek, contemporary design and incorporates the latest in field effect technology. Each easy-to-press mechanical button can be customized with text or icons and programmed to perform a wide variety of local and site-wide control functions. The PA2BPA, PA4BPA, and PA6BPA are suitable for but not limited to North American, South American, Australian and New Zealand markets.

Field effect technology – The user interface detects an approaching user and ‘wakes up’, initiating a wall-wash lighting effect to encourage interaction.
Supplied as two components – The Application Module contains buttons, rim, base and mounting plate, which can be mixed and matched to suit décor. The Communication Module (DACM) contains logical and network functions and can be pre-programmed off-site, allowing commissioning to commence prior to finalizing rim and button options.
Hidden sensory inputs – An internal light sensor measures ambient light and adjusts lightwash effect accordingly. A built-in temperature sensor automatically adjusts air conditioning when integrated into the system.
Multiple language and icon labeling – Button labeling language choices include English, Chinese and Arabic. A library of common icons transcends language barriers, which is particularly useful in hospitality applications.
Décor-matching options – Buttons and rims are available in a range of attractive polycarbonate and metallic finishes.
64-channel DMX Tx support – Can be factory-set to DMX instead of DyNet, to communicate directly with DMX fixtures

DDBC120-DALI

DALI-2 Driver Controller

Enabling a full DALI universe including tunable white drivers, DALI sensors and user interfaces

The Philips Dynalite DDBC120-DALI is ideal for small-scale projects looking for a compact, all-in-one DALI control solution.
This controller operates seamlessly with all other Dynalite controllers, sensors, user interfaces and head-end software.

Single-master solution – Compatible with a range of DALI fittings and devices, including DALI fluorescent drivers, DALI electronic low voltage transformers, DALI LED fixtures, DALI emergency lighting fixtures and Philips Dynalite DALI sensors and user interfaces.
Compatible with DALI 209 drivers – Provides control of tunable white luminaires.
DALI auto-enumeration – Provides automatic enumeration of DALI drivers when powered on and enables self-repair of the network system if a DALI driver fails.
Fully scalable network solution – Direct mapping from DALI to the DyNet network protocol eliminates DALI imposed limits, such as maximum group sizes.
Flexible mounting solution – A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled lighting circuit.
Dual functionality – Leverage advantages of a true DALI network solution, whilst still allowing full function set of DyNet network control.
Driver standby power elimination – Internal switched relay automatically isolates the power circuit when all drivers are dimmed to 0%.
Integral DALI bus power supply – Removes the need for provision of a separate external power supply and reduces distribution board wiring complexity.
Driver management tools – Includes lamp and driver status reporting, driver run time tracking, and emergency test reporting.
Onboard DALI test function – Use the controller's service switch to set all connected lamps to full brightness, or flash on/off for a 5-minute test window, without the need for software or additional input devices.

PADPA

Antumbra Display

Contemporary button panel with LCD display

The Philips AntumbraDisplay user interface provides a central LCD display to present multiple pages of functions and system information. It incorporates the latest in field effect technology. The contemporary design features a number of button configurations, with each button capable of local or site-wide control functions. The PADPA range is suitable for, but not limited to, North American, South American, Australian and New Zealand markets.

Field effect technology - The user interface detects an approaching user and 'wakes up', initiating a wall-wash lighting effect to encourage interaction.
Supplied as two components - The Application Module contains buttons, rim, base and mounting plate, which can be mixed and matched to suit décor. The Communication Module contains all of the logical and network functions and is pre-programmed off-site, allowing commissioning to commence prior to finish options being finalized.
Hidden sensory inputs - An internal light sensor measures ambient light and adjusts lightwash effect accordingly. A built-in temperature sensor automatically adjusts air conditioning when integrated into the system.
Multiple language and icon labeling - Display labeling language choices include English, Chinese and Arabic. A library of common icons transcends language barriers, which is particularly useful in hospitality applications. Button labeling not available.
Central LCD - Allows for display of system information including temperature, time, channel level and current scene. Button function can change when navigating between up to 16 pages.
Selection of rim and fascia options - Allows décor matching to suit any environment.

DDRC1220FR-GL

Relay Controller

Robust control of switched loads

The Philips Dynalite DDRC1220FR-GL provides control of any type of switched load. All types of switched loads up to 20 A inductive are supported. The maximum load may be limited by 500 A inrush rating.

Feed-through power circuit design - Electrically equivalent to a 12 pole contactor, with the added advantage of each pole being separately controllable via the DyNet network.
Flexible mounting solution - A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled circuit.
Inbuilt diagnostic functionality - Features circuit run time tracking on each channel and Device Online/Offline status indication.
Multiple wiring schemes supported - Controls single phase and neutral or three phase and neutral (star) wiring configurations.
Hardware override - Service override switch accessible from front panel.

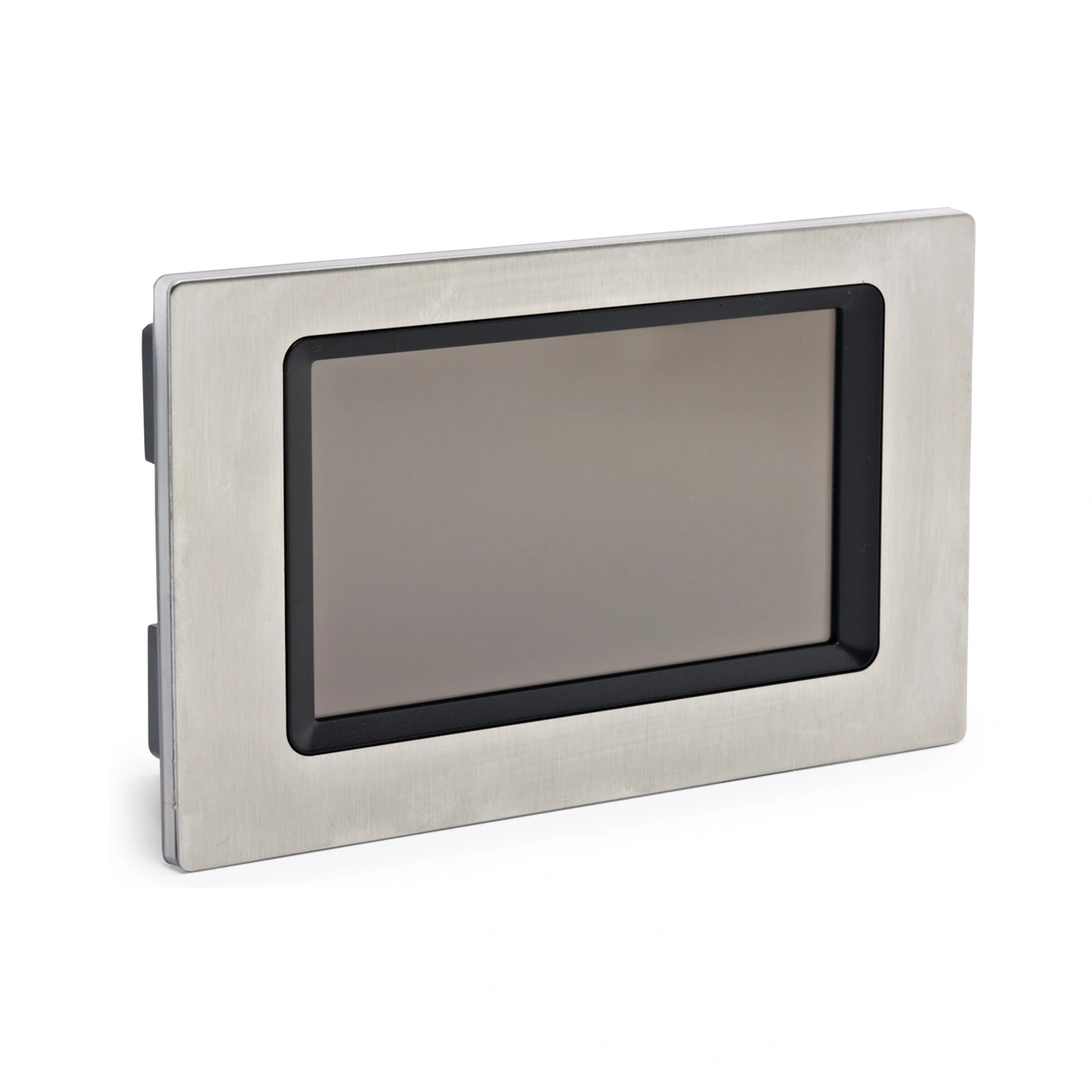

DTP100

The DTP100 is a feature rich colour LCD touchscreen that uses vivid graphics and sophisticated on-screen controls which allows the Systems Installer to create visually stunning and easy-to-use pages. Control of various equipment such as lighting, AV, security and HVAC can be easily integrated and controlled from the one location. Objects such as logos, buttons, faders, floor plans and diagnostic icons can be placed on pages and used to perform simple and complex conditional logic macros. Pages are created using Philips Dynalite’s touchscreen editor. JavaScript is fully supported.

Incorporating an innovative clip-on fascia capability, the DTP100 fascia accommodates practically any flat architectural surface medium. That gives you the freedom to choose; stainless steel, stone, glass, laminate, wood, vinyl, ceramic; the options are limitless. Fascia material may be matched with Philips Dynalite’s DR2P Revolution series user control panels for perfect colour coordination.

Full internet connectivity is supported. The DTP100 is powered from the DyNet network so does not require a mains voltage supply.

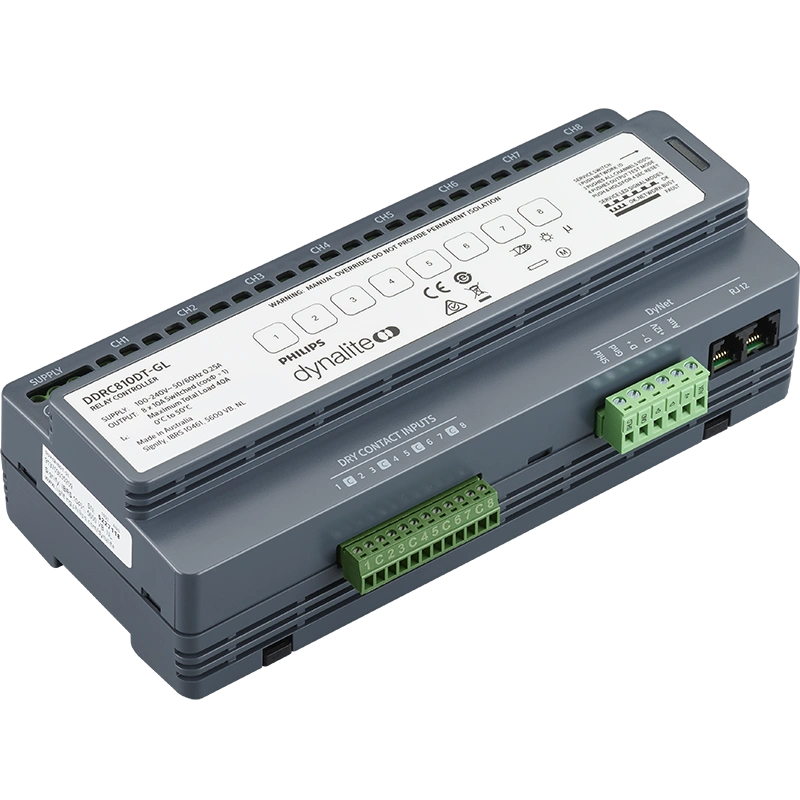

DDRC810DT-GL

Relay Controller

Designed to operate any type of switched load

The Philips Dynalite DDRC810DT-GL is ideal for controlling bi-directional motors, such as curtain and blind motors. It is an eight channel device suitable for any switched load up to 10 A per channel, with a maximum box load of 40 A.

Voltage free changeover SPDT output relays - Perfect for controlling bi-directional motors.
Flexible mounting solution - A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled circuit.

Inbuilt diagnostic functionality - Features circuit run time tracking on each channel.

Standalone or networked operation - Can operate as a discrete standalone unit, or as part of an integrated control system when connected to the DyNet network.

Dry contact inputs - The unit receives instructions from voltage-free button presses.

Title

DUS704C

Ceiling mountable 360 degree universal sensor

The DUS704 series combine motion detection (PIR), infra red remote control reception (IR) and ambient light level detection (PE) in the one device. In applications such as homes, lecture theatres and office towers, universal sensors can be utilised to detect motion and switch on the lights. When rooms are unoccupied, lights can be automatically dimmed or switched off to provide energy savings.

Infra Red remote control reception allows full control of lights, audio-visual equipment and blinds. The Dynalite DTK500 series hand held infra-red transmitters are compatible for use with the DUS704, and for the programming of 3rd party “universal” remote controls.

In situations where it is critical to maintain precise lighting control for individual workspaces, such as a flight control tower or office workstation, the DUS704 facilitates light compensation. The DUS704 can be placed in an automatic “Daylight Harvesting” mode for energy savings.

DUS704W

Wall mountable 90 degree universal sensor

The DUS704W is a wall mountable 90 degree universal sensor that combines motion detection (PIR), Infrared remote control reception (IR) and ambient light level detection (PE) into one device in applications such as offices, lecture theaters and homes.
• Motion detection feature — Detects the presence or absence of motion and adjusts lights accordingly.
• Ambient light level detection and daylight harvesting — In applications where it is critical to maintain precise light, the PE function reads ambient levels and adjusts artificial light accordingly.
• Infrared receive capability — Manually adjust light levels using a hand-held remote control, via the inbuilt IR receive sensor of the DUS704W.
• Multiple mounting options — The device is available in both 360 degree ceiling mount (DUS704C) or wide angle wall mount (DUS704W) versions.
