Project Details:

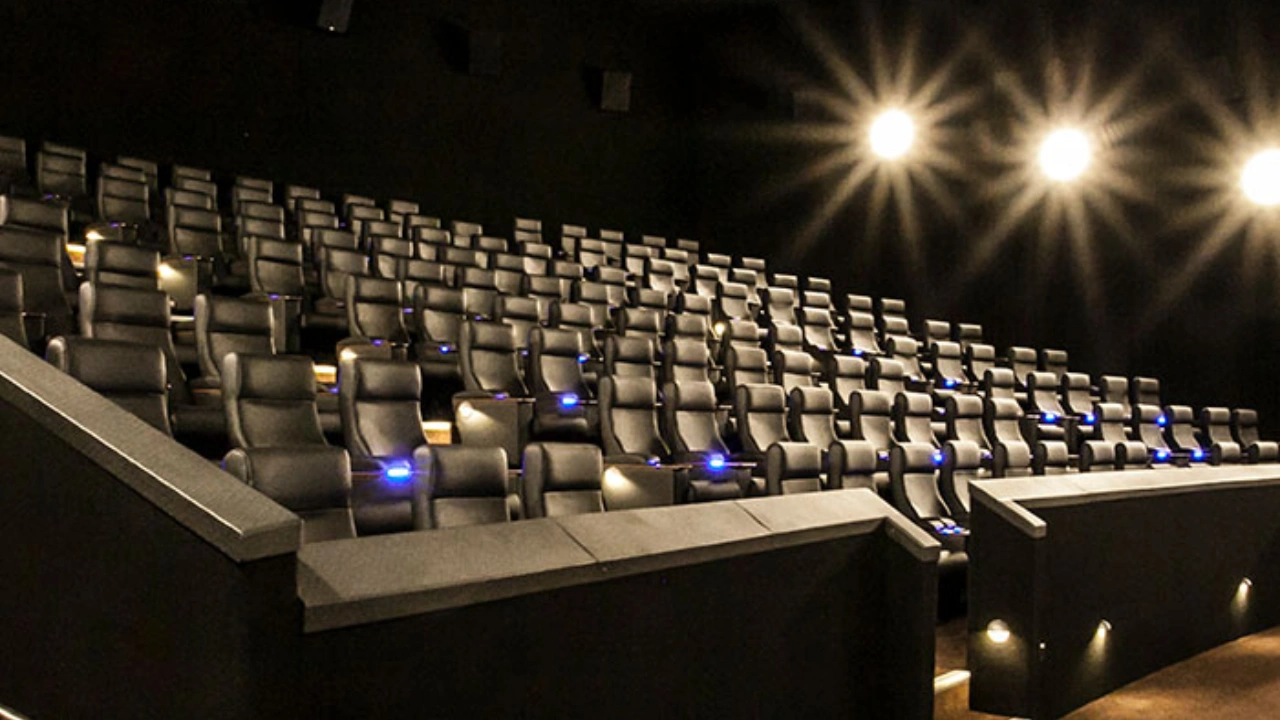

Lightlogix delivered a comprehensive solution for the GU Filmhouse Glenelg project, encompassing design, equipment, programming, and commissioning services for the Philips Dynalite Lighting Controls System. The project features a state-of-the-art cinema complex, complete with six auditoriums, foyers, concourses, and a candy bar, cafeteria, and licensed bar. The integration of cutting-edge lighting controls enhances the overall ambiance, providing patrons with a sophisticated and cinematic experience.

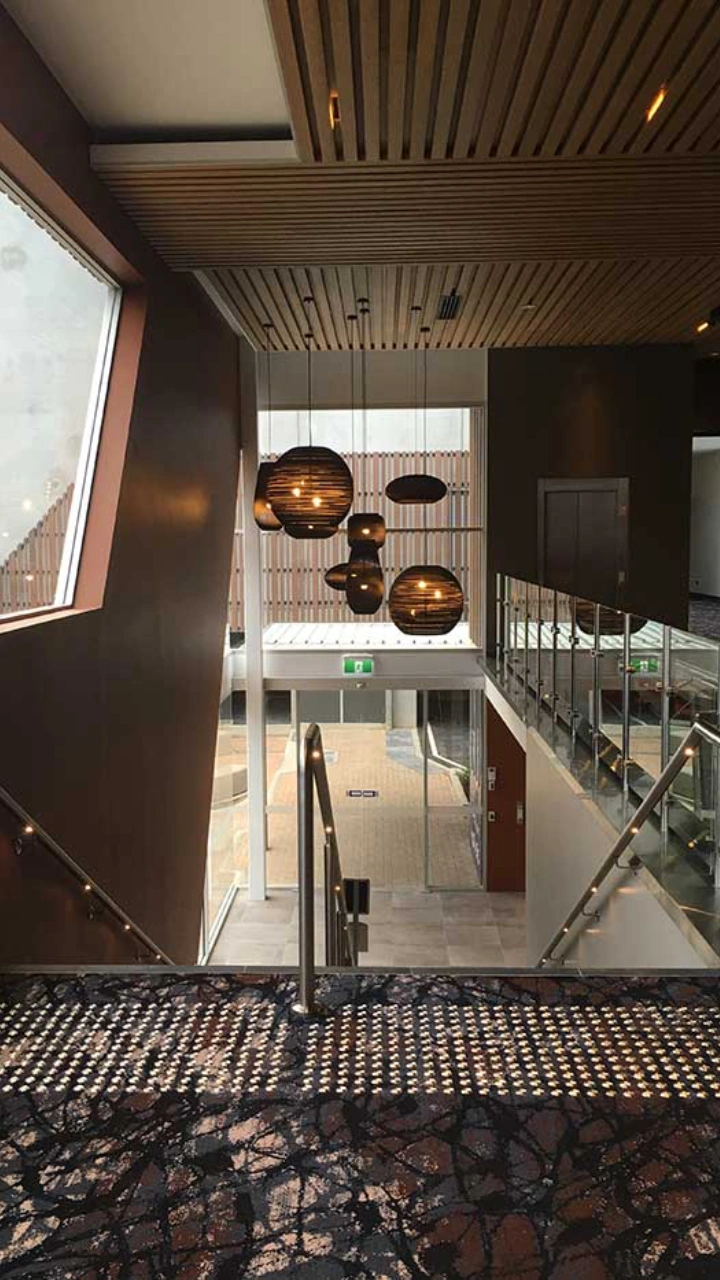

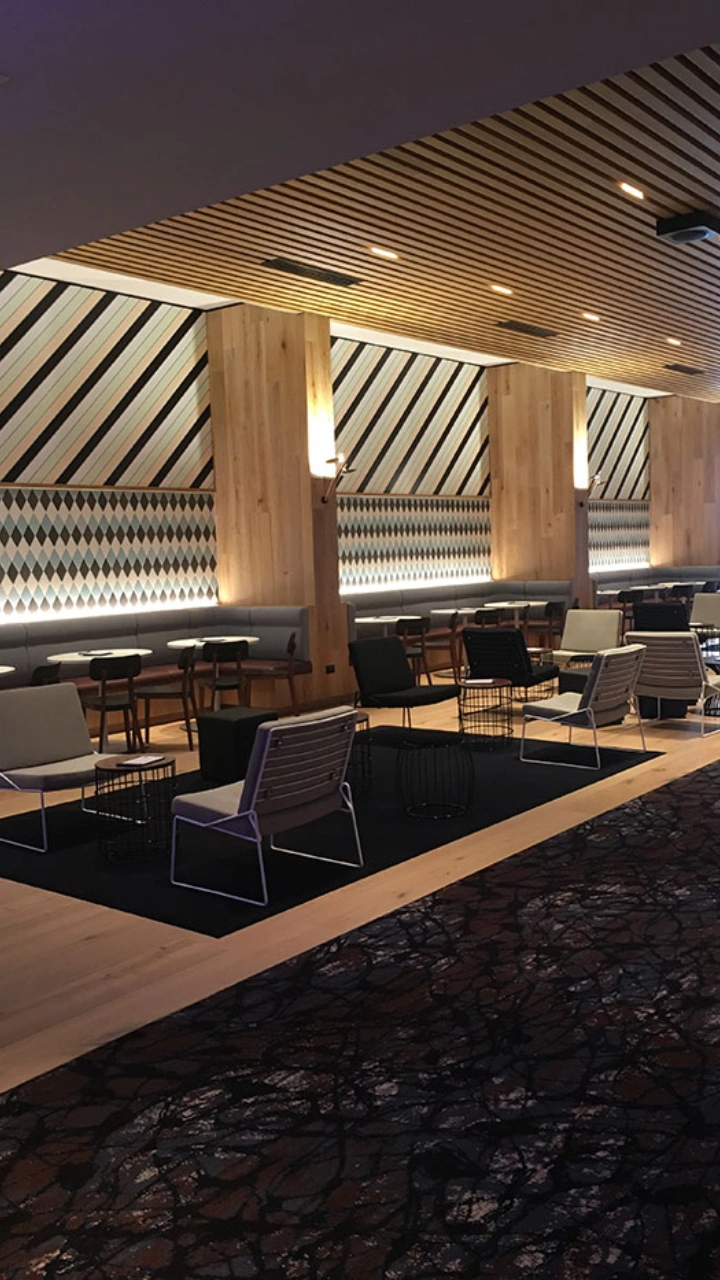

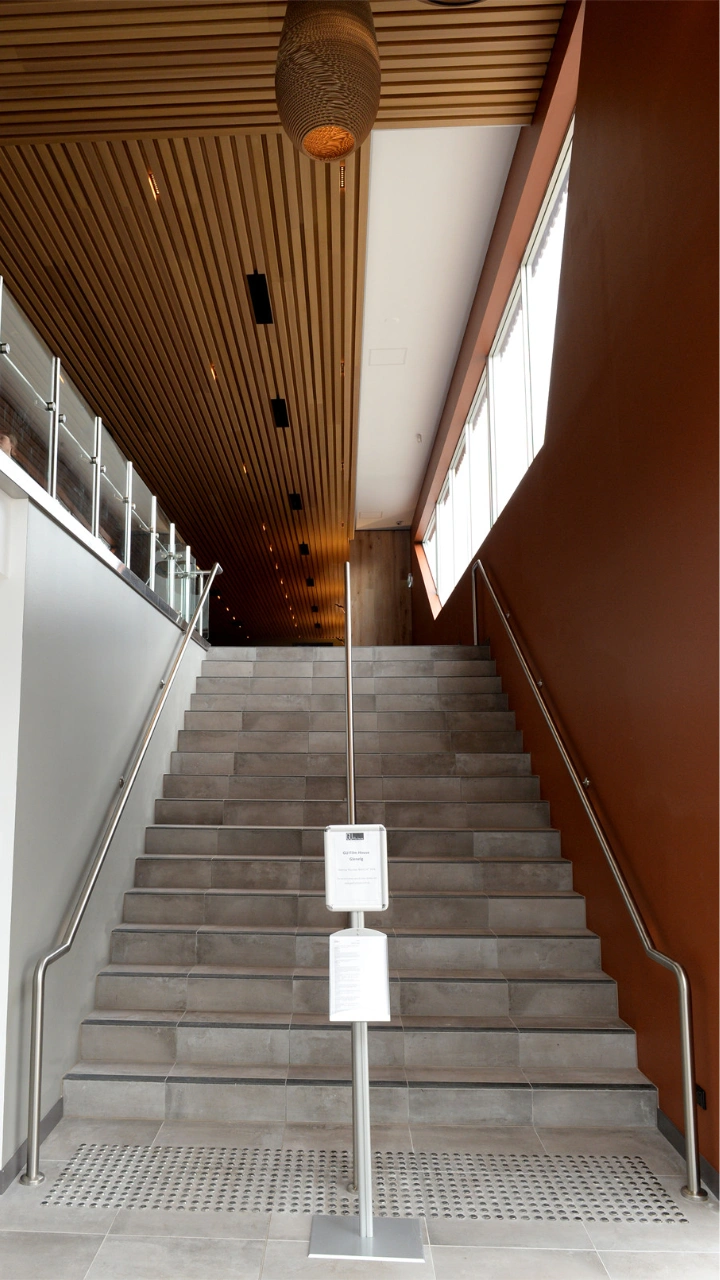

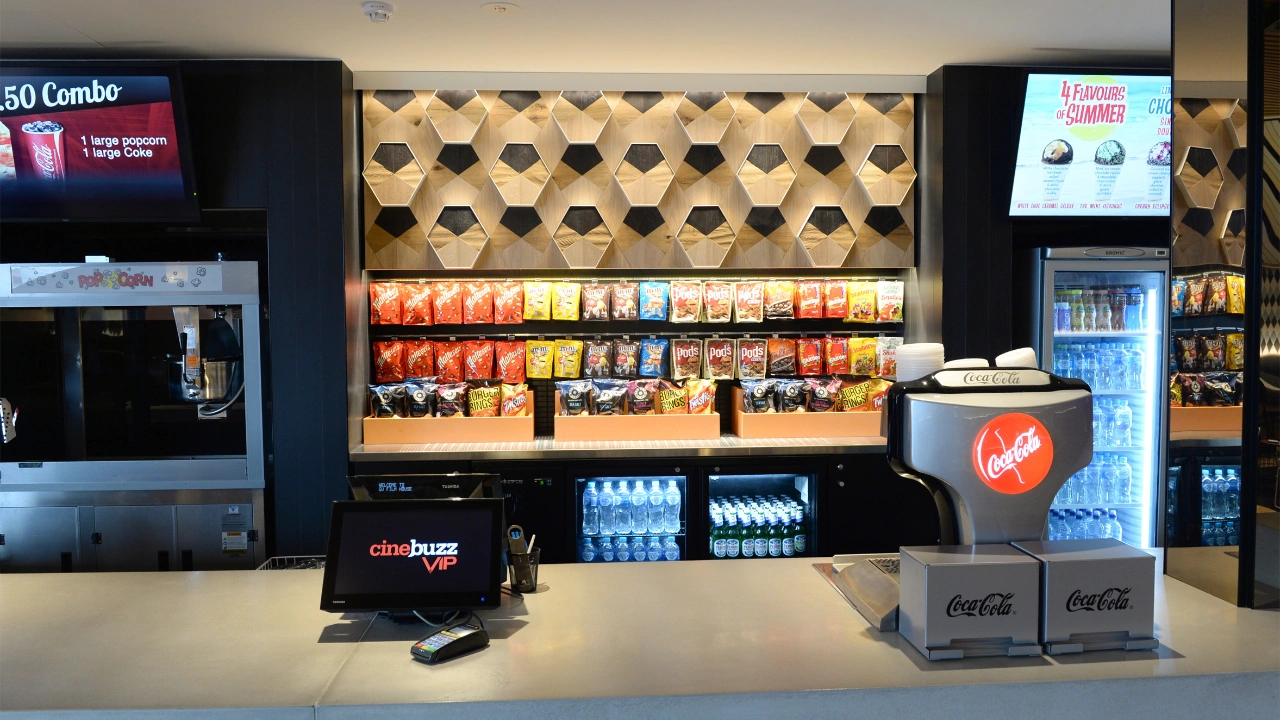

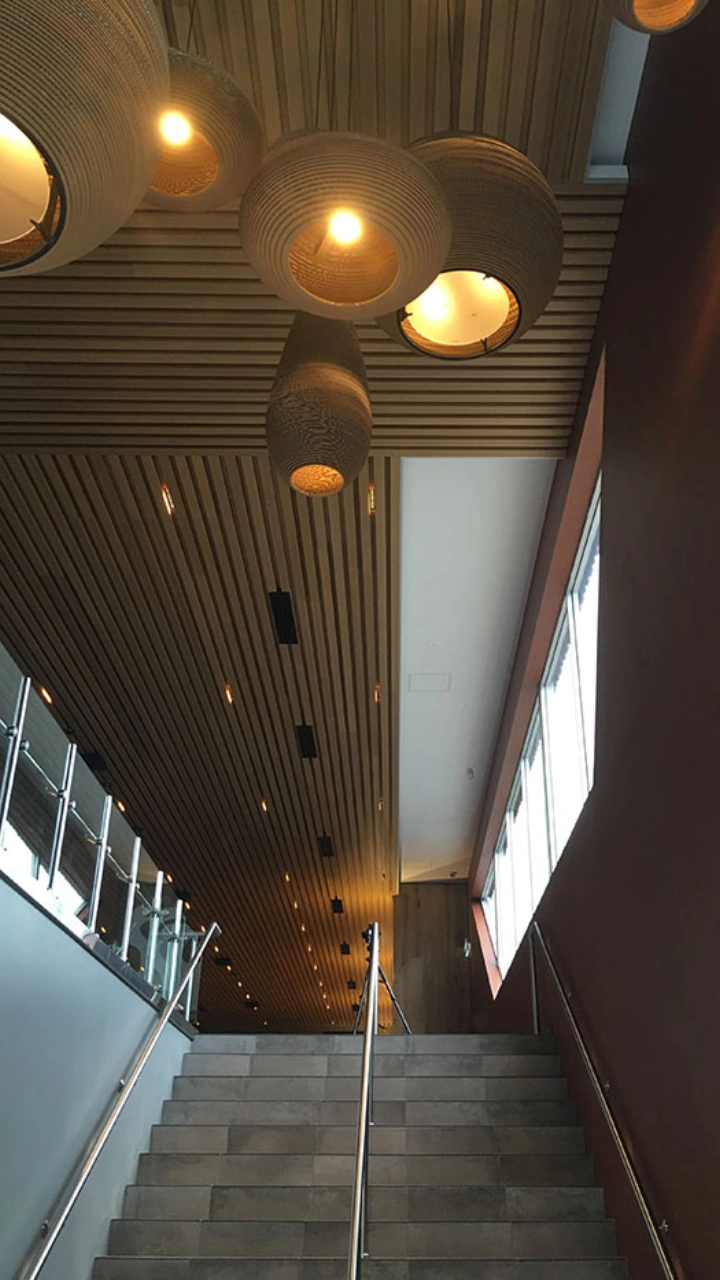

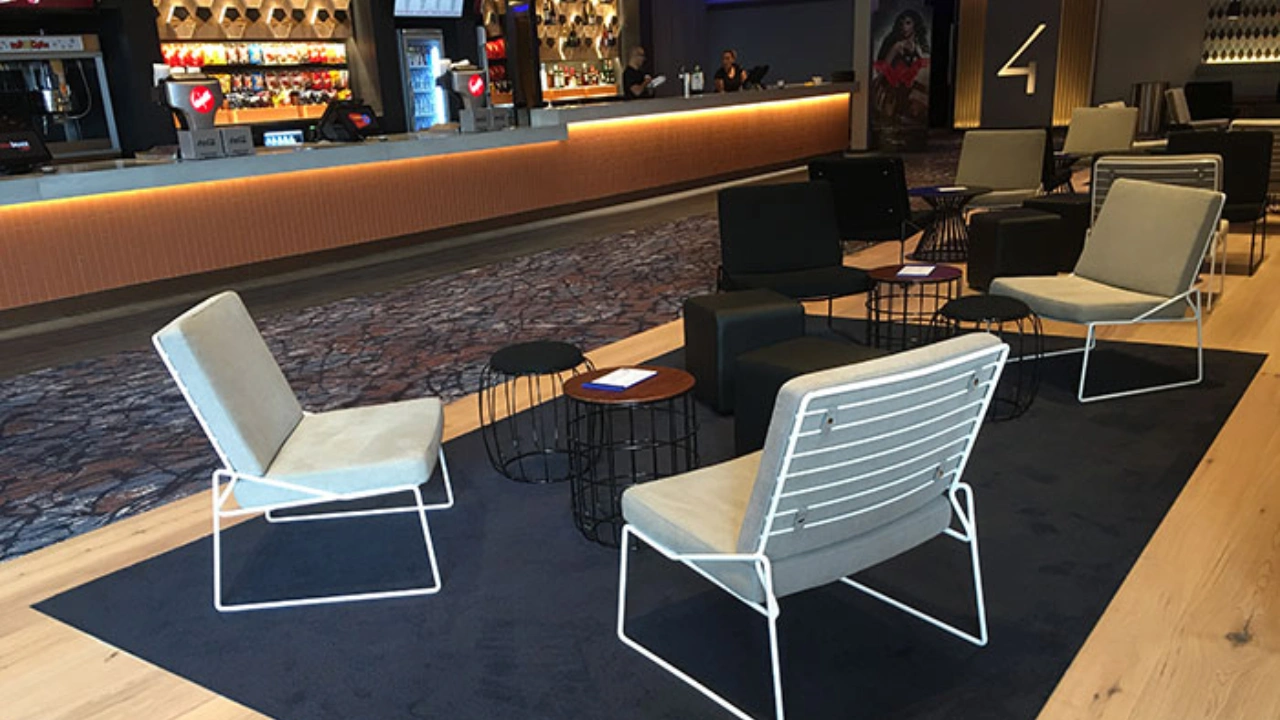

Lightlogix created an versatile solution that enables the automated, manual, and adaptable control of the foyers, concourses, seating, candy bar, cafeteria, licensed bar, and public toilets. The focus of the intelligent Lighting Control System is to ensure optimal lighting levels at all times, prioritising the safety and comfort of both staff and customers. This system is designed to provide a visually pleasing environment that enhances the overall customer experience.
The system’s flexible programming enables the selection of pre-set lighting modes for various times of day, including Morning, Day, Evening, Night, Late Night, After Hours, Cleaning, and Master Off. These modes can be further customised using a password-protected Touchscreen. The dimmable lighting circuits are programmed with fade times of up to three minutes, ensuring a smooth and comfortable transition between modes for customers. This attention to detail enhances the overall customer experience.
Client:
NSG Boffa
Completion Date:
March 2016
Location:
Glenelg, South Australia
Category:
Cinemas and Convention Centres
DDTC001
Timeclock
Astronomical 365 day timeclock
The Philips Dynalite DDTC001 timeclock provides a tamper resistant solution for time-based event control on a DyNet network.
- Remote programming - The device is programmed via a PC and there are no external controls available, providing a tamper resistant solution.
- Advanced clock controls - Features sunrise/sunset tracking and automatic adjustment for daylight saving.
- Performs as an energy management controller - Uses powerful macro and conditional logic functions to provide full automation of large commercial projects, where automatic lighting events are required at predetermined times.
- Flexible mounting solution - DIN-rail mounted device, designed to be installed into a distribution board.
DDMC802
Multipurpose Modular Controller
Control different load types with one device
The Philips Dynalite DDMC802 provides up to eight configurable output channels, controlled by up to four interchangeable control modules. A selection of control modules is available for a variety of load types.
- Single controller solution - Control a variety of load types from one device.
- Four module bays - Accommodates any combination of up to four single modules or two double-size modules.
- Leading edge phase control dimmer module - Suitable for use with incandescent lamps and some types of dimmable electronic transformers.
- Trailing edge phase control dimmer module - Suitable for use with most types of dimmable electronic transformers.
- Signal dimmer control module - Suitable for 1-10 V, DSI and DALI Broadcast control of digital drivers and transformers.
- Relay control module - Suitable for controlling most types of switched loads.
- Fan control module - 400 VA three-speed fan control.
- Curtain control module - Provides control of curtains, blinds and other motorized window treatments.
- Flexible mounting solution - A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled circuit.
DUS804C
360º ceiling mount sensor
The DUS804C is a low profile recessed flush mount 360º ceiling mount sensor that combines motion detection (PIR), infra red remote control reception (IR) and ambient light level detection (PE) in the one device. In applications such as office buildings, lecture theatres, and homes, the DUS804C universal sensor can be utilised to detect motion and switch on the lights. When rooms are unoccupied, lights can be automatically dimmed or switched off to provide energy savings. The unit also incorporates a segmented click-up bezel surrounding the motion sensor element. This enables a portion of the sensing field to be readily masked to prevent nuisance detection from adjacent doorways or corridors. The same sensor provides IR control reception to enable full remote control over lights, audio-visual equipment and blinds. A range of hand held infra-red transmitters to complement DUS804 series universal sensors are available. In situations where it is critical to maintain precise lighting control for individual workspaces, such as an office workstation or even air traffic control centres, the DUS804C facilitates light compensation. The DUS804C can also be placed in an automatic“Daylight Harvesting” mode for energy savings.
DDNG485
RS-485/DMX512 Gateway
Flexible network communications gateway
The Philips Dynalite DDNG485 is a flexible network communications bridge designed for RS-485 networks. The two opto-isolated RS-485 ports enable the DDNG485 to implement a trunk and spur topology on large project sites, with the bridge providing a high-speed backbone opto-coupled to many lower speed spurs.
- Route DyNet to third-party systems – Such as audio-visual, Modbus meters, and building automation systems, providing an integrated approach to total building control and energy management.
- DMX512 mode – Transmit or receive up to 512 channels of DMX with automatic DyNet conversion and task triggering. Provides temporary control of house lights from the DMX console in an auditorium scenario.
- Electrical fault isolation – Faults can be isolated to individual network spurs.
- Internal controls – Programmable logic controller capable of comprehensive conditional and sequential logic and arithmetic function processing, packet filtering, and DyNet to DyNet 2 translation.
- Flexible mounting solution – DIN rail mountable, designed to be installed into a distribution board or other electrical enclosure.
DDBC120-DALI
DALI-2 Driver Controller
Enabling a full DALI universe including tunable white drivers, DALI sensors and user interfaces
The Philips Dynalite DDBC120-DALI is ideal for small-scale projects looking for a compact, all-in-one DALI control solution.
This controller operates seamlessly with all other Dynalite controllers, sensors, user interfaces and head-end software.
- Single-master solution – Compatible with a range of DALI fittings and devices, including DALI fluorescent drivers, DALI electronic low voltage transformers, DALI LED fixtures, DALI emergency lighting fixtures and Philips Dynalite DALI sensors and user interfaces.
- Compatible with DALI 209 drivers – Provides control of tunable white luminaires.
- DALI auto-enumeration – Provides automatic enumeration of DALI drivers when powered on and enables self-repair of the network system if a DALI driver fails.
- Fully scalable network solution – Direct mapping from DALI to the DyNet network protocol eliminates DALI imposed limits, such as maximum group sizes.
- Flexible mounting solution – A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled lighting circuit.
- Dual functionality – Leverage advantages of a true DALI network solution, whilst still allowing full function set of DyNet network control.
- Driver standby power elimination – Internal switched relay automatically isolates the power circuit when all drivers are dimmed to 0%.
- Integral DALI bus power supply – Removes the need for provision of a separate external power supply and reduces distribution board wiring complexity.
- Driver management tools – Includes lamp and driver status reporting, driver run time tracking, and emergency test reporting.
- Onboard DALI test function – Use the controller's service switch to set all connected lamps to full brightness, or flash on/off for a 5-minute test window, without the need for software or additional input devices.
DUS804CS-UP
Multifunction Sensor
Surface mount ceiling sensor with ultrasonic capability
The Philips Dynalite DUS804CS-UP is a surface mountable 360 degree multifunction sensor that combines ultrasonic (UP), motion detection (PIR), infrared remote control reception (IR) and ambient light level detection (PE) into one device in applications such as offices, lecture theaters and homes.
- Motion detection feature – Detection of motion within scanned area triggers a programmed lighting action. Ultrasonic technology enables motion detection behind fixed objects.
- Ambient light level detection and daylight harvesting- In applications where it is critical to maintain precise light, the PE function reads ambient levels and adjusts artificial light accordingly.
- Infrared receive capability - Manually adjust light levels using a hand-held remote control, via the inbuilt IR receive sensor of the DUS804CS-UP.
- Daylight harvesting mode - Delivers automatic energy savings.
DDRC1220FR-GL
Relay Controller
Robust control of switched loads
The Philips Dynalite DDRC1220FR-GL provides control of any type of switched load. All types of switched loads up to 20 A inductive are supported. The maximum load may be limited by 500 A inrush rating.
- Feed-through power circuit design - Electrically equivalent to a 12 pole contactor, with the added advantage of each pole being separately controllable via the DyNet network.
- Flexible mounting solution - A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled circuit.
- Inbuilt diagnostic functionality - Features circuit run time tracking on each channel and Device Online/Offline status indication.
- Multiple wiring schemes supported - Controls single phase and neutral or three phase and neutral (star) wiring configurations.
- Hardware override - Service override switch accessible from front panel.

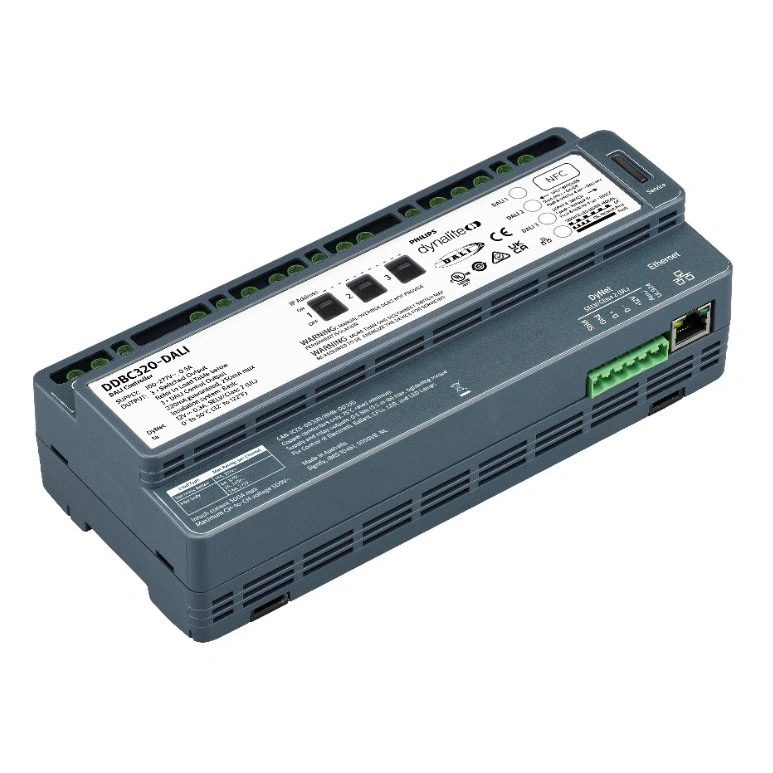

DDBC320-DALI
DALI-2 Driver Controller
The Philips Dynalite DDBC320-DALI is a three-universe controller, ideal for large-scale projects looking for a powerful all-in-one DALI control solution.
This controller operates seamlessly with all other Dynalite controllers, sensors, user interfaces and head-end software, and includes a secured Ethernet port for network communication.
- Single-master solution – Compatible with a range of DALI fittings and devices including DALI fluorescent drivers, DALI electronic low voltage transformers, DALI LED fixtures, DALI emergency lighting fixtures and Philips Dynalite DALI sensors and user interfaces.
- Compatible with DALI 209 drivers – Provides control of tunable white and RGBWAF luminaires.
- Driver standby power elimination – Internal switched relay automatically isolates each line's power circuit when all drivers are dimmed to 0%.
- Independent line enumeration – Commission each DALI line individually without affecting other lines or controller functionality.
- Auto-enumeration – Provides automatic enumeration of DALI drivers when powered on and enables self-repair of the network system if a DALI driver fails.
- Silent enumeration – Constantly checks the DALI bus for changes, automatically enumerating individual driver replacements with no disruption to lighting performance.
- UL924 Input – Integrates seamlessly with compatible emergency systems.
- Fully scalable network solution – Direct mapping from DALI to the DyNet network protocol eliminates DALI imposed limits, such as maximum group sizes.
- Inbuilt Ethernet port – Directly connecting to a site’s LAN, the device can securely report its status and pass network messages via the Dynalite PDDEG-S*.
- Flexible mounting solution – A DIN-rail mountable device, designed to be installed into the distribution board, supplying power to the controlled lighting circuit.
- Dual functionality – Leverage advantages of a true DALI network solution, whilst still providing access to the full DyNet feature set.
- Integral DALI bus power supply – Removes the need for provision of a separate external power supply and reduces distribution board wiring complexity.
- Driver management tools – Includes lamp and driver status reporting, driver runtime tracking, and emergency test reporting.
- Onboard DALI test function – Use each DALI line's test button to turn all connected drivers on/off, or flash on/off for a 5-minute test window, without the need for software or additional input devices.
- Onboard line override switch – Set each DALI line's connected drivers to 100% or 0% brightness without the need for software or additional input devices.
DDRC420FR
Relay Controller
Robust control of switched loads
The Philips Dynalite DDRC420FR provides control of any type of switched load, including difficult lighting loads. This four channel device supports all types of switched loads up to 20 A inductive.
- Feed-through power circuit design – Electrically equivalent to a 4 pole contactor, with the added advantage of each pole being separately controllable via the DyNet network.
- Flexible mounting solution - A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled circuit.
- Inbuilt diagnostic functionality - Features circuit run time tracking on each channel and Device Online/Offline status indication.
- Multiple wiring schemes supported - Controls single phase and neutral or three phase and neutral (star) wiring configurations.
- Hardware override - Service override switch accessible from front panel.
Title
Title
DTP170
The DTP170 is a feature rich colour LCD touchscreen that uses vivid graphics and sophisticated on-screen controls which allows the Systems Installer to create visually stunning and easy-to-use pages. Control of various equipment such as lighting, AV, security and HVAC can be easily integrated and controlled from the one location. Objects such as logos, buttons, faders, floor plans and diagnostic icons can be placed on pages and used to perform simple and complex conditional logic macros. Pages are created using Philips Dynalite’s touchscreen editor. JavaScript is fully supported.
Incorporating an innovative clip-on fascia capability, the DTP170 fascia accommodates practically any flat architectural surface medium. That gives you the freedom to choose; stainless steel, stone, glass, laminate, wood, vinyl, ceramic; the options are limitless. Fascia material may be matched with Dynalite’s DR2P Revolution series user control panels for perfect colour coordination.
Full Internet connectivity is supported. The DTP170 is powered from the DyNet network so does not require a mains voltage connection.
150+ individual channels of Load Control
- Phase Dimming (Trailing Edge)
- Ballast Control (1-10V Dimming, DALI Addressable)
- Relay Switched Control Groups
- DMX RGB Control
Sensors & User Interfaces
- Dynamic Occupancy Control
- Maintained Illuminance light level control
- Password protected Colour touchscreen panel
- Astronomical Scheduling
