GU Filmhouse – Adelaide
Project Details:

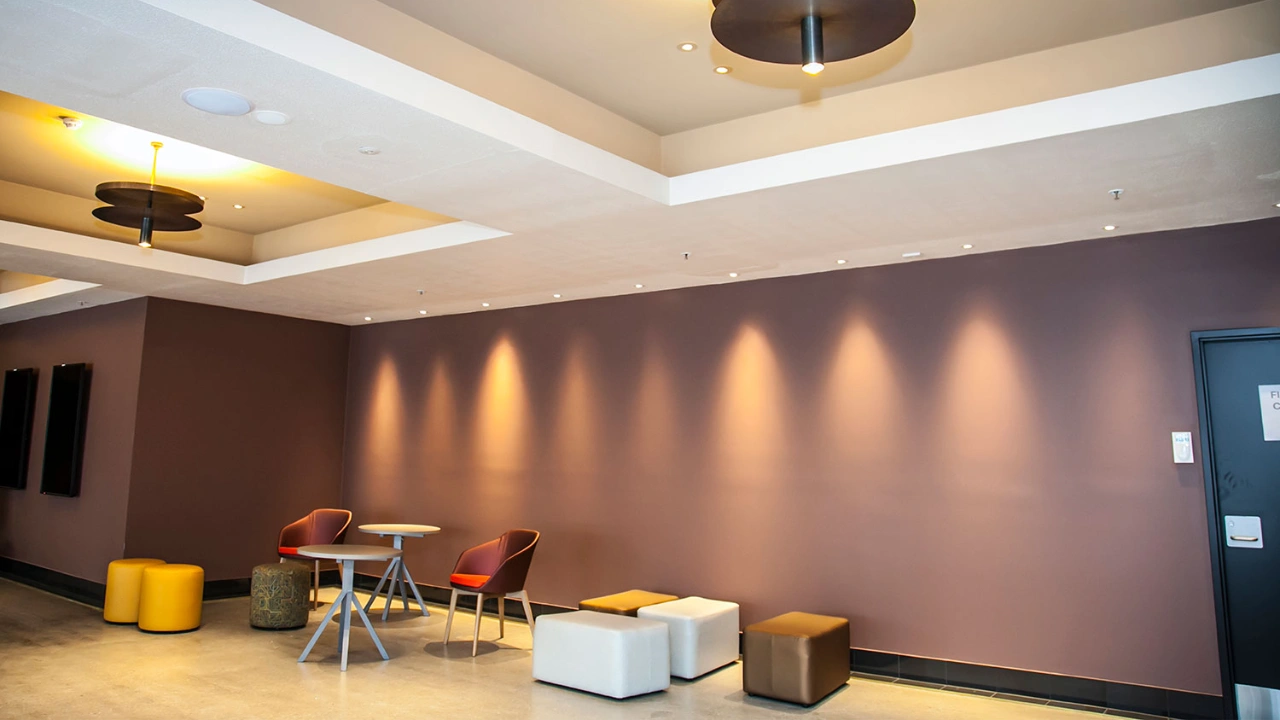

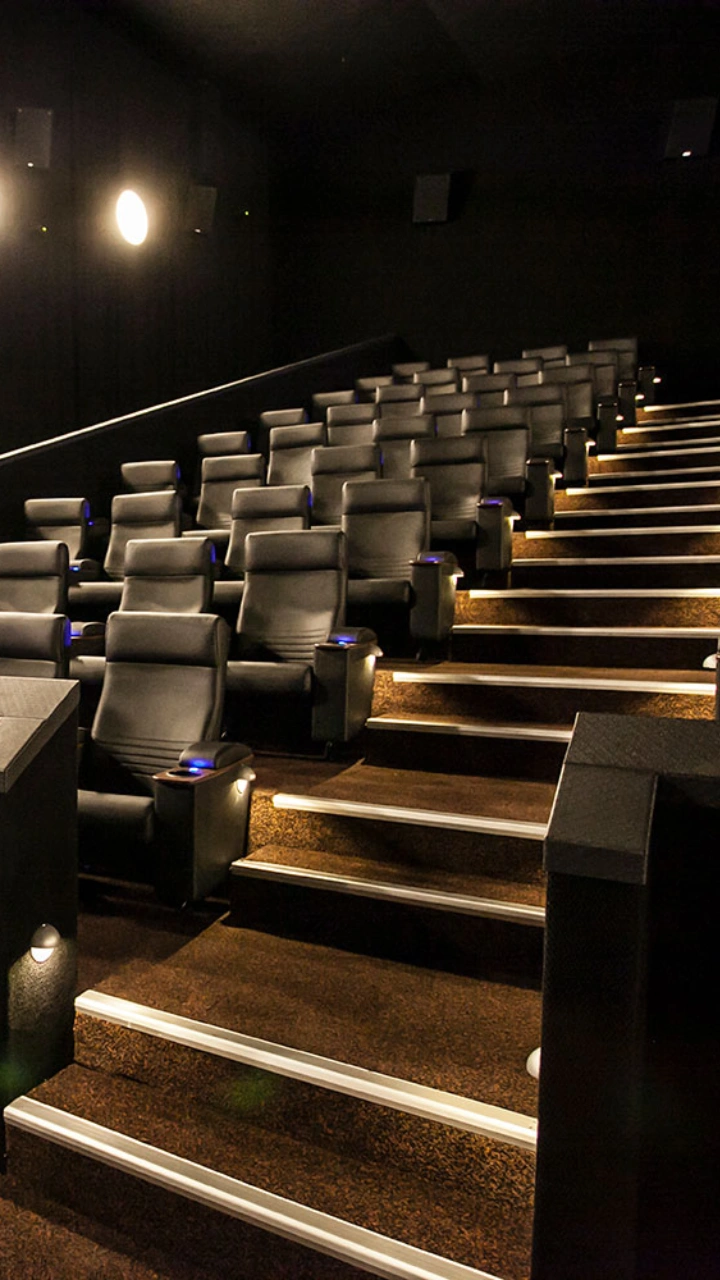

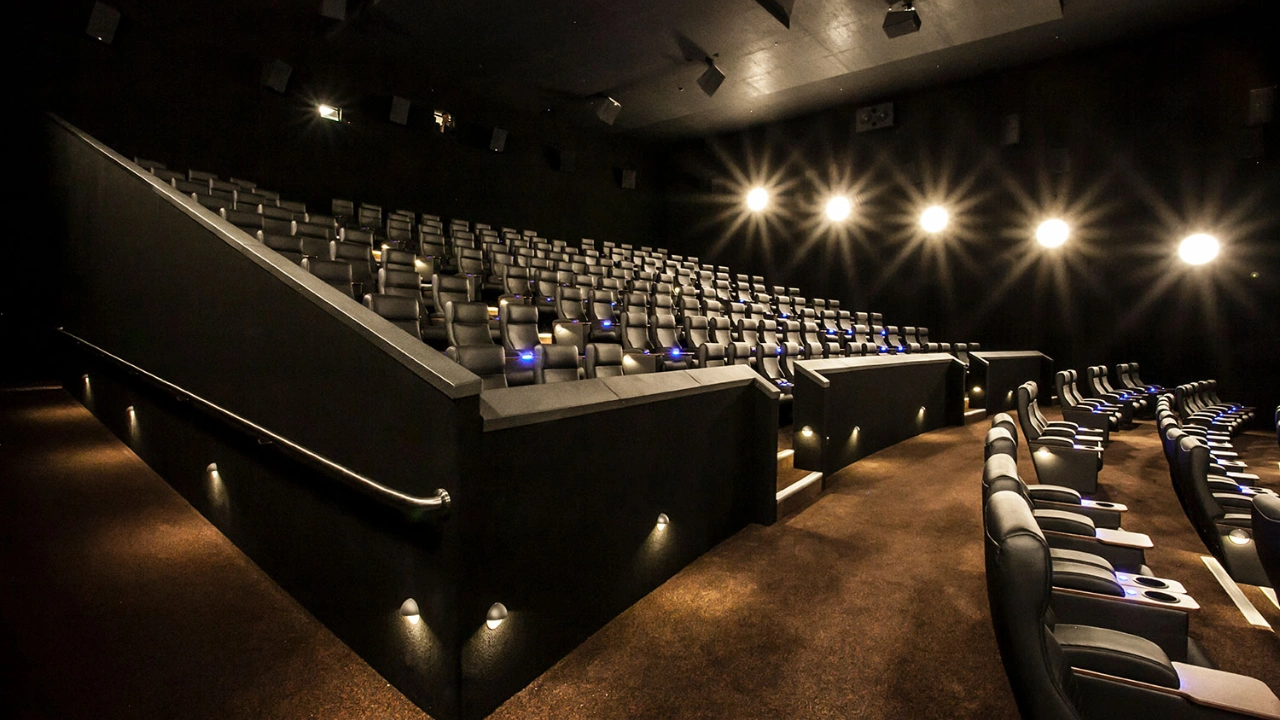

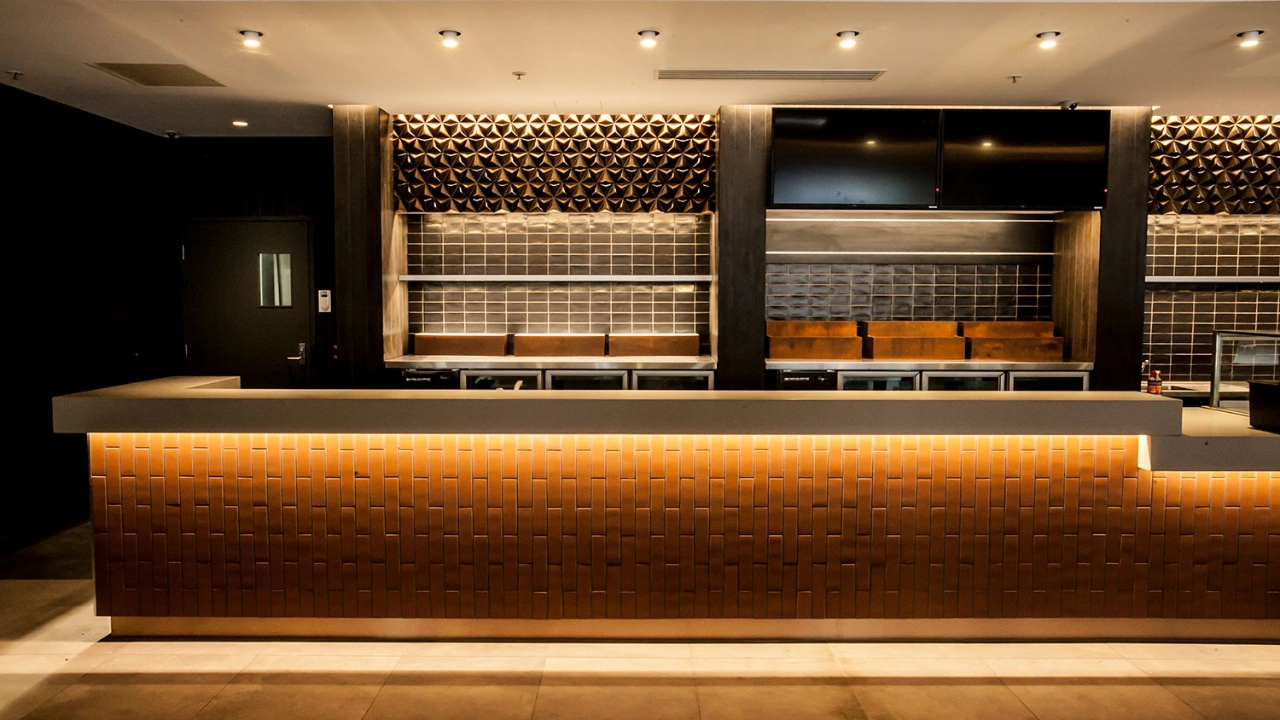

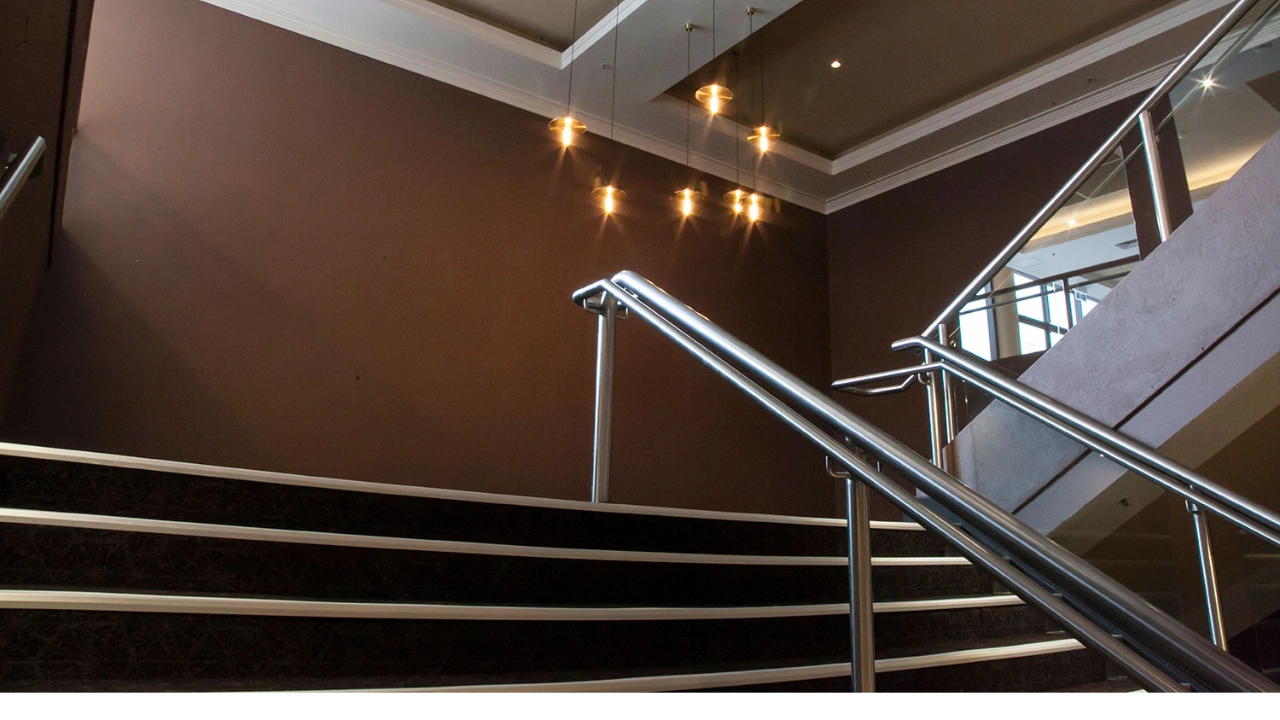

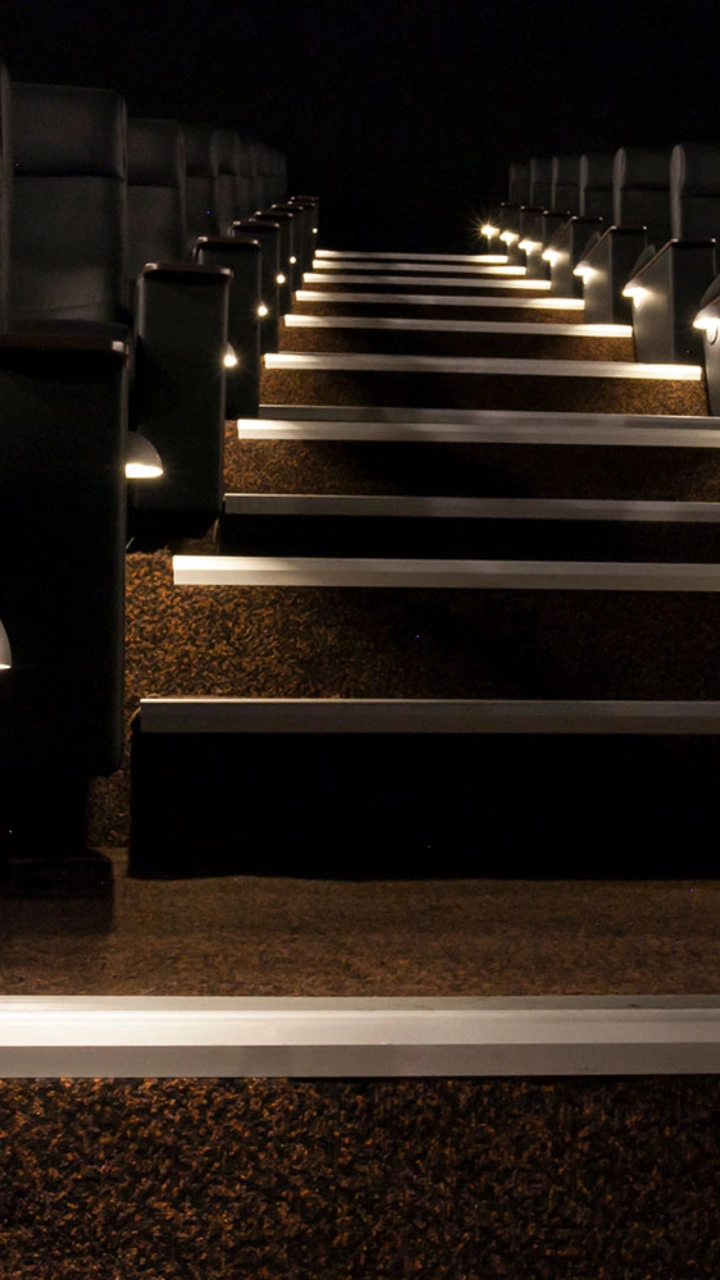

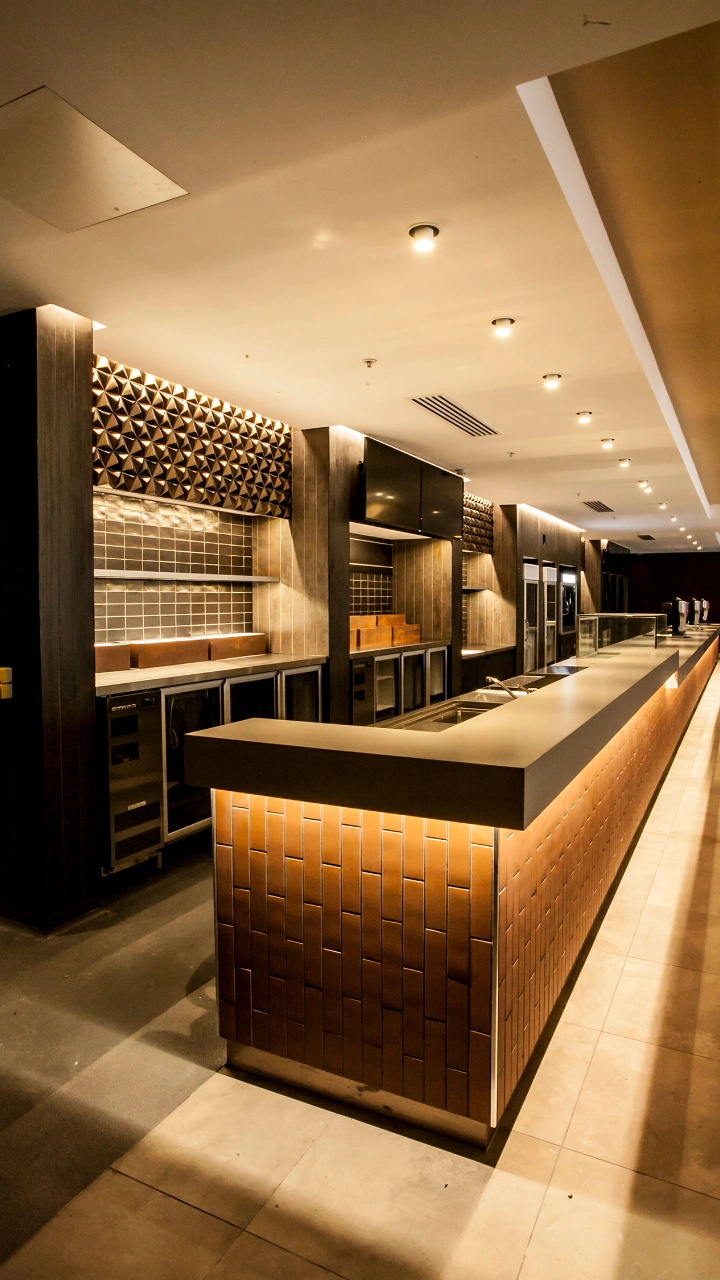

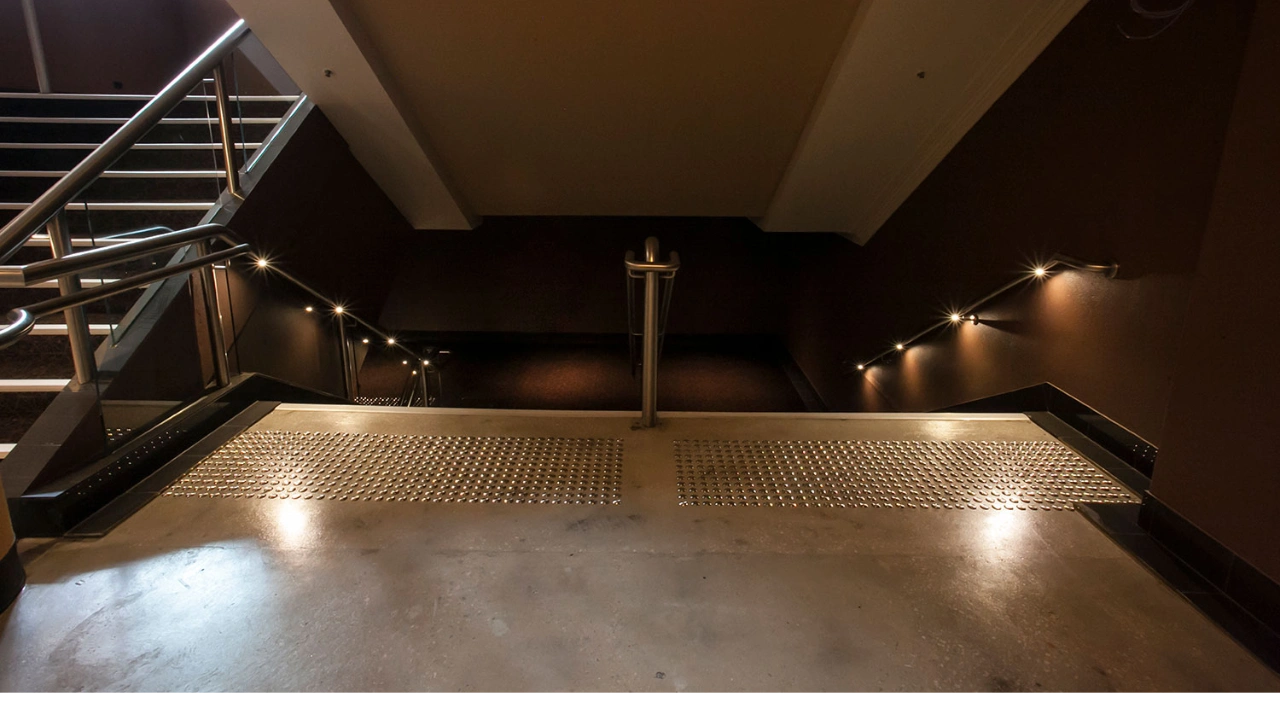

Lightlogix was entrusted with designing, equipping, programming, and commissioning the Philips Dynalite Lighting Control System for the GU Filmhouse Adelaide, a multi-level complex with six cinema auditoriums, adjoining concourses, and a ticketing, candy bar, café, and licensed bar. Their dedication to excellence resulted in a world-class entertainment destination that set a new standard.
Innovative lighting control system seamlessly transformed the GU Filmhouse Adelaide into a state-of-the-art entertainment destination. The flexible and intelligent system provided the perfect balance of ambiance, safety, and comfort for patrons and staff alike. The attention to detail and expert execution set the standard for lighting design and integration in the entertainment industry.
Lightlogix‘s expert design and programming skills were instrumental in the seamless integration of lighting controls at the GU Filmhouse Adelaide. The versatile system, equipped with multiple modes and dimmable circuits, ensured optimal lighting levels for safety, comfort, and ambiance throughout the premises. The password-protected Touchscreen further enhanced the user experience, providing customizable options for seamless transitions between lighting modes.
Client:
NSG Boffa
Completion Date:
September 2016
Location:
Adelaide, South Australia
Category:
Cinemas and Convention Centres
DDTC001
Timeclock
Astronomical 365 day timeclock
The Philips Dynalite DDTC001 timeclock provides a tamper resistant solution for time-based event control on a DyNet network.
- Remote programming - The device is programmed via a PC and there are no external controls available, providing a tamper resistant solution.
- Advanced clock controls - Features sunrise/sunset tracking and automatic adjustment for daylight saving.
- Performs as an energy management controller - Uses powerful macro and conditional logic functions to provide full automation of large commercial projects, where automatic lighting events are required at predetermined times.
- Flexible mounting solution - DIN-rail mounted device, designed to be installed into a distribution board.
DDMC802
Multipurpose Modular Controller
Control different load types with one device
The Philips Dynalite DDMC802 provides up to eight configurable output channels, controlled by up to four interchangeable control modules. A selection of control modules is available for a variety of load types.
- Single controller solution - Control a variety of load types from one device.
- Four module bays - Accommodates any combination of up to four single modules or two double-size modules.
- Leading edge phase control dimmer module - Suitable for use with incandescent lamps and some types of dimmable electronic transformers.
- Trailing edge phase control dimmer module - Suitable for use with most types of dimmable electronic transformers.
- Signal dimmer control module - Suitable for 1-10 V, DSI and DALI Broadcast control of digital drivers and transformers.
- Relay control module - Suitable for controlling most types of switched loads.
- Fan control module - 400 VA three-speed fan control.
- Curtain control module - Provides control of curtains, blinds and other motorized window treatments.
- Flexible mounting solution - A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled circuit.
DDRC1220FR-GL
Relay Controller
Robust control of switched loads
The Philips Dynalite DDRC1220FR-GL provides control of any type of switched load. All types of switched loads up to 20 A inductive are supported. The maximum load may be limited by 500 A inrush rating.
- Feed-through power circuit design - Electrically equivalent to a 12 pole contactor, with the added advantage of each pole being separately controllable via the DyNet network.
- Flexible mounting solution - A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled circuit.
- Inbuilt diagnostic functionality - Features circuit run time tracking on each channel and Device Online/Offline status indication.
- Multiple wiring schemes supported - Controls single phase and neutral or three phase and neutral (star) wiring configurations.
- Hardware override - Service override switch accessible from front panel.

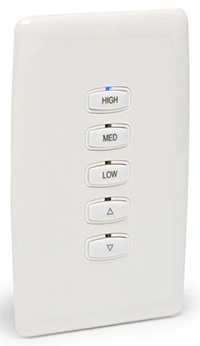

DLPA
Standard Series American
Brushed metal panel with LED indicators
The Philips Dynalite Standard series is beautifully formed and highly functional. Built with the full Philips Dynalite feature set, these simple yet elegant interfaces bring the full power of the automation system to the touch of a button.
• Aesthetically pleasing – Provides an elegant point for integrated automation in commercial buildings and homes.
• Available in two configurations – Single column for up to five buttons, and a dual column design for up to ten buttons, where more complex control is required.
• Incorporates a miniature DyNet control network socket – Discreetly located under the snap-on cover, the network socket enables system adjustments and programming from any user interface on the network.
• Smooth action buttons with blue LED indicators – Provide tactile and visual feedback and are easily removed for engraving.
DDBC120-DALI
DALI-2 Driver Controller
Enabling a full DALI universe including tunable white drivers, DALI sensors and user interfaces
The Philips Dynalite DDBC120-DALI is ideal for small-scale projects looking for a compact, all-in-one DALI control solution.
This controller operates seamlessly with all other Dynalite controllers, sensors, user interfaces and head-end software.
- Single-master solution – Compatible with a range of DALI fittings and devices, including DALI fluorescent drivers, DALI electronic low voltage transformers, DALI LED fixtures, DALI emergency lighting fixtures and Philips Dynalite DALI sensors and user interfaces.
- Compatible with DALI 209 drivers – Provides control of tunable white luminaires.
- DALI auto-enumeration – Provides automatic enumeration of DALI drivers when powered on and enables self-repair of the network system if a DALI driver fails.
- Fully scalable network solution – Direct mapping from DALI to the DyNet network protocol eliminates DALI imposed limits, such as maximum group sizes.
- Flexible mounting solution – A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled lighting circuit.
- Dual functionality – Leverage advantages of a true DALI network solution, whilst still allowing full function set of DyNet network control.
- Driver standby power elimination – Internal switched relay automatically isolates the power circuit when all drivers are dimmed to 0%.
- Integral DALI bus power supply – Removes the need for provision of a separate external power supply and reduces distribution board wiring complexity.
- Driver management tools – Includes lamp and driver status reporting, driver run time tracking, and emergency test reporting.
- Onboard DALI test function – Use the controller's service switch to set all connected lamps to full brightness, or flash on/off for a 5-minute test window, without the need for software or additional input devices.
Title
Title
DTP170
The DTP170 is a feature rich colour LCD touchscreen that uses vivid graphics and sophisticated on-screen controls which allows the Systems Installer to create visually stunning and easy-to-use pages. Control of various equipment such as lighting, AV, security and HVAC can be easily integrated and controlled from the one location. Objects such as logos, buttons, faders, floor plans and diagnostic icons can be placed on pages and used to perform simple and complex conditional logic macros. Pages are created using Philips Dynalite’s touchscreen editor. JavaScript is fully supported.
Incorporating an innovative clip-on fascia capability, the DTP170 fascia accommodates practically any flat architectural surface medium. That gives you the freedom to choose; stainless steel, stone, glass, laminate, wood, vinyl, ceramic; the options are limitless. Fascia material may be matched with Dynalite’s DR2P Revolution series user control panels for perfect colour coordination.
Full Internet connectivity is supported. The DTP170 is powered from the DyNet network so does not require a mains voltage connection.
DDBC300-D
DALI Driver Controller
Cost-effective DALI control solution
The Philips Dynalite DDBC300-D delivers cost-effective control of DALI drivers through provision of three full universes, totaling 192 DALI addresses.
• Compatible with a range of DALI fittings and devices – Including DALI drivers, DALI electronic low voltage transformers and DALI LED fixtures.
• Fully scalable network solution – Direct mapping from DALI to the DyNet network protocol eliminates DALI imposed limits, such as maximum group sizes.
• Flexible mounting solution – A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled lighting circuit.
• Integral DALI bus power supply – Removes the need for provision of a separate external power supply and reduces distribution board wiring complexity.
• Inbuilt diagnostic functionality – Features lamp and driver failure reporting, driver run time tracking for each driver and Device Online/Offline status indication.
200+ individual channels of Load Control
- Phase Dimming (Trailing Edge)
- Ballast Control (1-10V Dimming, DALI Addressable)
- Relay Switched Control Groups
User Interfaces
- Password protected Colour touchscreen panel
- Astronomical Scheduling
