Frome Flinders Office
Project Details:
Lightlogix provided the Dynalite Lighting Controls System for this multi-level office building with ground-floor retail, a first-floor car park and two upper floors of office space featuring 360 degree views of the city, located on the corner of Frome and Flinders Streets. The system features customised design and programming to ensure ideal lighting levels throughout the building for improved functionality and aesthetics.
Lightlogix‘s system created a logical and optoelectronic separation between the Landlord and Tenancy areas, while maintaining a unified network across the entire building. This allowed for independent control of the tenants’ lighting, while integrating seamlessly with the Building Automation System for scheduling and occupancy control in common areas. The system’s advanced lighting control enhanced safety and productivity, delivering a safe and efficient environment for staff and guests throughout the premises.
The DyNet2 Control Network formed a distributed intelligence system that linked equipment from seven distribution boards, allowing for precise control and automation of each area of the building. The system was programmed with pre-defined behaviours for ‘Office-Hours’ and ‘After-Hours,’ enabling seamless transitions between the two states and ensuring optimal performance of the building’s lighting system based on the current mode of operation.

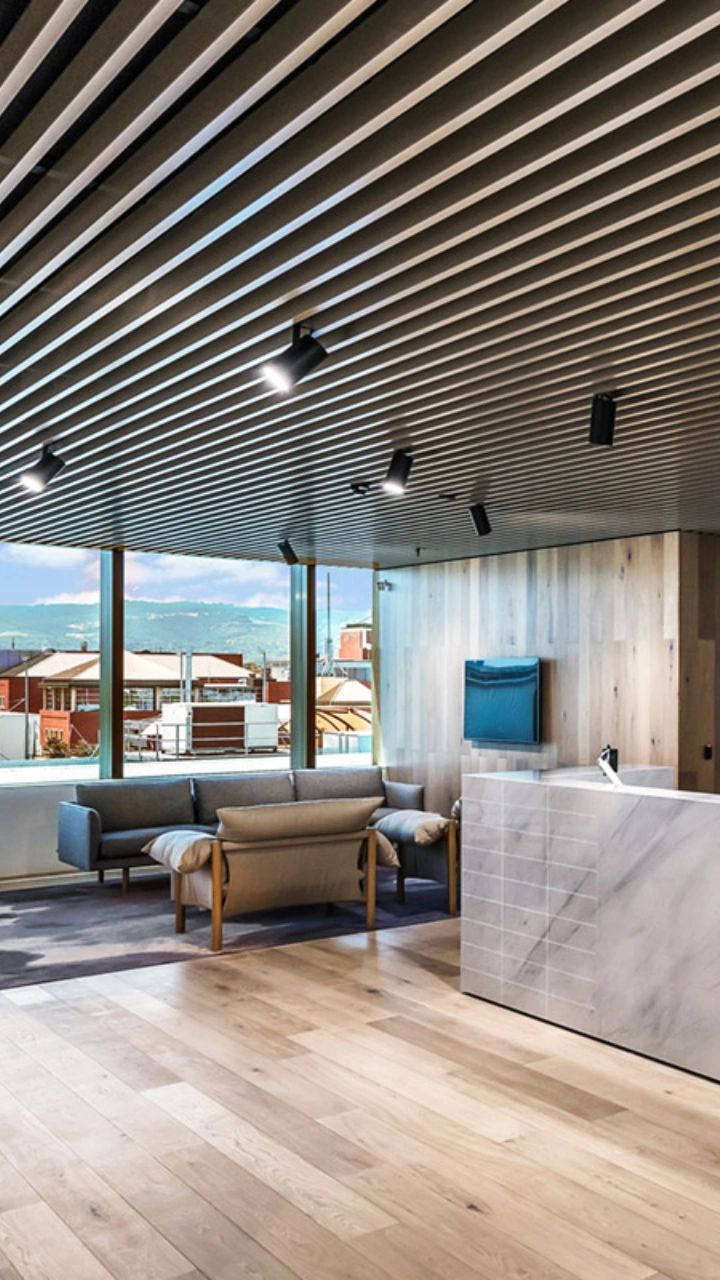

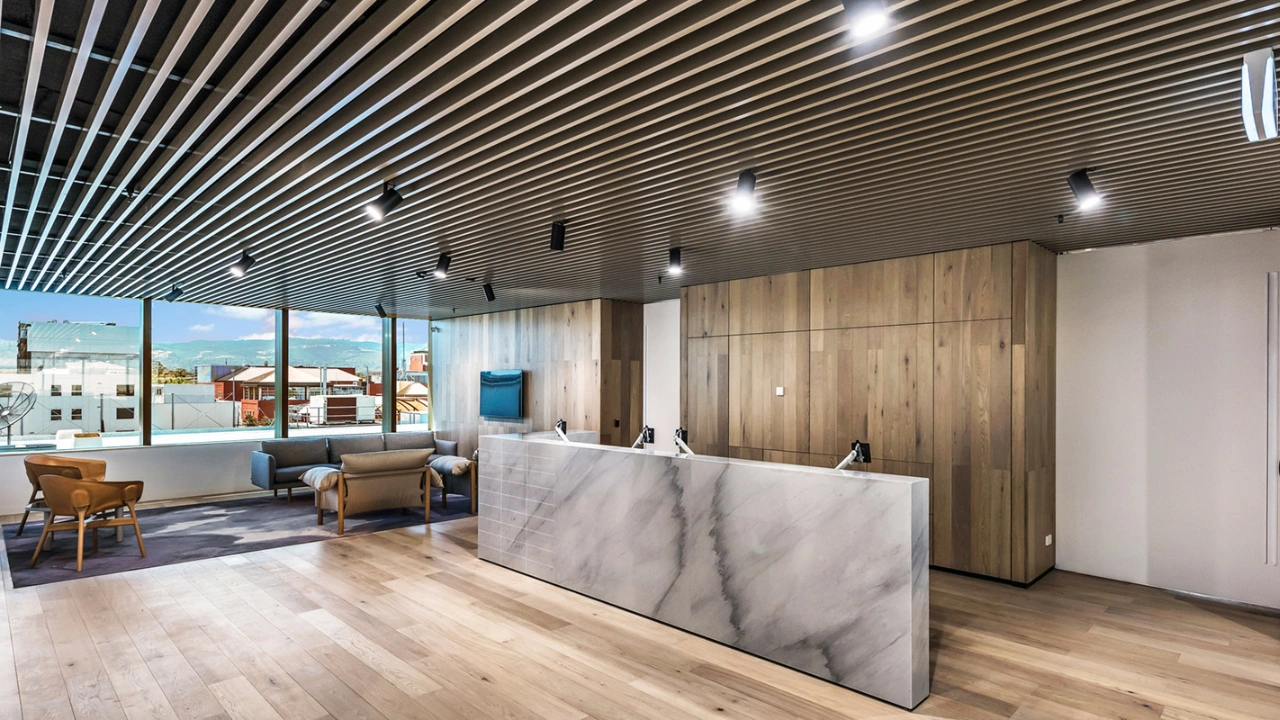

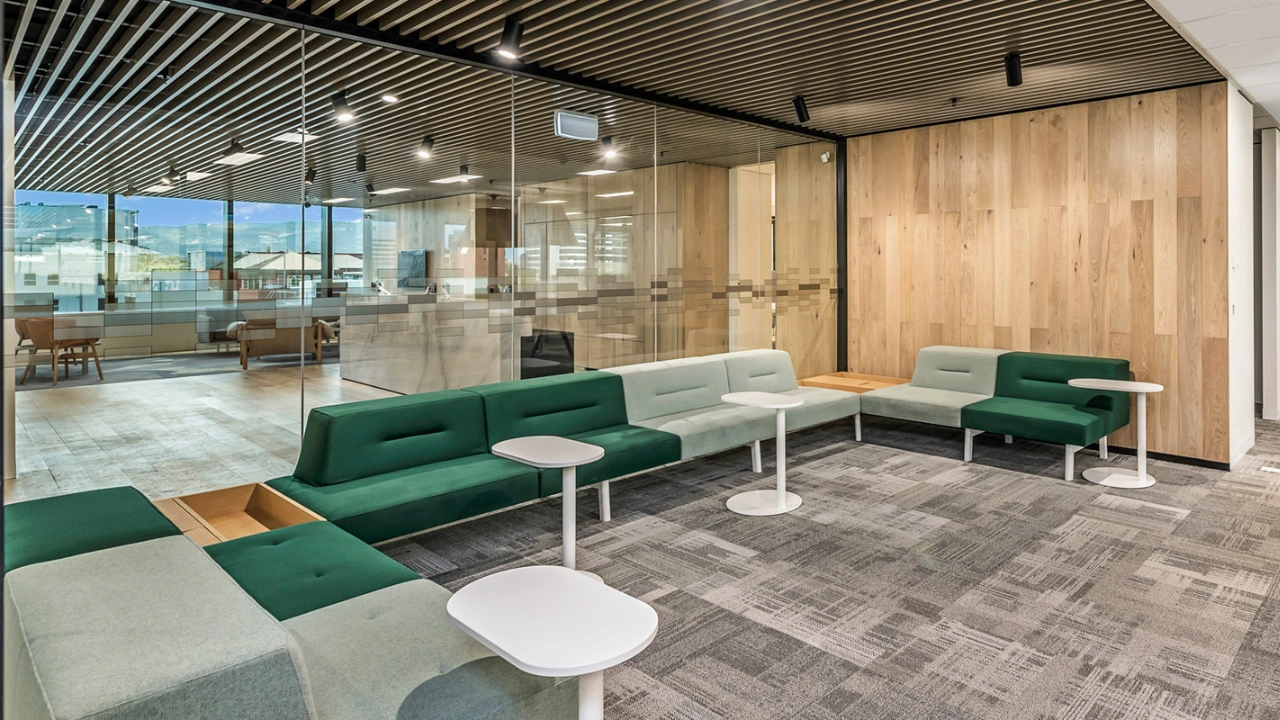

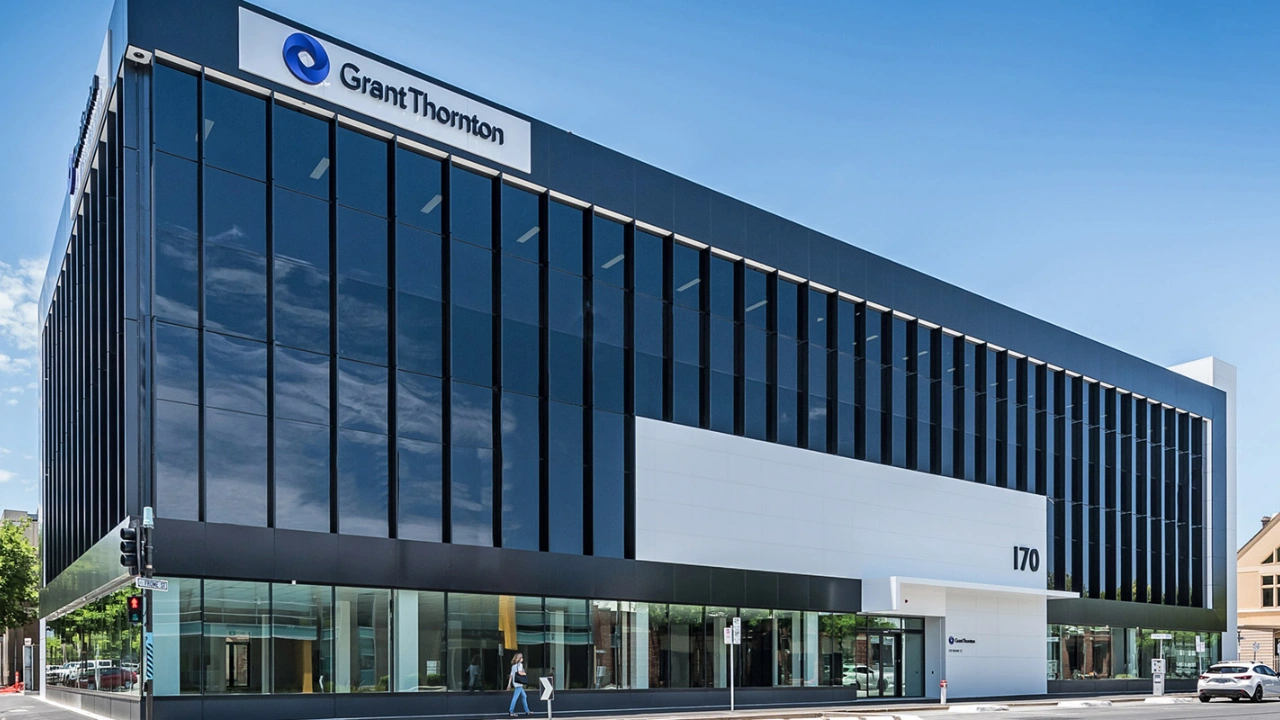

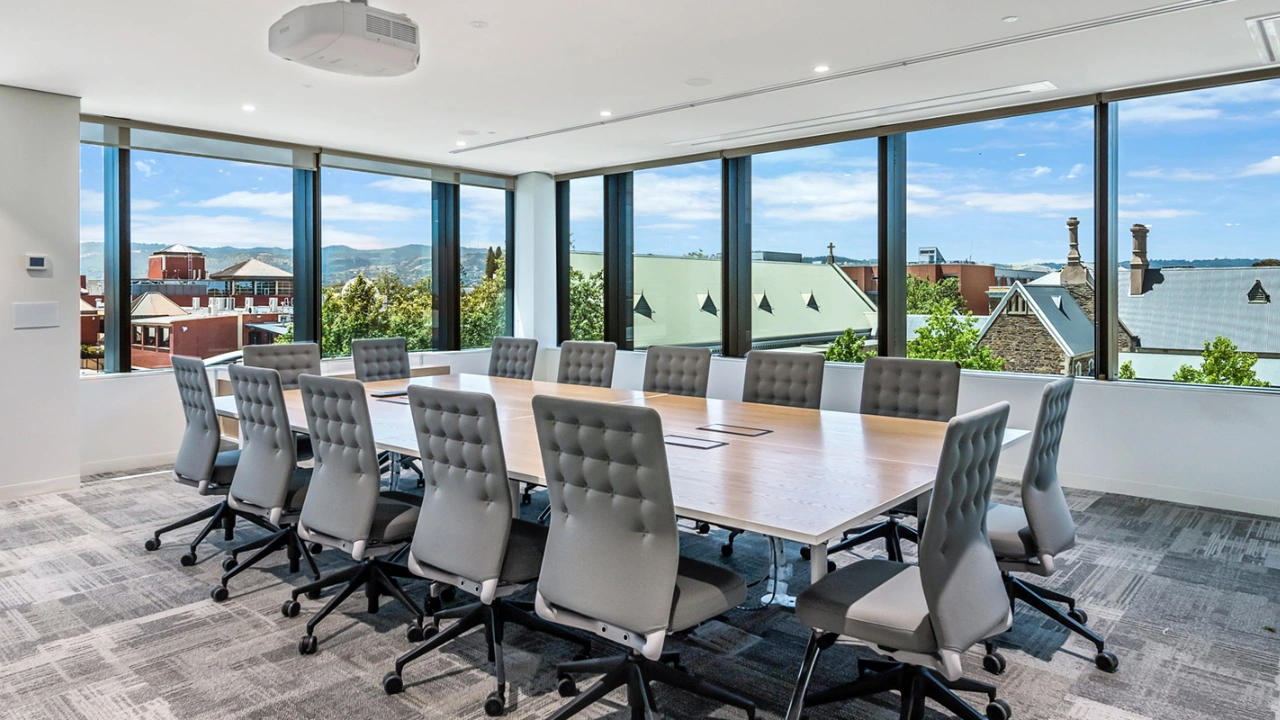

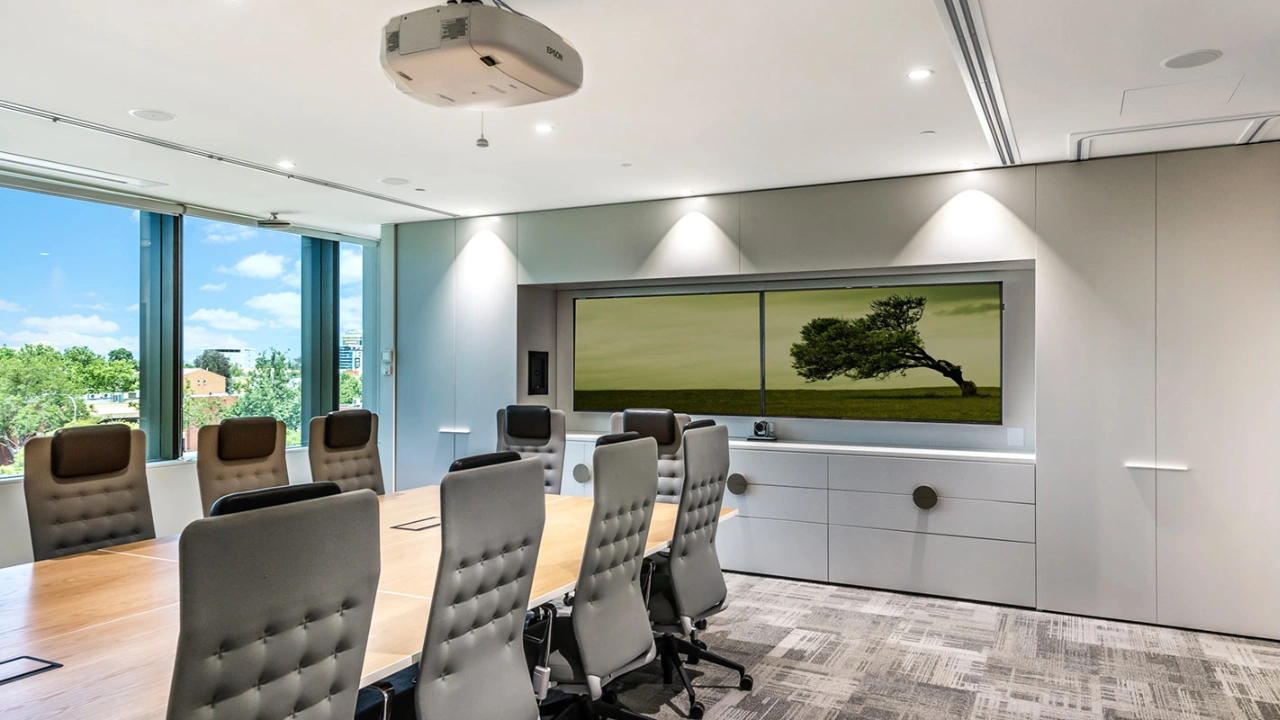

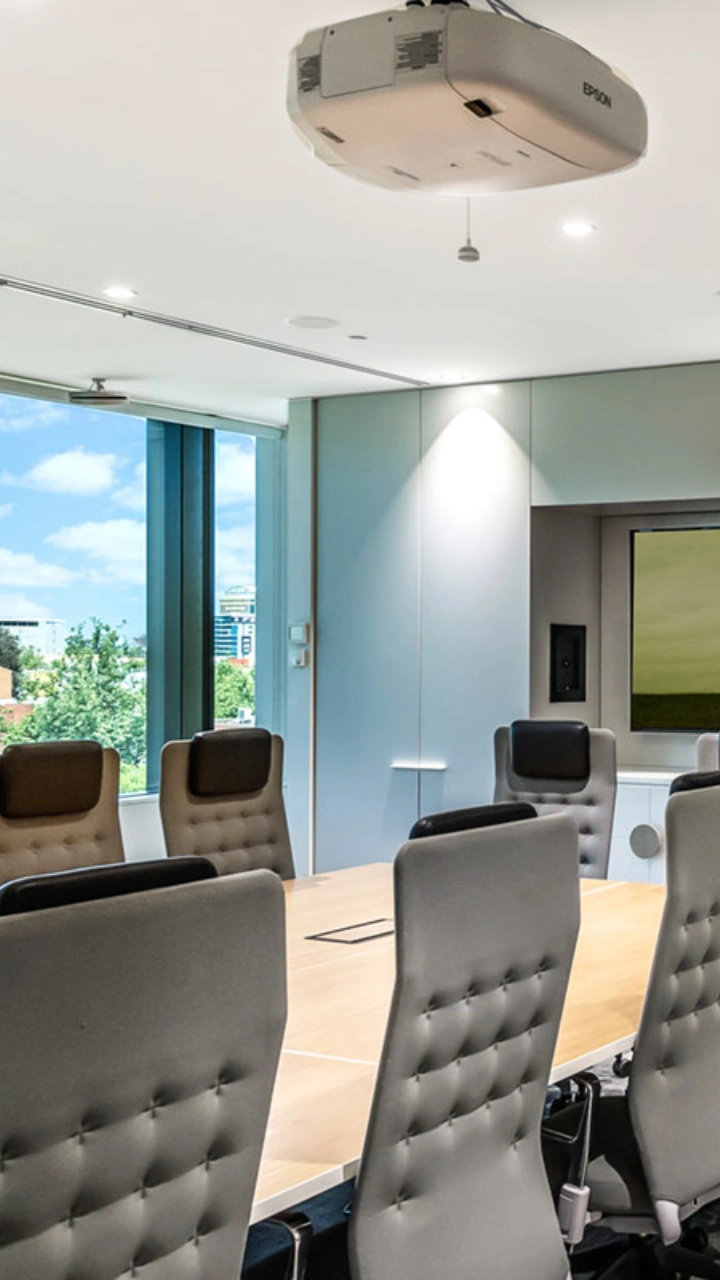

(Images courtesy of Emmett Property Construct)
Client:
Laser Electrical
Completion Date:
November 2016
Location:
Adelaide, South Australia
Category:
Office and Education

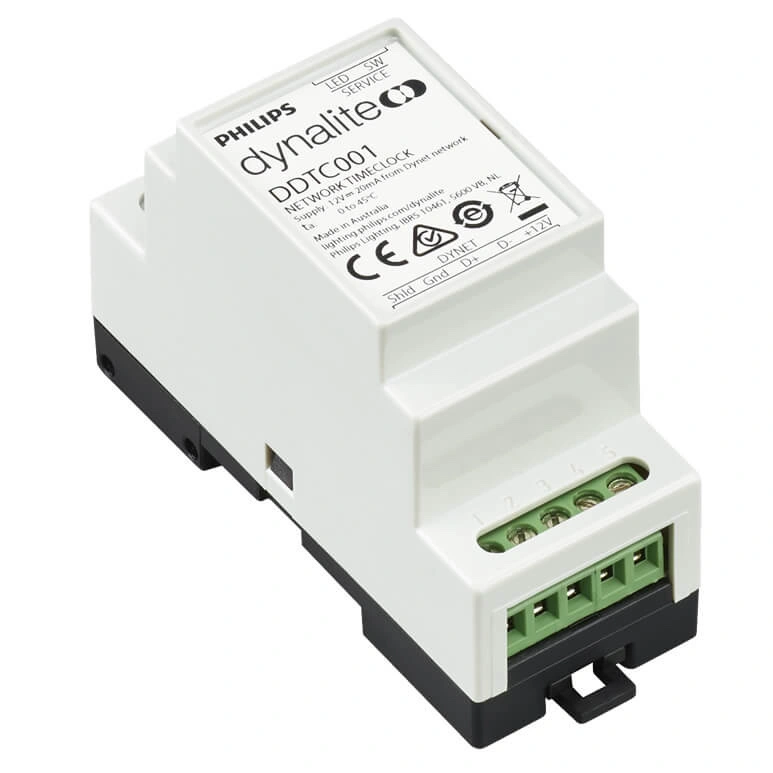

DDTC001
Timeclock
Astronomical 365 day timeclock
The Philips Dynalite DDTC001 timeclock provides a tamper resistant solution for time-based event control on a DyNet network.
- Remote programming - The device is programmed via a PC and there are no external controls available, providing a tamper resistant solution.
- Advanced clock controls - Features sunrise/sunset tracking and automatic adjustment for daylight saving.
- Performs as an energy management controller - Uses powerful macro and conditional logic functions to provide full automation of large commercial projects, where automatic lighting events are required at predetermined times.
- Flexible mounting solution - DIN-rail mounted device, designed to be installed into a distribution board.

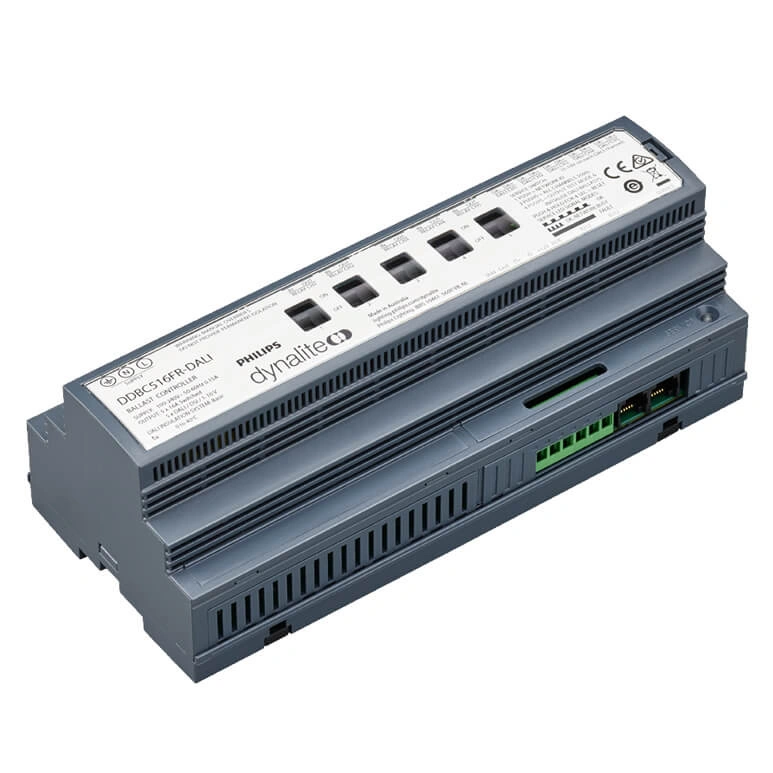

DDBC516FR
Signal Dimmer Controller
Flexible control of 1-10 V and DALI drivers
The Philips Dynalite DDBC516FR is a five channel device for controlling DALI drivers. Each control output is selectable to DALI broadcast, DALI addressed, 1-10V or DSI.
Multiple protocols supported – Each of the five control outputs supports DALI broadcast (maximum ten DALI loads/channel), DALI addressed (maximum ten DALI loads/channel), 1-10V (maximum 10 mA sink or source/channel) or DSI (maximum five DSI loads/channel).
Built-in energy savings - Control signals can be programmed to operate in tandem with five internal switched outputs, which will automatically isolate the power circuit when all associated channels are at 0%. This is a useful feature as DALI drivers still draw significant power when lamps are turned off via a DALI command. Integral DALI bus power supply - Removes the need for an additional external device.
Flexible mounting solution - A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled circuit.
Inbuilt diagnostic functionality - Features lamp and driver failure reporting, driver run time tracking for each driver and the switched output, as well as Device Online/Offline status indication.
Title
Title

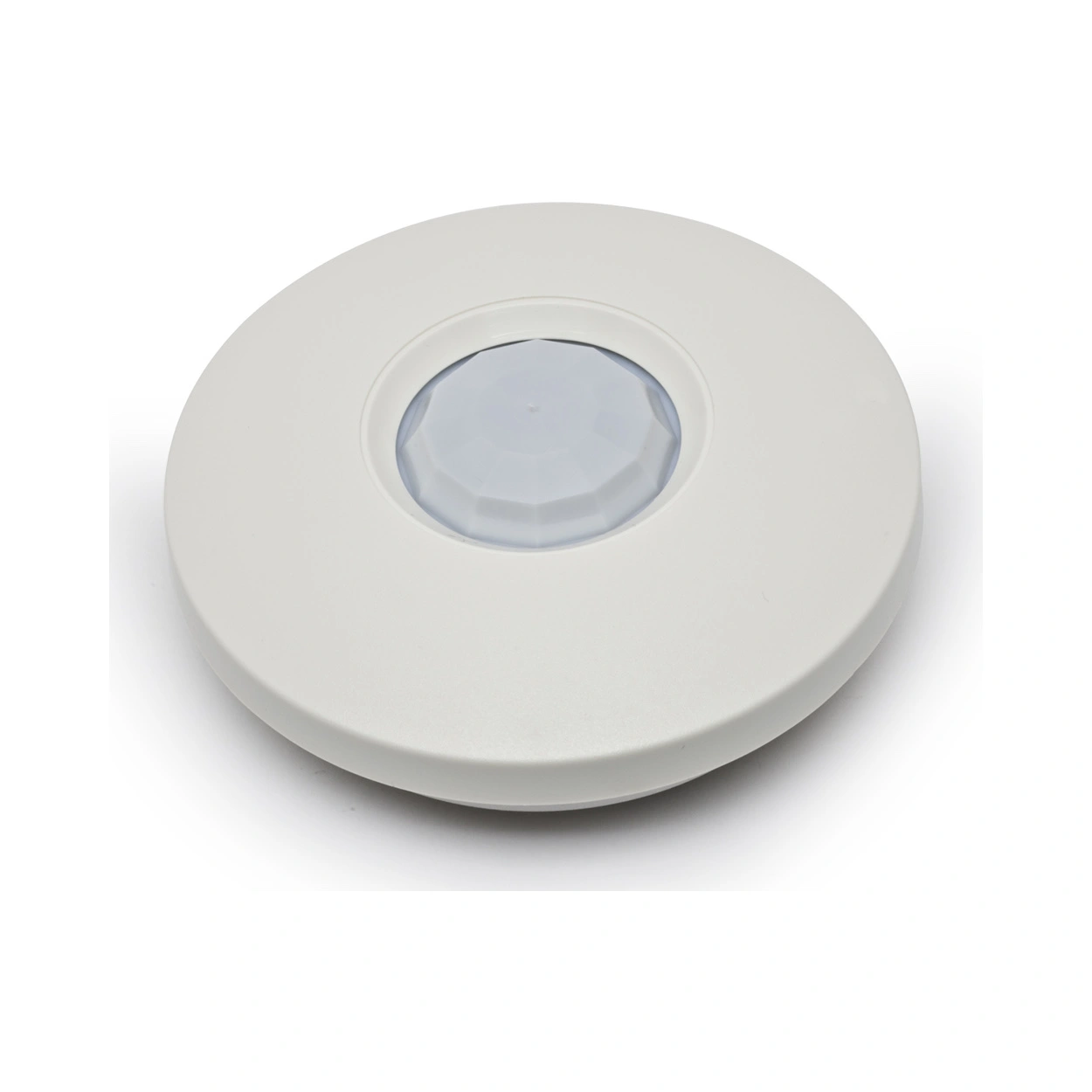

DUS704C
Ceiling mountable 360 degree universal sensor
The DUS704 series combine motion detection (PIR), infra red remote control reception (IR) and ambient light level detection (PE) in the one device. In applications such as homes, lecture theatres and office towers, universal sensors can be utilised to detect motion and switch on the lights. When rooms are unoccupied, lights can be automatically dimmed or switched off to provide energy savings.
Infra Red remote control reception allows full control of lights, audio-visual equipment and blinds. The Dynalite DTK500 series hand held infra-red transmitters are compatible for use with the DUS704, and for the programming of 3rd party “universal” remote controls.
In situations where it is critical to maintain precise lighting control for individual workspaces, such as a flight control tower or office workstation, the DUS704 facilitates light compensation. The DUS704 can be placed in an automatic “Daylight Harvesting” mode for energy savings.

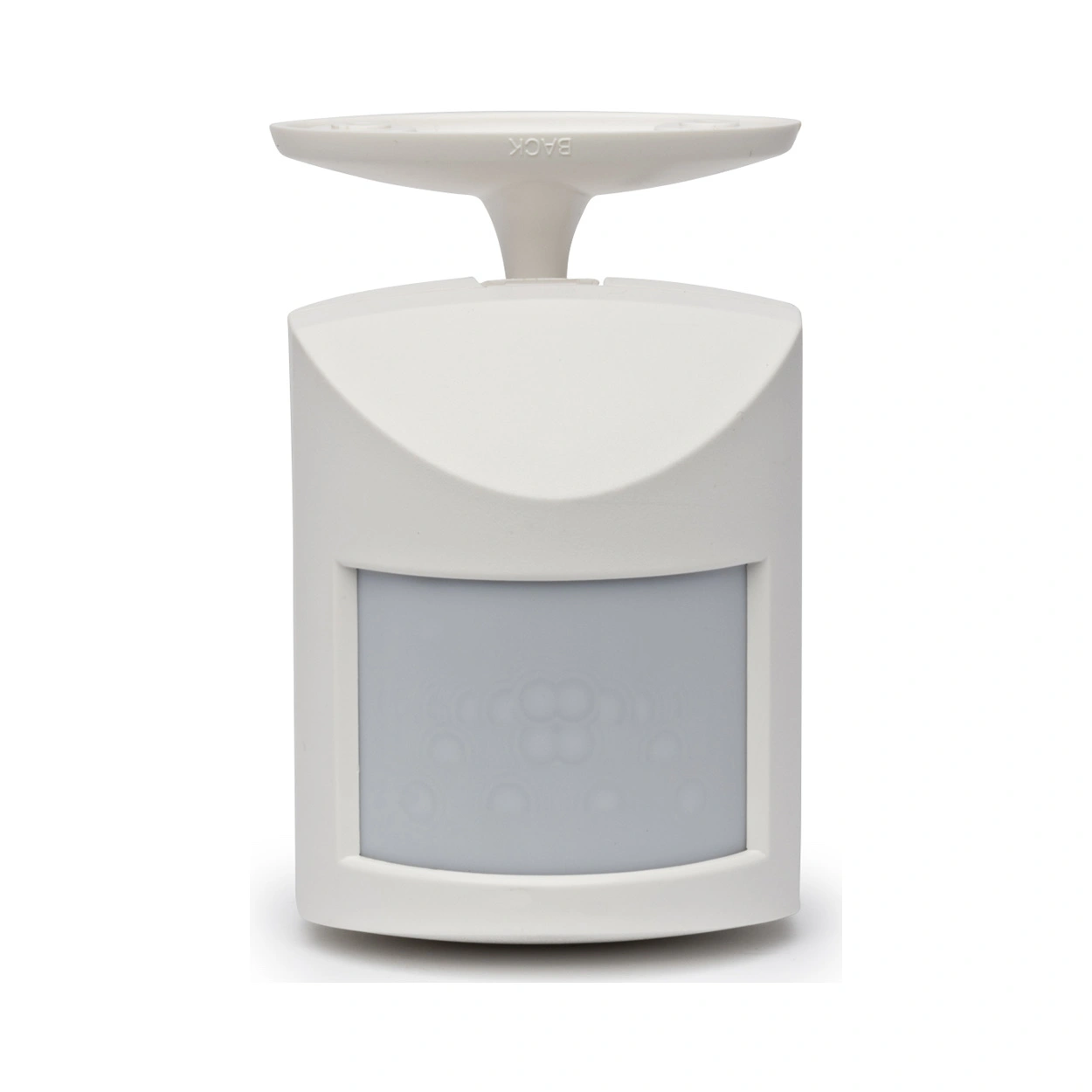

DUS704W
Wall mountable 90 degree universal sensor
The DUS704W is a wall mountable 90 degree universal sensor that combines motion detection (PIR), Infrared remote control reception (IR) and ambient light level detection (PE) into one device in applications such as offices, lecture theaters and homes.
• Motion detection feature — Detects the presence or absence of motion and adjusts lights accordingly.
• Ambient light level detection and daylight harvesting — In applications where it is critical to maintain precise light, the PE function reads ambient levels and adjusts artificial light accordingly.
• Infrared receive capability — Manually adjust light levels using a hand-held remote control, via the inbuilt IR receive sensor of the DUS704W.
• Multiple mounting options — The device is available in both 360 degree ceiling mount (DUS704C) or wide angle wall mount (DUS704W) versions.
DDNG485
RS-485/DMX512 Gateway
Flexible network communications gateway
The Philips Dynalite DDNG485 is a flexible network communications bridge designed for RS-485 networks. The two opto-isolated RS-485 ports enable the DDNG485 to implement a trunk and spur topology on large project sites, with the bridge providing a high-speed backbone opto-coupled to many lower speed spurs.
- Route DyNet to third-party systems – Such as audio-visual, Modbus meters, and building automation systems, providing an integrated approach to total building control and energy management.
- DMX512 mode – Transmit or receive up to 512 channels of DMX with automatic DyNet conversion and task triggering. Provides temporary control of house lights from the DMX console in an auditorium scenario.
- Electrical fault isolation – Faults can be isolated to individual network spurs.
- Internal controls – Programmable logic controller capable of comprehensive conditional and sequential logic and arithmetic function processing, packet filtering, and DyNet to DyNet 2 translation.
- Flexible mounting solution – DIN rail mountable, designed to be installed into a distribution board or other electrical enclosure.
PAxBPA
Antumbra Button
Contemporary two, four, or six-button panel with light-wash effect
The Philips AntumbraButton user interface features a sleek, contemporary design and incorporates the latest in field effect technology. Each easy-to-press mechanical button can be customized with text or icons and programmed to perform a wide variety of local and site-wide control functions. The PA2BPA, PA4BPA, and PA6BPA are suitable for but not limited to North American, South American, Australian and New Zealand markets.
- Field effect technology – The user interface detects an approaching user and ‘wakes up’, initiating a wall-wash lighting effect to encourage interaction.
- Supplied as two components – The Application Module contains buttons, rim, base and mounting plate, which can be mixed and matched to suit décor. The Communication Module (DACM) contains logical and network functions and can be pre-programmed off-site, allowing commissioning to commence prior to finalizing rim and button options.
- Hidden sensory inputs – An internal light sensor measures ambient light and adjusts lightwash effect accordingly. A built-in temperature sensor automatically adjusts air conditioning when integrated into the system.
- Multiple language and icon labeling – Button labeling language choices include English, Chinese and Arabic. A library of common icons transcends language barriers, which is particularly useful in hospitality applications.
- Décor-matching options – Buttons and rims are available in a range of attractive polycarbonate and metallic finishes.
- 64-channel DMX Tx support – Can be factory-set to DMX instead of DyNet, to communicate directly with DMX fixtures

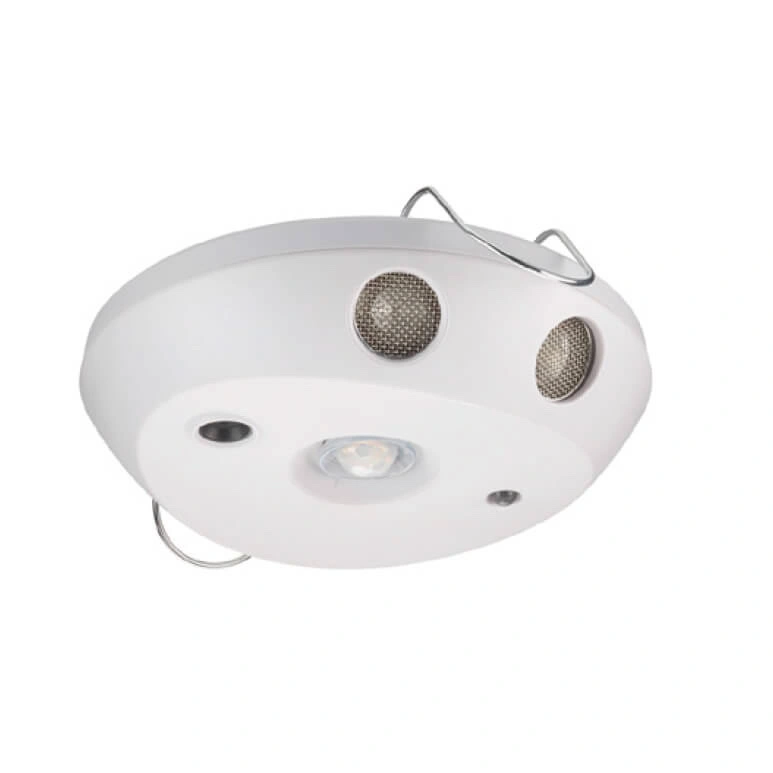

DUS804CS-UP
Multifunction Sensor
Surface mount ceiling sensor with ultrasonic capability
The Philips Dynalite DUS804CS-UP is a surface mountable 360 degree multifunction sensor that combines ultrasonic (UP), motion detection (PIR), infrared remote control reception (IR) and ambient light level detection (PE) into one device in applications such as offices, lecture theaters and homes.
- Motion detection feature – Detection of motion within scanned area triggers a programmed lighting action. Ultrasonic technology enables motion detection behind fixed objects.
- Ambient light level detection and daylight harvesting- In applications where it is critical to maintain precise light, the PE function reads ambient levels and adjusts artificial light accordingly.
- Infrared receive capability - Manually adjust light levels using a hand-held remote control, via the inbuilt IR receive sensor of the DUS804CS-UP.
- Daylight harvesting mode - Delivers automatic energy savings.
DDRC1220FR-GL
Relay Controller
Robust control of switched loads
The Philips Dynalite DDRC1220FR-GL provides control of any type of switched load. All types of switched loads up to 20 A inductive are supported. The maximum load may be limited by 500 A inrush rating.
- Feed-through power circuit design - Electrically equivalent to a 12 pole contactor, with the added advantage of each pole being separately controllable via the DyNet network.
- Flexible mounting solution - A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled circuit.
- Inbuilt diagnostic functionality - Features circuit run time tracking on each channel and Device Online/Offline status indication.
- Multiple wiring schemes supported - Controls single phase and neutral or three phase and neutral (star) wiring configurations.
- Hardware override - Service override switch accessible from front panel.
PADPA
Antumbra Display
Contemporary button panel with LCD display
The Philips AntumbraDisplay user interface provides a central LCD display to present multiple pages of functions and system information. It incorporates the latest in field effect technology. The contemporary design features a number of button configurations, with each button capable of local or site-wide control functions. The PADPA range is suitable for, but not limited to, North American, South American, Australian and New Zealand markets.
- Field effect technology - The user interface detects an approaching user and 'wakes up', initiating a wall-wash lighting effect to encourage interaction.
- Supplied as two components - The Application Module contains buttons, rim, base and mounting plate, which can be mixed and matched to suit décor. The Communication Module contains all of the logical and network functions and is pre-programmed off-site, allowing commissioning to commence prior to finish options being finalized.
- Hidden sensory inputs - An internal light sensor measures ambient light and adjusts lightwash effect accordingly. A built-in temperature sensor automatically adjusts air conditioning when integrated into the system.
- Multiple language and icon labeling - Display labeling language choices include English, Chinese and Arabic. A library of common icons transcends language barriers, which is particularly useful in hospitality applications. Button labeling not available.
- Central LCD - Allows for display of system information including temperature, time, channel level and current scene. Button function can change when navigating between up to 16 pages.
- Selection of rim and fascia options - Allows décor matching to suit any environment.
DDRC420FR
Relay Controller
Robust control of switched loads
The Philips Dynalite DDRC420FR provides control of any type of switched load, including difficult lighting loads. This four channel device supports all types of switched loads up to 20 A inductive.
- Feed-through power circuit design – Electrically equivalent to a 4 pole contactor, with the added advantage of each pole being separately controllable via the DyNet network.
- Flexible mounting solution - A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled circuit.
- Inbuilt diagnostic functionality - Features circuit run time tracking on each channel and Device Online/Offline status indication.
- Multiple wiring schemes supported - Controls single phase and neutral or three phase and neutral (star) wiring configurations.
- Hardware override - Service override switch accessible from front panel.
DUS360CR
Multifunction Sensor
Low profile recessed 360° ceiling sensor
The Philips Dynalite DUS360CR is a recess mountable 360 degree multifunction sensor that combines motion detection (PIR), infrared remote control reception (IR) and ambient light level detection (PE) into one device in applications such as offices, lecture theaters and homes.
- Motion detection feature – Detects the presence or absence of motion and adjusts lights accordingly.
- Segmented click-up bezel - Surrounds the motion sensor element and enables a portion of the sensing field to be masked. This prevents nuisance detection from adjacent doorways or corridors.
- Ambient light level regulation - In applications where it is critical to maintain precise light levels, the PE function reads ambient levels and adjusts artificial light accordingly.
- Infrared receive capability - Manually adjust light levels using a hand-held remote control, via the inbuilt IR receive sensor of the DUS360CR.
- Daylight harvesting mode - Delivers automatic energy savings.
- Suitable for plenum use - UL2043 certified for installation in air-handling plenum spaces.
DUS360CR-D
Multifunction Sensor
Low profile recessed 360° ceiling sensor powered by the DALI network
The Philips Dynalite DUS360CR-D is a recess mountable 360 degree multifunction sensor that combines motion detection (PIR) and ambient light level detection (PE) in one device. The DUS360CR-D is powered and communicates to the networked control system via a DALI bus.
- DALI device – Designed to operate seamlessly with the Philips Dynalite DDBC120-DALI or DDBC320-DALI controller.
- Powered directly by the DALI network – Eliminates the need for additional network field wiring.
- Motion detection feature – Detection of motion within a scanned area triggers a programmed lighting action.
- Segmented click-up bezel – Surrounds the motion sensor element and enables a portion of the sensing field to be masked. This prevents nuisance detection from adjacent doorways or corridors.
- Daylight harvesting mode – Delivers automatic energy savings.
- Ambient light level regulation – In applications where it is critical to maintain precise light, the PE function reads ambient levels and adjusts artificial light levels accordingly.
- Infrared receive capability – Enables sign-on identification to the networked system.
- Corridor hold – Links corridor areas with adjacent rooms so corridor remains lit while occupancy is detected in adjacent rooms.
DUS360CR-DA
Multifunction Sensor
Low profile recessed 360° ceiling sensor
The Philips Dynalite DUS360CR-DA is a recess mountable 360 degree motion sensor that combines motion detection (PIR), infrared remote control reception (IR) and ambient light level detection (PE) into the one device. The Philips Dynalite DUS360CR-DA is a component of the EcoSet system and is a switch-settable sensor with time-out, designed to allow intelligent control of luminaires in combination with the DMRC210DA-RJ12 relay controller.
- Low profile design - Flush-mounted 360 degree ceiling-mount motion detection (PIR) sensor.
- No software set-up - All functionality can be achieved with the built-in dipswitches for area addressing, no-motion time-out and other advanced features.
- Rapid configuration - Up to 31 individual addressing areas of control.
- User-selectable options - No-motion time-out selectable to 30 seconds, 5 minutes, 15 minutes or 30 minutes.
- Corridor hold - Links corridor areas with adjacent rooms so they remain lit while occupancy is detected
- Suitable for plenum use - UL2043 certified for installation in air-handling plenum spaces.
3rd Party System Integrations
- AV System Integration
160+ individual channels of Load Control
- Ballast Control (1-10V Dimming)
- Relay Switched Control Groups
190+ Sensors & User Interfaces
- Dynamic Occupancy Control
- PhotoElectric Sensing and Daylight Harvesting
- Antumbra Button & Display User Panels
- Password protected Colour touchscreen panels
- Astronomical Scheduling
