Flinders Medical Centre – OLDER PERSONS MENTAL HEALTH UNIT
OLDER PERSONS MENTAL HEALTH UNIT
Project Details:
Lightlogix was delighted to partner with NSG Boffa to design and implement an advanced lighting control system for SA Health Network’s Older Persons Mental Health Unit. This state-of-the-art system utilises the latest technology to create a serene and welcoming environment for patients and staff. The lighting system is intelligently programmed to optimise patient comfort and safety, providing a calm and supportive atmosphere that facilitates healing and recovery. Lightlogix is proud to have contributed to the creation of this exceptional facility.
Lightlogix crafted a highly versatile control solution for the facility, incorporating manual control, scheduled occupancy control, automatic presence detection, absence detection for all areas, and daylight harvesting control for spaces flooded with natural light. The overarching goal of the intelligent Lighting Control System was to provide optimal light levels in every area at any time of day, enhancing safety and comfort for staff and patients alike. Lightlogix delivered a dynamic solution that adapts seamlessly to the needs of the facility.
To meet the operational requirements, a DyNet2 Control Network was installed, connecting opto-isolated equipment from 8 Distribution Boards to form a robust Distributed Intelligence Lighting Control System. Staff hubs, patient areas, and external lighting were wired and controlled separately, ensuring a high level of reliability and fault tolerance. Maintenance operations are performed remotely, away from patient areas, to minimise any disruption or interference with patients’ comfort and well-being. Lightlogix prioritised patient experience and reliability in every aspect of the project.

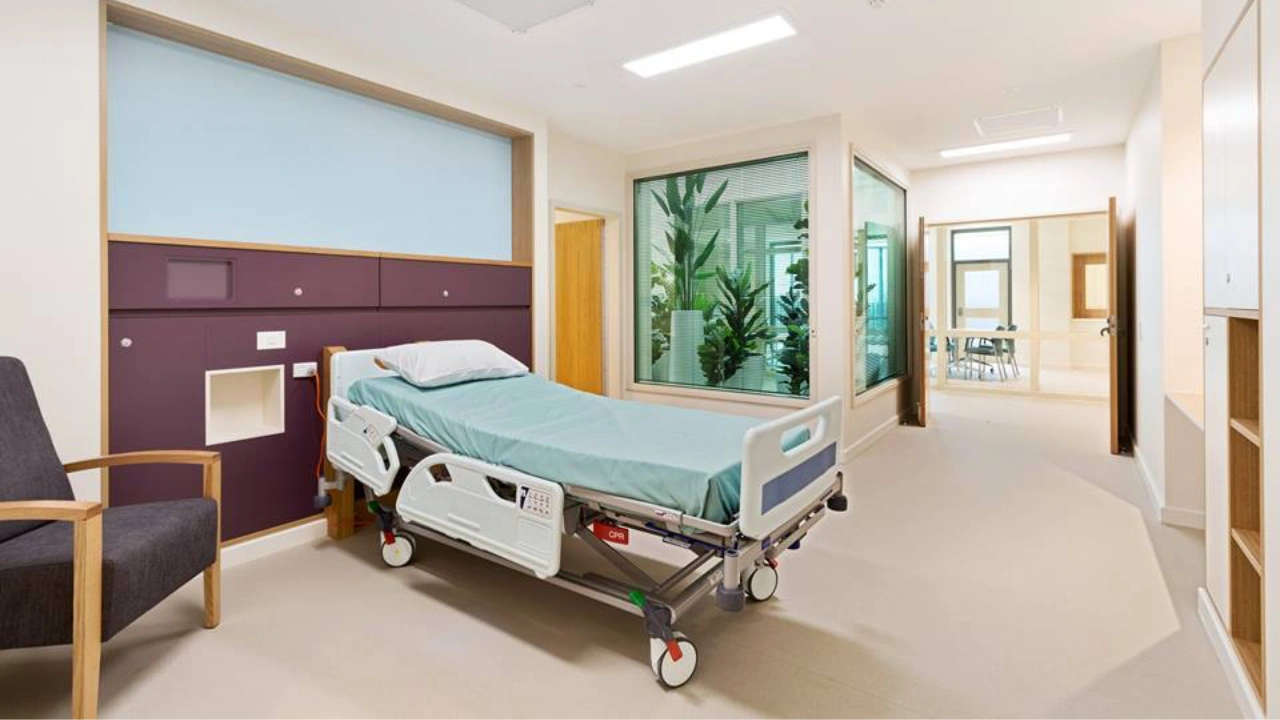

The Patient Bedrooms feature intuitively timed nightlights, strategically placed to create safe pathways to bathrooms and exits during nighttime hours. These safety features ensure that patients are able to navigate their rooms and access facilities easily and without incident. In the event of an emergency, the lighting system is programmed to highlight escape routes, providing visibility and direction during a potentially stressful situation. This seamless integration of safety and convenience reflects Lightlogix‘s commitment to elevating the patient experience.
Client:
NSG Boffa
Completion Date:
August 2017
Location:
Bedford Park, South Australia
Category:
Aged, Community and Health Care
PDEG
Ethernet Gateway
Flexible Ethernet integration
The Philips Dynalite PDEG provides a multipurpose Ethernet connection to a Philips lighting control system. It supports access to the lighting system via a dedicated Philips app as well as providing a web interface delivering access to the inbuilt timeclock and schedule editor functions. It provides bridging functionality between Ethernet backbone and the DyNet fieldbus devices.
- Large storage capacity - The device stores large project files internally, which apps use to automatically configure their settings. This saves configuration time and ensures accuracy for phone and tablet control.
- Built-in web server - Allows the user to edit and check system settings via the Network Hardware Checker and System Roll Call tools.
- No technical skills needed - Inbuilt timeclock and schedule manager allow the user to manage operation and task scheduling without advanced technical knowledge.
- Powerful custom task engine - Allows users or third-party systems to run macros, such as ‘After Hours’, ‘Shut Down’, ‘Welcome’ and more.
- Advanced interoperability - Supports management of Philips Dynalite and Philips PoE fittings on a single system.
PDEB
Ethernet Bridge
Feature focused cost-effective DyNet to Ethernet Bridge
The Philips Dynalite PDEB provides a cost-effective Ethernet connection to a Philips lighting control system. It provides bridging functionality between an Ethernet backbone and the DyNet fieldbus devices. The PDEB enables the implementation of a trunk and spur topology on large project sites, with the bridge providing a high-speed backbone coupled to many lower speed spurs.
- Cost-effective - The device provides an economical way to connect the RS-485 DyNet network to an Ethernet network.
- Internal controls - Programmable logic controller capable of comprehensive conditional and sequential logic and arithmetic function processing, packet filtering and DyNet to DyNet 2 translation.
- Flexible mounting solution - DIN-rail mountable, designed to be installed into a distribution board or other electrical enclosure.
DLLI8I8O
Dry Contact Interface
Eight-way dry contact interface
The Philips Dynalite DLLI8I8O is an eight-way dry contact interface with LED indicator outputs, that allows mechanical and electronic switches to communicate directly to the DyNet network.
- Compact size - Allows installation in electrical wall boxes for easy integration with third-party user interfaces.
- Eight dry contact inputs - Each dry contact trigger is individually programmable for a range of tasks.
- Eight indicator outputs - Each output is individually programmable to drive an external LED indicator sharing a common cathode, communicating current system status or settings.
- Allows up to 20 m cable runs - Enables convenient connection to dry contact interfaces in multiple rooms.
DDRC1220FR-GL
Relay Controller
Robust control of switched loads
The Philips Dynalite DDRC1220FR-GL provides control of any type of switched load. All types of switched loads up to 20 A inductive are supported. The maximum load may be limited by 500 A inrush rating.
- Feed-through power circuit design - Electrically equivalent to a 12 pole contactor, with the added advantage of each pole being separately controllable via the DyNet network.
- Flexible mounting solution - A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled circuit.
- Inbuilt diagnostic functionality - Features circuit run time tracking on each channel and Device Online/Offline status indication.
- Multiple wiring schemes supported - Controls single phase and neutral or three phase and neutral (star) wiring configurations.
- Hardware override - Service override switch accessible from front panel.
PAxBPA
Antumbra Button
Contemporary two, four, or six-button panel with light-wash effect
The Philips AntumbraButton user interface features a sleek, contemporary design and incorporates the latest in field effect technology. Each easy-to-press mechanical button can be customized with text or icons and programmed to perform a wide variety of local and site-wide control functions. The PA2BPA, PA4BPA, and PA6BPA are suitable for but not limited to North American, South American, Australian and New Zealand markets.
- Field effect technology – The user interface detects an approaching user and ‘wakes up’, initiating a wall-wash lighting effect to encourage interaction.
- Supplied as two components – The Application Module contains buttons, rim, base and mounting plate, which can be mixed and matched to suit décor. The Communication Module (DACM) contains logical and network functions and can be pre-programmed off-site, allowing commissioning to commence prior to finalizing rim and button options.
- Hidden sensory inputs – An internal light sensor measures ambient light and adjusts lightwash effect accordingly. A built-in temperature sensor automatically adjusts air conditioning when integrated into the system.
- Multiple language and icon labeling – Button labeling language choices include English, Chinese and Arabic. A library of common icons transcends language barriers, which is particularly useful in hospitality applications.
- Décor-matching options – Buttons and rims are available in a range of attractive polycarbonate and metallic finishes.
- 64-channel DMX Tx support – Can be factory-set to DMX instead of DyNet, to communicate directly with DMX fixtures
DDRC420FR
Relay Controller
Robust control of switched loads
The Philips Dynalite DDRC420FR provides control of any type of switched load, including difficult lighting loads. This four channel device supports all types of switched loads up to 20 A inductive.
- Feed-through power circuit design – Electrically equivalent to a 4 pole contactor, with the added advantage of each pole being separately controllable via the DyNet network.
- Flexible mounting solution - A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled circuit.
- Inbuilt diagnostic functionality - Features circuit run time tracking on each channel and Device Online/Offline status indication.
- Multiple wiring schemes supported - Controls single phase and neutral or three phase and neutral (star) wiring configurations.
- Hardware override - Service override switch accessible from front panel.
DUS360CR
Multifunction Sensor
Low profile recessed 360° ceiling sensor
The Philips Dynalite DUS360CR is a recess mountable 360 degree multifunction sensor that combines motion detection (PIR), infrared remote control reception (IR) and ambient light level detection (PE) into one device in applications such as offices, lecture theaters and homes.
- Motion detection feature – Detects the presence or absence of motion and adjusts lights accordingly.
- Segmented click-up bezel - Surrounds the motion sensor element and enables a portion of the sensing field to be masked. This prevents nuisance detection from adjacent doorways or corridors.
- Ambient light level regulation - In applications where it is critical to maintain precise light levels, the PE function reads ambient levels and adjusts artificial light accordingly.
- Infrared receive capability - Manually adjust light levels using a hand-held remote control, via the inbuilt IR receive sensor of the DUS360CR.
- Daylight harvesting mode - Delivers automatic energy savings.
- Suitable for plenum use - UL2043 certified for installation in air-handling plenum spaces.
DUS360CR-D
Multifunction Sensor
Low profile recessed 360° ceiling sensor powered by the DALI network
The Philips Dynalite DUS360CR-D is a recess mountable 360 degree multifunction sensor that combines motion detection (PIR) and ambient light level detection (PE) in one device. The DUS360CR-D is powered and communicates to the networked control system via a DALI bus.
- DALI device – Designed to operate seamlessly with the Philips Dynalite DDBC120-DALI or DDBC320-DALI controller.
- Powered directly by the DALI network – Eliminates the need for additional network field wiring.
- Motion detection feature – Detection of motion within a scanned area triggers a programmed lighting action.
- Segmented click-up bezel – Surrounds the motion sensor element and enables a portion of the sensing field to be masked. This prevents nuisance detection from adjacent doorways or corridors.
- Daylight harvesting mode – Delivers automatic energy savings.
- Ambient light level regulation – In applications where it is critical to maintain precise light, the PE function reads ambient levels and adjusts artificial light levels accordingly.
- Infrared receive capability – Enables sign-on identification to the networked system.
- Corridor hold – Links corridor areas with adjacent rooms so corridor remains lit while occupancy is detected in adjacent rooms.
DUS360CR-DA
Multifunction Sensor
Low profile recessed 360° ceiling sensor
The Philips Dynalite DUS360CR-DA is a recess mountable 360 degree motion sensor that combines motion detection (PIR), infrared remote control reception (IR) and ambient light level detection (PE) into the one device. The Philips Dynalite DUS360CR-DA is a component of the EcoSet system and is a switch-settable sensor with time-out, designed to allow intelligent control of luminaires in combination with the DMRC210DA-RJ12 relay controller.
- Low profile design - Flush-mounted 360 degree ceiling-mount motion detection (PIR) sensor.
- No software set-up - All functionality can be achieved with the built-in dipswitches for area addressing, no-motion time-out and other advanced features.
- Rapid configuration - Up to 31 individual addressing areas of control.
- User-selectable options - No-motion time-out selectable to 30 seconds, 5 minutes, 15 minutes or 30 minutes.
- Corridor hold - Links corridor areas with adjacent rooms so they remain lit while occupancy is detected
- Suitable for plenum use - UL2043 certified for installation in air-handling plenum spaces.
DDBC120-DALI
DALI-2 Driver Controller
Enabling a full DALI universe including tunable white drivers, DALI sensors and user interfaces
The Philips Dynalite DDBC120-DALI is ideal for small-scale projects looking for a compact, all-in-one DALI control solution.
This controller operates seamlessly with all other Dynalite controllers, sensors, user interfaces and head-end software.
- Single-master solution – Compatible with a range of DALI fittings and devices, including DALI fluorescent drivers, DALI electronic low voltage transformers, DALI LED fixtures, DALI emergency lighting fixtures and Philips Dynalite DALI sensors and user interfaces.
- Compatible with DALI 209 drivers – Provides control of tunable white luminaires.
- DALI auto-enumeration – Provides automatic enumeration of DALI drivers when powered on and enables self-repair of the network system if a DALI driver fails.
- Fully scalable network solution – Direct mapping from DALI to the DyNet network protocol eliminates DALI imposed limits, such as maximum group sizes.
- Flexible mounting solution – A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled lighting circuit.
- Dual functionality – Leverage advantages of a true DALI network solution, whilst still allowing full function set of DyNet network control.
- Driver standby power elimination – Internal switched relay automatically isolates the power circuit when all drivers are dimmed to 0%.
- Integral DALI bus power supply – Removes the need for provision of a separate external power supply and reduces distribution board wiring complexity.
- Driver management tools – Includes lamp and driver status reporting, driver run time tracking, and emergency test reporting.
- Onboard DALI test function – Use the controller's service switch to set all connected lamps to full brightness, or flash on/off for a 5-minute test window, without the need for software or additional input devices.
Title
Title
DUS704C
Ceiling mountable 360 degree universal sensor
The DUS704 series combine motion detection (PIR), infra red remote control reception (IR) and ambient light level detection (PE) in the one device. In applications such as homes, lecture theatres and office towers, universal sensors can be utilised to detect motion and switch on the lights. When rooms are unoccupied, lights can be automatically dimmed or switched off to provide energy savings.
Infra Red remote control reception allows full control of lights, audio-visual equipment and blinds. The Dynalite DTK500 series hand held infra-red transmitters are compatible for use with the DUS704, and for the programming of 3rd party “universal” remote controls.
In situations where it is critical to maintain precise lighting control for individual workspaces, such as a flight control tower or office workstation, the DUS704 facilitates light compensation. The DUS704 can be placed in an automatic “Daylight Harvesting” mode for energy savings.
DUS704W
Wall mountable 90 degree universal sensor
The DUS704W is a wall mountable 90 degree universal sensor that combines motion detection (PIR), Infrared remote control reception (IR) and ambient light level detection (PE) into one device in applications such as offices, lecture theaters and homes.
• Motion detection feature — Detects the presence or absence of motion and adjusts lights accordingly.
• Ambient light level detection and daylight harvesting — In applications where it is critical to maintain precise light, the PE function reads ambient levels and adjusts artificial light accordingly.
• Infrared receive capability — Manually adjust light levels using a hand-held remote control, via the inbuilt IR receive sensor of the DUS704W.
• Multiple mounting options — The device is available in both 360 degree ceiling mount (DUS704C) or wide angle wall mount (DUS704W) versions.
400+ individual channels of Load Control
- Ballast Control (DALI Addressable)
- Relay Switched Control Group
100+ Sensors & User Interfaces
- Dynamic Occupancy Control
- Maintained Illuminance light level control
- Antumbra User Panels
Network Gateway
- Self Diagnostic Reporting
- Network Logging
- Astronomical Real Time Clock Scheduling
