Bureau of Meteorology

Project Details:

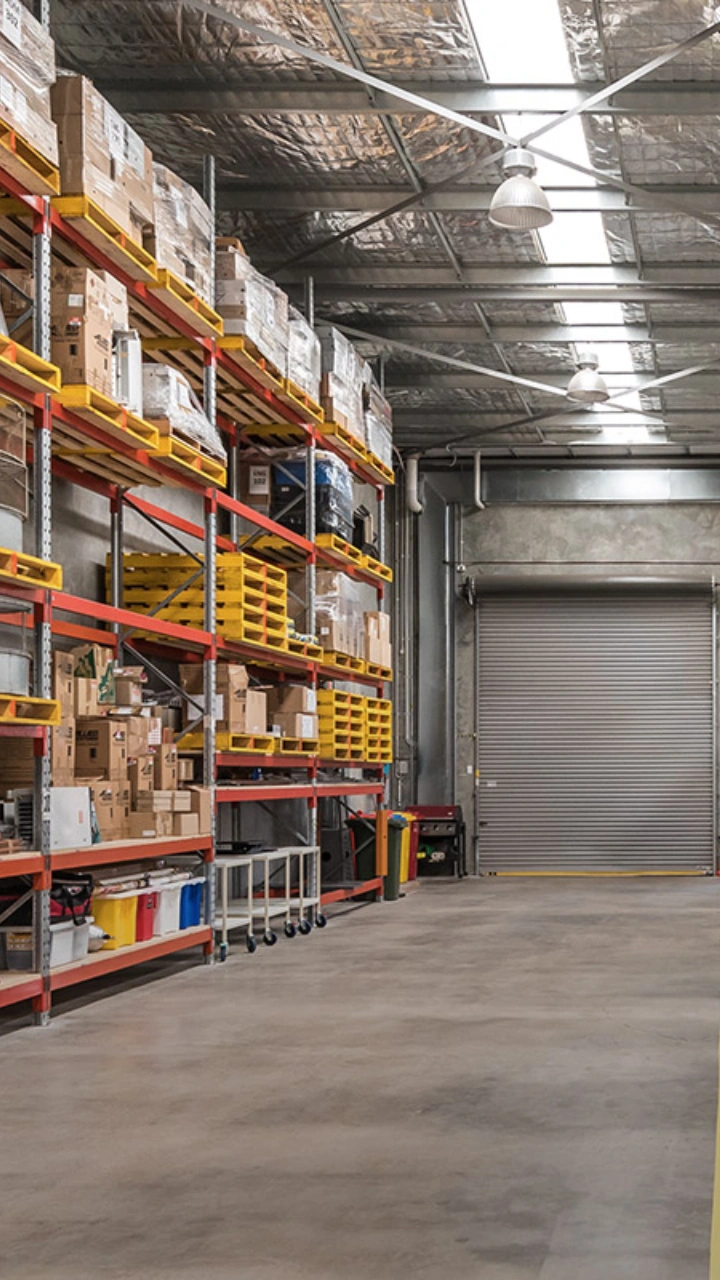

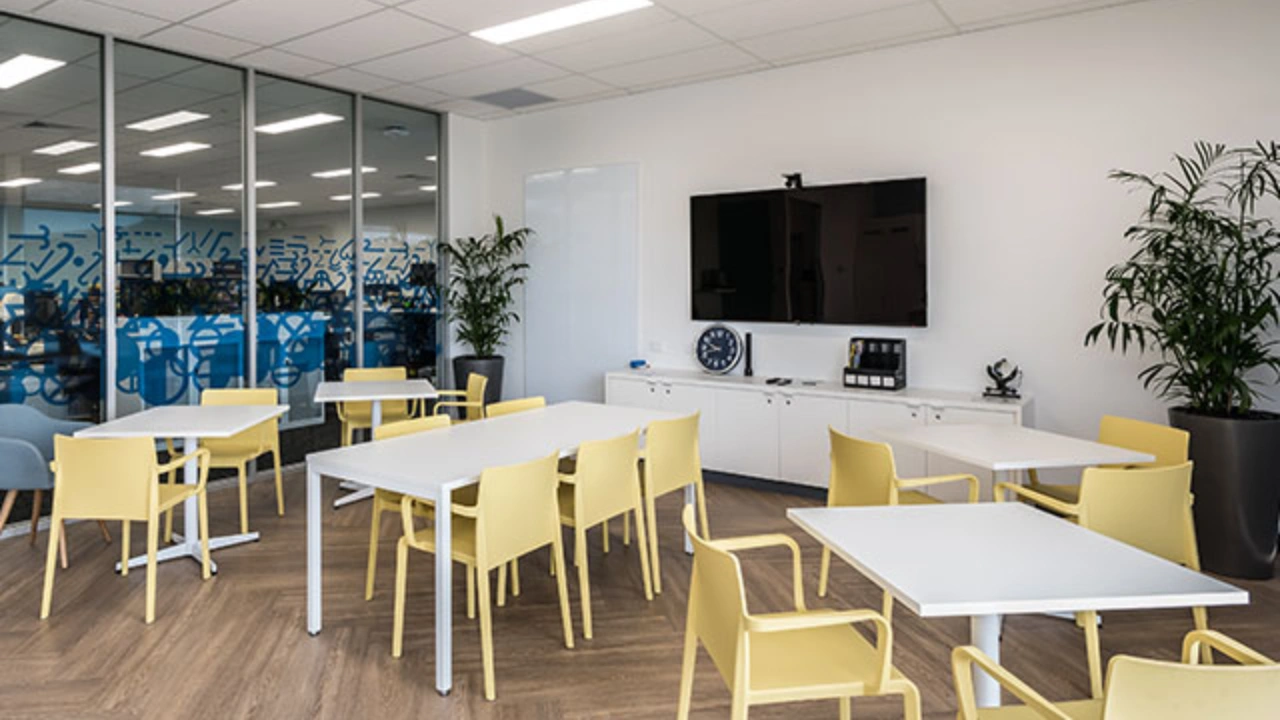

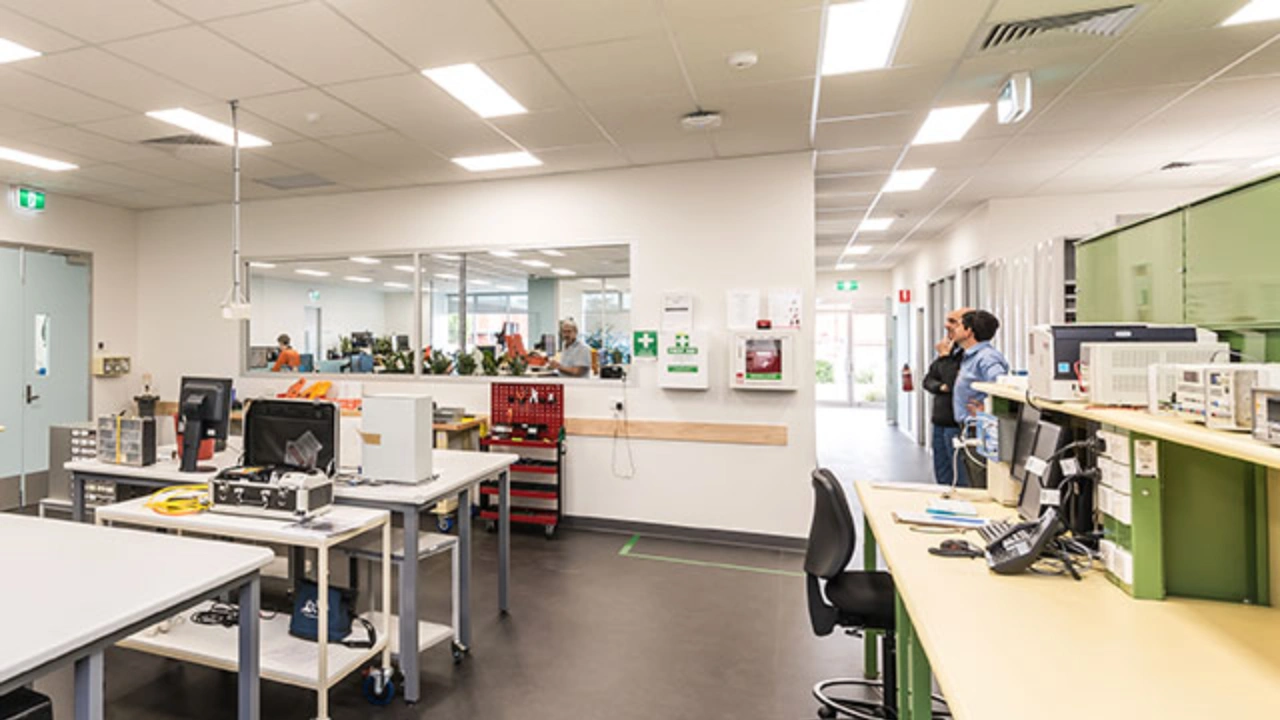

Lightlogix delivered a total lighting solution for Laser Electrical for the commercial office fitout of the Bureau Of Meteorology, including equipment, design, programming, and commissioning. The Philips Dynalite system ensures optimal lighting conditions for the main office, workshop, and warehouse, all while providing energy-efficient illumination. The system was designed to work seamlessly and effectively in each area, with programming that delivers efficient light levels and automated switching to reduce energy consumption and maintenance requirements.

The system automatically adjusts the lighting to create a safe, comfortable, and productive work environment. Occupancy sensors are placed throughout the facility to ensure seamless, efficient operation without human intervention. The user-friendly interface allows staff to customise lighting levels and control task lighting, creating a customised and familiar experience. The system’s energy efficiency is a bonus, reducing operational costs and environmental impact. It’s a well-designed and user-friendly solution that works hard behind the scenes.

(Images courtesy of Emmett Construct)

Client:

Laser Electrical

Completion Date:

August 2015

Location:

Marleston, South Australia

Category:

Office and Education

DDRC1220FR-GL

Relay Controller

Robust control of switched loads

The Philips Dynalite DDRC1220FR-GL provides control of any type of switched load. All types of switched loads up to 20 A inductive are supported. The maximum load may be limited by 500 A inrush rating.

Feed-through power circuit design - Electrically equivalent to a 12 pole contactor, with the added advantage of each pole being separately controllable via the DyNet network.
Flexible mounting solution - A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled circuit.
Inbuilt diagnostic functionality - Features circuit run time tracking on each channel and Device Online/Offline status indication.
Multiple wiring schemes supported - Controls single phase and neutral or three phase and neutral (star) wiring configurations.
Hardware override - Service override switch accessible from front panel.

PAxBPA

Antumbra Button

Contemporary two, four, or six-button panel with light-wash effect

The Philips AntumbraButton user interface features a sleek, contemporary design and incorporates the latest in field effect technology. Each easy-to-press mechanical button can be customized with text or icons and programmed to perform a wide variety of local and site-wide control functions. The PA2BPA, PA4BPA, and PA6BPA are suitable for but not limited to North American, South American, Australian and New Zealand markets.

Field effect technology – The user interface detects an approaching user and ‘wakes up’, initiating a wall-wash lighting effect to encourage interaction.
Supplied as two components – The Application Module contains buttons, rim, base and mounting plate, which can be mixed and matched to suit décor. The Communication Module (DACM) contains logical and network functions and can be pre-programmed off-site, allowing commissioning to commence prior to finalizing rim and button options.
Hidden sensory inputs – An internal light sensor measures ambient light and adjusts lightwash effect accordingly. A built-in temperature sensor automatically adjusts air conditioning when integrated into the system.
Multiple language and icon labeling – Button labeling language choices include English, Chinese and Arabic. A library of common icons transcends language barriers, which is particularly useful in hospitality applications.
Décor-matching options – Buttons and rims are available in a range of attractive polycarbonate and metallic finishes.
64-channel DMX Tx support – Can be factory-set to DMX instead of DyNet, to communicate directly with DMX fixtures

DUS804CS-UP

Multifunction Sensor

Surface mount ceiling sensor with ultrasonic capability

The Philips Dynalite DUS804CS-UP is a surface mountable 360 degree multifunction sensor that combines ultrasonic (UP), motion detection (PIR), infrared remote control reception (IR) and ambient light level detection (PE) into one device in applications such as offices, lecture theaters and homes.

Motion detection feature – Detection of motion within scanned area triggers a programmed lighting action. Ultrasonic technology enables motion detection behind fixed objects.
Ambient light level detection and daylight harvesting- In applications where it is critical to maintain precise light, the PE function reads ambient levels and adjusts artificial light accordingly.
Infrared receive capability - Manually adjust light levels using a hand-held remote control, via the inbuilt IR receive sensor of the DUS804CS-UP.
Daylight harvesting mode - Delivers automatic energy savings.

DUS804C

360º ceiling mount sensor

The DUS804C is a low profile recessed flush mount 360º ceiling mount sensor that combines motion detection (PIR), infra red remote control reception (IR) and ambient light level detection (PE) in the one device. In applications such as office buildings, lecture theatres, and homes, the DUS804C universal sensor can be utilised to detect motion and switch on the lights. When rooms are unoccupied, lights can be automatically dimmed or switched off to provide energy savings. The unit also incorporates a segmented click-up bezel surrounding the motion sensor element. This enables a portion of the sensing field to be readily masked to prevent nuisance detection from adjacent doorways or corridors. The same sensor provides IR control reception to enable full remote control over lights, audio-visual equipment and blinds. A range of hand held infra-red transmitters to complement DUS804 series universal sensors are available. In situations where it is critical to maintain precise lighting control for individual workspaces, such as an office workstation or even air traffic control centres, the DUS804C facilitates light compensation. The DUS804C can also be placed in an automatic“Daylight Harvesting” mode for energy savings.

10+ individual channels of Load Control

Relay Switched Control Groups

15+ Sensors and User Interfaces

Passive InfraRed Sensors
Ultrasonic Occupancy Sensors
Dynamic Occupancy Control
Antumbra Display User Panels
