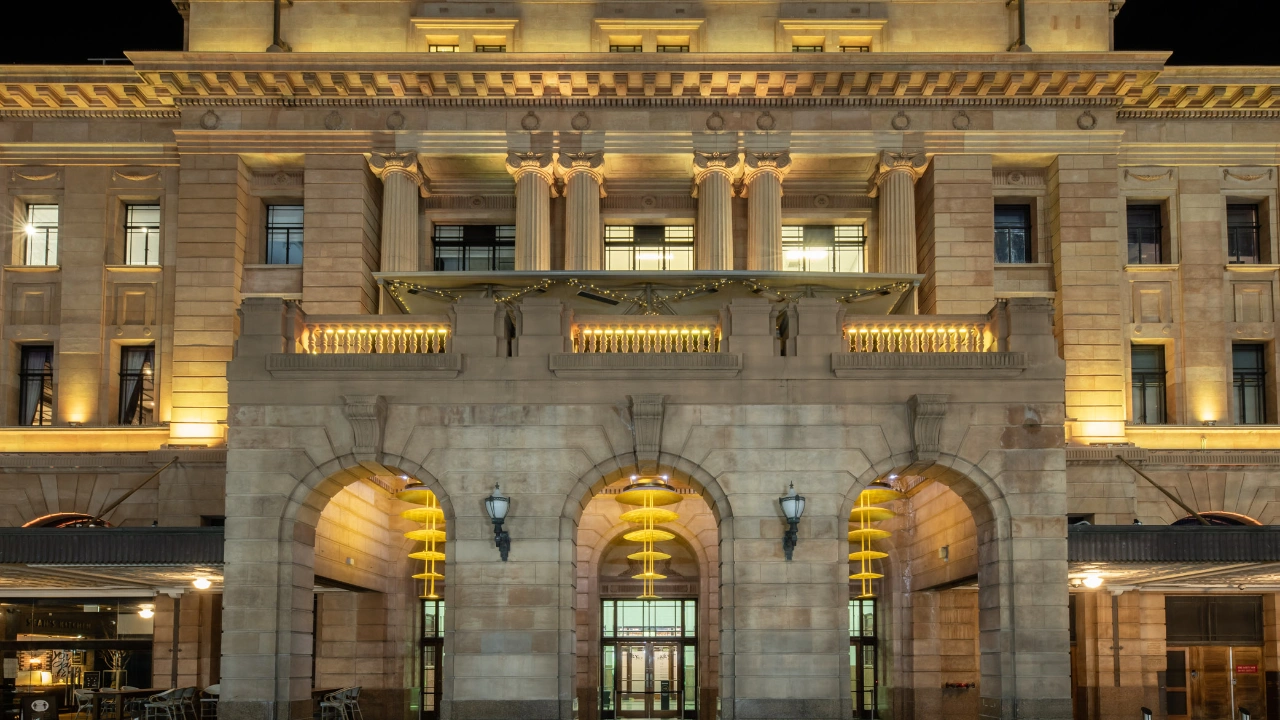

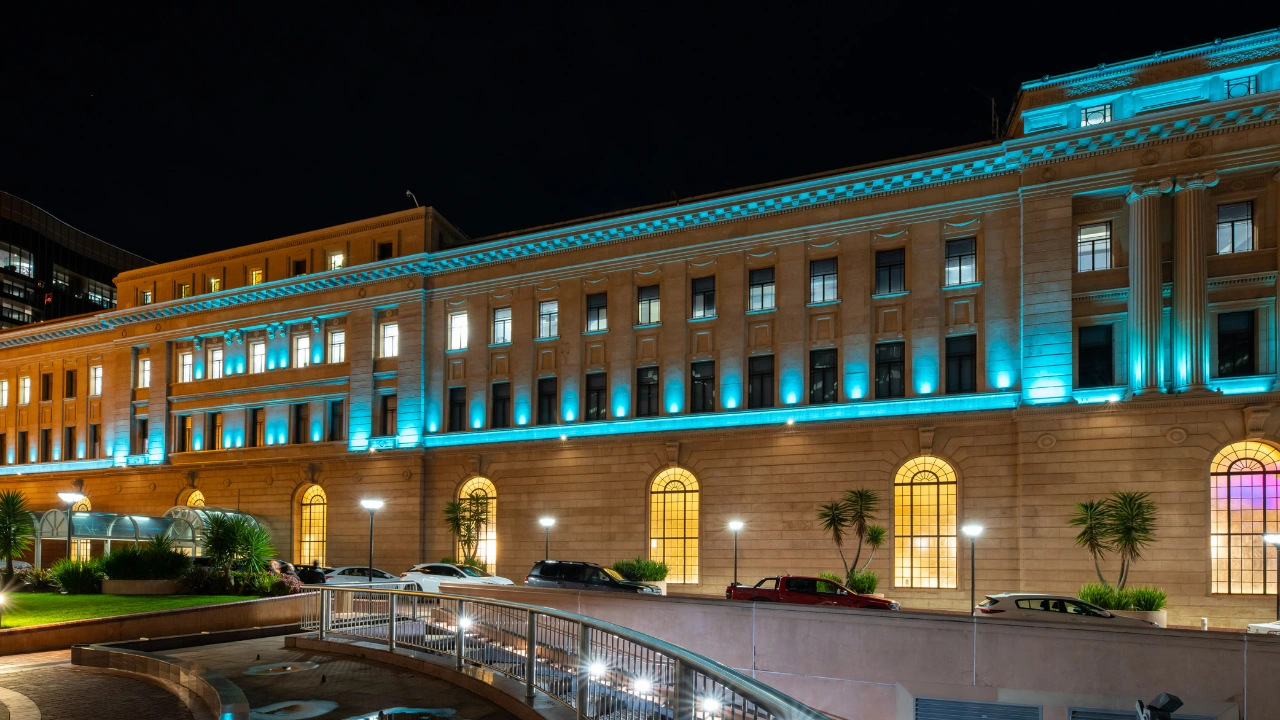

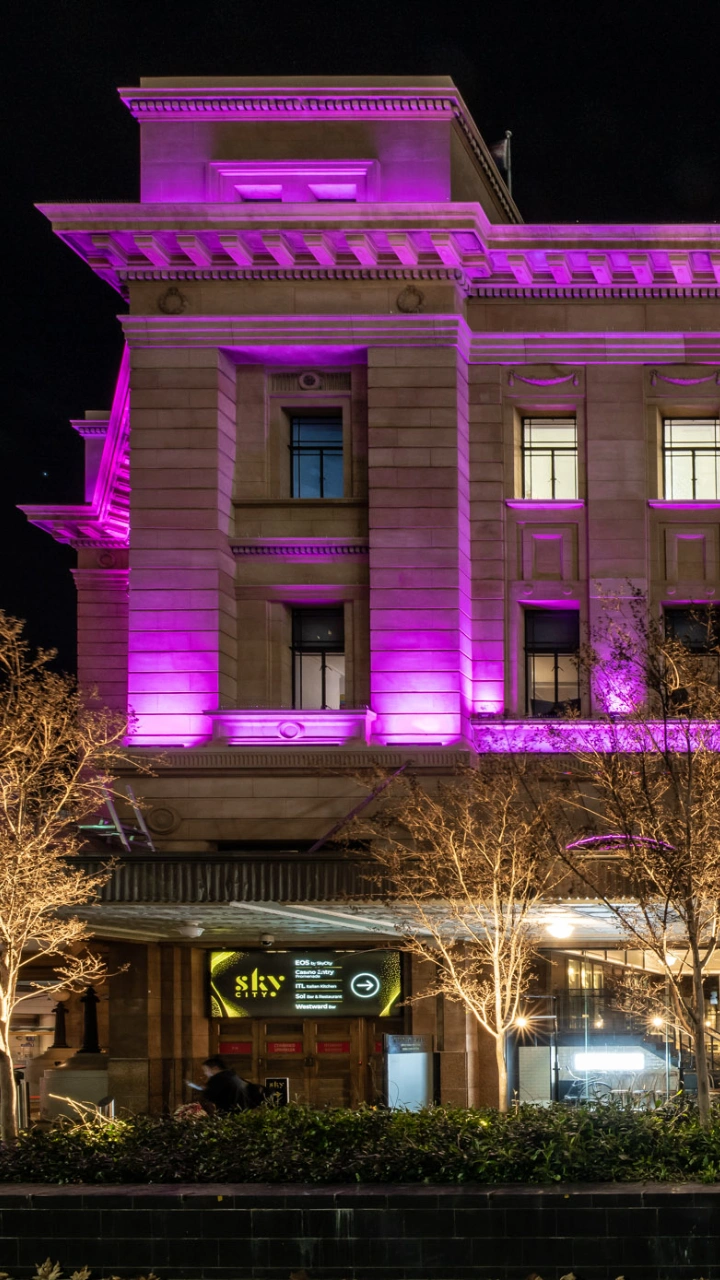

ADELAIDE RAILWAY STATION FAÇADE
Project Details:

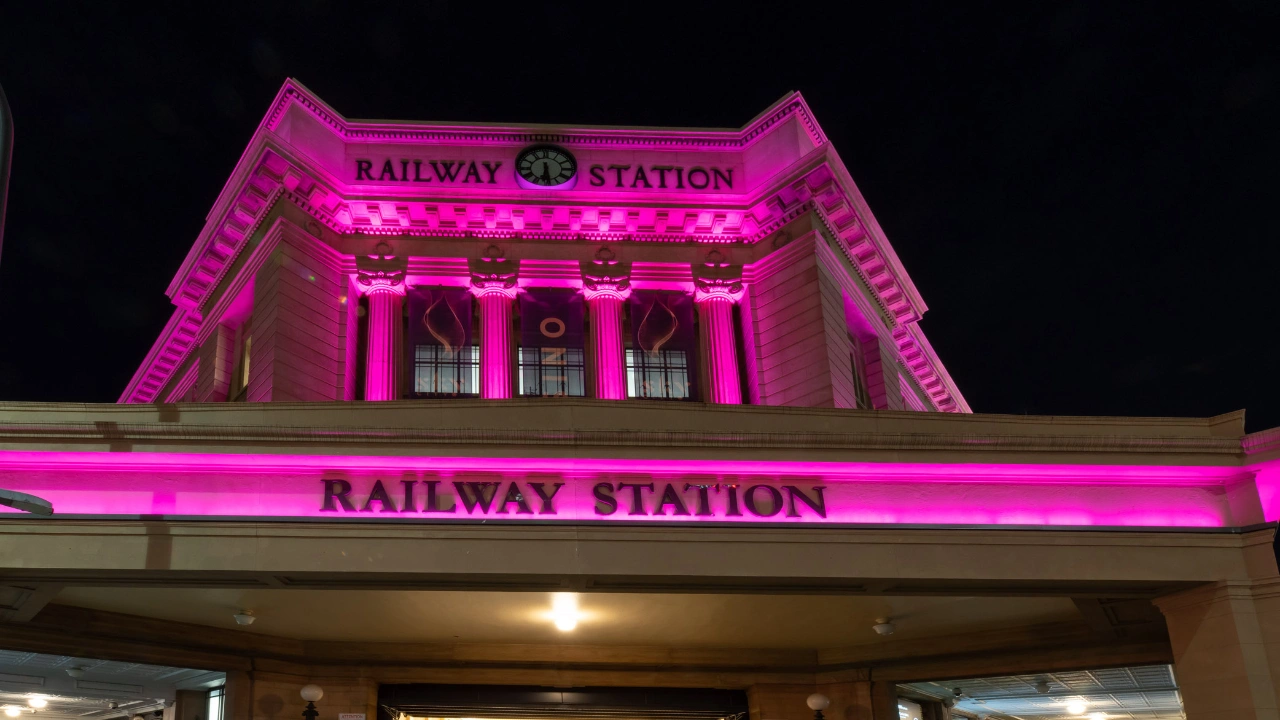

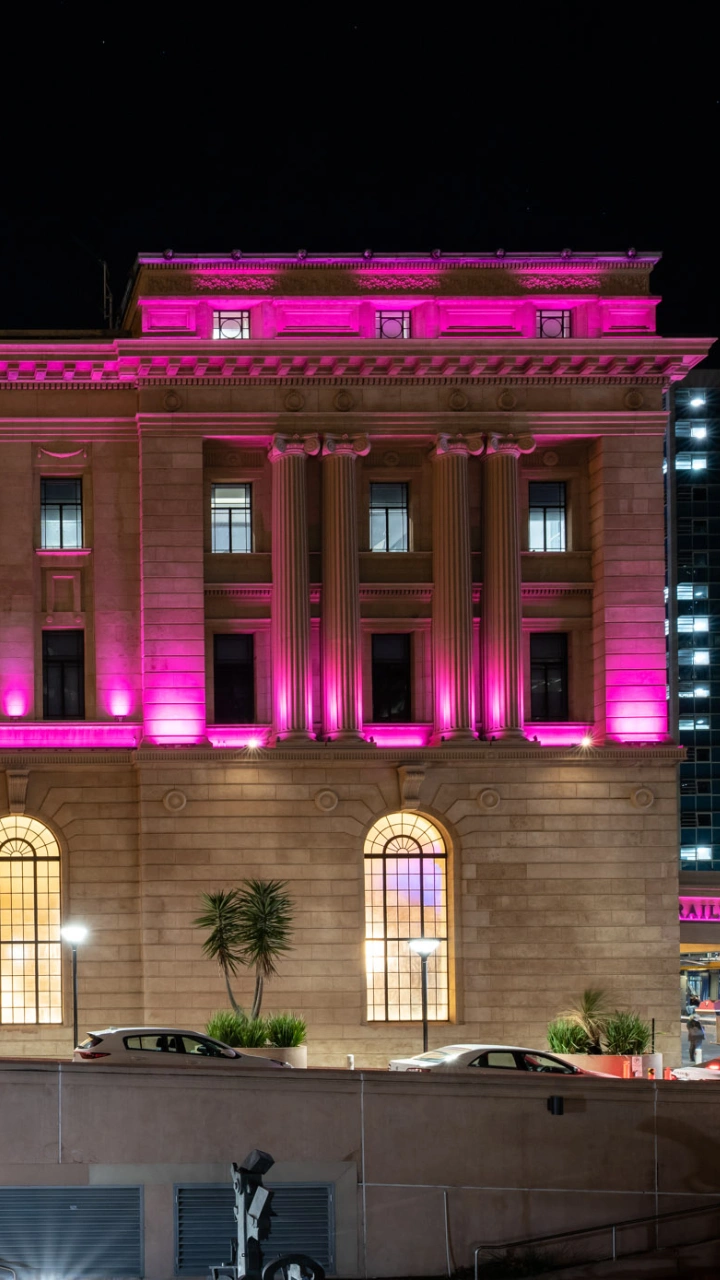

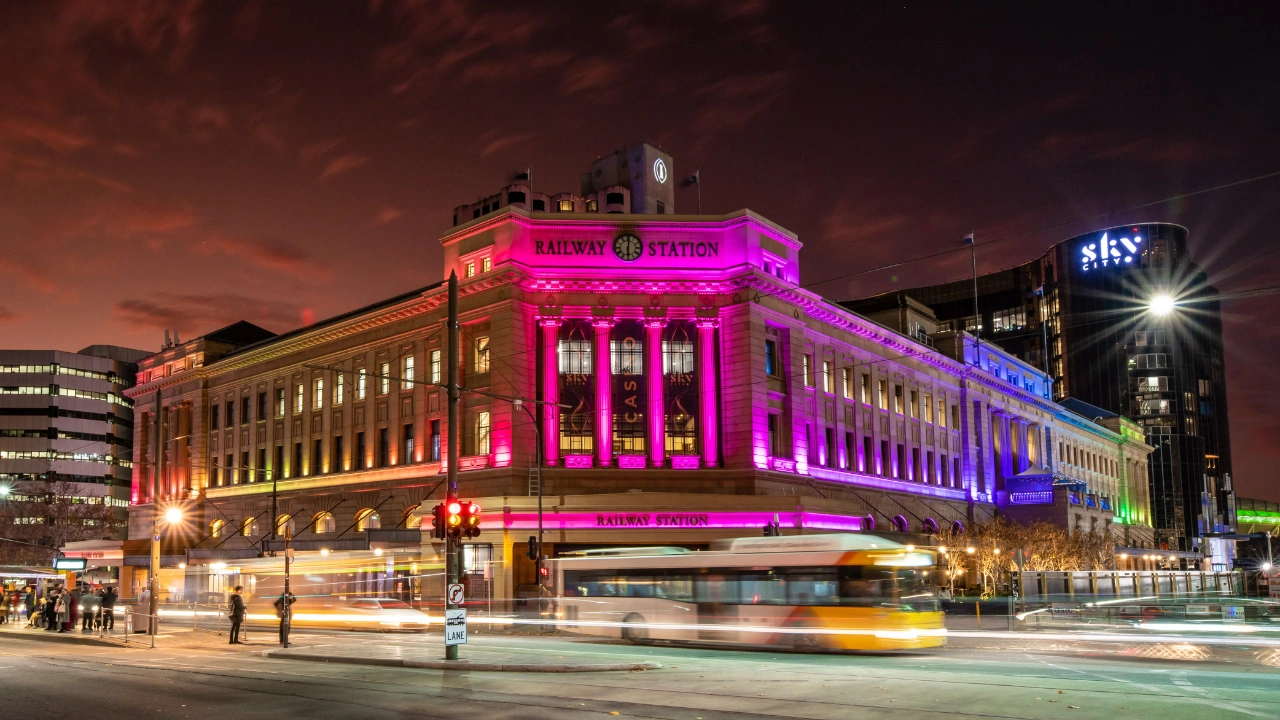

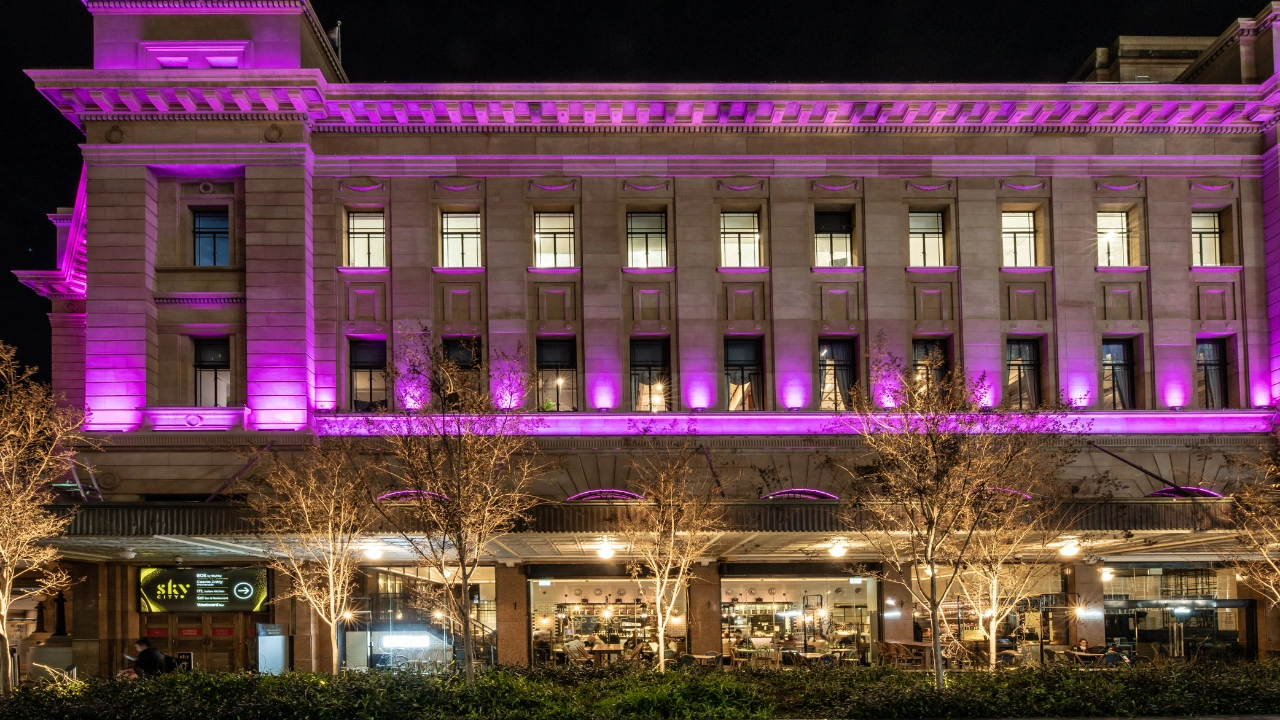

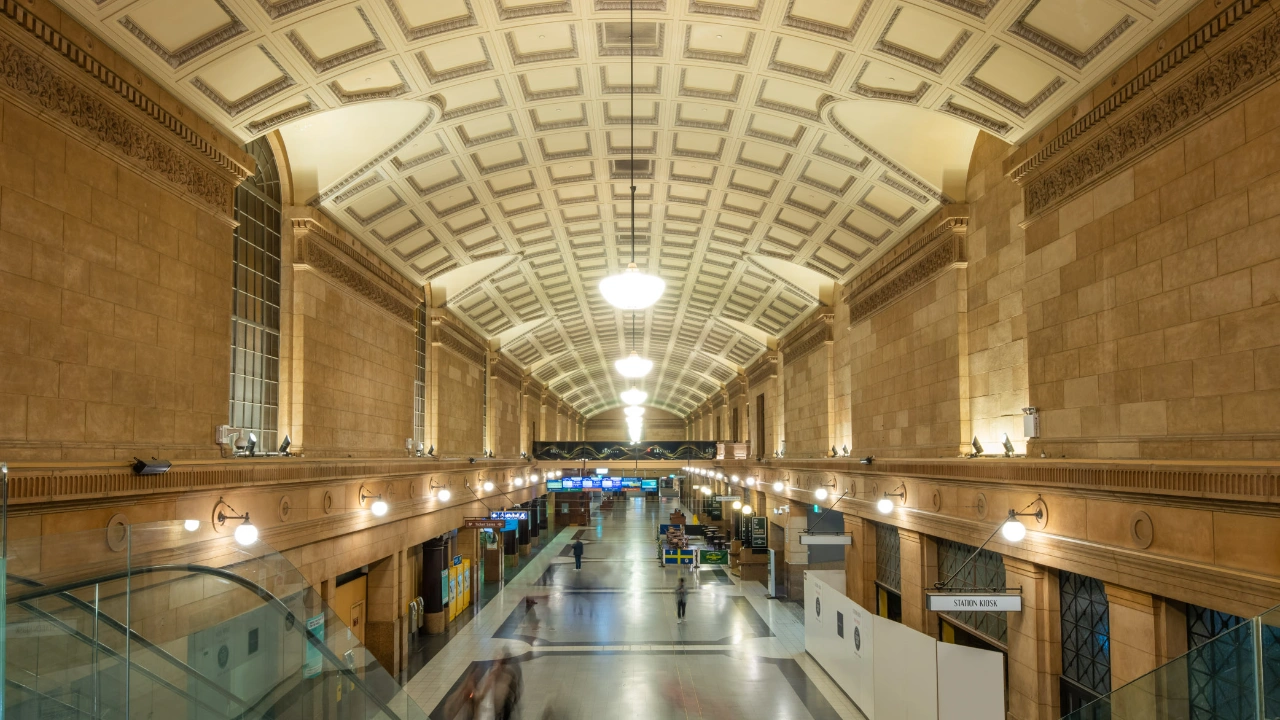

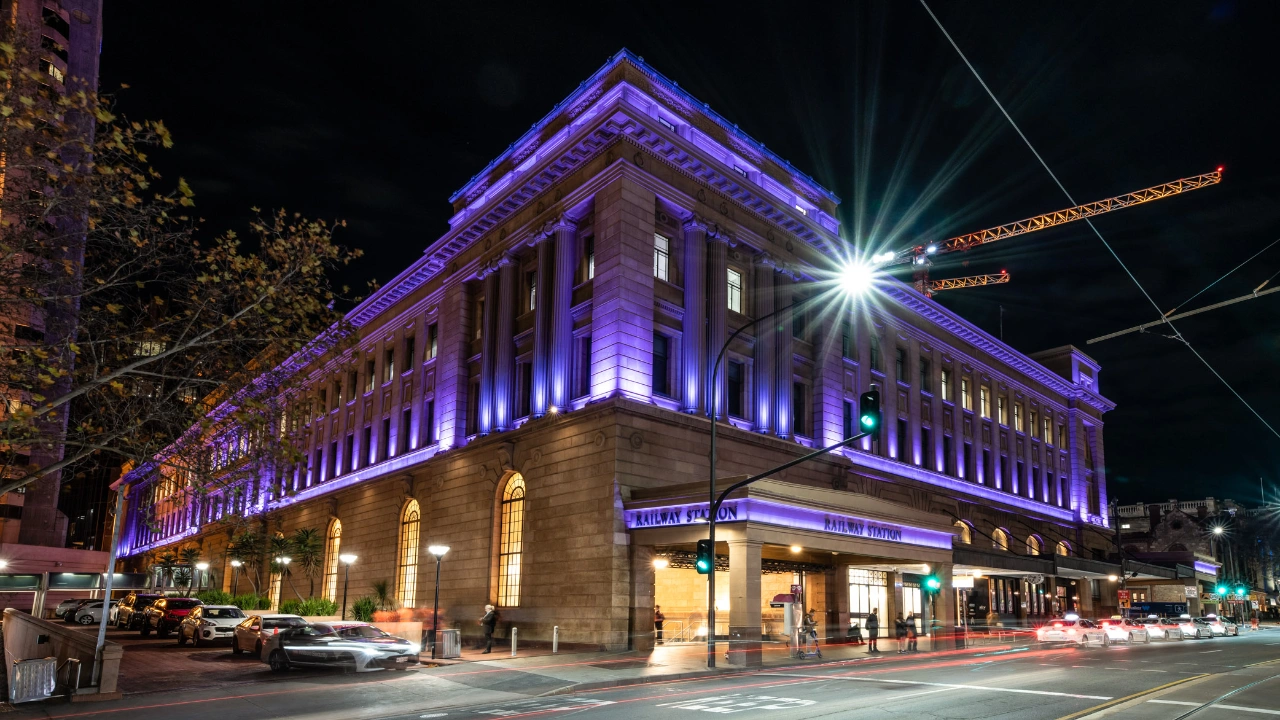

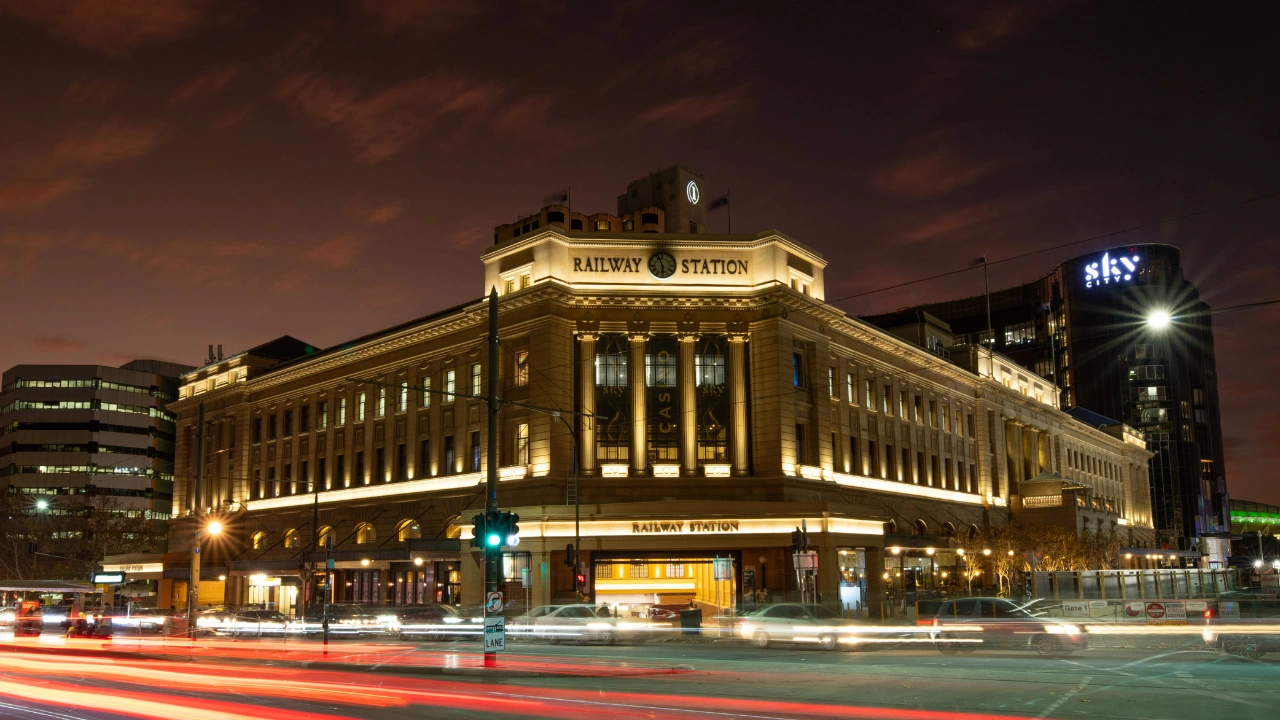

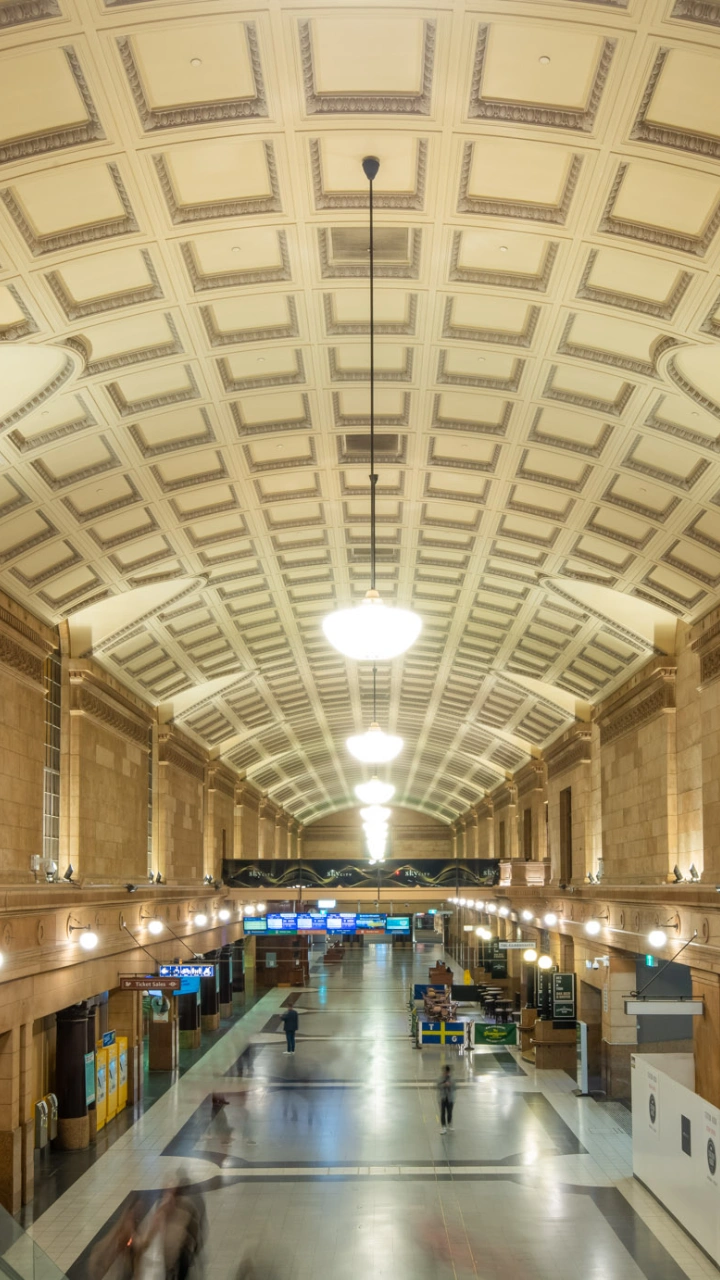

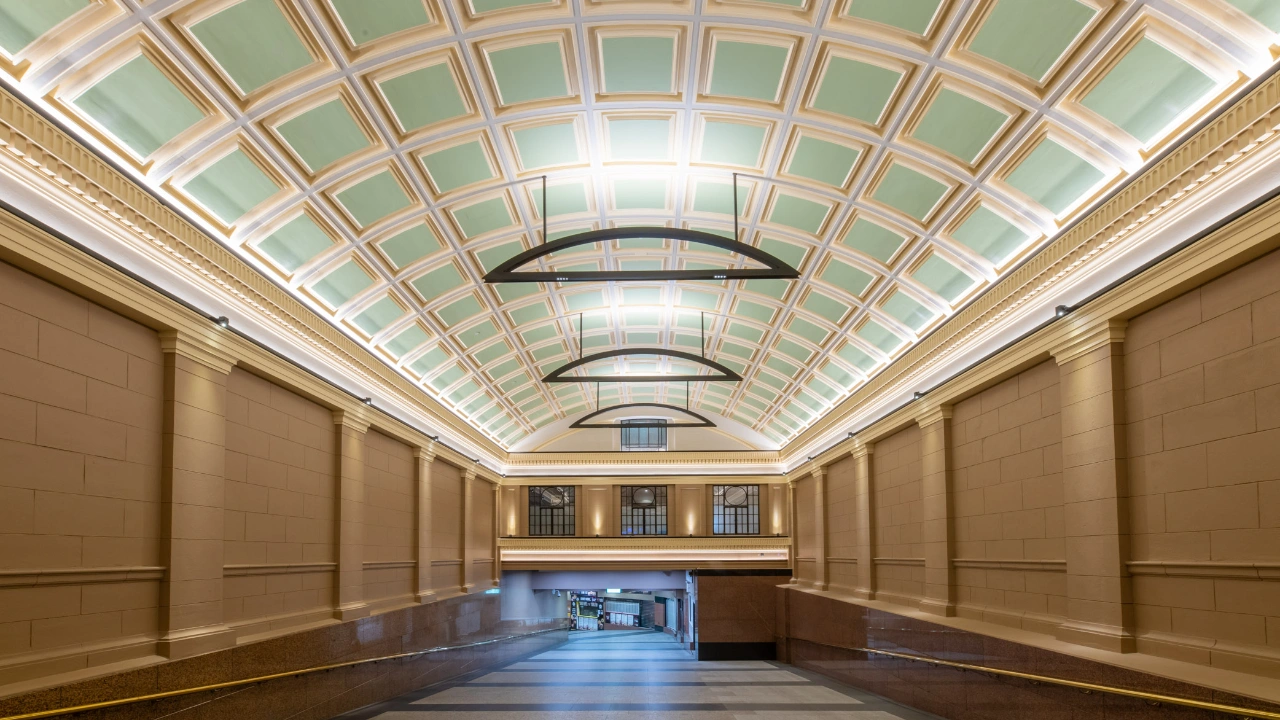

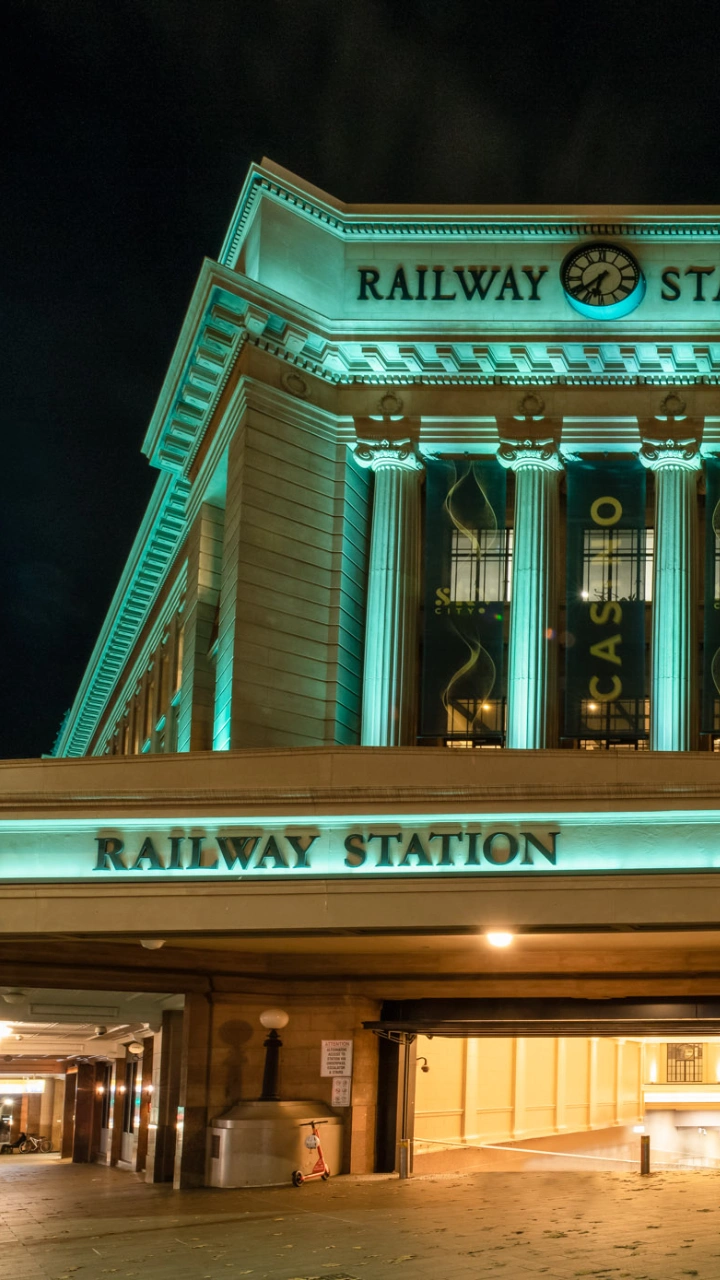

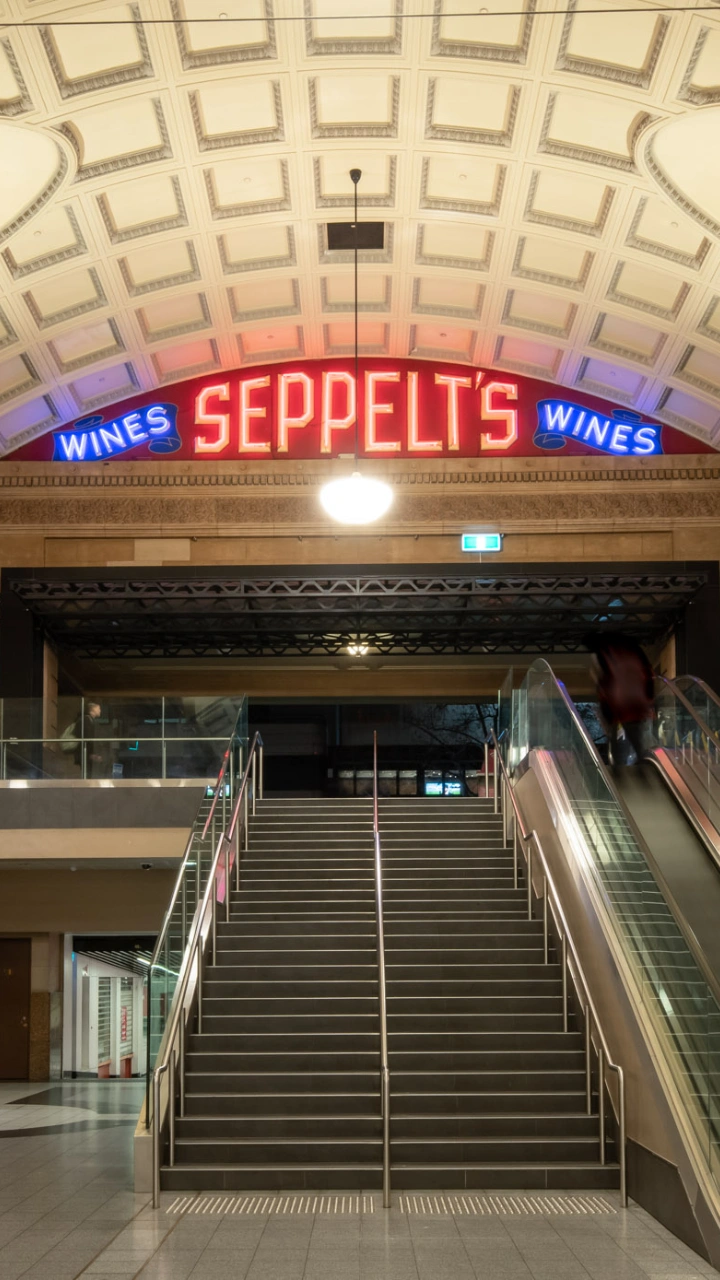

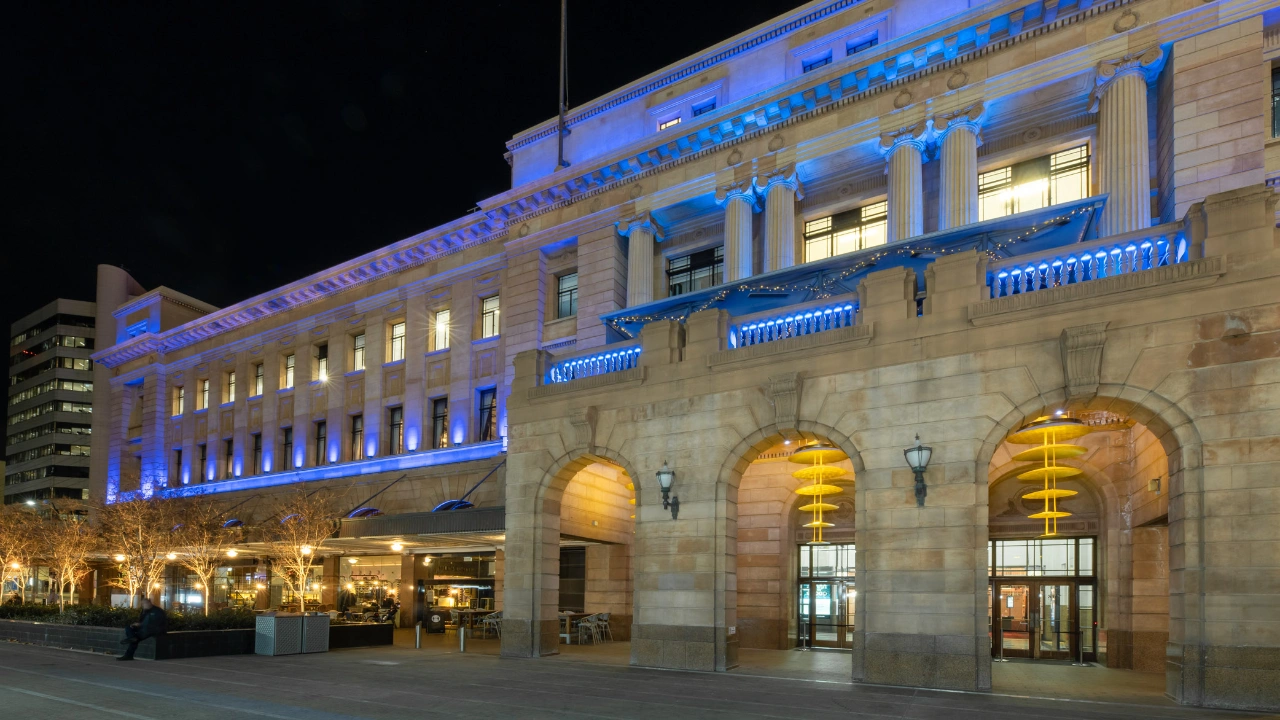

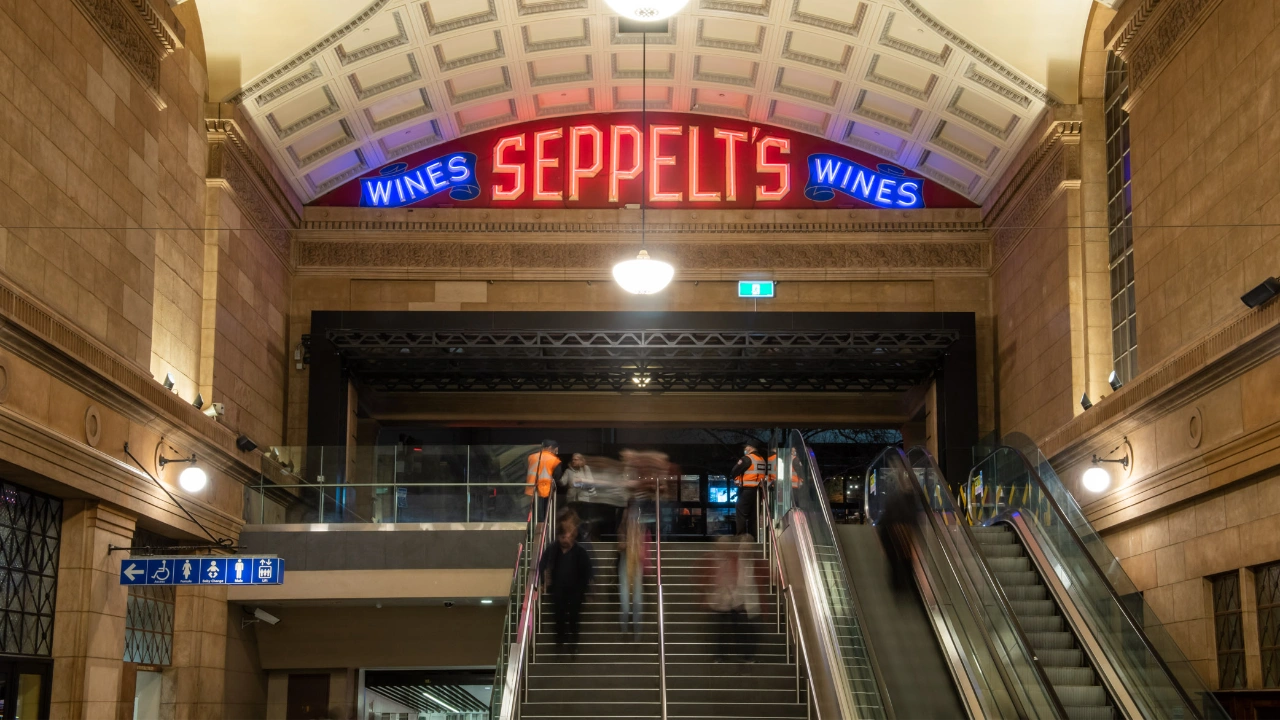

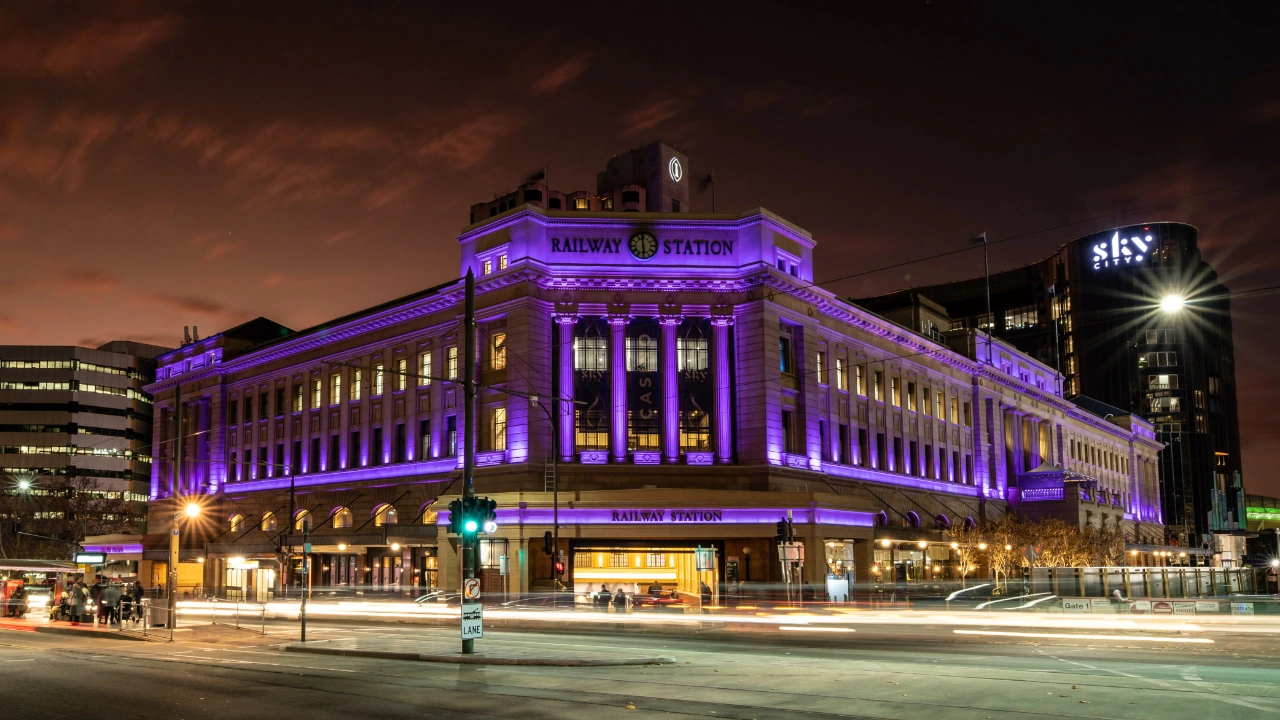

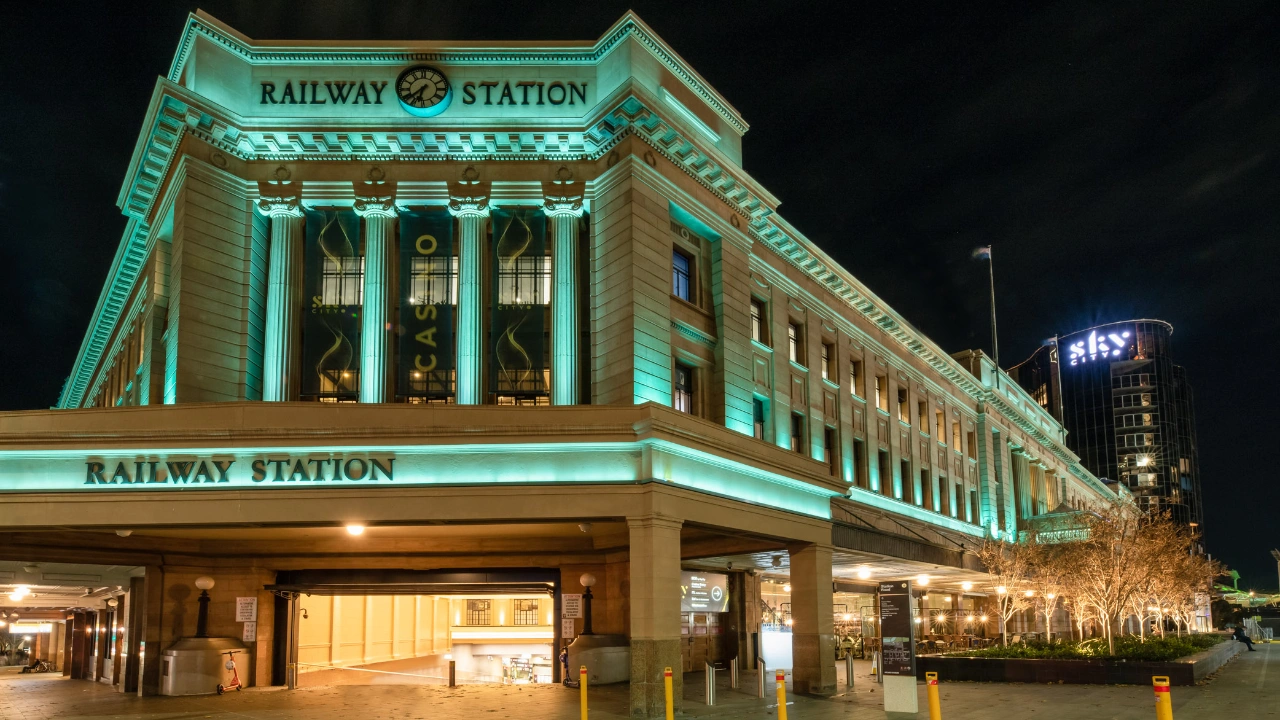

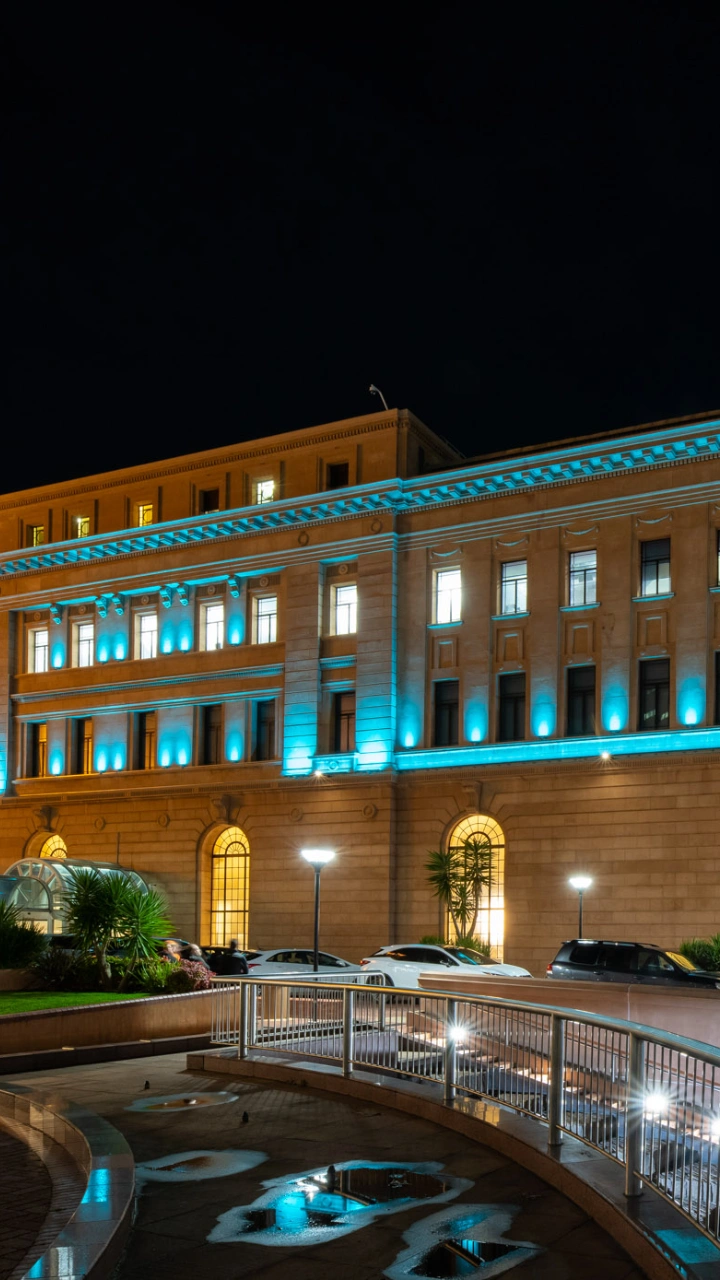

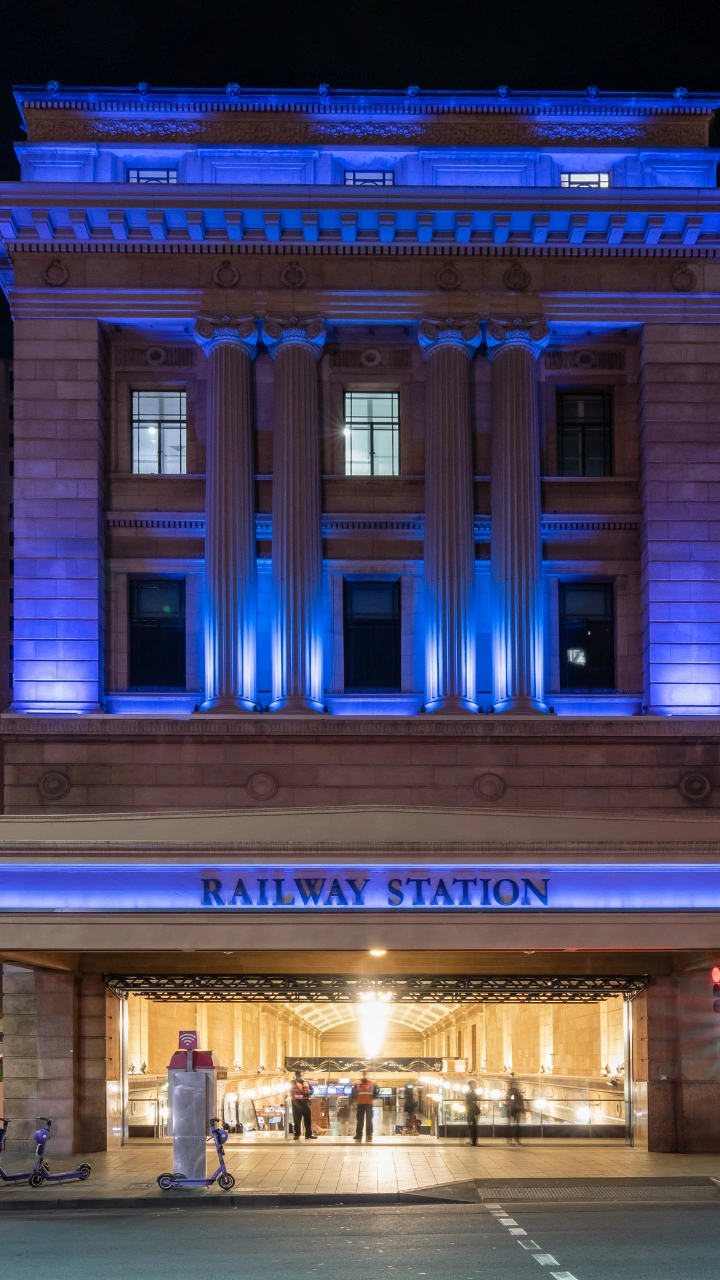

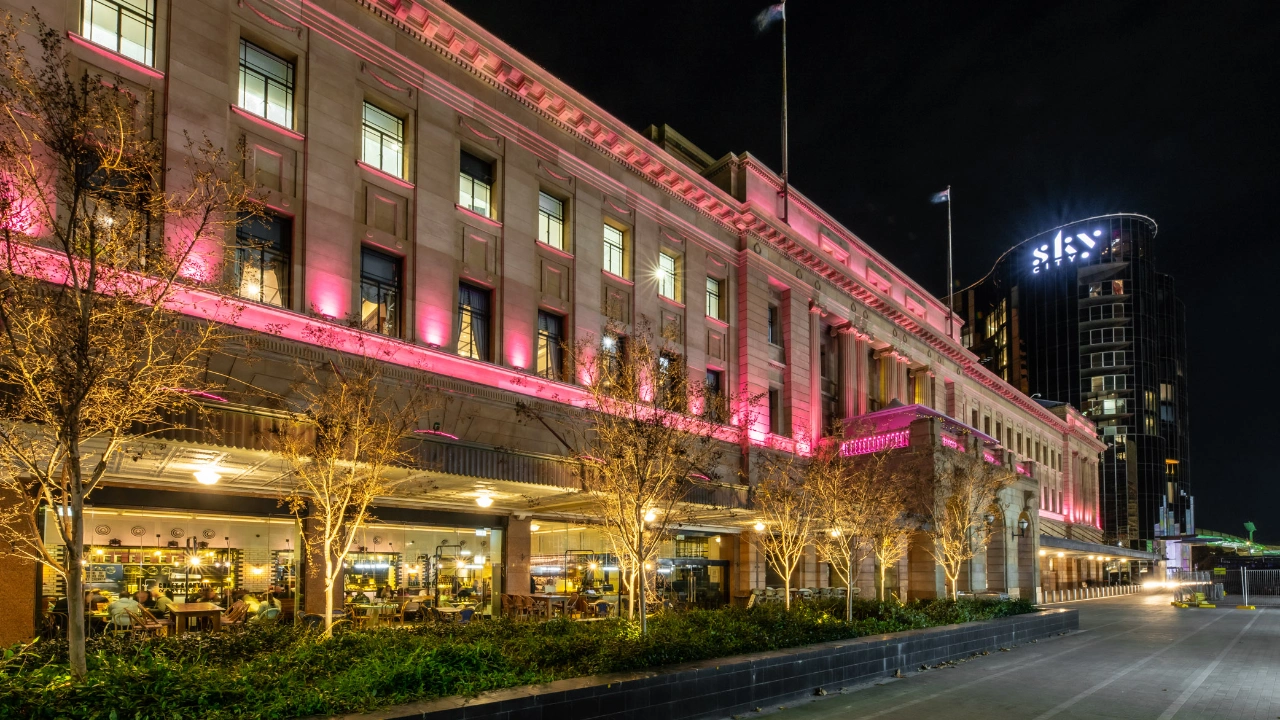

Renewal SA, in collaboration with SKS Technologies and Lightlogix, oversaw a comprehensive revitalisation initiative for the Adelaide Railway Station Concourse and Facade. As part of this transformation, Lightlogix was entrusted with the commissioning of new architectural lighting. This initiative aimed to augment the station’s night-time presence, strategically illuminating both its internal and external facets.
Lightlogix, in collaboration with industry leaders Philips Lighting and Pharos Control Systems, developed the sophisticated illumination strategy for the revitalisation of the Adelaide Railway Station. Employing state-of-the-art technology, the project involved the meticulous control of a vast lighting network, encompassing over 1000 fixtures and managing more than 3000 DMX channels.
The selected lighting fixtures, including the prestigious Philips UNI Strip G4, UNI Point, and UNI Edge, were strategically implemented to accentuate the station’s architectural nuances. This deliberate choice reflects our unwavering commitment to delivering unparalleled quality and precision, ensuring that the lighting not only serves a functional purpose but also elevates the station to a new level of sophistication.
The integration of Philips Dynalite Controls System and Pharos Control hardware played a pivotal role in orchestrating this intricate lighting setup, overseeing 11 universes of DMX and over 100 channels of Relay and Dali control. This level of control empowers nuanced adjustments, creating a dynamic interplay of light to showcase the station’s commanding dimensions and striking geometric details.
(Images courtesy of SKS Technologies)
Client:
SKS Technologies
Completion Date:
August 2023
Location:
Adelaide, South Australia
Category:
Public Spaces

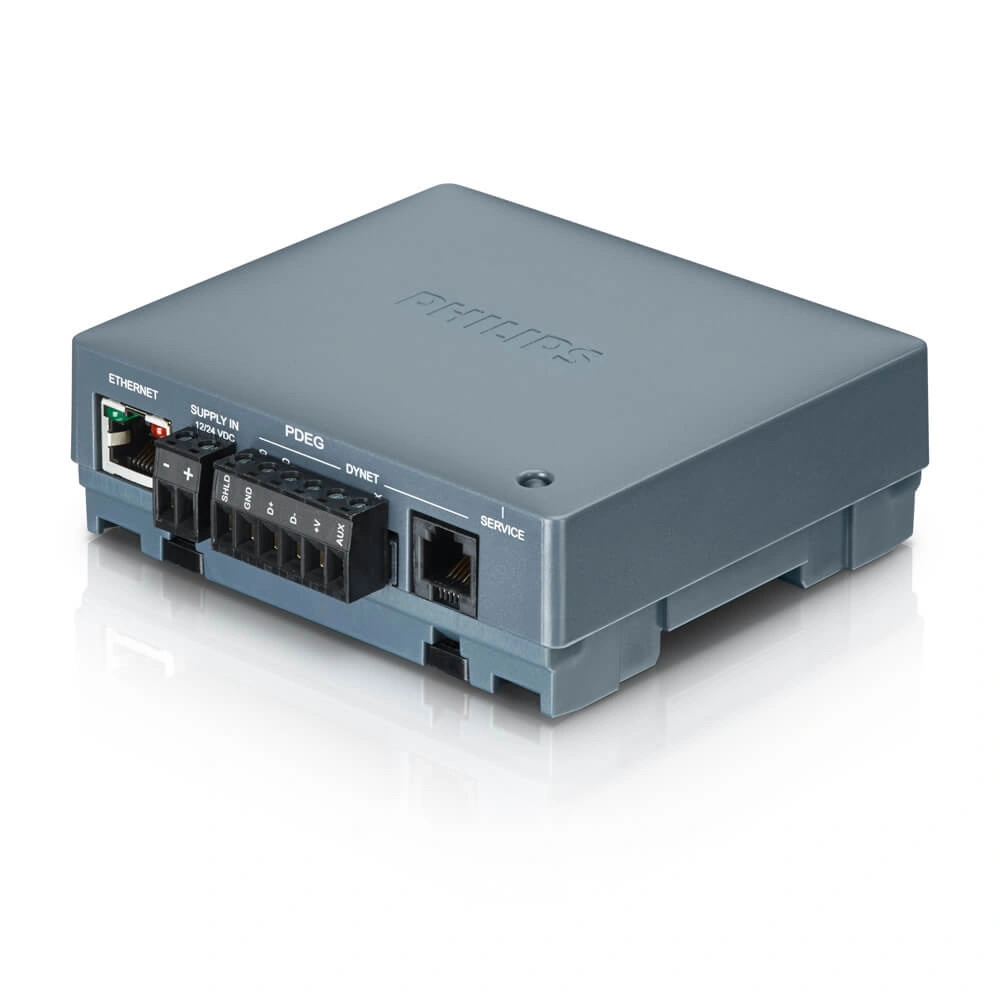

PDEG
Ethernet Gateway
Flexible Ethernet integration
The Philips Dynalite PDEG provides a multipurpose Ethernet connection to a Philips lighting control system. It supports access to the lighting system via a dedicated Philips app as well as providing a web interface delivering access to the inbuilt timeclock and schedule editor functions. It provides bridging functionality between Ethernet backbone and the DyNet fieldbus devices.
- Large storage capacity - The device stores large project files internally, which apps use to automatically configure their settings. This saves configuration time and ensures accuracy for phone and tablet control.
- Built-in web server - Allows the user to edit and check system settings via the Network Hardware Checker and System Roll Call tools.
- No technical skills needed - Inbuilt timeclock and schedule manager allow the user to manage operation and task scheduling without advanced technical knowledge.
- Powerful custom task engine - Allows users or third-party systems to run macros, such as ‘After Hours’, ‘Shut Down’, ‘Welcome’ and more.
- Advanced interoperability - Supports management of Philips Dynalite and Philips PoE fittings on a single system.
PDEB
Ethernet Bridge
Feature focused cost-effective DyNet to Ethernet Bridge
The Philips Dynalite PDEB provides a cost-effective Ethernet connection to a Philips lighting control system. It provides bridging functionality between an Ethernet backbone and the DyNet fieldbus devices. The PDEB enables the implementation of a trunk and spur topology on large project sites, with the bridge providing a high-speed backbone coupled to many lower speed spurs.
- Cost-effective - The device provides an economical way to connect the RS-485 DyNet network to an Ethernet network.
- Internal controls - Programmable logic controller capable of comprehensive conditional and sequential logic and arithmetic function processing, packet filtering and DyNet to DyNet 2 translation.
- Flexible mounting solution - DIN-rail mountable, designed to be installed into a distribution board or other electrical enclosure.
DDBC300-D
DALI Driver Controller
Cost-effective DALI control solution
The Philips Dynalite DDBC300-D delivers cost-effective control of DALI drivers through provision of three full universes, totaling 192 DALI addresses.
• Compatible with a range of DALI fittings and devices – Including DALI drivers, DALI electronic low voltage transformers and DALI LED fixtures.
• Fully scalable network solution – Direct mapping from DALI to the DyNet network protocol eliminates DALI imposed limits, such as maximum group sizes.
• Flexible mounting solution – A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled lighting circuit.
• Integral DALI bus power supply – Removes the need for provision of a separate external power supply and reduces distribution board wiring complexity.
• Inbuilt diagnostic functionality – Features lamp and driver failure reporting, driver run time tracking for each driver and Device Online/Offline status indication.

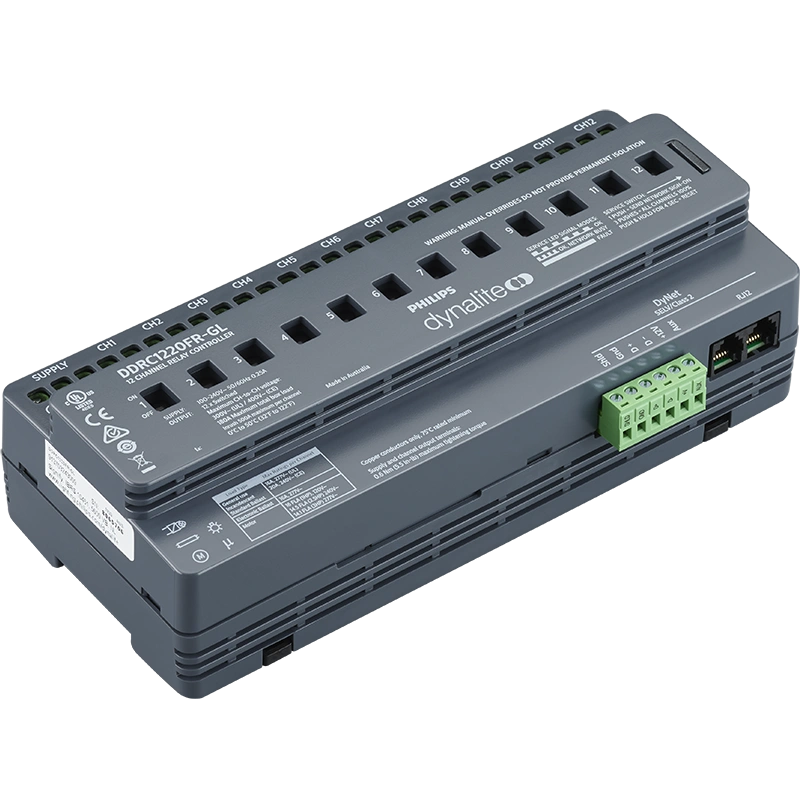

DDRC1220FR-GL
Relay Controller
Robust control of switched loads
The Philips Dynalite DDRC1220FR-GL provides control of any type of switched load. All types of switched loads up to 20 A inductive are supported. The maximum load may be limited by 500 A inrush rating.
- Feed-through power circuit design - Electrically equivalent to a 12 pole contactor, with the added advantage of each pole being separately controllable via the DyNet network.
- Flexible mounting solution - A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled circuit.
- Inbuilt diagnostic functionality - Features circuit run time tracking on each channel and Device Online/Offline status indication.
- Multiple wiring schemes supported - Controls single phase and neutral or three phase and neutral (star) wiring configurations.
- Hardware override - Service override switch accessible from front panel.
PDTS
Philips Dynalite Touch Screen
Advanced building automation and control at your fingertips
Designed as an integral part of the Dynalite system, the PDTS offers intelligent control and direct access to scheduling, scene editing, diagnostics and local environmental sensing.
Combining Ethernet connectivity, a powerful onboard processor, and contemporary design cues from the Antumbra user interface range, the PDTS is a sleek, functional complement to any project.
- 178 mm capacitive touchscreen - with high resolution, rich color and wide viewing angle.
- Proximity sensor - triggers soft halo light effect to welcome user interaction.
- Ethernet port - provides access for commissioning and file transfers.
- Internal astronomical timeclock - enables advanced scheduling of behavior, options, and automated tasks based on time of day or sunrise/sunset.
- Customizable graphical menus - seamless control of lighting, curtains/blinds, HVAC, A/V equipment and compatible third-party systems.
- Built-in environmental sensors - humidity and temperature can be displayed on standby screen and communicated to third-party systems.
Pharos - LPC X
The award-winning Pharos Designer LPC X (Lighting Playback Controller X) offers an extreme level of power and integration, making it an ideal lighting control solution for architectural and landmark lighting installations requiring significant channel counts.
The LPC X is available in capacities ranging from 10 DMX universes (5,120 channels) up to 100 DMX universes (51,200 channels) from a single unit, with further scaling (for even larger architectural lighting installations) by using multiple LPC X connected and synchronised automatically over Ethernet.
Remote Management
Future-proof your lighting projects by connecting your Designer Controllers to Pharos Cloud. This allows remote, but direct, control of your controllers from anywhere in the world, letting you check the status, fire triggers, schedule events, upload new projects and much more. All through one portal, accessible at your own Internet domain. Read more
Scalable
The right fit for every installation. Multiple Designer Controllers can be seamlessly linked together to work as one via a standard Ethernet network giving impressive scalability. For additional integration options simply add Remote Devices to further extend the network. Whether one controller or many, it’s all easily programmed using our Designer 2 software. Read more
Flexible
Be limited by your design brief, not your lighting control system. Our products support a vast range of different fixture types and can output multiple DMX-over-Ethernet (eDMX) lighting protocols at the same time. No other system gives you this level of flexibility and control over your project.
Custom Interfaces
Create a custom web interface for your installation that gives your users the control they need and the look they expect. Our built-in web server supports an extensive JavaScript API and access control with multiple user levels.

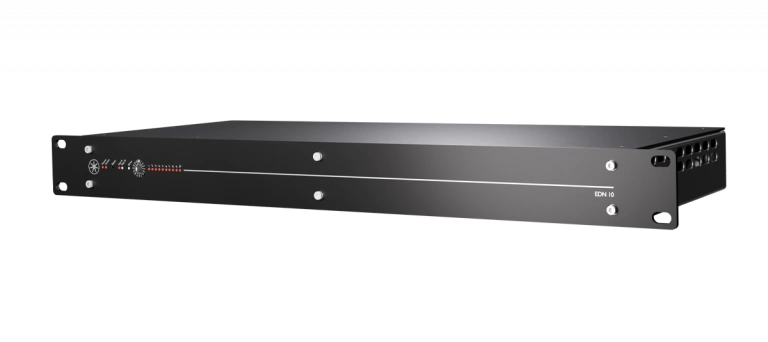

Pharos - EDN
The Pharos Designer EDN (Ethernet Data Node) is a convenient and scalable solution, providing cost-effective Ethernet-distributed DMX ports for large control projects.
The EDN is an easily configurable networking node that is specifically designed to add physical DMX ports to Pharos Designer controllers and integrates natively with the full Pharos Designer range. Have the reassurance of using Pharos hardware all the way to the fixture.
Scalable
Up to 200 EDN units and other Remote Devices can be combined with one or more Pharos Designer controllers on the same network to build the ideal system for your installation. Each Remote Device is easily addressed using a convenient thumb wheel. Whether one controller or many, it’s all easily programmed using our Designer 2 software. Read more
Network
Distribute your EDNs over a standard Ethernet network. Where several EDN are rack-mounted together, there is also a convenient second network port provided for daisy-chaining them. Our recommended limit of eight daisy-chained EDNs is to ensure high performance for the potential data through the switch.
RDM Capable (from Designer v2.8)
Supports the Remote Device Management protocol (ANSI E1.20), allowing fixtures connected to any of the DMX512 outputs to communicate back to their respectively assigned Controllers over an Ethernet network.
SDI
The Pharos SDI (Serial Data Interface) is an accessory for the EDN supporting serial data protocol outputs for controlling products such as addressable LED tape. The SDI supports both synchronous (SPI) and asynchronous serial lighting data and allows patching up to 3 universes (1536 channels) per unit.
Pharos - TPC
The award-winning Pharos Designer TPC (Touch Panel Controller) is an elegant touchscreen lighting controller with sleek styling, advanced lighting control playback engine and fully integrated user interface with vast design potential.
With control of playback selection and lighting levels at your fingertips, you can gracefully transition between scenes, timelines, effects and pixel-mapped media. The customisable touchscreen user interface lets you create multiple pages of lighting controls, configure their appearance and get immediate visual feedback.
Touchscreen user interface is fully customisable using the free Pharos Designer 2 software. Create multiple pages of lighting controls including buttons, sliders, keypads and colour pickers, and configure their appearance and visual feedback. Make it eye-catching by importing your own graphics or picking from one of our attractive themes.
Remote Management
Future-proof your lighting projects by connecting your Designer controllers to Pharos Cloud. This allows remote, but direct, control of your controllers from anywhere in the world, letting you check the status, fire triggers, schedule events, upload new projects and much more. All through one portal, accessible at your own Internet domain. Read more
Scalable
The right fit for every installation. Multiple Designer controllers can be seamlessly linked together to work as one via a standard Ethernet network giving impressive scalability. For additional integration options simply add Remote Devices to further extend the network. Whether one controller or many, it’s all easily programmed using our Designer 2 software. Read more
Designer Mapping
Design the big picture; control every pixel. Create a 2D map of your fixtures within the Designer 2 software, then use Designer Mapping to create visually striking effects or play video across the entire LED array. Powerful controls allow you to build maps fast with pixel precise adjustment. Read more
Flexible
Be limited by your design brief, not your lighting control system. Our products support a vast range of different fixture types and can output multiple DMX-over-Ethernet (eDMX) lighting protocols at the same time.
DMX Splitter & Booster
RDM-6Wall Splitter is a 6-output DMX/RDM splitter with DMX/RDM pass-through supporting bi-directional communications for discovery, addressing and DMX control of Color Kinetics and Vaya products. This unit takes the incoming DMX/RDM signal and splits the signal into six separate output channels allowing for expanding the number of devices controlled from 32 to 6 X 32. The output terminals are electronically isolated from the input & RDM-through port and share a common ground reference. All six output ports have an independent output driver to boost the DMX/RDM signal.
Features
1:6-way DMX/RDM Splitter/Booster
Surface or DIN-rail mountable
3-Year Warranty
Regulatory Listings
FCC, CE, ETL, WIP
Isolated DMX/RDM Input/Outputs
Automatic switching between DMX and RDM mode for Vaya auto-discovery
Environment
IP20, Interior applications
Finish/Color
Polycarbonate
10+ individual channels of Load Control
- Relay Switched Control Groups
- DMX Control Groups
15+ Sensors and User Interfaces
- Passive InfraRed Sensors
- Ultrasonic Occupancy Sensors
- Dynamic Occupancy Control
- Dynalite Touch Screen
- Antumbra Display User Panels
- Pharos DMX Controller
- Pharos TPC Touch Screen
- Pharos Cloud
