Adelaide Railway Station Enterance

Project Details:

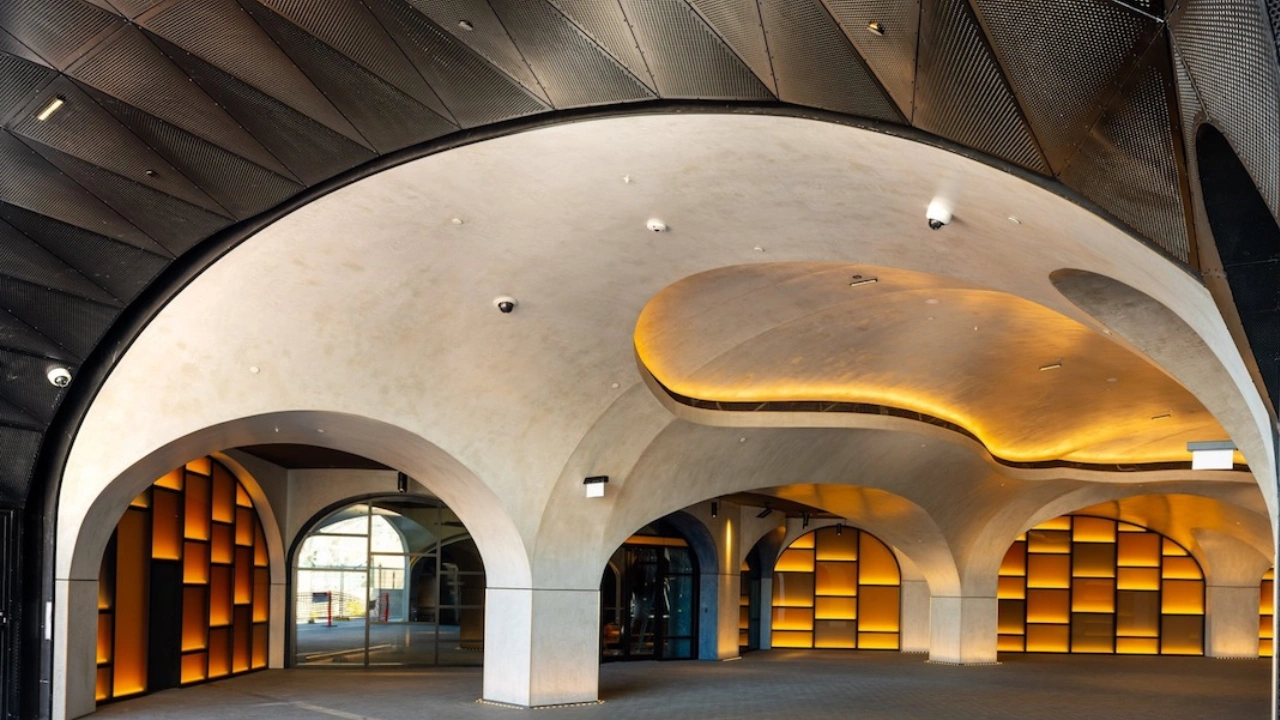

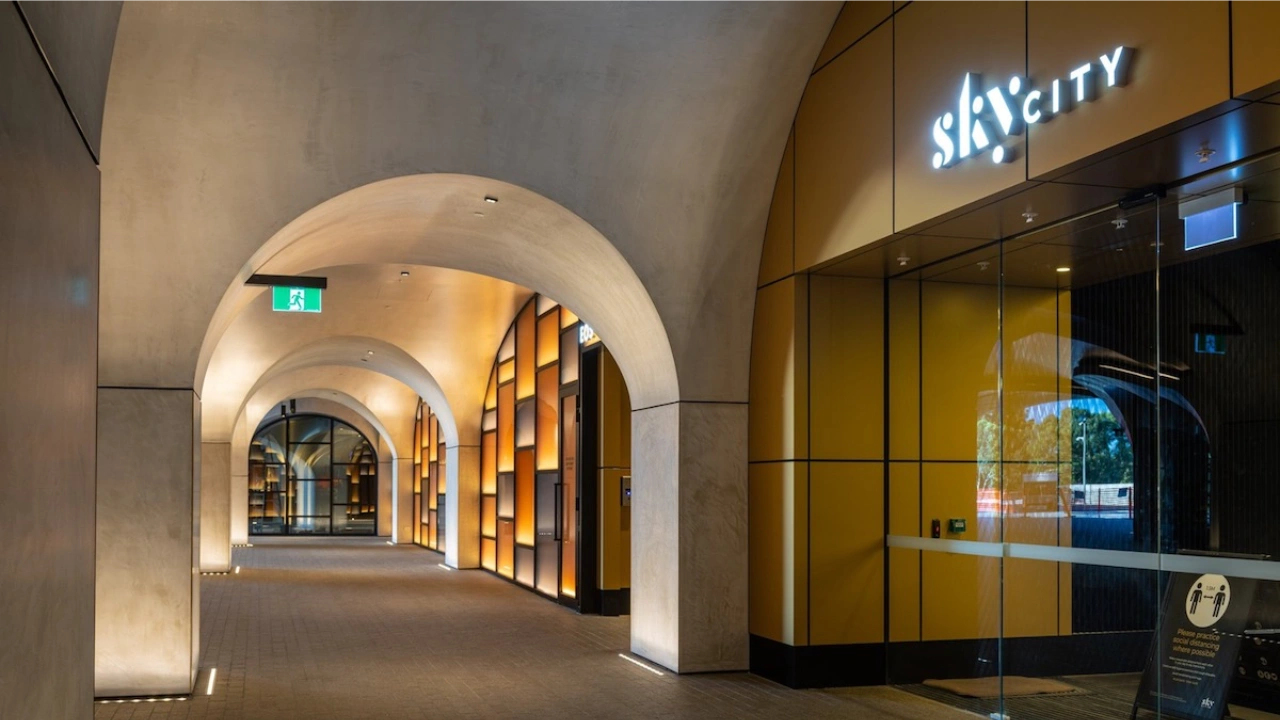

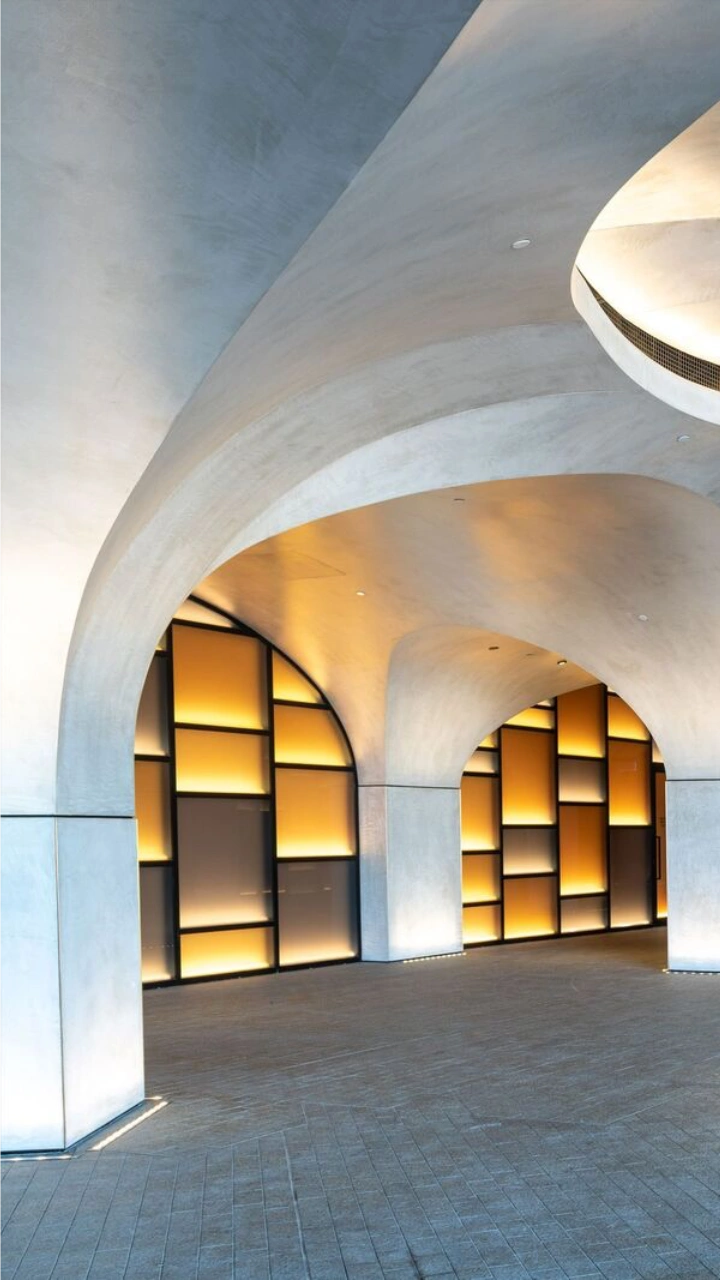

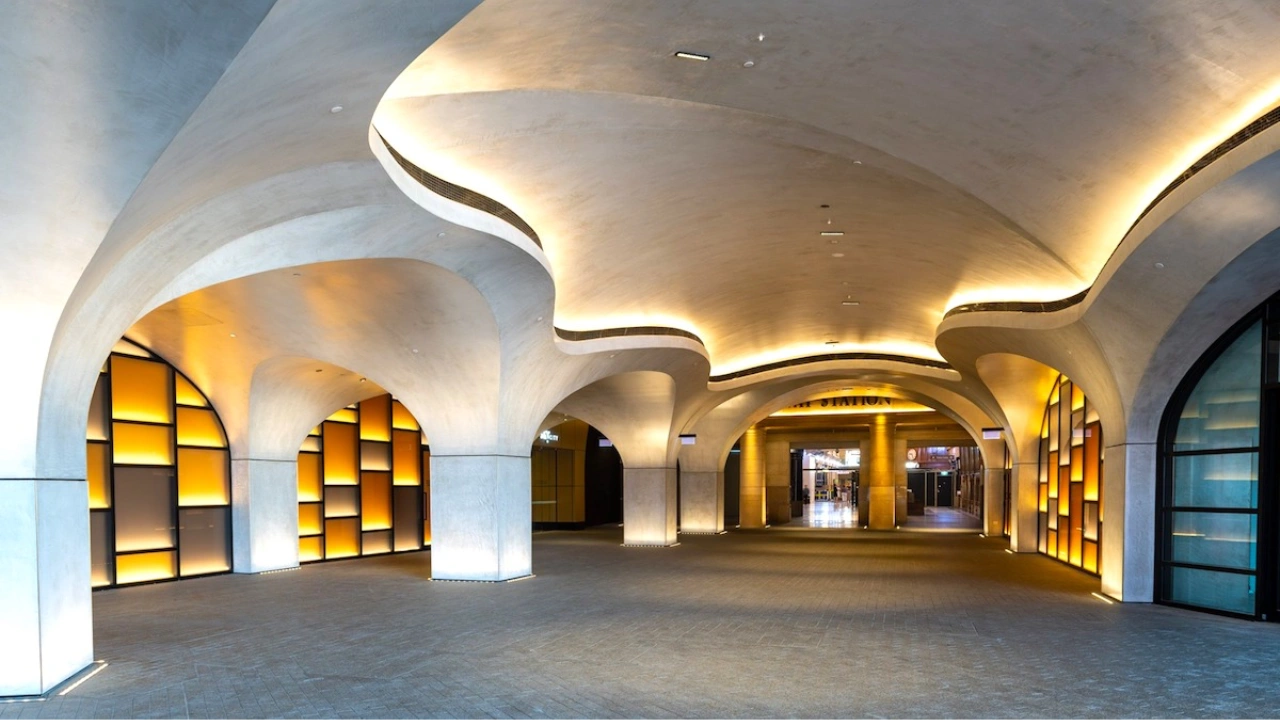

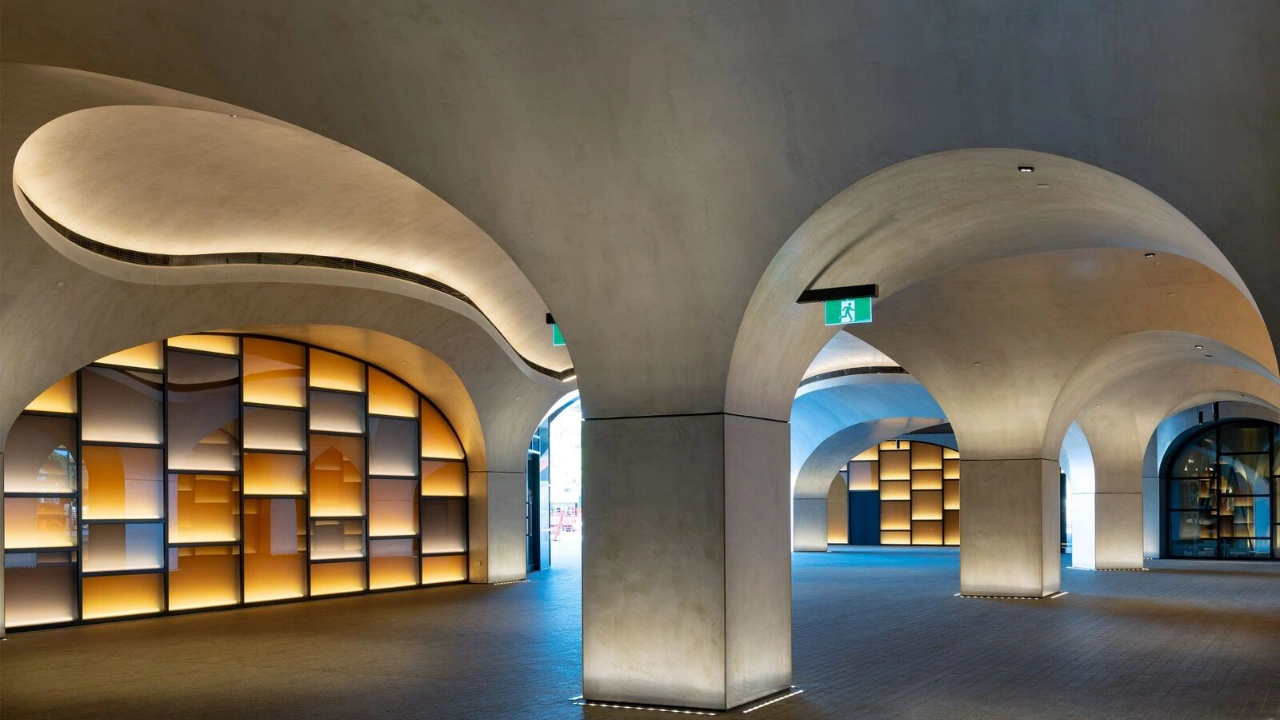

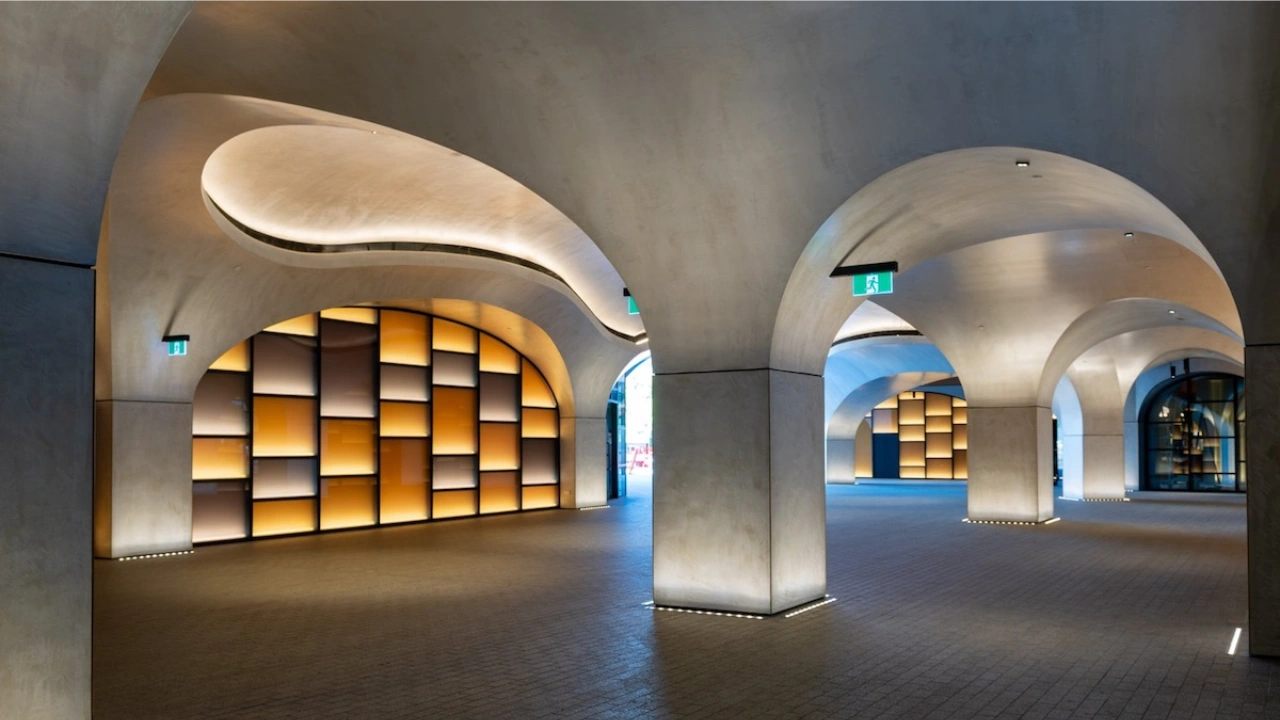

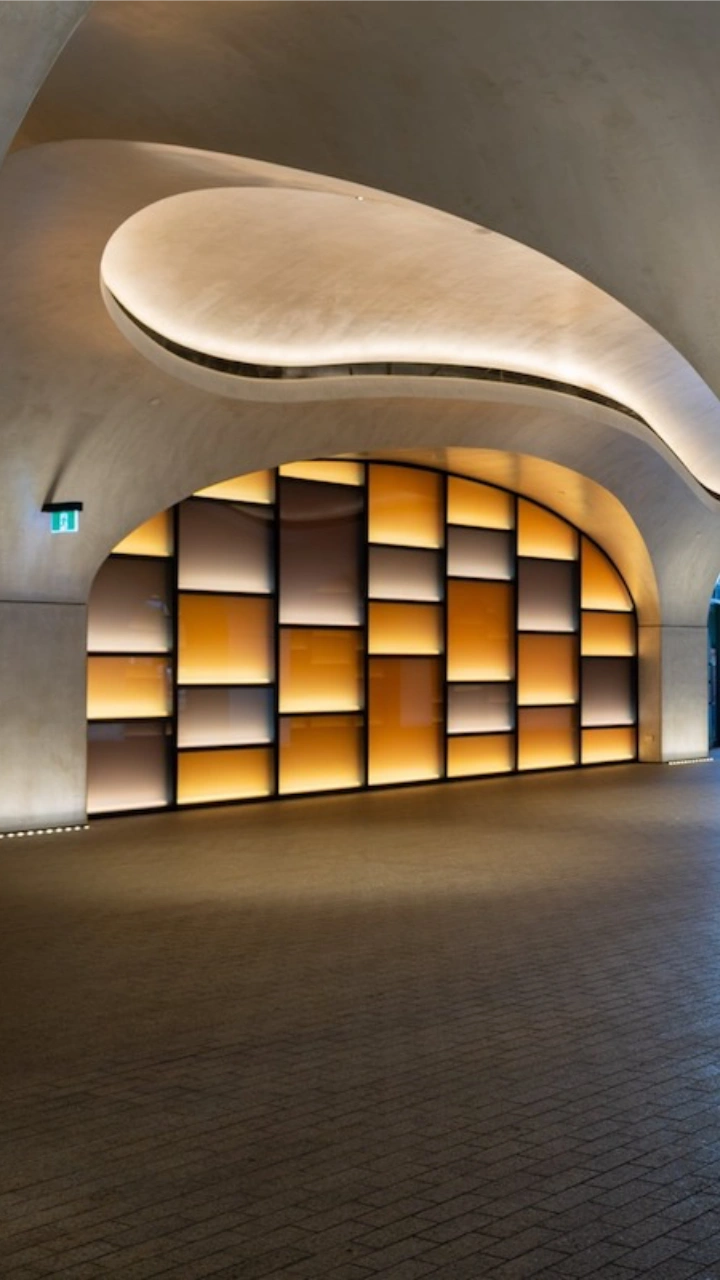

Renewal SA, in collaboration with NSG Boffa engaged Lightlogix to design and program the controls system as a part of the revitalisation project for the Adelaide Railway Station northern entrance, marking a significant restoration of its cherished heritage features. Lightlogix played a pivotal role in commissioning the new architectural lighting that now adorns the interior of the Adelaide Railway Station’s upgraded entrance, aimed at enhancing its nocturnal presence and showcasing its impressive dimensions, smooth arches, and captivating geometric details. The meticulous restoration extends from the front of the building to the award-winning new entrance, breathing new life into this iconic railway station.

Lightlogix employed the state-of-the-art Philips Lighting Controls system to actualise the vision for the rejuvenated Adelaide Railway Station. The innovative lighting design focuses on highlighting feature ceilings and walls, seamlessly executed through Dynalite’s high-speed network utilising the Ethernet DyNet2 protocol for a robust control system. The incorporation of astronomical time clocks ensures fully automated control, complemented by password-protected webpage that enables manual interaction with the system, providing a versatile and user-friendly experience.

In addition to the lighting enhancements, the restoration efforts extended to the iconic features of the railway station, infusing the building with warm hues that accentuate its heritage elements. External lighting, characterised by vibrant colours and dynamic movements, further contributes to the overall vibrancy of the Adelaide Railway Station. This comprehensive revitalisation has not only preserved the historical significance of the station but has also ushered in a new era, where modern technology and thoughtful design converge to create a visually stunning and dynamic environment.

Client:

NSG Boffa

Completion Date:

January 2021

Location:

Adelaide, South Australia

Category:

Public Spaces

PDEG/PDEB
Q

PDEG

Ethernet Gateway

Flexible Ethernet integration

The Philips Dynalite PDEG provides a multipurpose Ethernet connection to a Philips lighting control system. It supports access to the lighting system via a dedicated Philips app as well as providing a web interface delivering access to the inbuilt timeclock and schedule editor functions. It provides bridging functionality between Ethernet backbone and the DyNet fieldbus devices.

  • Large storage capacity - The device stores large project files internally, which apps use to automatically configure their settings. This saves configuration time and ensures accuracy for phone and tablet control.
  • Built-in web server - Allows the user to edit and check system settings via the Network Hardware Checker and System Roll Call tools.
  • No technical skills needed - Inbuilt timeclock and schedule manager allow the user to manage operation and task scheduling without advanced technical knowledge.
  • Powerful custom task engine - Allows users or third-party systems to run macros, such as ‘After Hours’, ‘Shut Down’, ‘Welcome’ and more.
  • Advanced interoperability - Supports management of Philips Dynalite and Philips PoE fittings on a single system.

PDEB

Ethernet Bridge

Feature focused cost-effective DyNet to Ethernet Bridge

The Philips Dynalite PDEB provides a cost-effective Ethernet connection to a Philips lighting control system. It provides bridging functionality between an Ethernet backbone and the DyNet fieldbus devices. The PDEB enables the implementation of a trunk and spur topology on large project sites, with the bridge providing a high-speed backbone coupled to many lower speed spurs.

  • Cost-effective - The device provides an economical way to connect the RS-485 DyNet network to an Ethernet network.
  • Internal controls - Programmable logic controller capable of comprehensive conditional and sequential logic and arithmetic function processing, packet filtering and DyNet to DyNet 2 translation.
  • Flexible mounting solution - DIN-rail mountable, designed to be installed into a distribution board or other electrical enclosure.
DDBC300-DALI
Q

DDBC300-D

DALI Driver Controller

Cost-effective DALI control solution

The Philips Dynalite DDBC300-D delivers cost-effective control of DALI drivers through provision of three full universes, totaling 192 DALI addresses.

• Compatible with a range of DALI fittings and devices – Including DALI drivers, DALI electronic low voltage transformers and DALI LED fixtures.
• Fully scalable network solution – Direct mapping from DALI to the DyNet network protocol eliminates DALI imposed limits, such as maximum group sizes.
• Flexible mounting solution – A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled lighting circuit.
• Integral DALI bus power supply – Removes the need for provision of a separate external power supply and reduces distribution board wiring complexity.
• Inbuilt diagnostic functionality – Features lamp and driver failure reporting, driver run time tracking for each driver and Device Online/Offline status indication.

100+ individual channels of Load Control

  • Ballast Control (DALI Addressable)

User Interfaces

  • Astronomical Tine Clock
