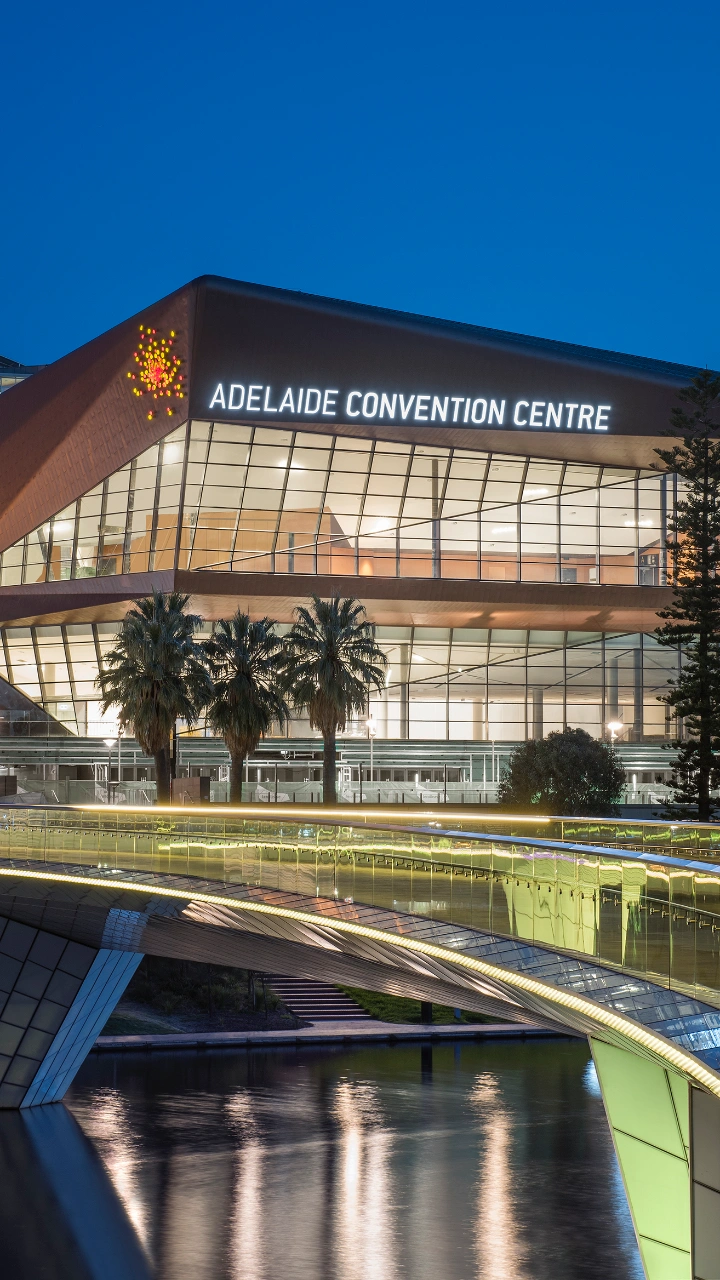

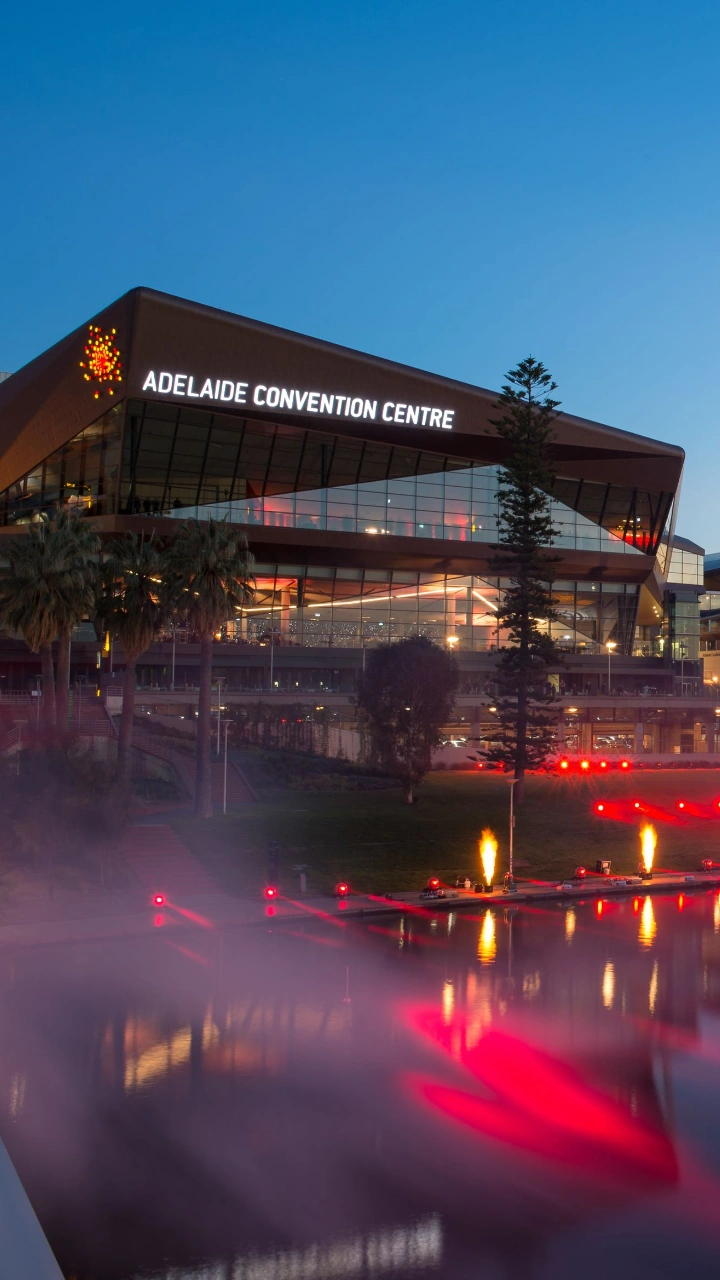

Adelaide Convention Centre – Stage 2
Project Details:
Capitalising on the success of the initial Adelaide Convention Centre redevelopment stage 1, Lightlogix was engaged by Tyrone to extend the Philips Dynalite Lighting Control System architecture to the East Building, which encompasses the Plenary and Exhibition Hall. Lightlogix delivered comprehensive design, programming, and commissioning services for this cutting-edge facility, showcasing their exceptional abilities in expanding and enhancing control systems for large-scale and complex projects.
Lightlogix created a bespoke lighting control solution that accommodated the unparalleled versatility of Australia’s most adaptable convention centre, the East Building. The complex task of managing the lighting in the various multi-purpose rooms, halls, and Plenary Hall, with its transformative seating and flooring, was elegantly resolved through a sophisticated control system, designed to adapt seamlessly to over 25+ possible configurations, with up to 9 of them operating concurrently. Lightlogix‘s expertise in delivering integrated and customisable solutions for complex environments was on full display in this impressive project.
Lightlogix extended the existing Lighting Control Network by integrating high-speed Ethernet DyNet2 vertical Trunks in each building, with a horizontal Trunk spanning 12 Distribution Boards across 5 floors in the East Building. This expansion further enhanced the Distributed Intelligence Lighting Control System and the System Manager, allowing for advanced centralised monitoring and reporting capabilities. The integration of high-speed Ethernet Trunks also enabled efficient communication and seamless coordination of the lighting controls throughout the complex, showcasing Lightlogix‘s proficiency in implementing advanced networking solutions for large-scale projects.

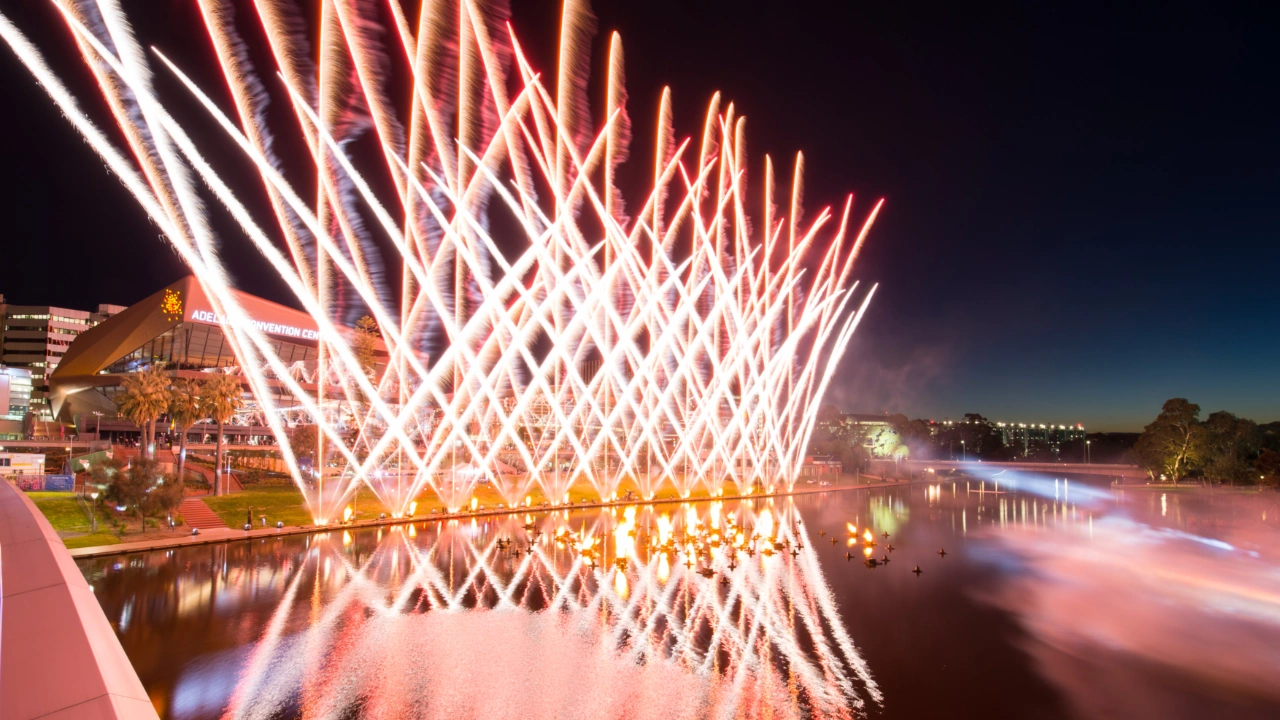

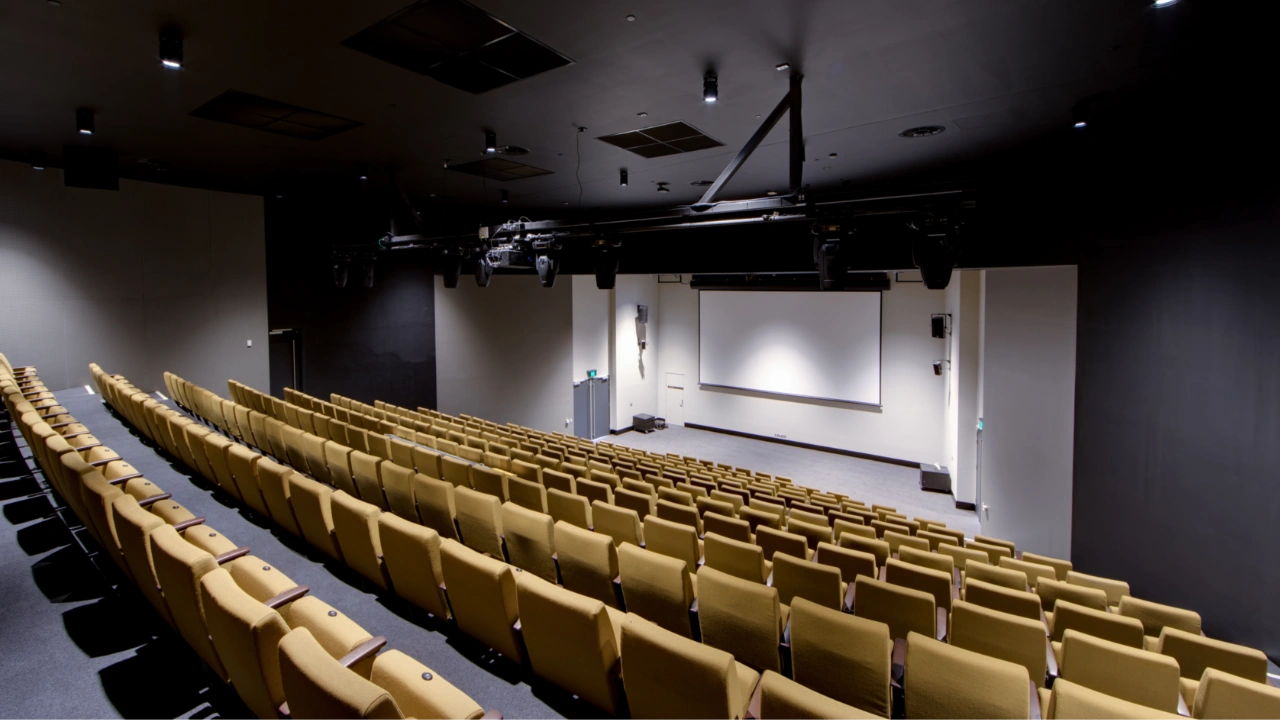

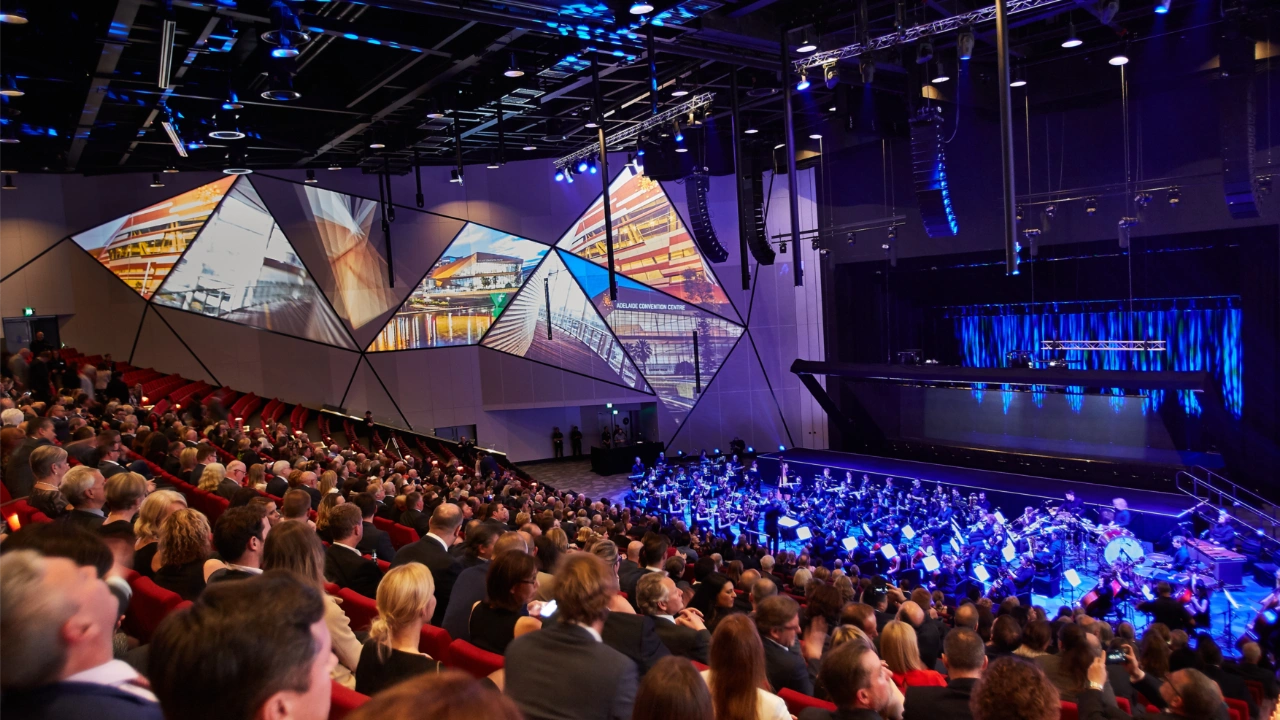

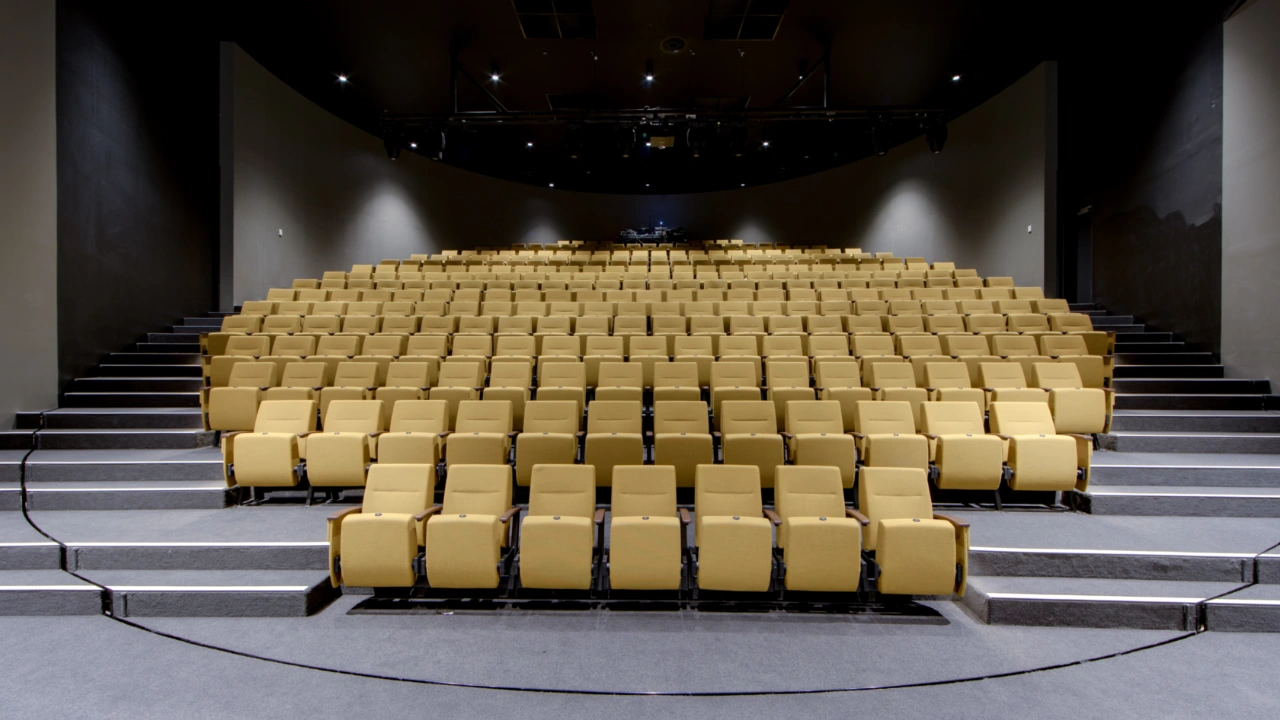

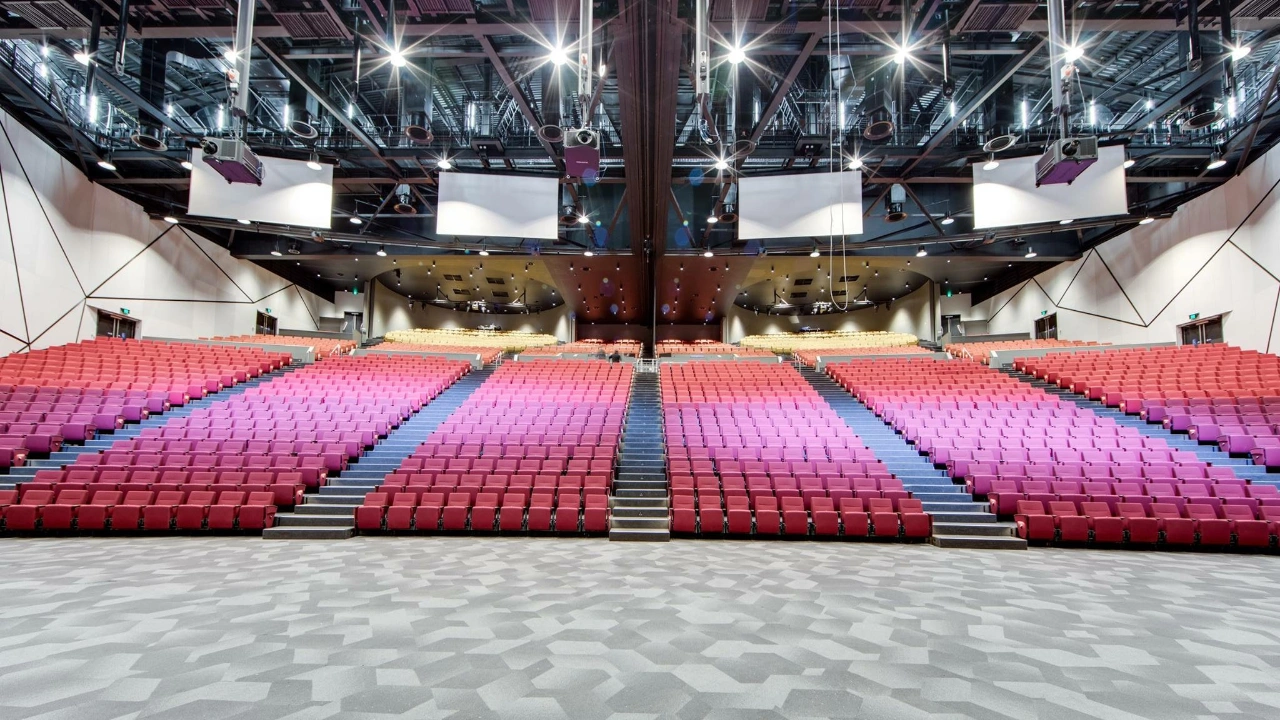

(Images courtesy of Adelaide Venue Management)
Client:
Tyrone Electrical Services
Completion Date:
August 2017
Location:
Adelaide, South Australia
Category:
Cinemas and Convention Centres
PDEG
Ethernet Gateway
Flexible Ethernet integration
The Philips Dynalite PDEG provides a multipurpose Ethernet connection to a Philips lighting control system. It supports access to the lighting system via a dedicated Philips app as well as providing a web interface delivering access to the inbuilt timeclock and schedule editor functions. It provides bridging functionality between Ethernet backbone and the DyNet fieldbus devices.
- Large storage capacity - The device stores large project files internally, which apps use to automatically configure their settings. This saves configuration time and ensures accuracy for phone and tablet control.
- Built-in web server - Allows the user to edit and check system settings via the Network Hardware Checker and System Roll Call tools.
- No technical skills needed - Inbuilt timeclock and schedule manager allow the user to manage operation and task scheduling without advanced technical knowledge.
- Powerful custom task engine - Allows users or third-party systems to run macros, such as ‘After Hours’, ‘Shut Down’, ‘Welcome’ and more.
- Advanced interoperability - Supports management of Philips Dynalite and Philips PoE fittings on a single system.
PDEB
Ethernet Bridge
Feature focused cost-effective DyNet to Ethernet Bridge
The Philips Dynalite PDEB provides a cost-effective Ethernet connection to a Philips lighting control system. It provides bridging functionality between an Ethernet backbone and the DyNet fieldbus devices. The PDEB enables the implementation of a trunk and spur topology on large project sites, with the bridge providing a high-speed backbone coupled to many lower speed spurs.
- Cost-effective - The device provides an economical way to connect the RS-485 DyNet network to an Ethernet network.
- Internal controls - Programmable logic controller capable of comprehensive conditional and sequential logic and arithmetic function processing, packet filtering and DyNet to DyNet 2 translation.
- Flexible mounting solution - DIN-rail mountable, designed to be installed into a distribution board or other electrical enclosure.

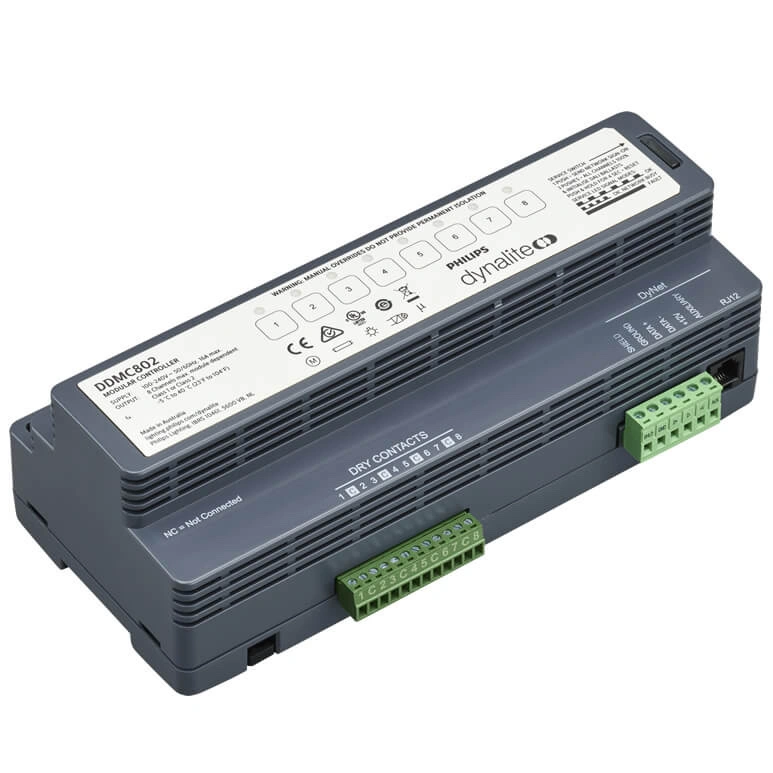

DDMC802
Multipurpose Modular Controller
Control different load types with one device
The Philips Dynalite DDMC802 provides up to eight configurable output channels, controlled by up to four interchangeable control modules. A selection of control modules is available for a variety of load types.
- Single controller solution - Control a variety of load types from one device.
- Four module bays - Accommodates any combination of up to four single modules or two double-size modules.
- Leading edge phase control dimmer module - Suitable for use with incandescent lamps and some types of dimmable electronic transformers.
- Trailing edge phase control dimmer module - Suitable for use with most types of dimmable electronic transformers.
- Signal dimmer control module - Suitable for 1-10 V, DSI and DALI Broadcast control of digital drivers and transformers.
- Relay control module - Suitable for controlling most types of switched loads.
- Fan control module - 400 VA three-speed fan control.
- Curtain control module - Provides control of curtains, blinds and other motorized window treatments.
- Flexible mounting solution - A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled circuit.

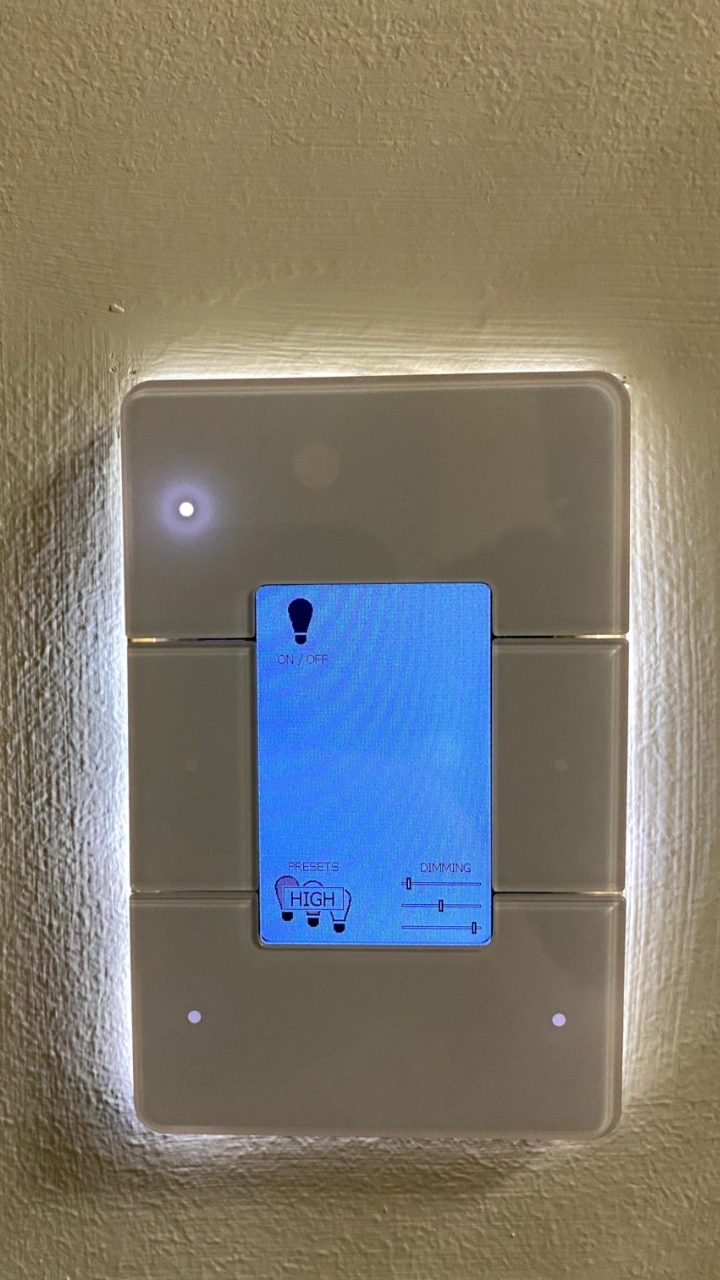

PADPA
Antumbra Display
Contemporary button panel with LCD display
The Philips AntumbraDisplay user interface provides a central LCD display to present multiple pages of functions and system information. It incorporates the latest in field effect technology. The contemporary design features a number of button configurations, with each button capable of local or site-wide control functions. The PADPA range is suitable for, but not limited to, North American, South American, Australian and New Zealand markets.
- Field effect technology - The user interface detects an approaching user and 'wakes up', initiating a wall-wash lighting effect to encourage interaction.
- Supplied as two components - The Application Module contains buttons, rim, base and mounting plate, which can be mixed and matched to suit décor. The Communication Module contains all of the logical and network functions and is pre-programmed off-site, allowing commissioning to commence prior to finish options being finalized.
- Hidden sensory inputs - An internal light sensor measures ambient light and adjusts lightwash effect accordingly. A built-in temperature sensor automatically adjusts air conditioning when integrated into the system.
- Multiple language and icon labeling - Display labeling language choices include English, Chinese and Arabic. A library of common icons transcends language barriers, which is particularly useful in hospitality applications. Button labeling not available.
- Central LCD - Allows for display of system information including temperature, time, channel level and current scene. Button function can change when navigating between up to 16 pages.
- Selection of rim and fascia options - Allows décor matching to suit any environment.
DUS360CR
Multifunction Sensor
Low profile recessed 360° ceiling sensor
The Philips Dynalite DUS360CR is a recess mountable 360 degree multifunction sensor that combines motion detection (PIR), infrared remote control reception (IR) and ambient light level detection (PE) into one device in applications such as offices, lecture theaters and homes.
- Motion detection feature – Detects the presence or absence of motion and adjusts lights accordingly.
- Segmented click-up bezel - Surrounds the motion sensor element and enables a portion of the sensing field to be masked. This prevents nuisance detection from adjacent doorways or corridors.
- Ambient light level regulation - In applications where it is critical to maintain precise light levels, the PE function reads ambient levels and adjusts artificial light accordingly.
- Infrared receive capability - Manually adjust light levels using a hand-held remote control, via the inbuilt IR receive sensor of the DUS360CR.
- Daylight harvesting mode - Delivers automatic energy savings.
- Suitable for plenum use - UL2043 certified for installation in air-handling plenum spaces.
DUS360CR-D
Multifunction Sensor
Low profile recessed 360° ceiling sensor powered by the DALI network
The Philips Dynalite DUS360CR-D is a recess mountable 360 degree multifunction sensor that combines motion detection (PIR) and ambient light level detection (PE) in one device. The DUS360CR-D is powered and communicates to the networked control system via a DALI bus.
- DALI device – Designed to operate seamlessly with the Philips Dynalite DDBC120-DALI or DDBC320-DALI controller.
- Powered directly by the DALI network – Eliminates the need for additional network field wiring.
- Motion detection feature – Detection of motion within a scanned area triggers a programmed lighting action.
- Segmented click-up bezel – Surrounds the motion sensor element and enables a portion of the sensing field to be masked. This prevents nuisance detection from adjacent doorways or corridors.
- Daylight harvesting mode – Delivers automatic energy savings.
- Ambient light level regulation – In applications where it is critical to maintain precise light, the PE function reads ambient levels and adjusts artificial light levels accordingly.
- Infrared receive capability – Enables sign-on identification to the networked system.
- Corridor hold – Links corridor areas with adjacent rooms so corridor remains lit while occupancy is detected in adjacent rooms.
DUS360CR-DA
Multifunction Sensor
Low profile recessed 360° ceiling sensor
The Philips Dynalite DUS360CR-DA is a recess mountable 360 degree motion sensor that combines motion detection (PIR), infrared remote control reception (IR) and ambient light level detection (PE) into the one device. The Philips Dynalite DUS360CR-DA is a component of the EcoSet system and is a switch-settable sensor with time-out, designed to allow intelligent control of luminaires in combination with the DMRC210DA-RJ12 relay controller.
- Low profile design - Flush-mounted 360 degree ceiling-mount motion detection (PIR) sensor.
- No software set-up - All functionality can be achieved with the built-in dipswitches for area addressing, no-motion time-out and other advanced features.
- Rapid configuration - Up to 31 individual addressing areas of control.
- User-selectable options - No-motion time-out selectable to 30 seconds, 5 minutes, 15 minutes or 30 minutes.
- Corridor hold - Links corridor areas with adjacent rooms so they remain lit while occupancy is detected
- Suitable for plenum use - UL2043 certified for installation in air-handling plenum spaces.
DDNG485
RS-485/DMX512 Gateway
Flexible network communications gateway
The Philips Dynalite DDNG485 is a flexible network communications bridge designed for RS-485 networks. The two opto-isolated RS-485 ports enable the DDNG485 to implement a trunk and spur topology on large project sites, with the bridge providing a high-speed backbone opto-coupled to many lower speed spurs.
- Route DyNet to third-party systems – Such as audio-visual, Modbus meters, and building automation systems, providing an integrated approach to total building control and energy management.
- DMX512 mode – Transmit or receive up to 512 channels of DMX with automatic DyNet conversion and task triggering. Provides temporary control of house lights from the DMX console in an auditorium scenario.
- Electrical fault isolation – Faults can be isolated to individual network spurs.
- Internal controls – Programmable logic controller capable of comprehensive conditional and sequential logic and arithmetic function processing, packet filtering, and DyNet to DyNet 2 translation.
- Flexible mounting solution – DIN rail mountable, designed to be installed into a distribution board or other electrical enclosure.

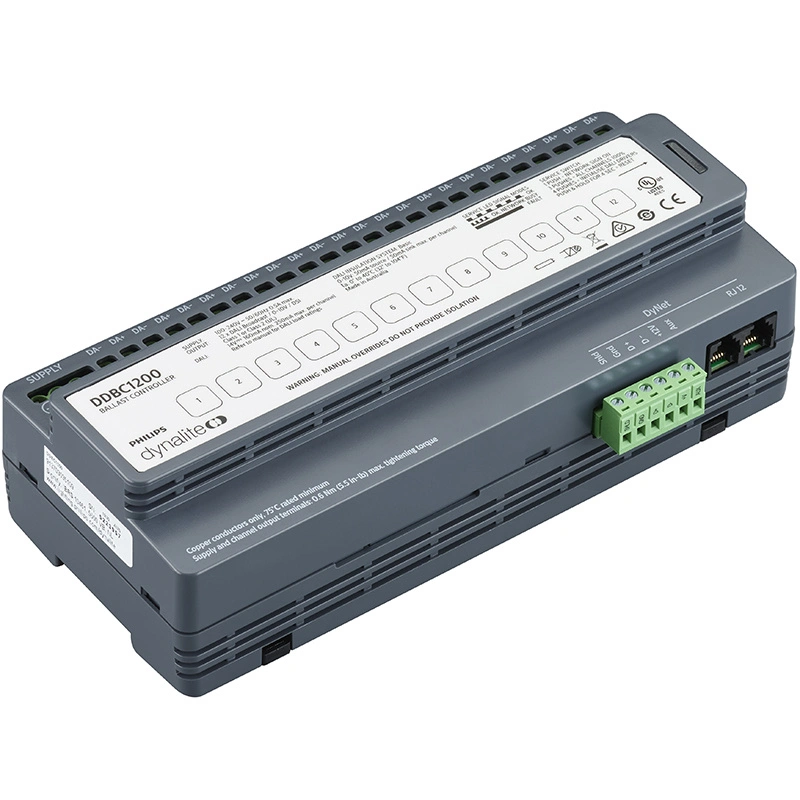

DDBC1200
Signal Dimmer Controller
Multi-protocol control solution
The Philips Dynalite DDBC1200 features 12 independent output channels, each selectable to DALI Broadcast, 1-10 V or DSI. The device can also be linked to a separate relay module for control of 1-10V drivers.
- Multiple protocols supported - Compatible with a range of fittings and devices including; DSI drivers, DSI electronic low voltage transformers, DALI drivers (broadcast mode only), DALI electronic low voltage transformers (broadcast mode only), 1-10 V drivers and devices that require 0-10 V analog control signals.
- LED status indicators - Instant visual feedback on channel status of all 12 outputs.
- Flexible mounting solution - A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled lighting circuit.
- Inbuilt diagnostic functionality - Features Device Online/Offline status indication.

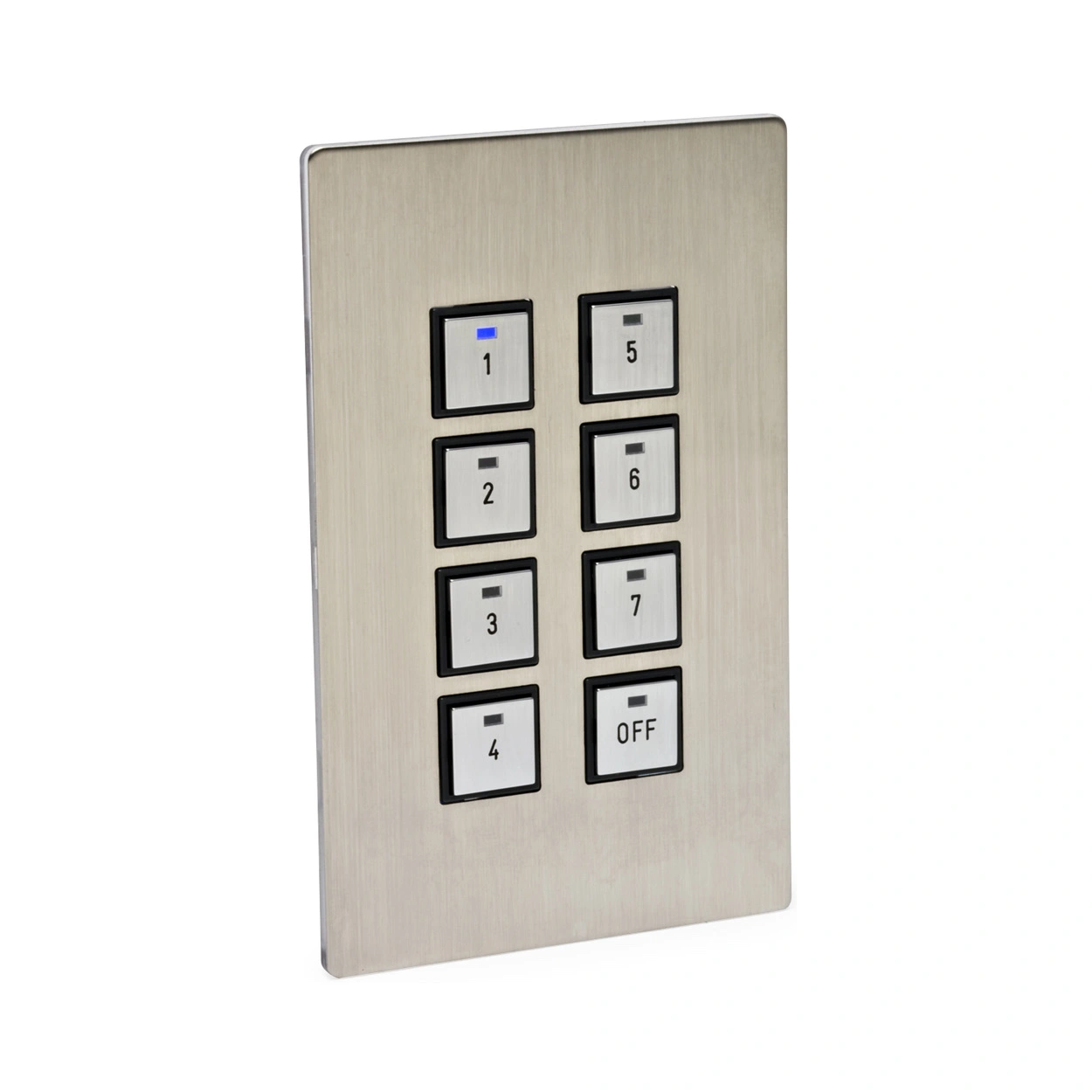

DPNA-SF
Classic Series American
Brushed stainless steel panel with blue LED indicator
The Philips Dynalite Classic series user interfaces are a popular
choice for commercial and residential applications, providing a robust automation solution. The DPNA-SF range features a screwless fascia and is suitable for, but not limited to, North American, South American, Australian and New Zealand markets.
- Screwless fixing fascia – For use in applications where design aesthetic is a key consideration.
- Available in a range of standard finishes – Supplied as standard in high quality brushed stainless steel, user interfaces are also available in polished brass, mirrored stainless steel or white powder coat. Custom powder coat colors are available on request.
- LED status indicators on each button – Provides tactile and visual feedback on system operation.
- Removable button caps – Allows engraving for easy identification of button function.
- Button color choices – Supplied in silver as standard, with black bezel and black engraving, button caps are also available in charcoal gray as a standard option.
- Available in 13 standard layouts – Incorporates the most commonly used control scenarios.
- Custom features available – Optional devices including faders, displays, keyswitches, plug sockets and engraving are available for unique control solutions.
Title
Title
DUS704C
Ceiling mountable 360 degree universal sensor
The DUS704 series combine motion detection (PIR), infra red remote control reception (IR) and ambient light level detection (PE) in the one device. In applications such as homes, lecture theatres and office towers, universal sensors can be utilised to detect motion and switch on the lights. When rooms are unoccupied, lights can be automatically dimmed or switched off to provide energy savings.
Infra Red remote control reception allows full control of lights, audio-visual equipment and blinds. The Dynalite DTK500 series hand held infra-red transmitters are compatible for use with the DUS704, and for the programming of 3rd party “universal” remote controls.
In situations where it is critical to maintain precise lighting control for individual workspaces, such as a flight control tower or office workstation, the DUS704 facilitates light compensation. The DUS704 can be placed in an automatic “Daylight Harvesting” mode for energy savings.
DUS704W
Wall mountable 90 degree universal sensor
The DUS704W is a wall mountable 90 degree universal sensor that combines motion detection (PIR), Infrared remote control reception (IR) and ambient light level detection (PE) into one device in applications such as offices, lecture theaters and homes.
• Motion detection feature — Detects the presence or absence of motion and adjusts lights accordingly.
• Ambient light level detection and daylight harvesting — In applications where it is critical to maintain precise light, the PE function reads ambient levels and adjusts artificial light accordingly.
• Infrared receive capability — Manually adjust light levels using a hand-held remote control, via the inbuilt IR receive sensor of the DUS704W.
• Multiple mounting options — The device is available in both 360 degree ceiling mount (DUS704C) or wide angle wall mount (DUS704W) versions.
DDRC1220FR-GL
Relay Controller
Robust control of switched loads
The Philips Dynalite DDRC1220FR-GL provides control of any type of switched load. All types of switched loads up to 20 A inductive are supported. The maximum load may be limited by 500 A inrush rating.
- Feed-through power circuit design - Electrically equivalent to a 12 pole contactor, with the added advantage of each pole being separately controllable via the DyNet network.
- Flexible mounting solution - A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled circuit.
- Inbuilt diagnostic functionality - Features circuit run time tracking on each channel and Device Online/Offline status indication.
- Multiple wiring schemes supported - Controls single phase and neutral or three phase and neutral (star) wiring configurations.
- Hardware override - Service override switch accessible from front panel.
DDRC810DT-GL
Relay Controller
Designed to operate any type of switched load
The Philips Dynalite DDRC810DT-GL is ideal for controlling bi-directional motors, such as curtain and blind motors. It is an eight channel device suitable for any switched load up to 10 A per channel, with a maximum box load of 40 A.
Voltage free changeover SPDT output relays - Perfect for controlling bi-directional motors.
Flexible mounting solution - A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled circuit.
Inbuilt diagnostic functionality - Features circuit run time tracking on each channel.
Standalone or networked operation - Can operate as a discrete standalone unit, or as part of an integrated control system when connected to the DyNet network.
Dry contact inputs - The unit receives instructions from voltage-free button presses.
DDBC120-DALI
DALI-2 Driver Controller
Enabling a full DALI universe including tunable white drivers, DALI sensors and user interfaces
The Philips Dynalite DDBC120-DALI is ideal for small-scale projects looking for a compact, all-in-one DALI control solution.
This controller operates seamlessly with all other Dynalite controllers, sensors, user interfaces and head-end software.
- Single-master solution – Compatible with a range of DALI fittings and devices, including DALI fluorescent drivers, DALI electronic low voltage transformers, DALI LED fixtures, DALI emergency lighting fixtures and Philips Dynalite DALI sensors and user interfaces.
- Compatible with DALI 209 drivers – Provides control of tunable white luminaires.
- DALI auto-enumeration – Provides automatic enumeration of DALI drivers when powered on and enables self-repair of the network system if a DALI driver fails.
- Fully scalable network solution – Direct mapping from DALI to the DyNet network protocol eliminates DALI imposed limits, such as maximum group sizes.
- Flexible mounting solution – A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled lighting circuit.
- Dual functionality – Leverage advantages of a true DALI network solution, whilst still allowing full function set of DyNet network control.
- Driver standby power elimination – Internal switched relay automatically isolates the power circuit when all drivers are dimmed to 0%.
- Integral DALI bus power supply – Removes the need for provision of a separate external power supply and reduces distribution board wiring complexity.
- Driver management tools – Includes lamp and driver status reporting, driver run time tracking, and emergency test reporting.
- Onboard DALI test function – Use the controller's service switch to set all connected lamps to full brightness, or flash on/off for a 5-minute test window, without the need for software or additional input devices.
DDRC420FR
Relay Controller
Robust control of switched loads
The Philips Dynalite DDRC420FR provides control of any type of switched load, including difficult lighting loads. This four channel device supports all types of switched loads up to 20 A inductive.
- Feed-through power circuit design – Electrically equivalent to a 4 pole contactor, with the added advantage of each pole being separately controllable via the DyNet network.
- Flexible mounting solution - A DIN-rail mountable device, designed to be installed into the distribution board supplying power to the controlled circuit.
- Inbuilt diagnostic functionality - Features circuit run time tracking on each channel and Device Online/Offline status indication.
- Multiple wiring schemes supported - Controls single phase and neutral or three phase and neutral (star) wiring configurations.
- Hardware override - Service override switch accessible from front panel.
PAxBPA
Antumbra Button
Contemporary two, four, or six-button panel with light-wash effect
The Philips AntumbraButton user interface features a sleek, contemporary design and incorporates the latest in field effect technology. Each easy-to-press mechanical button can be customized with text or icons and programmed to perform a wide variety of local and site-wide control functions. The PA2BPA, PA4BPA, and PA6BPA are suitable for but not limited to North American, South American, Australian and New Zealand markets.
- Field effect technology – The user interface detects an approaching user and ‘wakes up’, initiating a wall-wash lighting effect to encourage interaction.
- Supplied as two components – The Application Module contains buttons, rim, base and mounting plate, which can be mixed and matched to suit décor. The Communication Module (DACM) contains logical and network functions and can be pre-programmed off-site, allowing commissioning to commence prior to finalizing rim and button options.
- Hidden sensory inputs – An internal light sensor measures ambient light and adjusts lightwash effect accordingly. A built-in temperature sensor automatically adjusts air conditioning when integrated into the system.
- Multiple language and icon labeling – Button labeling language choices include English, Chinese and Arabic. A library of common icons transcends language barriers, which is particularly useful in hospitality applications.
- Décor-matching options – Buttons and rims are available in a range of attractive polycarbonate and metallic finishes.
- 64-channel DMX Tx support – Can be factory-set to DMX instead of DyNet, to communicate directly with DMX fixtures
DUS804CS-UP
Multifunction Sensor
Surface mount ceiling sensor with ultrasonic capability
The Philips Dynalite DUS804CS-UP is a surface mountable 360 degree multifunction sensor that combines ultrasonic (UP), motion detection (PIR), infrared remote control reception (IR) and ambient light level detection (PE) into one device in applications such as offices, lecture theaters and homes.
- Motion detection feature – Detection of motion within scanned area triggers a programmed lighting action. Ultrasonic technology enables motion detection behind fixed objects.
- Ambient light level detection and daylight harvesting- In applications where it is critical to maintain precise light, the PE function reads ambient levels and adjusts artificial light accordingly.
- Infrared receive capability - Manually adjust light levels using a hand-held remote control, via the inbuilt IR receive sensor of the DUS804CS-UP.
- Daylight harvesting mode - Delivers automatic energy savings.
System Manager (Supervisory, Control, Monitoring, Management and Maintenance software)
- Advanced Astronomical Scheduling
- Real time monitoring and reporting
- Interactive overview of operable walls, sensors and user interfaces
- Graphical floorplans with interactive elements and detailed asset data
- Historical notional energy monitoring and graphing
3rd Party System Integrations
- Audio Visual System (Extron) Ethernet interfaces
- DMX512-Rx interfaces to control house lighting from the lighting consoles
- Building Management System low-level interfaces
- HVAC integration for exhaust fans
- Fire System integration
600+ individual channels of Load Control; expanding the system to a total in excess of 1000 channels
- Phase Dimming (Trailing Edge)
- Ballast Control (1-10V Dimming)
- Relay Switched Control Groups
- Blind control

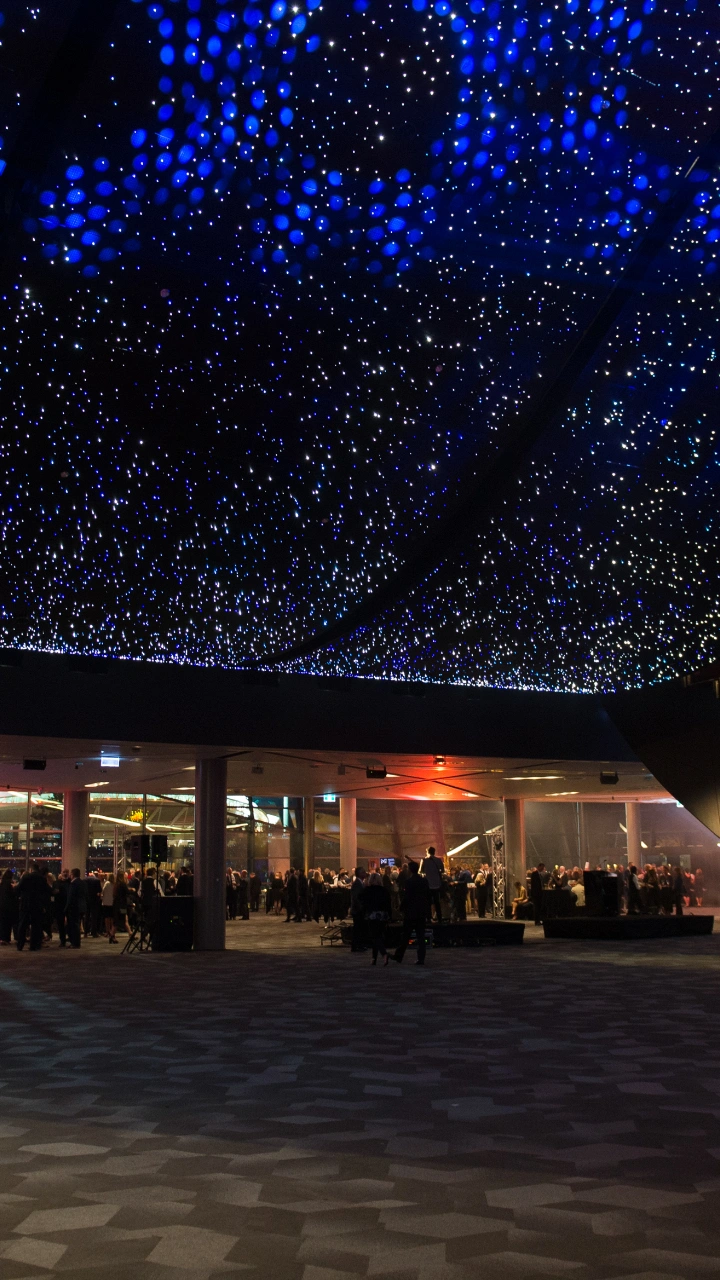

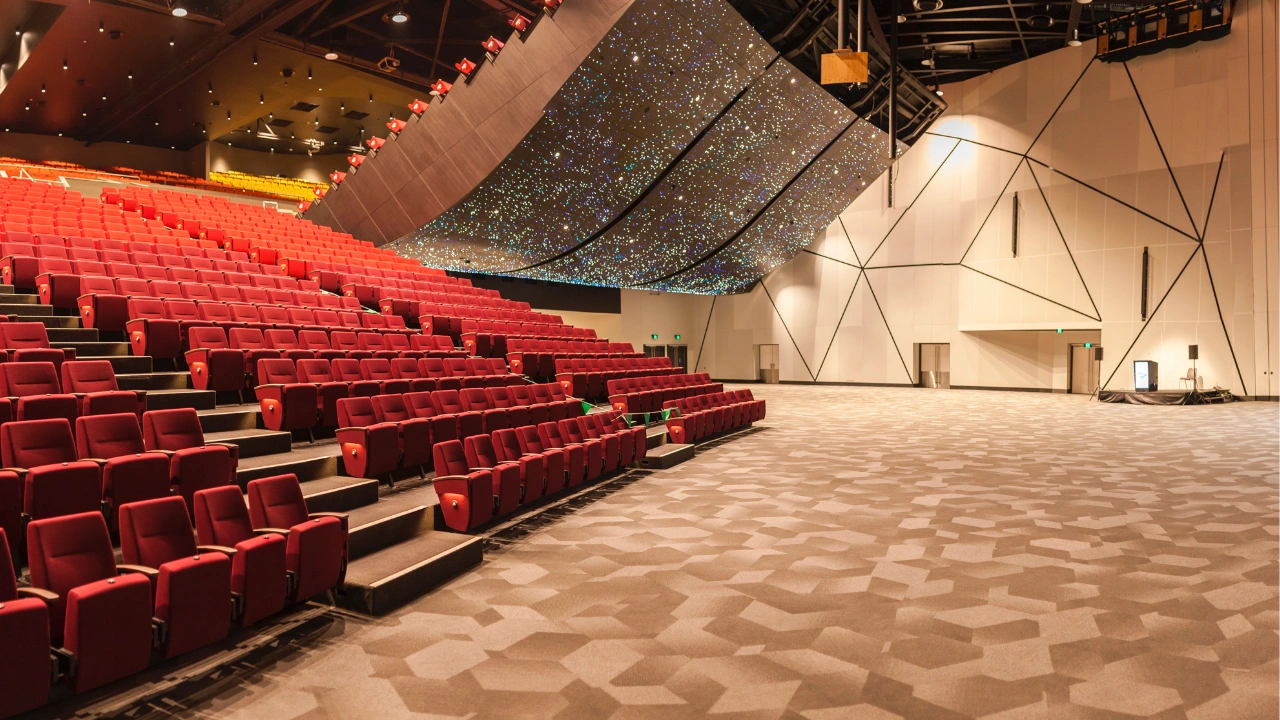

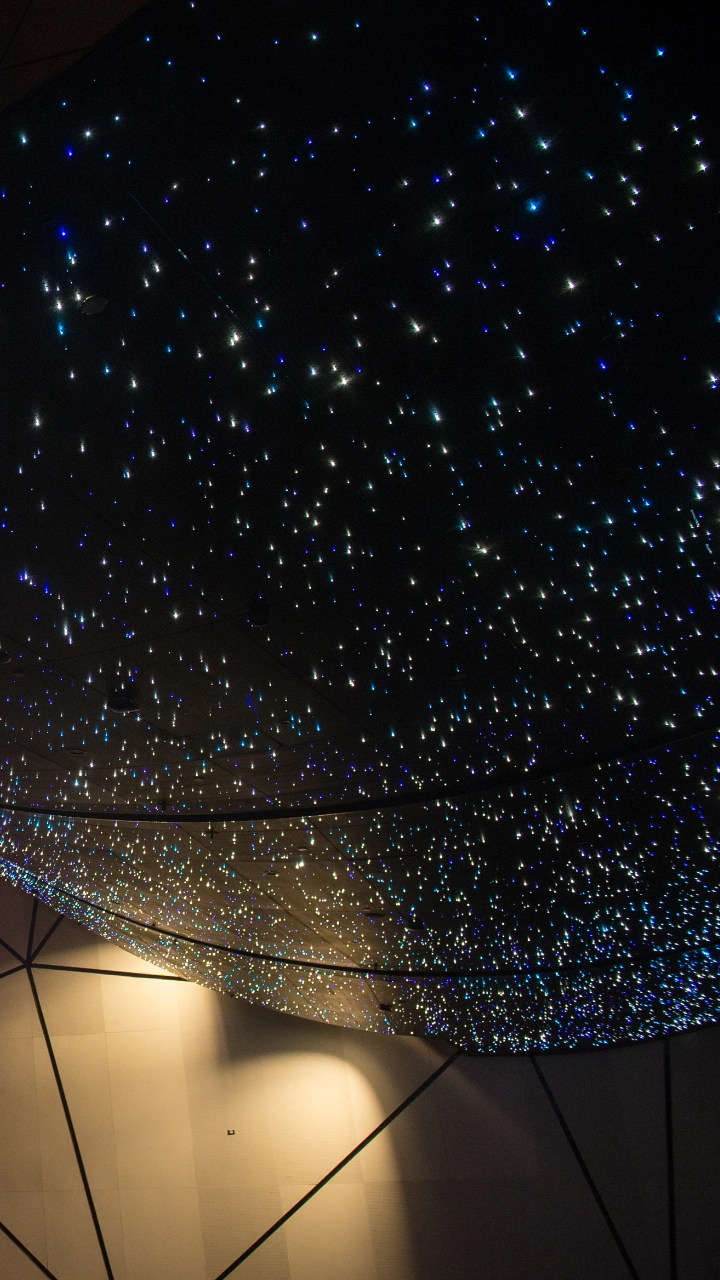

- Starlight aerial backdrop comprising of 35,000 twinkling fibre optic light sources
50+ Sensors & User Interfaces
- Dynamic Occupancy Control
- Maintained Illuminance light level control
- Robust brushed stainless steel User Panels
- Antumbra Button & Display User Panels for key Back-of-House areas.
- Operable walls dynamically link areas and panels for a combined lighting configuration
Want To Know More
Contact Us today
