DPMI940-D

Dry Contact Interface

Four-way DALI dry contact interface

The Philips Dynalite DPMI940-D is a four-channel input dry contact interface, designed to allow mechanical and electronic switches to interface directly with a Philips Dynalite DALI controller on the DALI bus.

• DALI device – Designed to operate seamlessly with the Philips Dynalite DDBC120-DALI or DDBC320-DALI controller.
• Powered directly by the DALI network – Eliminates the need for additional network field wiring.
• Fully programmable – Each individual input is fully software programmable over the DALI network, allowing for multiple functions to be performed such as select lighting scene, room join or toggle lighting on/off.
• Compact size – Inputs are presented on flyleads, making the device suitable for installation behind multi-gang switch grids.
• Simple dry contact interface – Can be used for low level integration to third party systems such as security and air conditioning so that the lighting can be coordinated together with other services found within a project.

DUS804C

360º ceiling mount sensor

The DUS804C is a low profile recessed flush mount 360º ceiling mount sensor that combines motion detection (PIR), infra red remote control reception (IR) and ambient light level detection (PE) in the one device. In applications such as office buildings, lecture theatres, and homes, the DUS804C universal sensor can be utilised to detect motion and switch on the lights. When rooms are unoccupied, lights can be automatically dimmed or switched off to provide energy savings. The unit also incorporates a segmented click-up bezel surrounding the motion sensor element. This enables a portion of the sensing field to be readily masked to prevent nuisance detection from adjacent doorways or corridors. The same sensor provides IR control reception to enable full remote control over lights, audio-visual equipment and blinds. A range of hand held infra-red transmitters to complement DUS804 series universal sensors are available. In situations where it is critical to maintain precise lighting control for individual workspaces, such as an office workstation or even air traffic control centres, the DUS804C facilitates light compensation. The DUS804C can also be placed in an automatic“Daylight Harvesting” mode for energy savings.

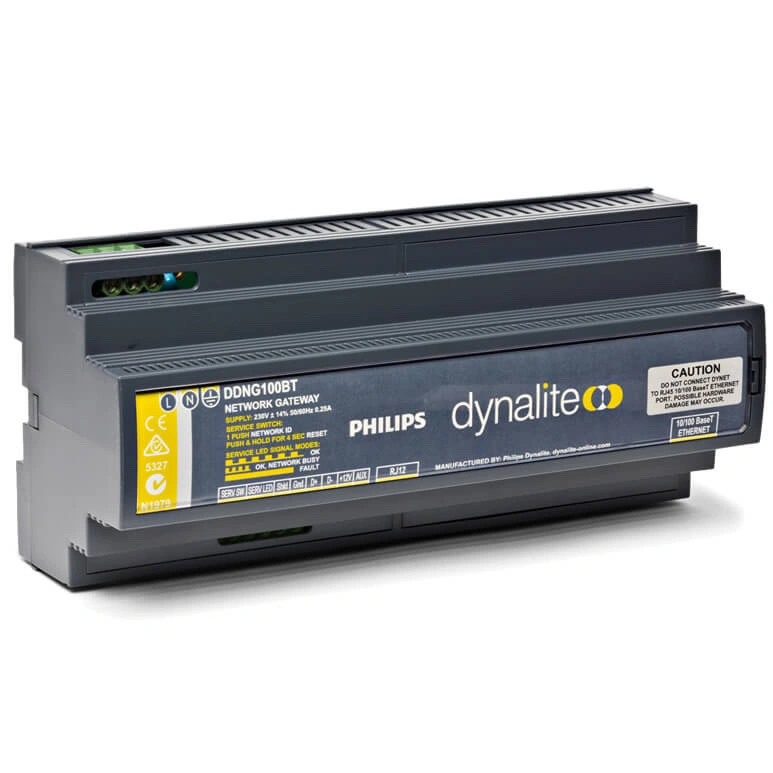

DDNG100BT

The Dynalite DDNG100BT provides cost-effective integration between Philips Dynalite control systems and Ethernet networks. It is designed to provide remote control of sites and link multiple sites together, using the Internet or a corporate LAN as a backbone. The device supports the TCP/IP protocol, with static or DHCP assigned IP addressing. Routing Mode links multiple DDNG100BT’s together in point-to-point or broadcast modes. An integral webserver allows Browser based control scenarios. The interface incorporates a Programmable Logic Controller that can process comprehensive conditional and sequential logic and arithmetic functions. The DDNG100BT is capable of routing DyNet to third-party systems, such as audio-visual and building automation systems, providing an integrated approach to total building control and energy management.

iPlayer 3

Author, configure, and control dynamic LED light shows for DMX lighting networks

iPlayer 3 controller is a compact yet powerful show storage and playback device capable of delivering light shows to installations with up to 340 unique light addresses. Packaged with ColorPlay 3 light show authoring software, iPlayer 3 is designed to add new levels of sophistication and flexibility to your lighting installations while eliminating the need for expensive lighting boards and technical programming expertise.Features

Easy to use
With factory preset shows, custom show-authoring capabilities, an intuitive LCD interface, removable SD card storage, and onboard light addressing features, iPlayer 3 enables you to spend more time on the creative aspects of lighting design and less time on setup.

Designed for use with the optional Controller Keypad
Controller Keypad is a wall-mounted user interface providing instant pushbutton playback of up to eight light shows.

Control two DMX universes
iPlayer 3 has two DMX output ports, each controlling a universe of 512 DMX channels.

Environment
Dry Location, IP20

Made to Stock
Some items in this family are eligible for our North American Made to Stock program. Find out more >

Packaged with ColorPlay 3 light show authoring software
ColorPlay 3 gives you the flexibility to create and manage light shows using fully customizable effects, multi-track editing, timeline layering, and transition styles.

Supports the optional AuxBox expansion device
AuxBox automatically triggers up to eight iPlayer 3 light shows using any remote triggering device with a dry-contact closure. Via the AuxBox, you can trigger light shows by motion sensors, third party control or sensor systems, and more.

Automate show playback
Set alarms to automatically trigger show playback based on a specific date, day of the week, weekdays, weekends, or an astronomical event, such as sunrise or sunset.

Regulatory Listings
UL/cUL, FCC Class B, CE, C-Tick

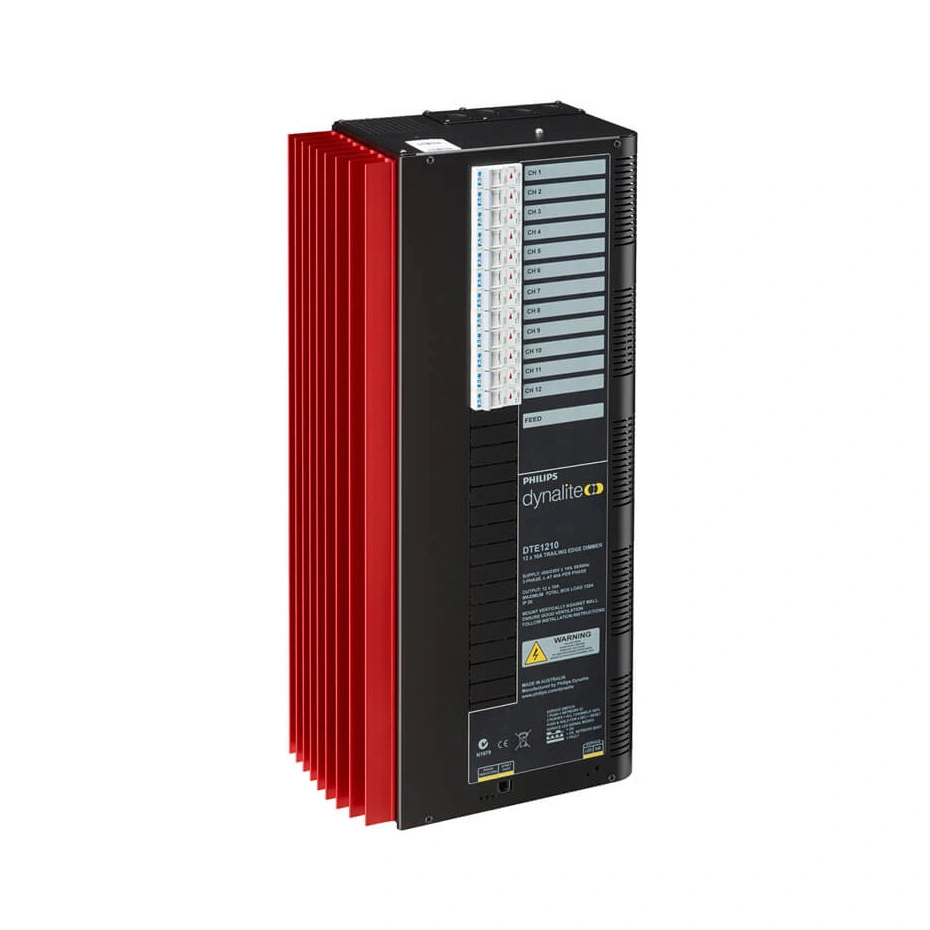

DTE1210

Trailing Edge Dimmer Controller

Controls a wide range of dimmable electronic transformers

The Philips Dynalite DTE1210 trailing edge dimmer controller features 12 channels, with a maximum load per channel of 10 A and a total box load of 120 A. The trailing edge output makes the device suitable for control of electronic transformers, incandescent lamps and track lighting.

• Operates from three phase supply – Using a three phase supply when connected to a three circuit track permits the track to be loaded to maximum rating.
• Dual communication ports – Enable direct DMX512 integration with theatrical systems
• Voltage regulation and soft start technologies – Protects lamps and extends life dramatically, minimizing lamp replacement and ongoing maintenance requirements.
• Naturally ventilated – Integral ventilation in the housing of the unit means that no forced cooling is required, thereby reducing maintenance.
• Interface to other devices – Incorporates multipurpose programmable dry contact and analog inputs for interfacing to other devices.
• Internal controls – Programmable logic controller capable of comprehensive conditional and sequential logic and arithmetic function processing.
• Options available – Including earth leakage and overload protection on each channel, and three pole circuit breakers.

DTP170

The DTP170 is a feature rich colour LCD touchscreen that uses vivid graphics and sophisticated on-screen controls which allows the Systems Installer to create visually stunning and easy-to-use pages. Control of various equipment such as lighting, AV, security and HVAC can be easily integrated and controlled from the one location. Objects such as logos, buttons, faders, floor plans and diagnostic icons can be placed on pages and used to perform simple and complex conditional logic macros. Pages are created using Philips Dynalite’s touchscreen editor. JavaScript is fully supported.

Incorporating an innovative clip-on fascia capability, the DTP170 fascia accommodates practically any flat architectural surface medium. That gives you the freedom to choose; stainless steel, stone, glass, laminate, wood, vinyl, ceramic; the options are limitless. Fascia material may be matched with Dynalite’s DR2P Revolution series user control panels for perfect colour coordination.

Full Internet connectivity is supported. The DTP170 is powered from the DyNet network so does not require a mains voltage connection.
